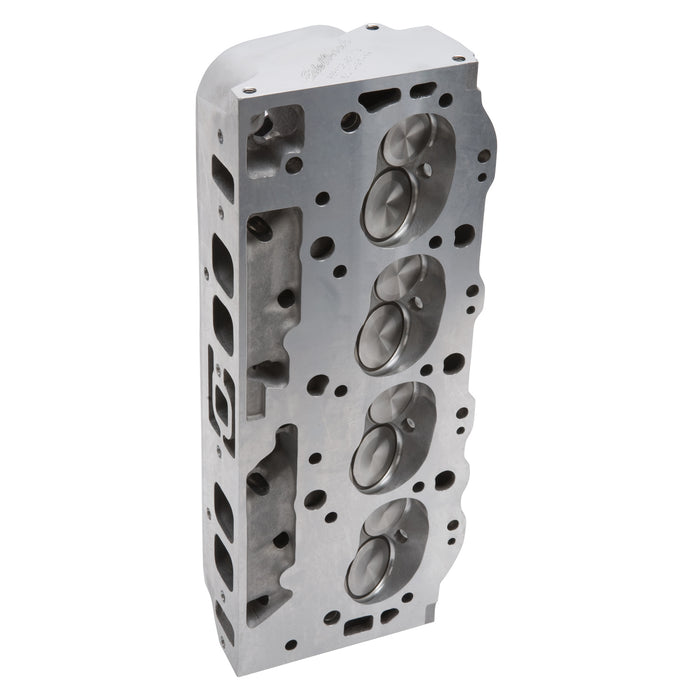

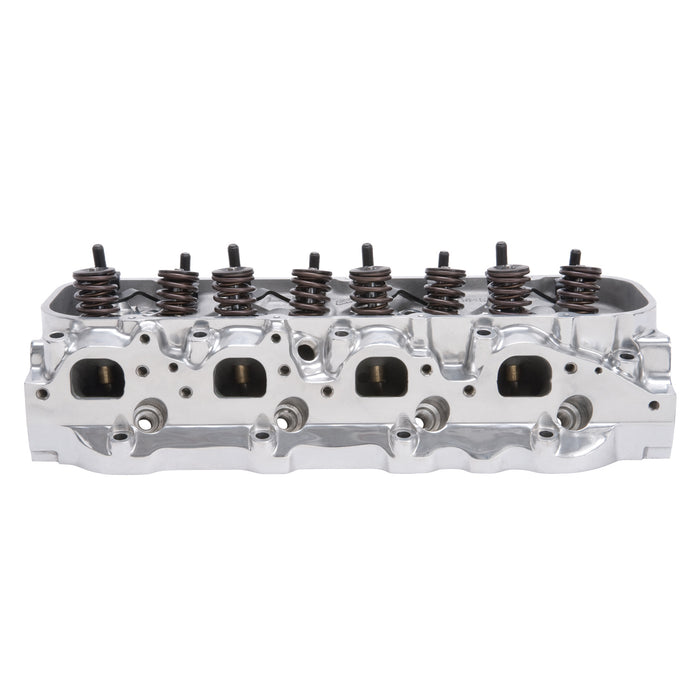

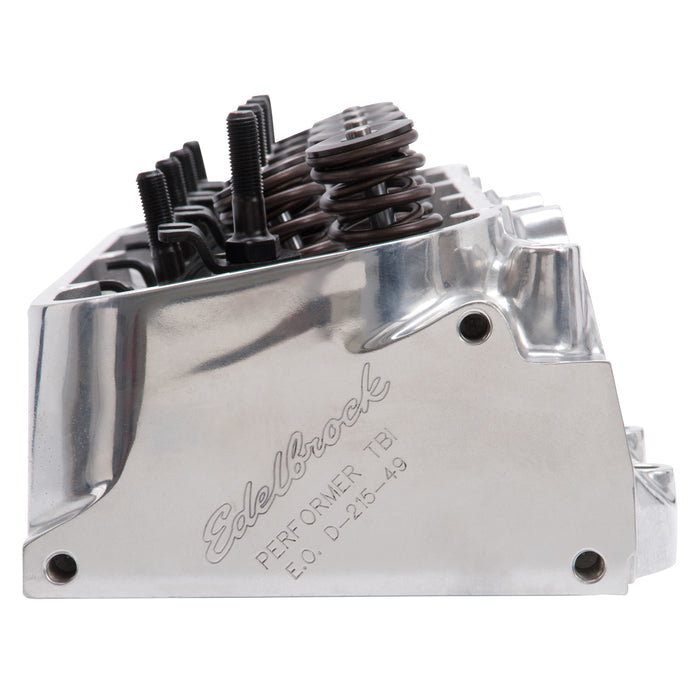

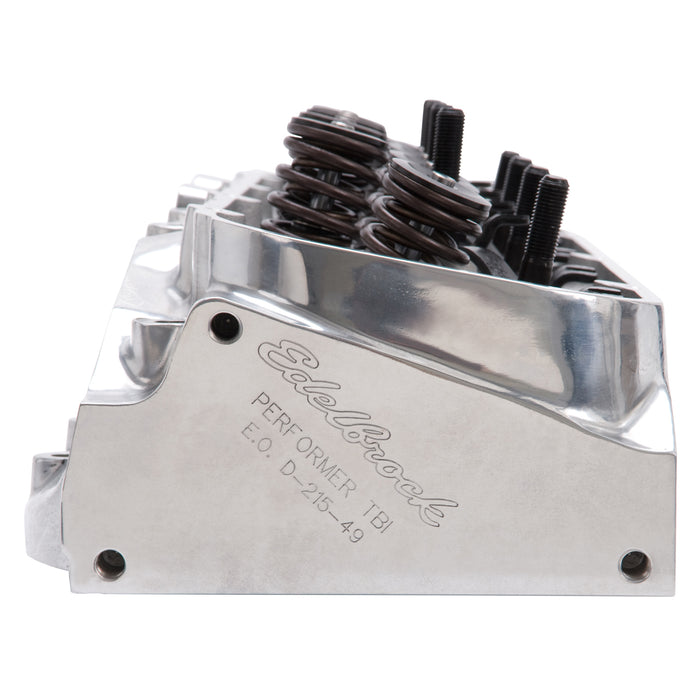

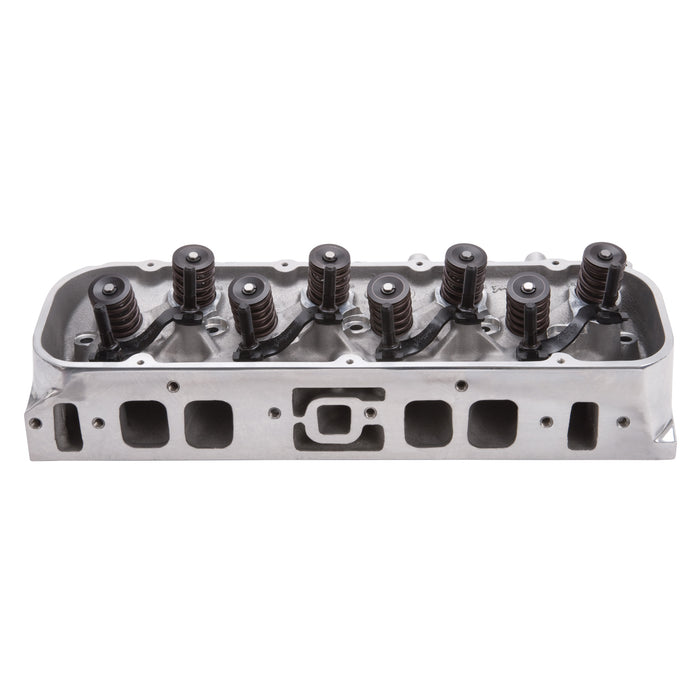

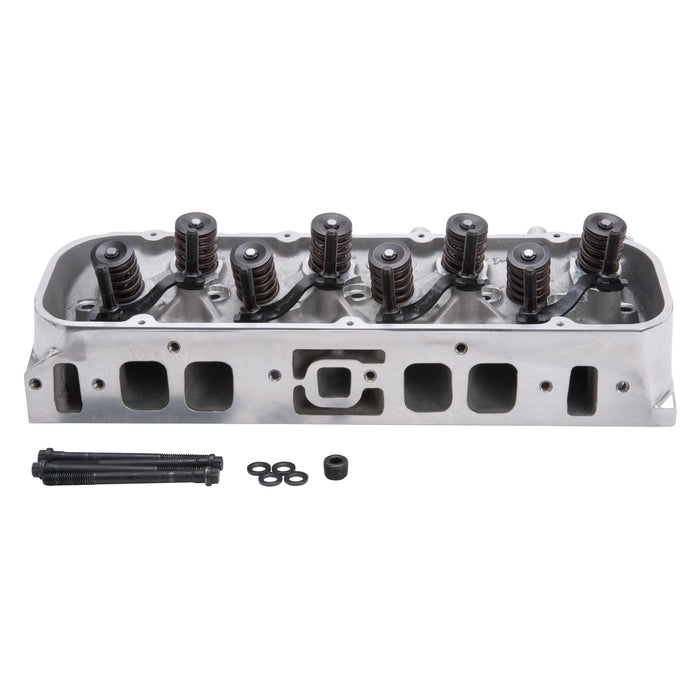

Edelbrock 604919 Engine Cylinder Head
by Edelbrock
SKU ds_BDVJ_604919
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,084.18
-
Original price
$1,084.18
Original price
$1,084.18
$1,084.18
-
$1,084.18
Current price
$1,084.18
Availability:
Out of stock
Description
The Edelbrock #604919 Performer Bare High Compression Cylinder Heads are designed for Big-Block Chevy Oval Port V8 applications. These Edelbrock Performer Series Cylinder heads are 50-state street legal and provide outstanding performance from Idle-5,500 RPM's. The Edelbrock Performer heads are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. They also feature the highest quality intake and exhaust valves and valve springs.
Specifications
| CNC Ported | No |
| Combustion Chamber Volume | 100.0 |
| Deck Thickness | 0.562 |
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | Edelbrock part #604419 Performer RPM O-Port bare cylinder heads are designed for Big-Block Chevy applications. |
| Description_INV | Edelbrock BBC Cylinder Head |
| Description_LAB | XX Performer Big-Block Chevy Oval Port Hydraulic Flat Tappet Cam Polished |
| Description_MKT | The Edelbrock #604919 Performer Bare High Compression Cylinder Heads are designed for Big-Block Chevy Oval Port V8 applications. These Edelbrock Performer Series Cylinder heads are 50-state street legal and provide outstanding performance from Idle-5,500 RPM's. The Edelbrock Performer heads are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. They also feature the highest quality intake and exhaust valves and valve springs. |
| Description_TRA | #60499 Intake entry and exhaust exists are not profiled. |
| Description_TRA | 100cc semi-open chamber cylinder heads feature a 1-1/2 Deg rolled over (angle milled) design that improves intake port alignment and provides a smaller combustion chamber without shrouding the valves |
| Description_TRA | 8.8:1 compression ratio when used on 1987-95 TBI-equipped 7.4L dished piston engines |
| Description_TRA | 9.2:1 compression with flat-top pistons for an outstanding high Performance's street head |
| Description_TRA | EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS |
| Description_TRA | Match with Edelbrock head gasket sets. |
| Description_TRA | Performer 454-O are 50-state street legal |
| Description_TRA | Performer applications include heat crossover passage for emissions related engines |
| Description_TRA | Recommended spark plugs 14mm x 3/4" reach with flat gasket seat (Champion RC12YC). |
| Exhaust Valve Diameter | 1.880 |
| Grade Type | Performance |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | Yes |
| Head Casting Number | 31-6045 |
| height | 8.6 |
| Intake Runner Volume | 290.0 |
| Intake Valve Diameter | 2.190 |
| length | 26.0 |
| Material | Aluminum |
| Push Rod Diameter | 0.375 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Valve Angle | 26 |
| Valve Spring Diameter | 1.500 |
| Valve Spring Maximum Lift | 0.700 |
| Valve Stem Diameter | 0.341 |
| weight | 43.95 |
| width | 11.1 |
