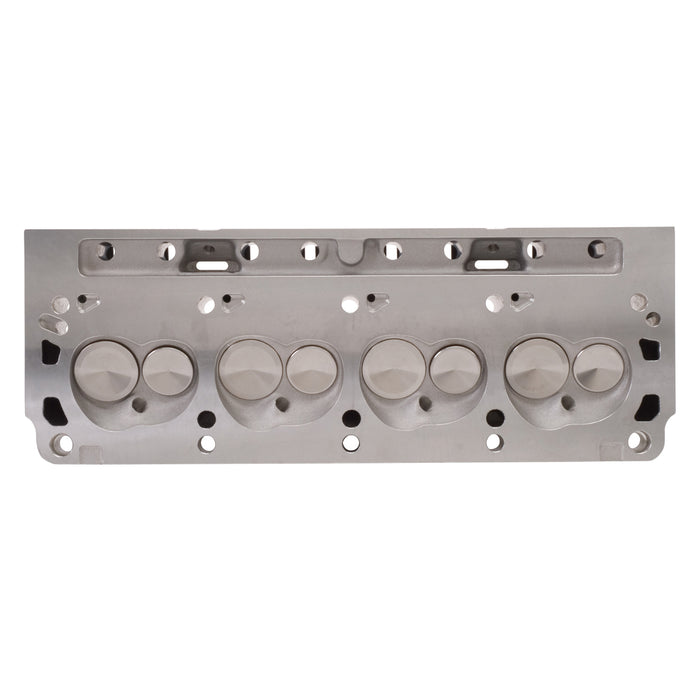

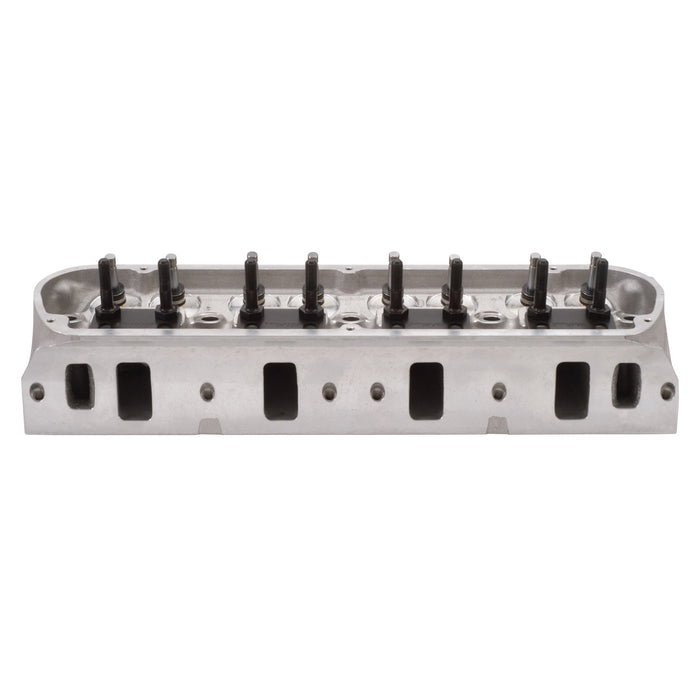

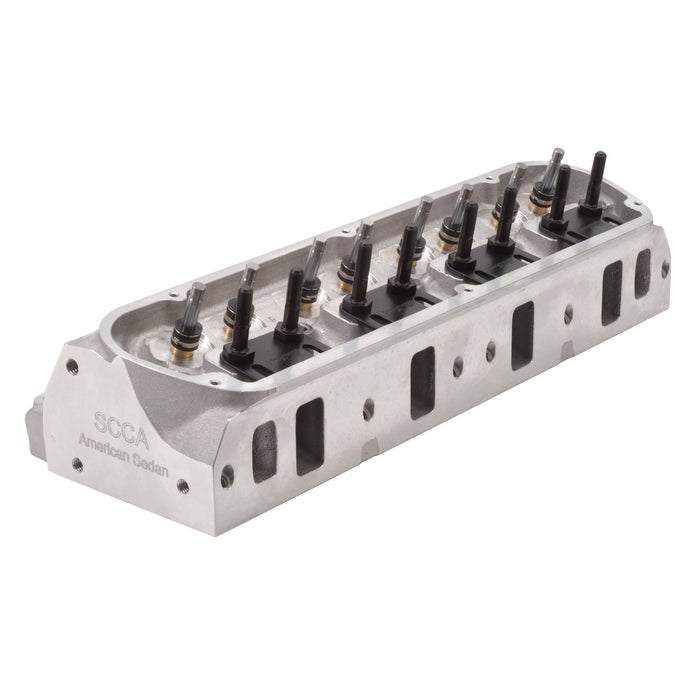

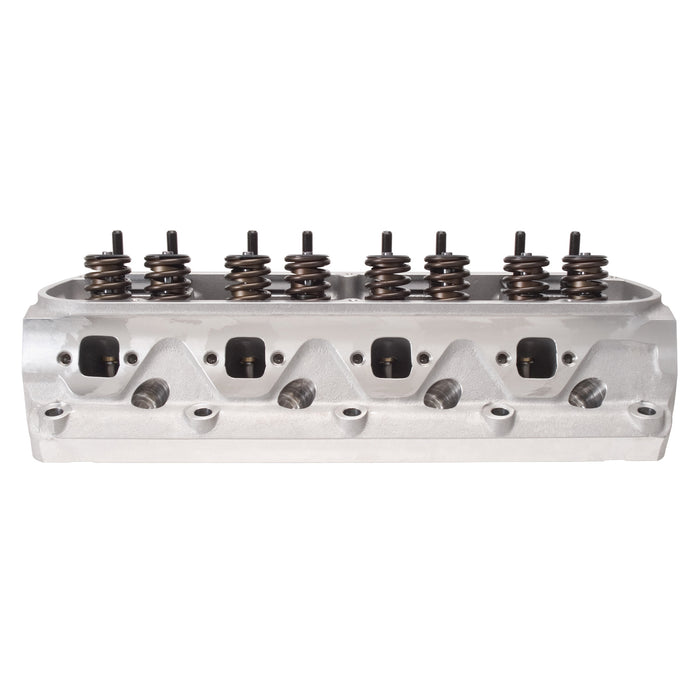

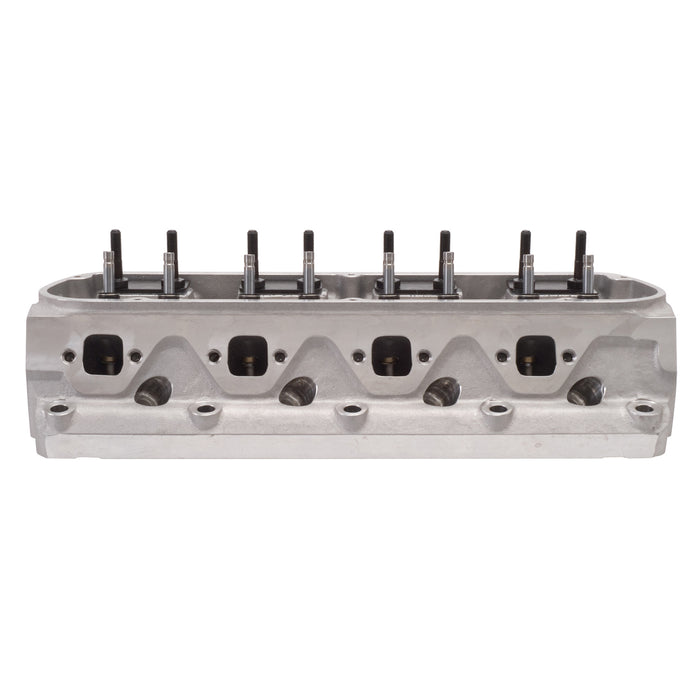

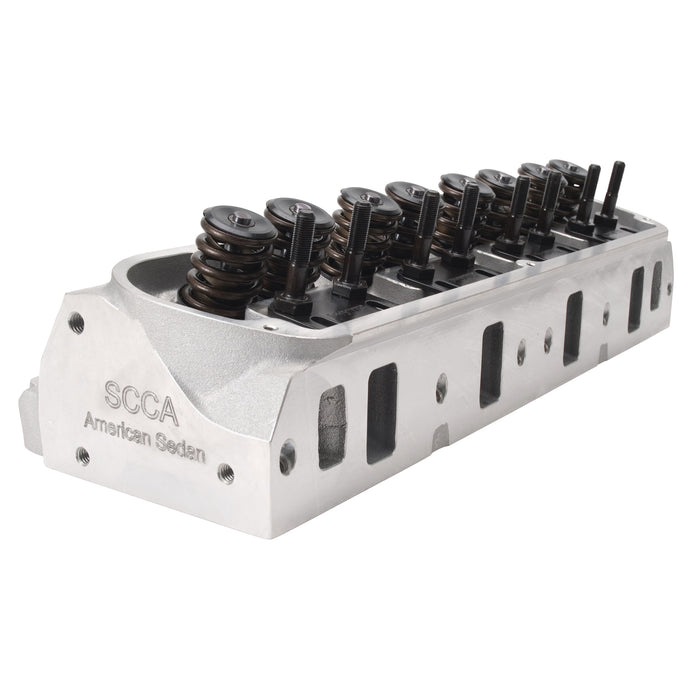

Edelbrock 602579 Engine Cylinder Head
by Edelbrock
SKU ds_BDVJ_602579
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,027.08
-
Original price
$1,027.08
Original price
$1,027.08
$1,027.08
$1,027.08
-
$1,027.08
Current price
$1,027.08
Availability:
Out of stock
Description
The Edelbrock 602579 small block Ford Performer RPM cylinder head is designed exclusively for the SCCA American Sedan Series Class. They feature 1.94" intake, 1.55" exhaust valve sizes and non interlocking valve seats. To comply with class rules, there is no blending work in the intake entries, exhaust exits or bowl area of the intake or exhaust. The casting is manufactured of A356 aluminum and heat treated to T6 spec for superior quality. The head includes manganese-bronze valve guides, one-piece stainless steel valves with hardened tips, ductile iron valve seats and Heli-Coil threaded inserts in the exhaust and rocker stud holes. A bare head will require final sizing of the valve guides and proper valve job prior to the installation of valves. An Edelbrock SCCA RPM head is engraved with the SCCA approved logo and are legal for the American Sedan Class. For additional information, please refer to the SCCA rule book.
Specifications
| CNC Ported | No |
| Combustion Chamber Volume | 60 |
| Construction Type | Complete |
| Deck Thickness | 0.625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L) |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | Edelbrock part #602579 small block Ford Performer RPM cylinder heads are designed exclusively for the SCCA American Sedan Series Class. |
| Description_INV | Edelbrock SBF Cylinder Head |
| Description_LAB | SCCA Small-Block Ford Cylinder Head Complete |
| Description_MKT | The Edelbrock 602579 small block Ford Performer RPM cylinder head is designed exclusively for the SCCA American Sedan Series Class. They feature 1.94" intake, 1.55" exhaust valve sizes and non interlocking valve seats. To comply with class rules, there is no blending work in the intake entries, exhaust exits or bowl area of the intake or exhaust. The casting is manufactured of A356 aluminum and heat treated to T6 spec for superior quality. The head includes manganese-bronze valve guides, one-piece stainless steel valves with hardened tips, ductile iron valve seats and Heli-Coil threaded inserts in the exhaust and rocker stud holes. A bare head will require final sizing of the valve guides and proper valve job prior to the installation of valves. An Edelbrock SCCA RPM head is engraved with the SCCA approved logo and are legal for the American Sedan Class. For additional information, please refer to the SCCA rule book. |
| Description_TRA | Hardened pushrods required, use Edelbrock #9632 (flat tappet only). Will not accept rail rockers. 289-302 V8s require Head Bolt Bushings #9680 and either Head Bolt Kit #8552 (7/16") or stock head bolts. Match with Edelbrock head gasket sets. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. This head does not include valve springs due to the wide variety of camshafts used in competition. Please consult your camshaft manufacturer for appropriate valve spring selection. Deck thickness: 5/8", rocker stud diameter: 3/8", pushrod diameter: 5/16" (width of slot in guide plate). |
| EGR Port | Yes |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 60 |
| Exhaust Valve Diameter | 1.55 |
| Family | SCCA RPM |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | Yes |
| height | 7.188 |
| Horsepower | 300-500 |
| Intake Runner Volume | 170 |
| Intake Valve Diameter | 1.94 |
| length | 22.188 |
| Material | Aluminum |
| Quantity | Sold Individually |
| Retainer Included | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Seat Angle | Exhaust 0 deg/Intake 0 |
| Seat Material | Ductile Iron |
| Series | SCCA RPM |
| Valve Angle | 20 |
| Valve Included | Yes |
| Valve Springs Included | No |
| Valve Stem Diameter | 0.3438 |
| weight | 31.75 |
| width | 10.125 |
