Description

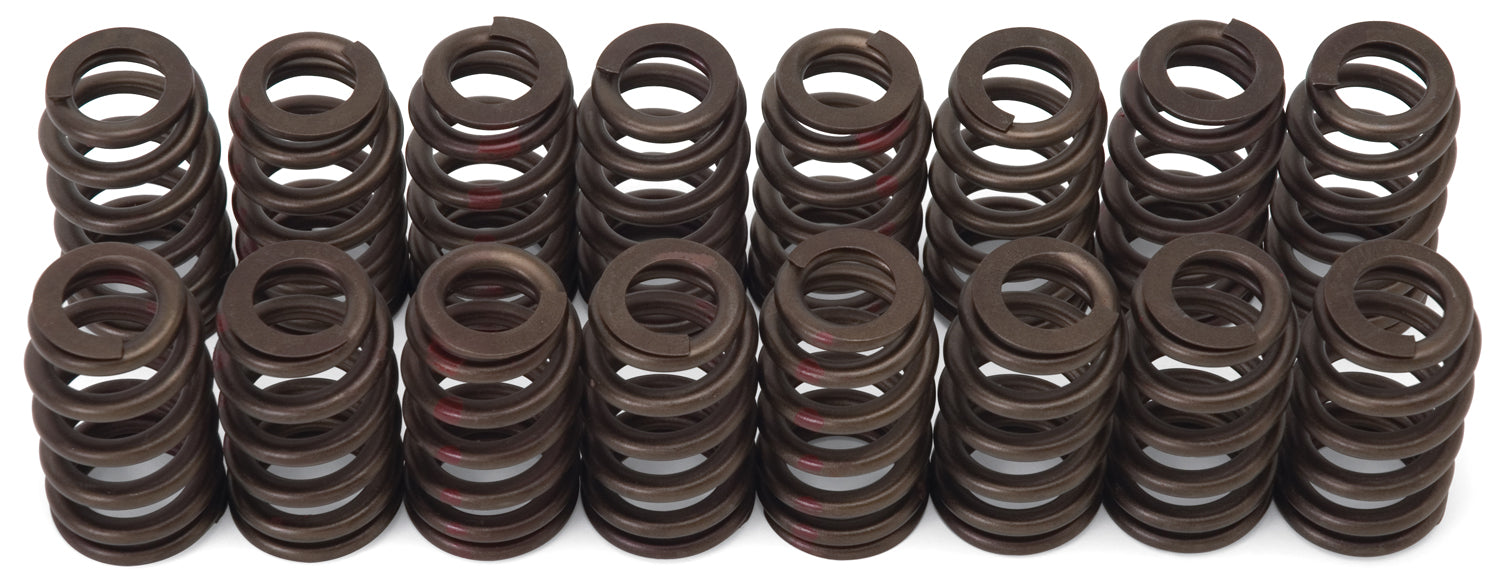

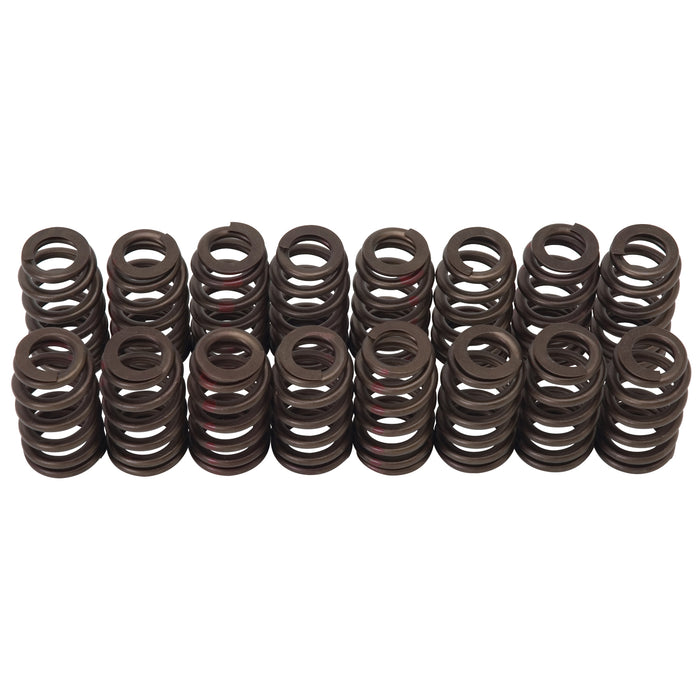

The Edelbrock #5768 Sure Seat Valve Spring for Chevy LS V8 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance'springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application.
Specifications
| Camshaft Type | Hydraulic Roller |
| Camshaft Type | Mechanical |
| Coil Bind Height | 1.140 |
| Coil Bind Height | 1.140 in. |
| Damper Spring Included | No |
| Description_ABR | Valve Sprng |
| Description_DEF | Engine Valve Spring Kit |
| Description_DES | VALVE SPRINGS |
| Description_EXT | The Edelbrock #5768 Sure Seat Valve Spring for Chevy LS V8 O.E Cast Aluminum Cylinder Heads are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. |
| Description_EXT | The Edelbrock #5768 Sure Seat Valve Spring for Chevy LS V8 O.E Cast Aluminum Cylinder Heads are for use on original equipment heads when installing Edelbrock Performer-Plus; Performer RPM and Torker-Plus camshafts. |
| Description_FAB | Replacement For PN[61939] LT4 RPM Xtreme Heads |
| Description_FAB | Springs Made of Highest Quality Spring Wire |
| Description_FAB | Springs Precision Wound To Close Tolerances |
| Description_INV | Edelbrock Sure Seat Valve Springs |
| Description_KEY | Edelbrock; Valve springs; Cylinder heads; sure seat valve springs; Performer; Performer RPM; E-Street; installed height; coil bind; closed pressure; open pressure; Non-Rotator; Rotator; Camshaft; 5768 |
| Description_LAB | Sure Seat Valve Springs for Chevy LS V8 |
| Description_MKT | The Edelbrock #5768 Sure Seat Valve Spring for Chevy LS V8 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. |
| Description_MKT | The Edelbrock #5768 Sure Seat Valve Spring for Chevy LS V8 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance'springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 3in.} |
| Description_TRA | Non-Rotator springs |
| Description_TRA | Recommended Edelbrock Cams: #2215, #2216, #2217, #2218, #2219 |
| Description_TRA | • Non-Rotator springs • Recommended Edelbrock Cams: #2215; #2216; #2217; #2218; #2219 |
| height | 2.25 |
| Inside Diameter | (Top) 0.650 in, (Bottom) 0.885 |
| Inside Diameter | 0.885 in. / 0.650 in. |
| Installed Height | 1.800 |
| Installed Height | 1.800 in. |
| Installed Pressure | 138 |
| Installed Pressure | 138 lbs. |
| length | 12.25 |
| Material | Chromium Silicon |
| Open Height | 1.200 in. |
| Open Pressure | 326 |
| Outside Diameter | (Top) 1.066 in, (Bottom) 1.300 |
| Outside Diameter | 1.301 in. to 1.066 in. |
| Position | Exhaust or Intake |
| Quantity | Set of 16 |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Spring Rate (lbs./in.) | N/A |
| Spring Type | Beehive |
| Spring Type | Single |
| Springs Per Valve | Single |
| Tubing Length | 326 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 4.0 |
| width | 3.38 |
