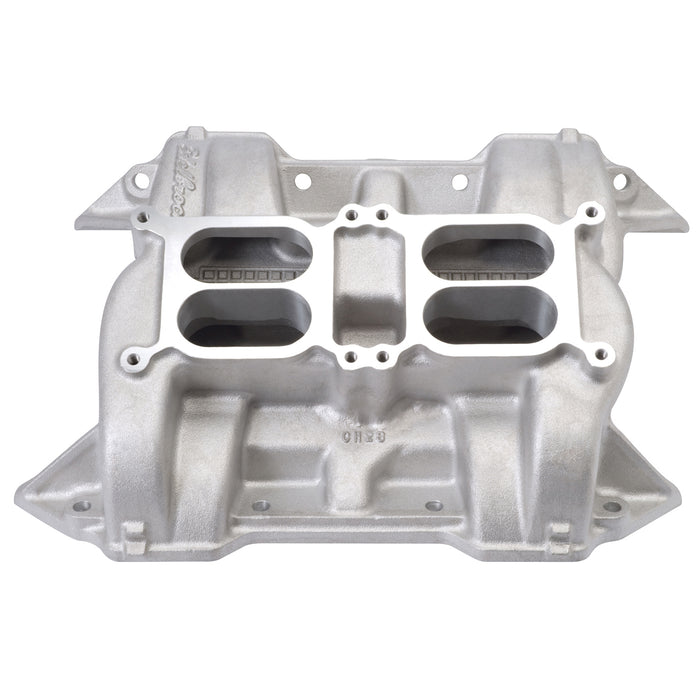

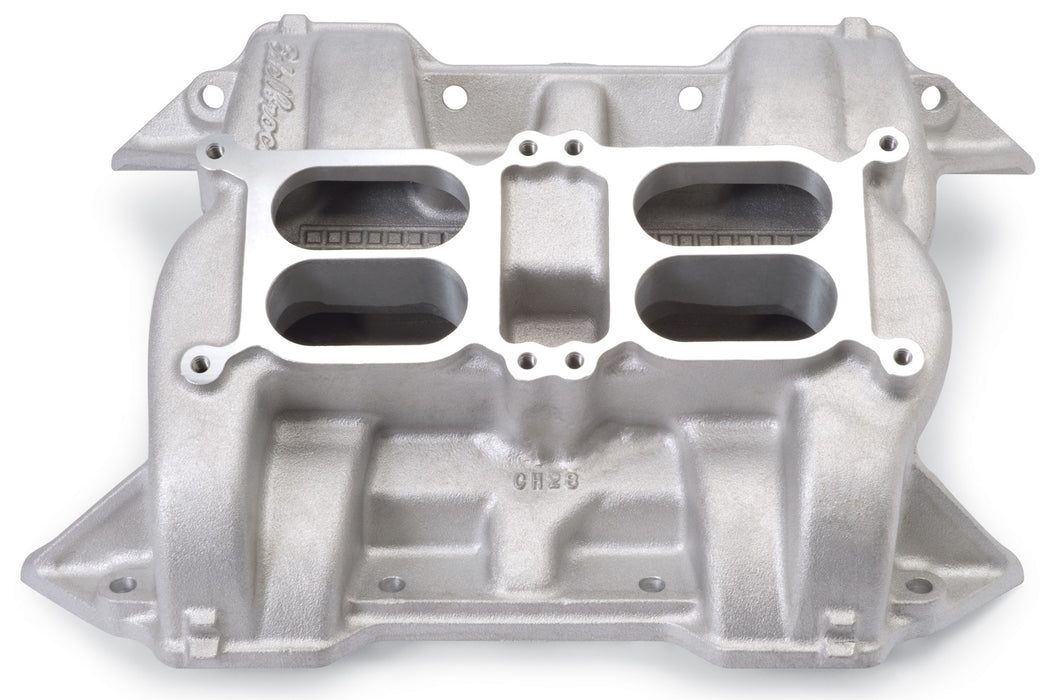

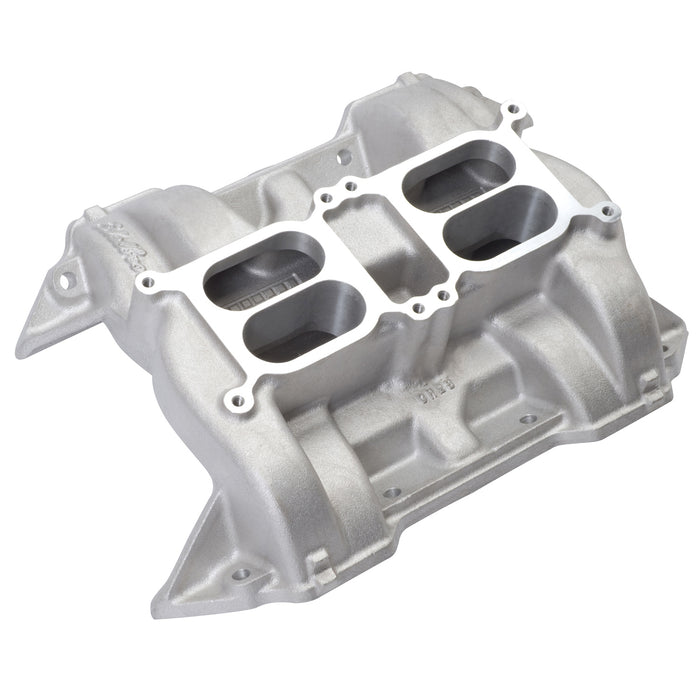

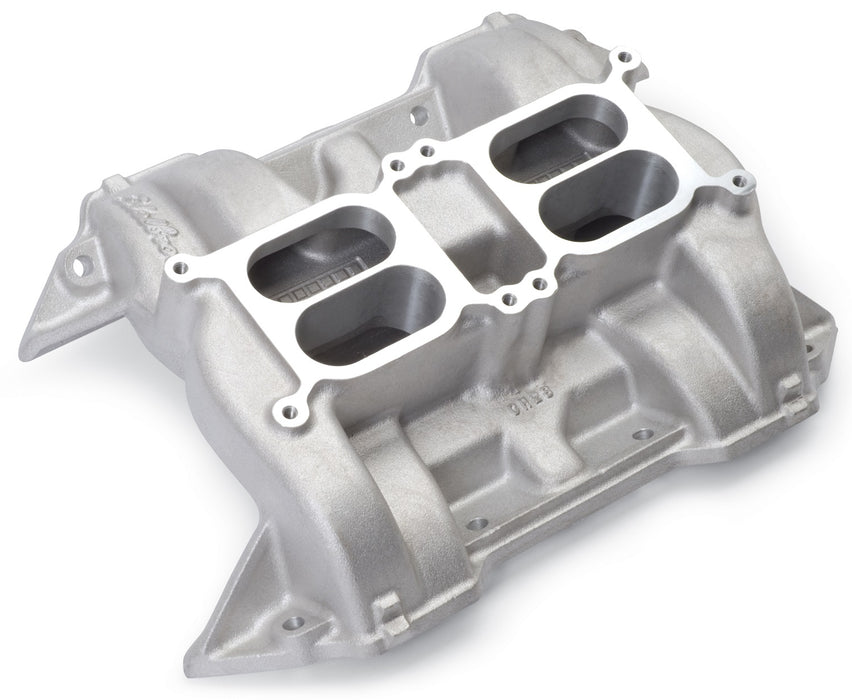

Edelbrock 5440 Edelbrock CH-28 Dual-Quad Intake Manifold for Chrysler 413-426-440 Big-Block V8
by Edelbrock
SKU ds_BDVJ_5440
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$856.40
-
Original price
$856.40
Original price
$856.40
$856.40
$856.40
-
$856.40
Current price
$856.40
Availability:
Only 2 left!
Description
Edelbrock part #5440 Chrysler CH-28 Dual-Quad intake manifold is designed for 413-426-440 c.i.d. Chrysler V8's. Use with Performer-Plus cam #2192 for low-end torque or Performer RPM cam #7194 for top-end power. Will not fit 1962-64 Max Wedge heads. Carb center to carb center: 6-7/16". Manifold measures 8.75" across block.
Specifications
| Basic Operating RPM Range | 1500-6000 |
| Center Maximum Height | 4.660 |
| CNC Ported | No |
| Color | Satin |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock CH-28 Dual-Quad Intake Manifold for Chrysler 413-426-440 Big-Block V8 |
| Description_FAB | Carburetor Center-To-Center Dimensions 6.4375 in. |
| Description_FAB | Designed for 1500 to 6000 RPM Performance |
| Description_FAB | Engine Swaps |
| Description_FAB | Manifold Has Balanced 180+ Firing Order |
| Description_FAB | Match with Other Dual-Quad Items for Total Package |
| Description_FAB | Offers Excellent Performance Potential |
| Description_FAB | Smooth and Consistent Part-Throttle Power |
| Description_INV | Ch-28 440 Dual Quad Chrysler Intake |
| Description_KEY | 5440; Chrysler; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Dual-Quad; Satin |
| Description_LAB | CH-28 Chrysler Big Block RB Dual-Quad Intake Manifold |
| Description_MKT | Edelbrock part #5440 Chrysler CH-28 Dual-Quad intake manifold is designed for 413-426-440 c.i.d. Chrysler V8's. Use with Performer-Plus cam #2192 for low-end torque or Performer RPM cam #7194 for top-end power. Will not fit 1962-64 Max Wedge heads. Carb center to carb center: 6-7/16". Manifold measures 8.75" across block. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Carb pad height: 4.66" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 650 cfm or Performer Series #1405 600 cfm. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-4.45", B-4.88", measured to engine block |
| Description_TRA | Port exit dimensions: 1.14" x 2.10" |
| Description_TRA | Recommended intake gasket: #7225 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: # 7225 • Manifold height: A-4.45in.; B-4.88in.; measured to engine block • Carb pad height: 4.66in. • Carb recommendations: Edelbrock AVS2 650 cfm or Performer Series # 1405 600 cfm. • Port exit dimensions: 1.14in. x 2.10in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Mopar 413-440 |
| Flange Type | 4150 Dual-Quad (4-Barrel Square Bore) |
| Front Maximum Height | 4.450 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.0 |
| length | 23.75 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | Two |
| Position | N/A |
| Rear Maximum Height | 4.880 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 1500-6000 |
| Series | Dual-Quad/Multi Carb |
| Single Or Dual Plane Type | Dual |
| Usage | Street/Hi-Performance |
| Vehicle Model | Chrysler |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 19.91 |
| width | 14.5 |
