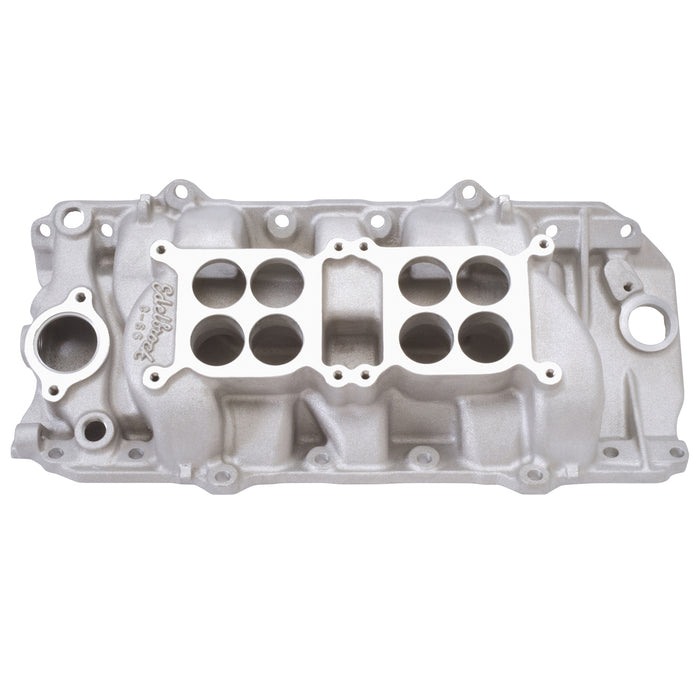

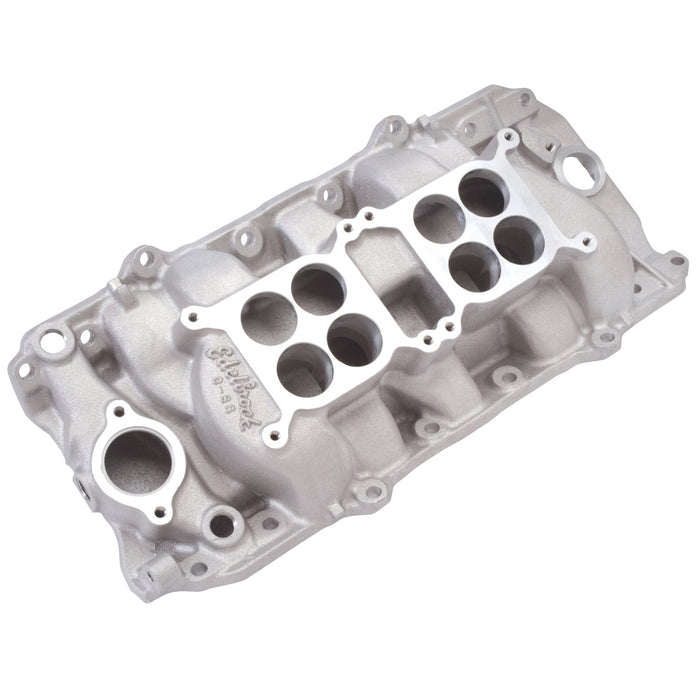

Edelbrock 5420 Engine Intake Manifold
by Edelbrock
SKU ds_BDVJ_5420
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$382.83
-
Original price
$382.83
Original price
$382.83
$382.83
-
$382.83
Current price
$382.83
Availability:
Out of stock
Description
The Edelbrock C-66-O Dual-Quad #5420 intake manifold is designed for 396-502 c.i.d. Chevys, tests confirmed smooth, consistent part-throttle operation with a 25 hp gain over Torker II and a torque gain of 30 ft-lbs. over Performer. Intake manifold will not fit tall-deck truck blocks. Includes metering rods to calibrate Edelbrock carbs. #1405 Carb center to carb center is 6-7/16". Use with Performer- Plus cam/kit #2162 for low-end torque or Torker-Plus cam/kit #5062 for top-end power.
Specifications
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_MKT | The Edelbrock C-66-O Dual-Quad #5420 intake manifold is designed for 396-502 c.i.d. Chevys, tests confirmed smooth, consistent part-throttle operation with a 25 hp gain over Torker II and a torque gain of 30 ft-lbs. over Performer. Intake manifold will not fit tall-deck truck blocks. Includes metering rods to calibrate Edelbrock carbs. #1405 Carb center to carb center is 6-7/16". Use with Performer- Plus cam/kit #2162 for low-end torque or Torker-Plus cam/kit #5062 for top-end power. |
| Description_TRA | Carb pad height: 4.30" |
| Description_TRA | H.E.I. will fit |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-3.95", B-4.65" |
| Description_TRA | Port exit dimensions: 1.64" x 1.94" |
| Description_TRA | Recommended intake gasket: Edelbrock #7203 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| height | 7.5 |
| length | 23.625 |
| weight | 18.35 |
| width | 14.75 |
