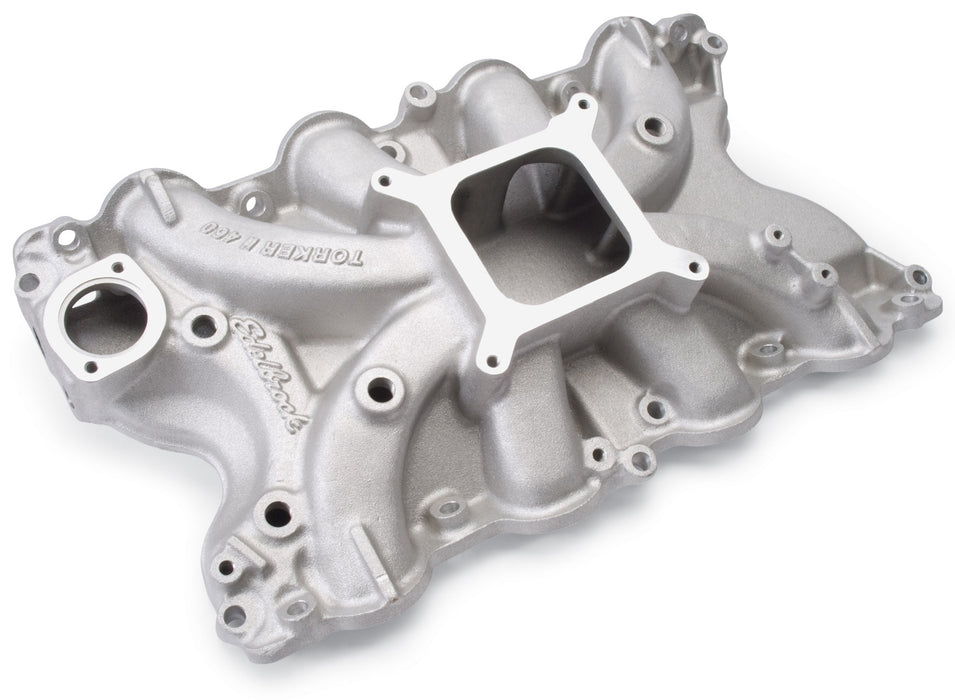

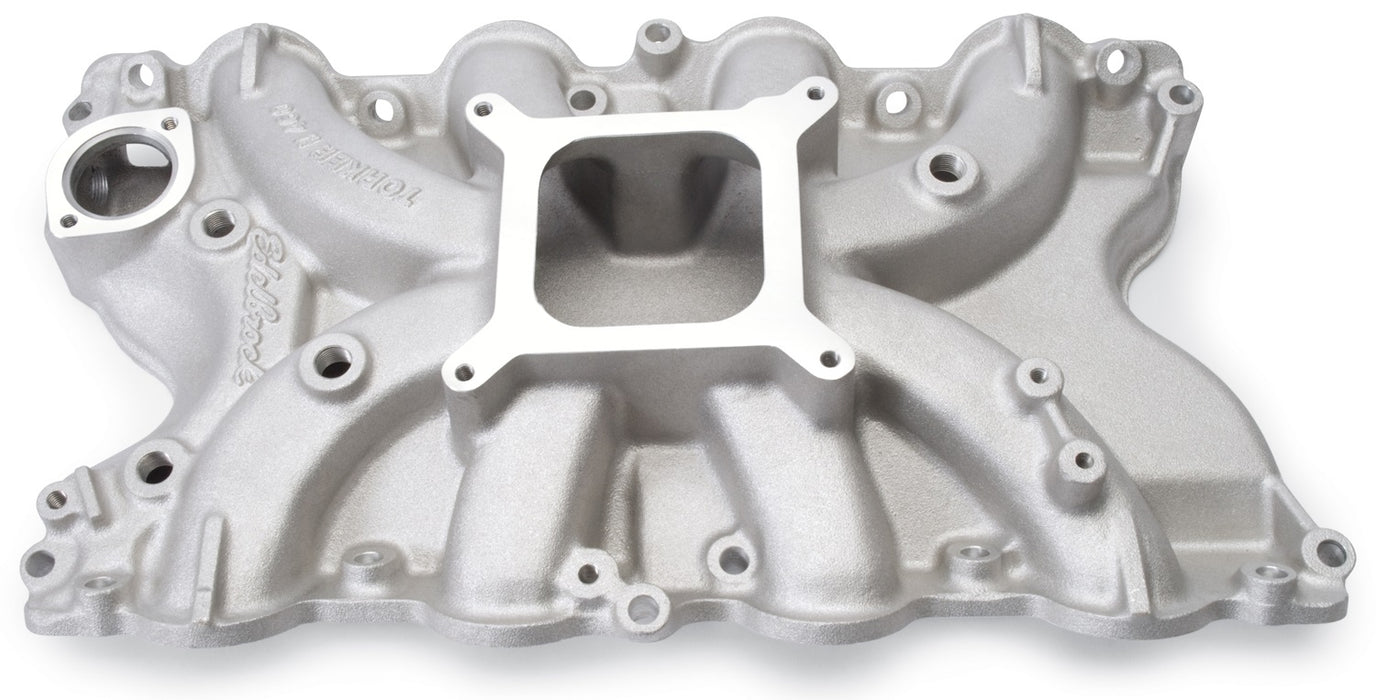

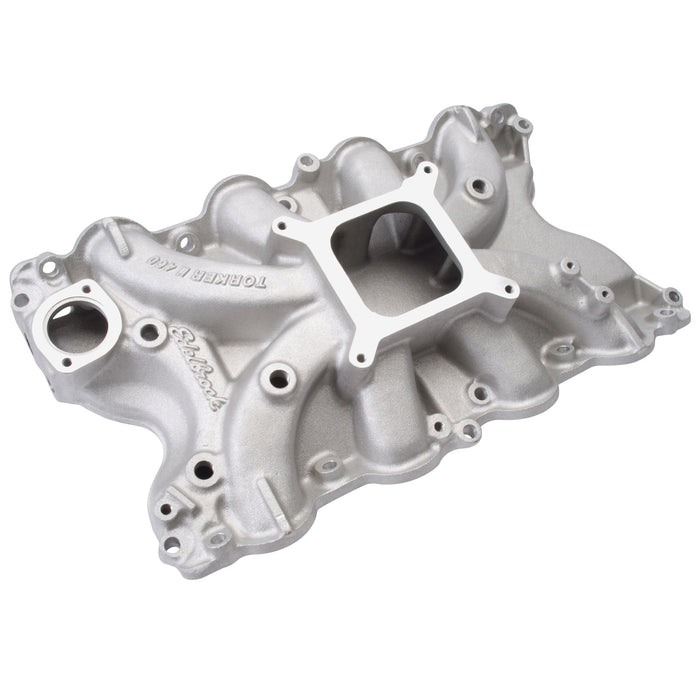

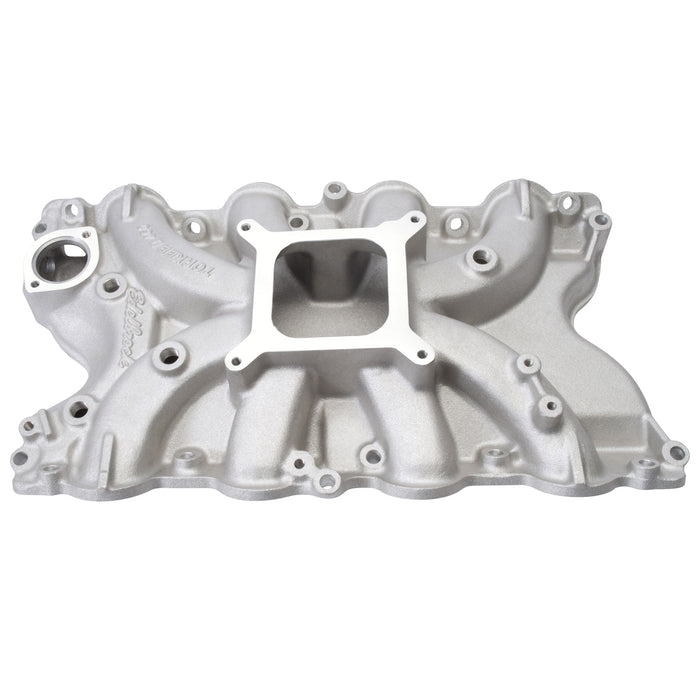

Edelbrock 5066 Edelbrock Torker II 460 Intake Manifold for Ford 429/460 Big-Block V8
by Edelbrock
SKU ds_BDVJ_5066
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$809.24
-
Original price
$809.24
Original price
$809.24
$809.24
$809.24
-
$809.24
Current price
$809.24
Availability:
Only 4 left!
Description
Edelbrock part #5056 Torker II 460 intake manifold is designed for 429/460 c.i.d. Ford V8's used in marine and high performance applications. Manifold not equipped with EGR. Will fit 429 Cobra-Jets. Manifold will not accept stock Motorcraft spread-bore carburetor. Will not fit 1988 and later models.
Specifications
| Basic Operating RPM Range | 2500-6500 |
| Center Maximum Height | 3.870 |
| CNC Ported | No |
| Color | Satin |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Ford:Big-Block:429 (7.0L )/460 (7.5L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Torker II 460 Intake Manifold for Ford 429/460 Big-Block V8 |
| Description_FAB | 2500 to 6500 RPM High Performance Street Engines |
| Description_FAB | For Top-End HP and Adequate Throttle Response |
| Description_FAB | Ideal for Applications with Limited Hood Clearance |
| Description_FAB | Single-Plane Low-Rise Intake is Good for High RPMs |
| Description_INV | Torker 2 Ford 460 Intake Manifold |
| Description_KEY | 5066; Ford; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Torker II; Torker 2; Satin |
| Description_LAB | Torker II 460 Big Block Ford Intake Manifold |
| Description_MKT | Edelbrock part #5056 Torker II 460 intake manifold is designed for 429/460 c.i.d. Ford V8's used in marine and high performance applications. Manifold not equipped with EGR. Will fit 429 Cobra-Jets. Manifold will not accept stock Motorcraft spread-bore carburetor. Will not fit 1988 and later models. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Carb pad height: 3.87" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 750-800 cfm. For automatic transmissions use #1483 and #1495 or #1844 |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Intake gasket: Edelbrock #7223 or Fel-Pro #1230/#1231 |
| Description_TRA | Manifold ht.: A-3.50", B-4.25" |
| Description_TRA | Port exit dimensions: 1.75" x 2.10" |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Intake gasket: Edelbrock # 7223 or Fel-Pro # 1230/#1231 • Manifold ht.: A-3.50in.; B-4.25in. • Carb pad height: 3.87in. • Carb recommendations: Edelbrock AVS2 or Performer Series 750-800 cfm. For automatic transmissions use # 1483 and # 1495 or # 1844 • Port exit dimensions: 1.75in. x 2.10in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Ford 429-460 |
| Flange Type | 4150 |
| Front Maximum Height | 3.500 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.0 |
| length | 23.75 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | N/A |
| Rear Maximum Height | 4.250 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 2500-6500 |
| Series | Torker/Torker II |
| Single Or Dual Plane Type | Single |
| Usage | Racing |
| Vehicle Model | Ford |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 19.35 |
| width | 14.5 |
