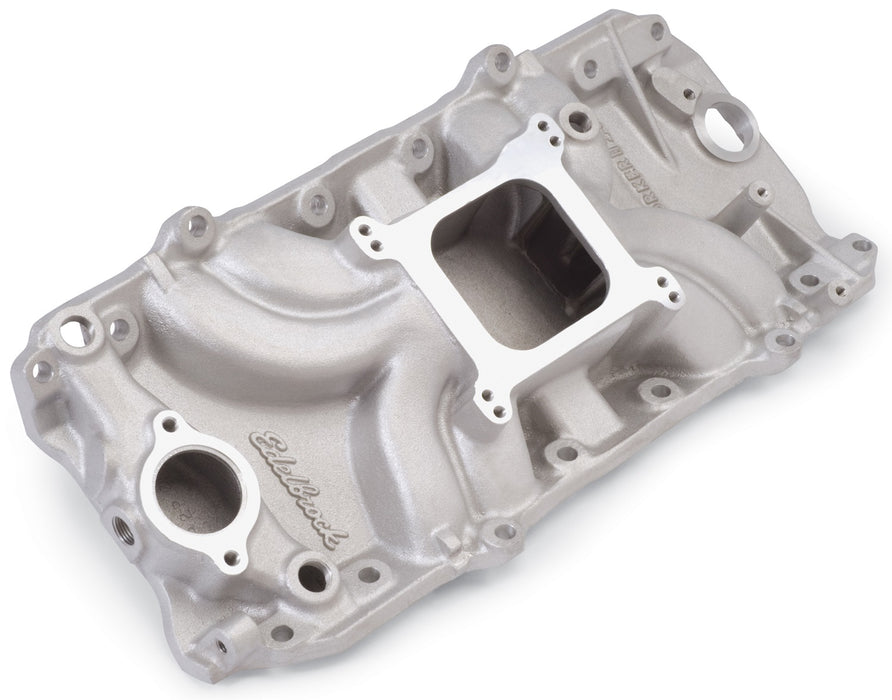

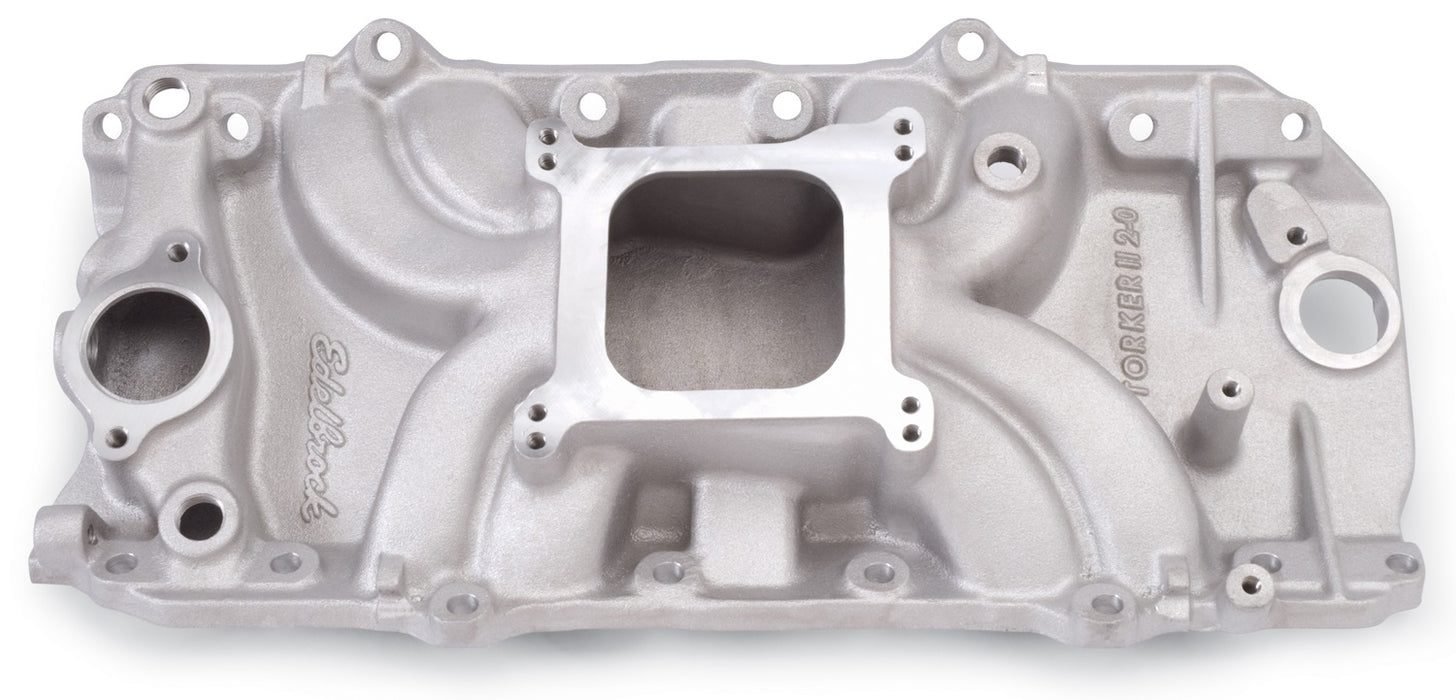

Edelbrock 5061 Edelbrock Torker II 2-O Intake Manifold for Chevrolet 396-502 Big-Block V8
by Edelbrock
SKU ds_BDVJ_5061
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$675.55
-
Original price
$675.55
Original price
$675.55
$675.55
$675.55
-
$675.55
Current price
$675.55
Availability:
4+ in stock
Description
Edelbrock part #5061 Torker II 2-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port cylinder heads (1975 and earlier). Manifold not equipped with EGR. Will not fit "tall block" V8 engines. The Torker II 2-O intake manifold is a singe plane low rise intake that's great for high performance applications that have limited hood clearance. The manifold has an exhaust crossover for easy cold weather warm-ups, but no provisions for exhaust heated chokes or EGR. Customers will need either electric or manual choke carburetors. Not for heavy vehicles (trucks, vans etc.); use Performer 2-O #2161.
Specifications
| Basic Operating RPM Range | 2500-6500 |
| Center Maximum Height | 3.820 |
| CNC Ported | No |
| Color | Satin |
| Cylinder Head Type | Oval Port- Large Aftermarket |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Torker II 2-O Intake Manifold for Chevrolet 396-502 Big-Block V8 |
| Description_FAB | 2500 to 6500 RPM High Performance Street Engines |
| Description_FAB | For Top-End HP and Adequate Throttle Response |
| Description_FAB | Ideal for Applications with Limited Hood Clearance |
| Description_FAB | Not for Mileage or Emissions Applications |
| Description_FAB | Not For Tall Block V8 Engines |
| Description_FAB | Single-Plane Low-Rise Intake is Good for High RPMs |
| Description_FAB | Use with Large Oval Port Heads (1975 and Earlier) |
| Description_FAB | Will Fit Under Corvette Hood Without Modifications |
| Description_INV | Torker 2 BBC Oval Port Intake Manifold |
| Description_KEY | 5061; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Torker II; Torker 2; Satin |
| Description_LAB | Torker II 2-O Big Block Chevy Intake Manifold |
| Description_MKT | Edelbrock part #5061 Torker II 2-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port cylinder heads (1975 and earlier). Manifold not equipped with EGR. Will not fit "tall block" V8 engines. The Torker II 2-O intake manifold is a singe plane low rise intake that's great for high performance applications that have limited hood clearance. The manifold has an exhaust crossover for easy cold weather warm-ups, but no provisions for exhaust heated chokes or EGR. Customers will need either electric or manual choke carburetors. Not for heavy vehicles (trucks, vans etc.) |
| Description_MKT | Edelbrock part #5061 Torker II 2-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port cylinder heads (1975 and earlier). Manifold not equipped with EGR. Will not fit "tall block" V8 engines. The Torker II 2-O intake manifold is a singe plane low rise intake that's great for high performance applications that have limited hood clearance. The manifold has an exhaust crossover for easy cold weather warm-ups, but no provisions for exhaust heated chokes or EGR. Customers will need either electric or manual choke carburetors. Not for heavy vehicles (trucks, vans etc.); use Performer 2-O #2161. |
| Description_MKT | use Performer 2-O #2161. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 7in.} |
| Description_TRA | Carb pad height: 3.82" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket #8031 for 1972-78. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-3.050", B-4.600" (.25" taller than stock Corvette) |
| Description_TRA | Port exit dimensions: 1.35" x 1.90"/1.60" x 1.90" |
| Description_TRA | Recommended intake gasket: Edelbrock #7203 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7203 • Manifold height: A-3.050in.; B-4.600in. (.25in. taller than stock Corvette) • Carb pad height: 3.82in. • Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket # 8031 for 1972-78. • Port exit dimensions: 1.35in. x 1.90in./1.60in. x 1.90in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Chevy Big Block (396-502) |
| Flange Type | 4150 |
| Front Maximum Height | 3.050 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | N/A |
| Rear Maximum Height | 4.600 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 2500-6500 |
| Series | Torker/Torker II |
| Single Or Dual Plane Type | Single |
| Usage | Racing |
| Vehicle Model | Chevrolet |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 16.5 |
| width | 14.75 |
