Edelbrock 5056 Edelbrock Torker II Pontiac Intake Manifold for Pontiac 326-455 V8
by Edelbrock
SKU ds_BDVJ_5056
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$734.22
-
Original price
$734.22
Original price
$734.22
$734.22
$734.22
-
$734.22
Current price
$734.22
Availability:
Only 4 left!
Description

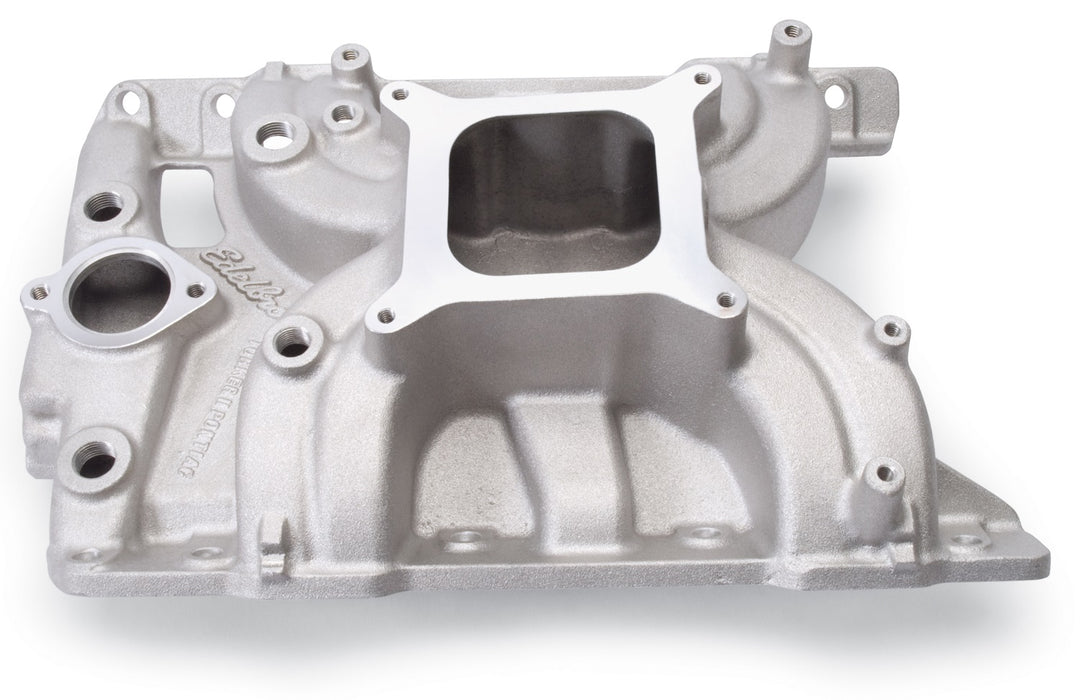

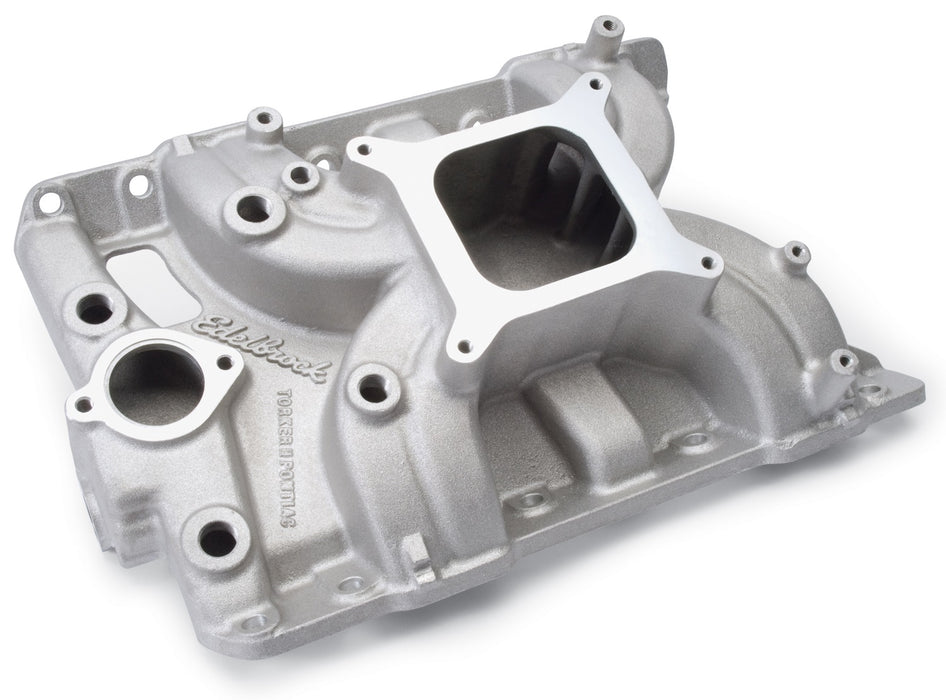

Edelbrock part #5056 Torker II Pontiac intake manifold is designed for 1965-79 street 389-455 c.i.d. Pontiac V8's. Can be used with Ram Air IV heads. Will not fit Ram Air V and 265/301 V8's or under Trans Am Shaker hood.
Specifications
| Description_ABR | Intake Mnfld |
| Description_ASM | Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Torker II Pontiac Intake Manifold for Pontiac 326-455 V8 |
| Description_FAB | 2500 to 6500 RPM High Performance Street Engines |
| Description_FAB | For Top-End HP and Adequate Throttle Response |
| Description_FAB | Ideal for Applications with Limited Hood Clearance |
| Description_FAB | Single-Plane Low-Rise Intake is Good for High RPMs |
| Description_INV | Torker 2 Pontiac Intake Manifold |
| Description_KEY | 5056; Pontiac; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Torker II; Torker 2; Satin |
| Description_LAB | Torker II Pontiac 326-455 Intake Manifold |
| Description_MKT | Edelbrock part #5056 Torker II Pontiac intake manifold is designed for 1965-79 street 389-455 c.i.d. Pontiac V8's. Can be used with Ram Air IV heads. Will not fit Ram Air V and 265/301 V8's or under Trans Am Shaker hood. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 7in.} |
| Description_TRA | Carb pad height: 6.59" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 750-800 cfm. |
| Description_TRA | For 1968-71 use Edelbrock #8015 throttle bracket |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: .400" taller than stock, A-6.03", B-7.15 measured to engine block |
| Description_TRA | No provisions for OEM choke |
| Description_TRA | OEM carb requires conversion to electric/manual choke |
| Description_TRA | Port exit dimensions: 1.10" x 2.06" |
| Description_TRA | Recommended intake gasket: Edelbrock #7280 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7280 • No provisions for OEM choke • OEM carb requires conversion to electric/manual choke • For 1968-71 use Edelbrock # 8015 throttle bracket • Manifold height: 1-1/4in. taller than stock; A-6.88in.; B-8.00in. measured to engine block • Carb pad height: 7.45in. • Carb recommendations: Edelbrock AVS2 or Performer Series 750-800 cfm. • Throttle Body recommendations: Edelbrock # 3878 4V 4150 style or # 3849 EFI elbow and # 3869 90mm throttle body. • Port exit dimensions: 1.10in. x 2.06in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| weight | 17.75 |
| width | 14.75 |
