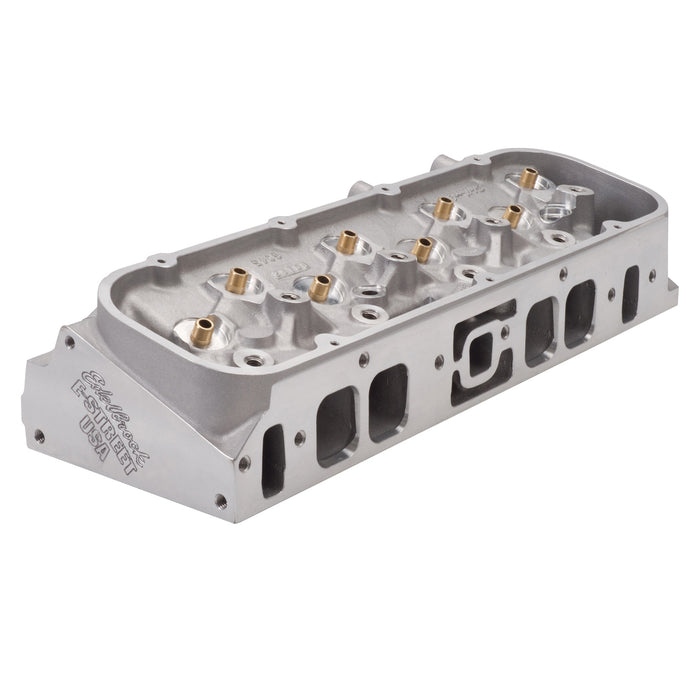

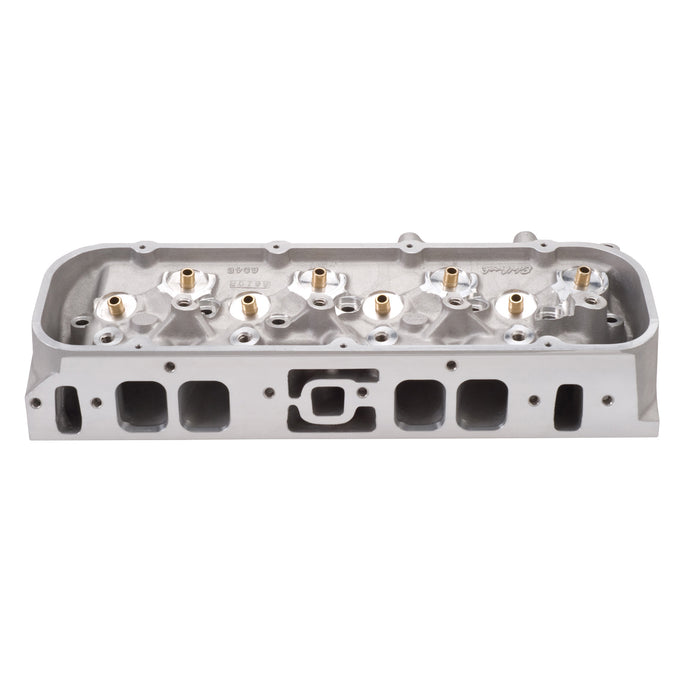

Edelbrock 50449 Engine Cylinder Head
by Edelbrock
SKU ds_BDVJ_50449
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$940.03
-
Original price
$940.03
Original price
$940.03
$940.03
$940.03
-
$940.03
Current price
$940.03
Availability:
Out of stock
Description
The Edelbrock #50449 E-Street cylinder 290 Oval Port heads are designed for Big-Block applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.
Specifications
| CNC Ported | No |
| Combustion Chamber Volume | 110.0 |
| Deck Thickness | 0.562 |
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | The #50449 E-Street cylinder 290 Oval Port heads are designed for BBChevy applications. American made quality and affordable performance, These heads feature as-cast ports and are designed for entry-level applications. |
| Description_INV | Edelbrock BBC Cylinder Head |
| Description_LAB | E-Street Big-Block Chevy Head, Cylinder Head Oval Port, BARE Single |
| Description_MKT | The Edelbrock #50449 E-Street cylinder 290 Oval Port heads are designed for Big-Block applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only. |
| Description_TRA | Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. |
| Description_TRA | Designed for entry-level street performance engines and ideal for operating in the idle to 5500 rpm range |
| Description_TRA | Includes hardened spring cups and Heli-Coil threaded inserts in the rocker stud bosses for increased strength |
| Description_TRA | Match with Edelbrock head gasket sets. |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat |
| Description_TRA | these are the details that most low-cost competitors leave out of their heads. |
| Description_TRA | These cylinder heads are sold separately and Made in the USA! |
| Grade Type | Performance |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | Yes |
| Head Casting Number | 6045F |
| height | 8.5 |
| Intake Runner Volume | 220.0 |
| length | 26.0 |
| Material | Aluminum |
| Push Rod Diameter | 0.375 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Valve Angle | 26 |
| weight | 37.4 |
| width | 11.0 |
