Edelbrock 45474 Engine Complete Assembly
by Edelbrock
SKU ds_BDVJ_45474
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$21,715.30
-
Original price
$21,715.30
Original price
$21,715.30
$21,715.30
$21,715.30
-
$21,715.30
Current price
$21,715.30
Availability:
Out of stock
Description

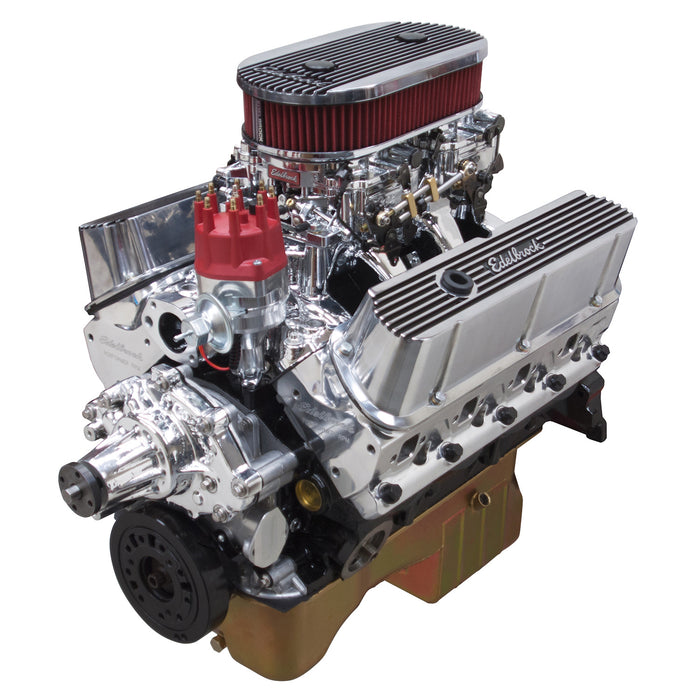

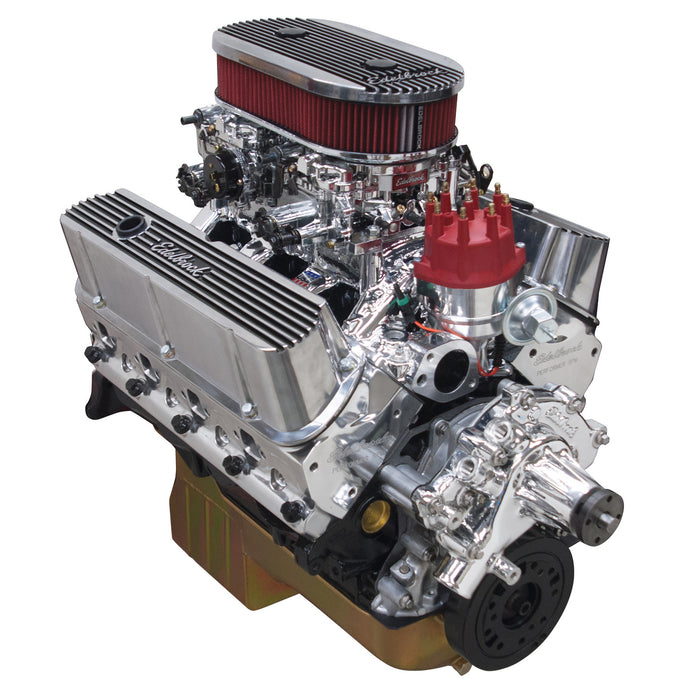

Edelbrock part #45474 Performer RPM Dual-Quad small-block Ford 347 crate engine offers the best of quality and performance with 438 HP & 413 ft/lbs. of torque right out of the crate. This 347 engine combines a Dart cast iron 4 bolt main block and a forged Scat rotating assembly which is then paired with our proven Edelbrock Power Package parts. This Performer RPM 347 engine includes a Milodon oil pan and pickup designed for use with 1974 and later applications as well as street rods that require a rear sump to clear the crossmember and/or suspension. Engine Specifications: - Finish: EnduraShine - Displacement: 347 c.i.d. (4.030" bore x 3.400" stroke) - Horsepower: 438 hp - Torque: 413 ft-lbs. - Compression: 9.5:1 - Block: Small-block (8.2" deck height) - Crankshaft: Forged Steel - Pistons: Forged - Camshaft: Rollin' Thunder Hydraulic Roller #2281 - Rocker Arms: 1.6:1 Roller #77780 - Manifold: RPM Air-Gap Dual-Quad #75354 - Cylinder Heads: Performer RPM #602515 - Carburetor: Thunder Series AVS - Water Pump: Victor series aluminum #88414 - Distributor: Included - Valve Covers: Elite II - Warranty: 2-year / Unlimited mileage
Resources
Installation InstructionsSpecifications
| Camshaft Type | Rollin' Thunder, Hydraulic Roller |
| Carburetor Type | Thunder AVS2 500 CFM, EnduraShine |
| Compression Ratio | 9.5:1 |
| Construction Type | Assembled |
| Cylinder Head Type | Performer RPM |
| Description_ABR | CRATE ENGINE |
| Description_ASM | Ford:Small-Block Windsor:260 (4.3L)/289 (4.7L)/302 (5.0L) |
| Description_DEF | Engine Complete Assembly |
| Description_EXT | Edelbrock part #45474 Performer RPM 347 small-block Ford crate engine rear sump oil pan 438hp and 413ft-lbs |
| Description_INV | Performer RPM 347 Ford crate engine |
| Description_LAB | Performer RPM 347 Ford Crate Engine |
| Description_MKT | Edelbrock part #45474 Performer RPM Dual-Quad small-block Ford 347 crate engine offers the best of quality and performance with 438 HP & 413 ft/lbs. of torque right out of the crate. This 347 engine combines a Dart cast iron 4 bolt main block and a forged Scat rotating assembly which is then paired with our proven Edelbrock Power Package parts. This Performer RPM 347 engine includes a Milodon oil pan and pickup designed for use with 1974 and later applications as well as street rods that require a rear sump to clear the crossmember and/or suspension. Engine Specifications: - Finish: EnduraShine - Displacement: 347 c.i.d. (4.030" bore x 3.400" stroke) - Horsepower: 438 hp - Torque: 413 ft-lbs. - Compression: 9.5:1 - Block: Small-block (8.2" deck height) - Crankshaft: Forged Steel - Pistons: Forged - Camshaft: Rollin' Thunder Hydraulic Roller #2281 - Rocker Arms: 1.6:1 Roller #77780 - Manifold: RPM Air-Gap Dual-Quad #75354 - Cylinder Heads: Performer RPM #602515 - Carburetor: Thunder Series AVS - Water Pump: Victor series aluminum #88414 - Distributor: Included - Valve Covers: Elite II - Warranty: 2-year / Unlimited mileage |
| Description_TRA | Any dipstick holes that are not used must be plugged. The threaded provision on the Milodon oil pan will require a 5/8"-18 plug. Remove any paint from the engine mount bosses, cylinder block to clutch housing or transmission mounting surface, and the crankshaft flange before installing engine. |
| Description_TRA | Rear sump engines can install a Milodon dipstick (Milodon #22040) into the threaded hole on the oil pan or an OEM dipstick (Ford #M-6750-C303) into the block directly above the oil pan bung. |
| Description_TRA | Ships with no oil inside crate. |
| Description_TRA | Your engine is supplied with Edelbrock Break-In Oil in the crate. Before starting engine, you will need to prime the oil system. Do not turn engine over with starter motor for priming. |
| Flywheel Included | No |
| Grade Type | Performance |
| Hardware Included | Yes |
| height | 31.0 |
| Horsepower | 449 |
| Intake Manifold Type | Performer RPM Air-Gap, Dual-Quad/Multi-Carb 4150, EnduraShine |
| length | 40.0 |
| Manifold Material | Aluminum |
| Quantity | Sold Individually |
| RGL | WARNING: This product can expose you to Chromium, Lead, and Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rocker Arm Ratio | 1.6:1 |
| Rocker Arm Type | Roller |
| Spark Plugs Included | No |
| Torque | 417 |
| Type | Small-Block Ford |
| Universal Or Specific Fit | Specific Fit |
| Valve Cover Type | Elite II, Tall Profile, Polished |
| weight | 460.0 |
| width | 27.0 |
| Wire Harness Included | No |
