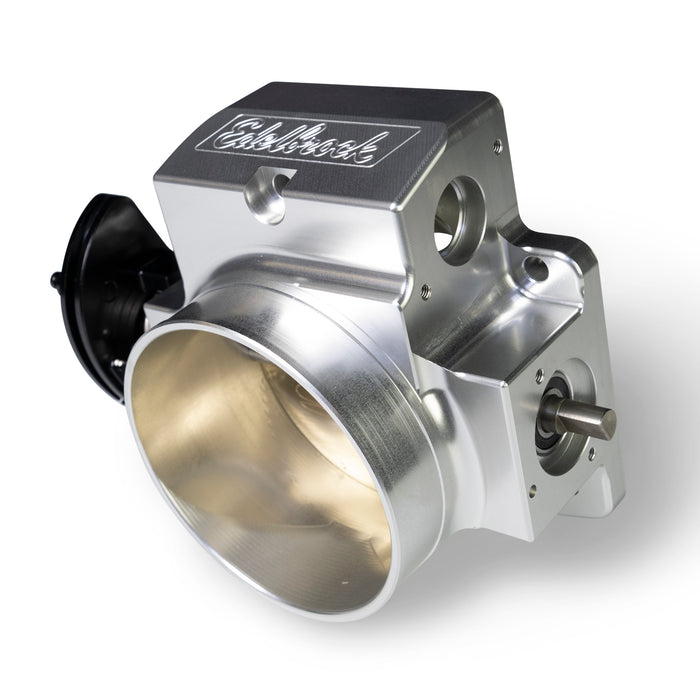

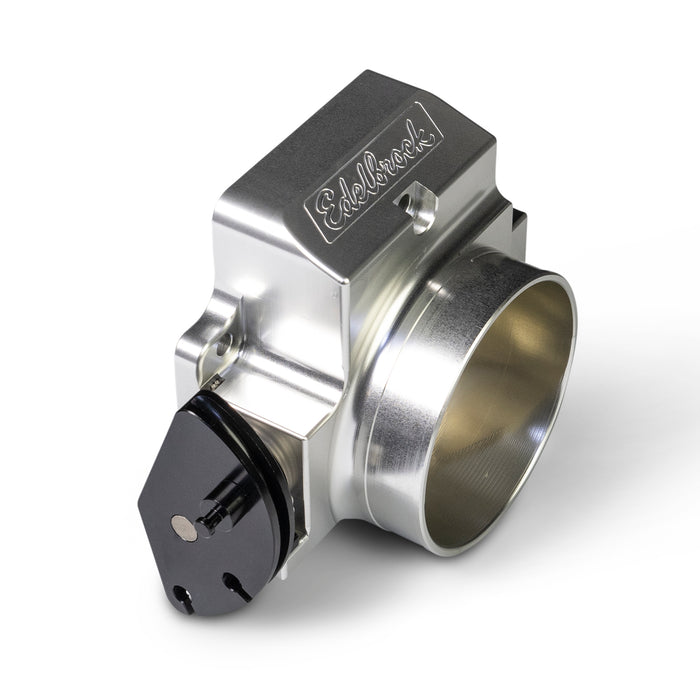

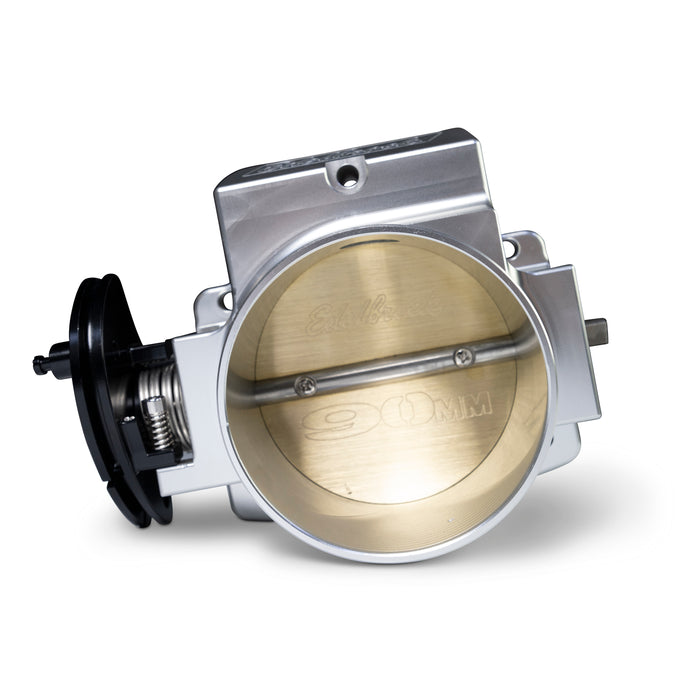

Edelbrock 3970 Edelbrock Victor LS Series 90mm Throttle Body, Satin
by Edelbrock
SKU ds_BDVJ_3970
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$536.70
-
Original price
$536.70
Original price
$536.70
$536.70
$536.70
-
$536.70
Current price
$536.70
Availability:
Only 3 left!
Description
Constructed from billet aluminum, the new Edelbrock 90mm Victor Series Pro-Flo XT™ Throttle Body, complete with TPS and IAC, maximizes performance upgrades on all Pro-Flo XT, EFI Victor Elbow, and Gen III and Gen IV engines with cable-driven throttle bodies. With bolt patterns for both LS generations, these enlarged single-bore throttle bodies feature a progressive throttle linkage and parabolic bore design for increased power and enhanced low-speed drivability. A thicker throttle blade eliminates deflection for boosted applications, while a beefed-up linkage and dual-spring mechanism ensure safety and total throttle control. Available in either black (#39703) or satin (#3970) finishes to look great in any engine bay!
Specifications
| Bore Diameter | 90mm |
| Description_ABR | Throttle Bdy |
| Description_ASM | Edelbrock XT Manifolds, Factory Chevrolet Manifolds, Fabricated Manifolds or any Plenum Intakes or Elbows implementing a LS1 or LS2 style mounting flange requiring a cable actuated Throttle Body. |
| Description_DEF | Fuel Injection Throttle Body |
| Description_DES | Edelbrock Victor LS Series 90mm Throttle Body, Satin |
| Description_EXT | Edelbrock Victor LS Series 90mm Throttle Body #3970 for cable-driven Gen III/IV LS is constructed of billet aluminum with satin finish. Enlarged single-bore body with progressive linkage, thicker blade, dual springs, includes TPS and IAC. |
| Description_FAB | Cable driven. Enlarged bore and progressive throttle linkage allowing for increased airflow and enhanced low-speed drivability. Provisions for either LS1 or LS2 mounting bolt patterns. |
| Description_FAB | Features a double return spring providing solid throttle control and safe functionality. High quality CNC Billet Aluminum construction |

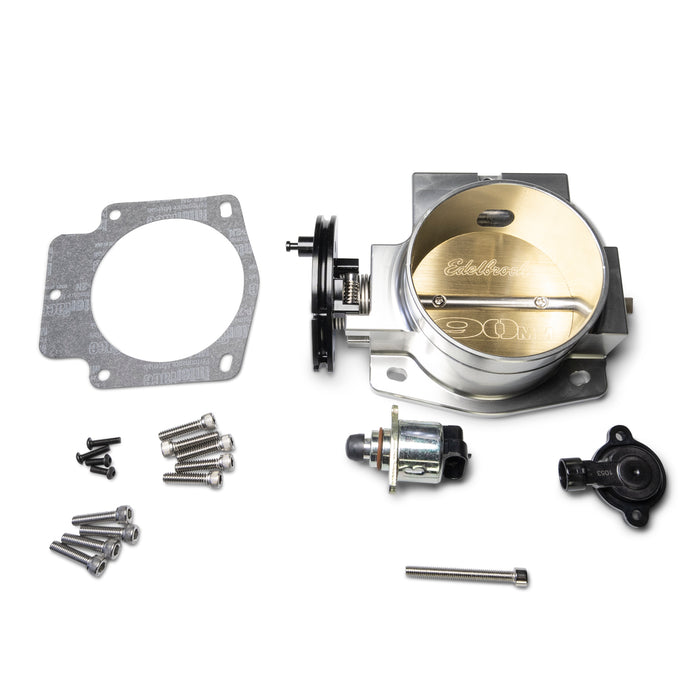

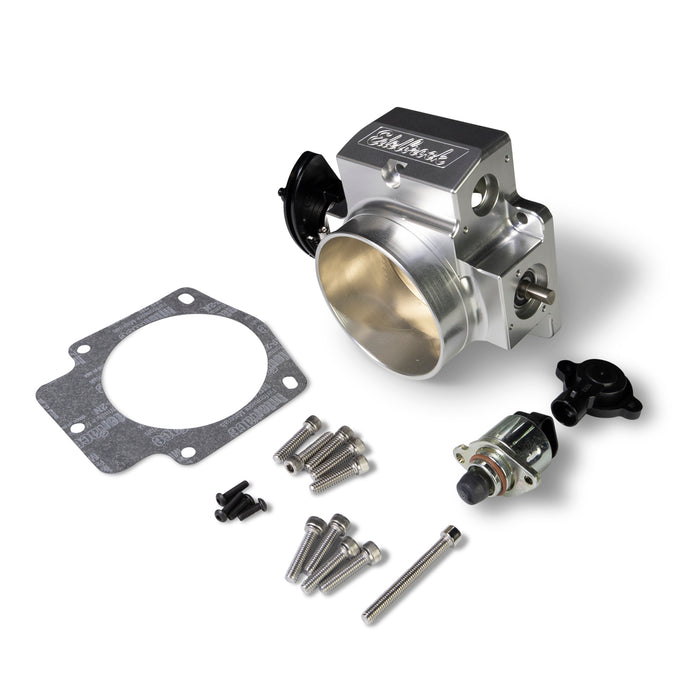

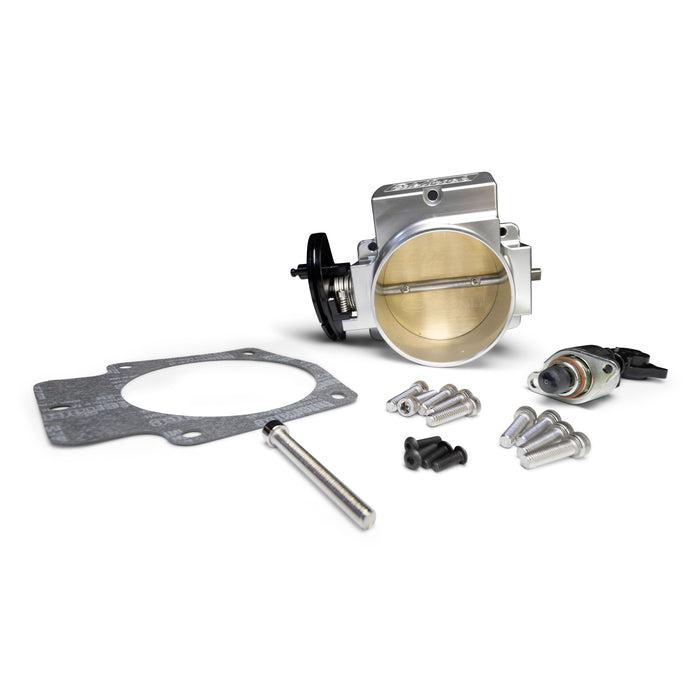

| Description_FAB | Includes GM Factory Throttle Position Sensor, Inlet Air Control Valve and Throttle Body Mounting Hardware and Gasket |
| Description_INV | 90mm Fuel Injection Throttle Body Satin |
| Description_LAB | Edelbrock Victor LS Series 90mm Throttle Body, Satin |
| Description_MKT | Constructed from billet aluminum, the new Edelbrock 90mm Victor Series Pro-Flo XT™ Throttle Body, complete with TPS and IAC, maximizes performance upgrades on all Pro-Flo XT, EFI Victor Elbow, and Gen III and Gen IV engines with cable-driven throttle bodies. With bolt patterns for both LS generations, these enlarged single-bore throttle bodies feature a progressive throttle linkage and parabolic bore design for increased power and enhanced low-speed drivability. A thicker throttle blade eliminates deflection for boosted applications, while a beefed-up linkage and dual-spring mechanism ensure safety and total throttle control. Available in either black (#39703) or satin (#3970) finishes to look great in any engine bay! |
| Description_SHP | None |
| Description_TRA | 90mm inlet bore. 3.75 inch Air Filter Hose Diameter. |
| Hardware Included | Yes |
| height | 3.0 |
| length | 7.5 |
| LTL | N |
| weight | 2.8 |
| width | 5.5 |
