Description

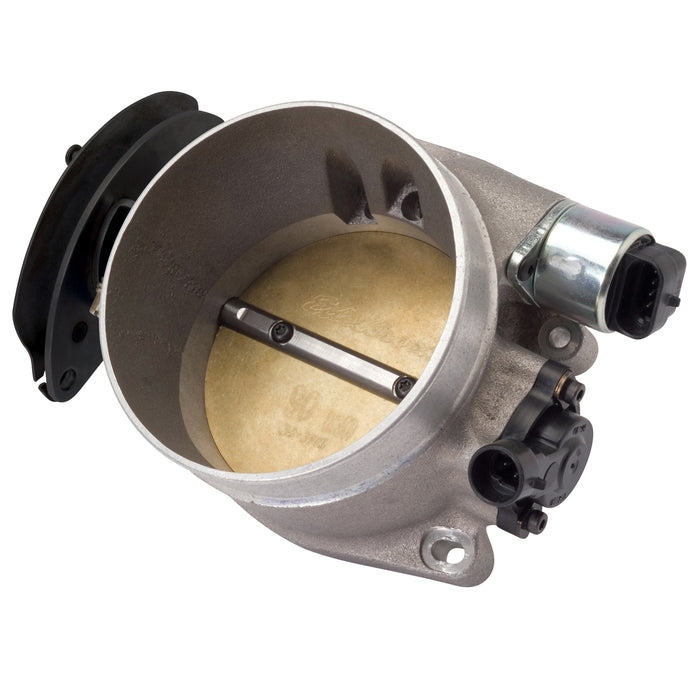

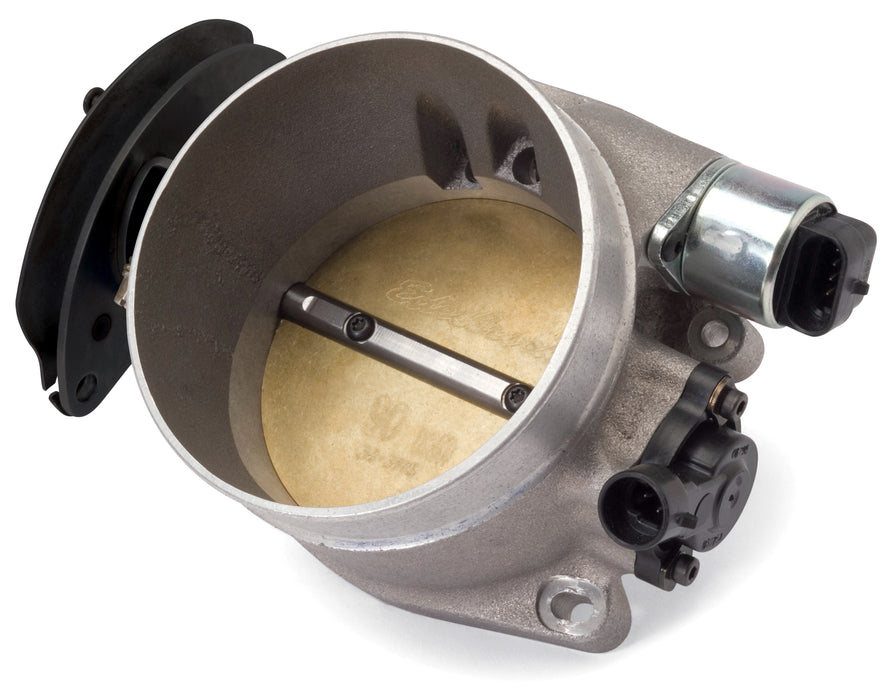

The Edelbrock 90mm single bore throttle body is intended for Pro-Flo XT and EFI Victor Elbow applications. It has provisions for either LS1 or LS2 mounting bolt patterns. The throttle body uses LS1 style TPS and IAC. It offers better idle control than other 90mm throttle bodies, because of the addition of an idle bleed screw. By using the bleed screw to create a base amount of idle air flow instead of throttle tip-in, the TPS signal is unaffected. Features a 4.5" Inlet. Satin Finish
Specifications
| Bore Diameter | 90 |
| Description_ABR | ThrottleBody |
| Description_DEF | Fuel Injection Throttle Body |
| Description_DES | THROTTLE BODY |
| Description_EXT | The Edelbrock #3869, 90mm single bore throttle body, is intended for Pro-Flo XT and EFI Victor Elbow applications. It has provisions for either LS1 or LS2 mounting bolt patterns. The throttle body uses LS1 style TPS and IAC. Satin Finish |
| Description_EXT | The Edelbrock #3869; 90mm single bore throttle body; is intended for Pro-Flo XT and EFI Victor Elbow applications. It has provisions for either LS1 or LS2 mounting bolt patterns. The throttle body uses LS1 style TPS and IAC. Satin Finish |
| Description_FAB | Idle Bleed Screw For Better Idle Control |
| Description_FAB | Provisions For LS1 Or LS2 Mounting |
| Description_FAB | Uses LS1 Style TPS And 4 Wire Stepper IAC |
| Description_INV | Pro-Flo XT 90mm Throttle Body |
| Description_KEY | Edelbrock; Edelbrock #3869; Throttle Body; 90mm; LS1; ProFlo; ProFlo XT; DBC; Drive-by-Cable; Throttle Cable; GM IAC; Stepper IAC |
| Description_LAB | Throttle Body #3869 For Pro-Flo XT |
| Description_MKT | The Edelbrock 90mm single bore throttle body is intended for Pro-Flo XT and EFI Victor Elbow applications. It has provisions for either LS1 or LS2 mounting bolt patterns. The throttle body uses LS1 style TPS and IAC. It offers better idle control than other 90mm throttle bodies, because of the addition of an idle bleed screw. By using the bleed screw to create a base amount of idle air flow instead of throttle tip-in, the TPS signal is unaffected. Features a 4.5" Inlet. Satin Finish |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 6in.} |
| finish | Satin |
| Gasket Or Seal Included | Yes |
| height | 5.0 |
| length | 10.0 |
| Material | Aluminum |
| Quantity | Sold Individually |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Pro-Flo XT |
| Type | Single Blade |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 3.55 |
| width | 10.0 |
