Edelbrock 3825 Fuel Injection Throttle Body
by Edelbrock
SKU ds_BDVJ_3825
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$534.36
-
Original price
$534.36
Original price
$534.36
$534.36
$534.36
-
$534.36
Current price
$534.36
Availability:
Out of stock
Description

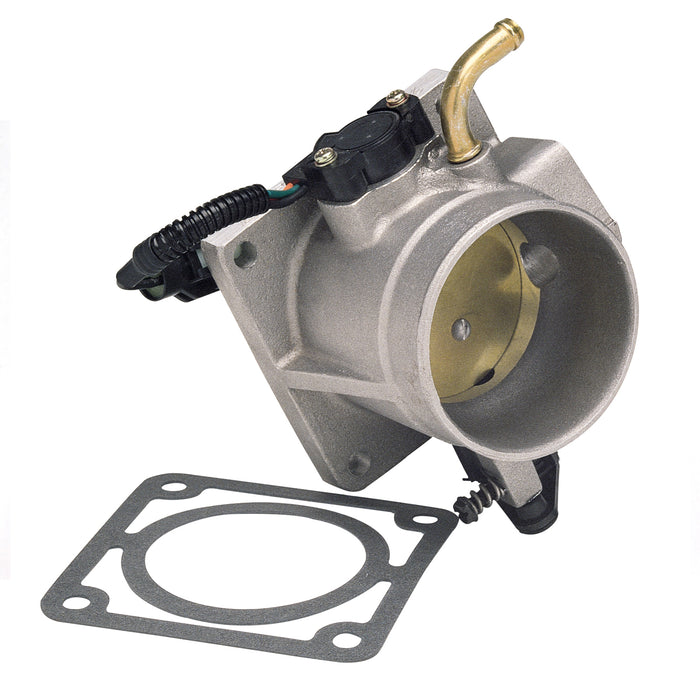

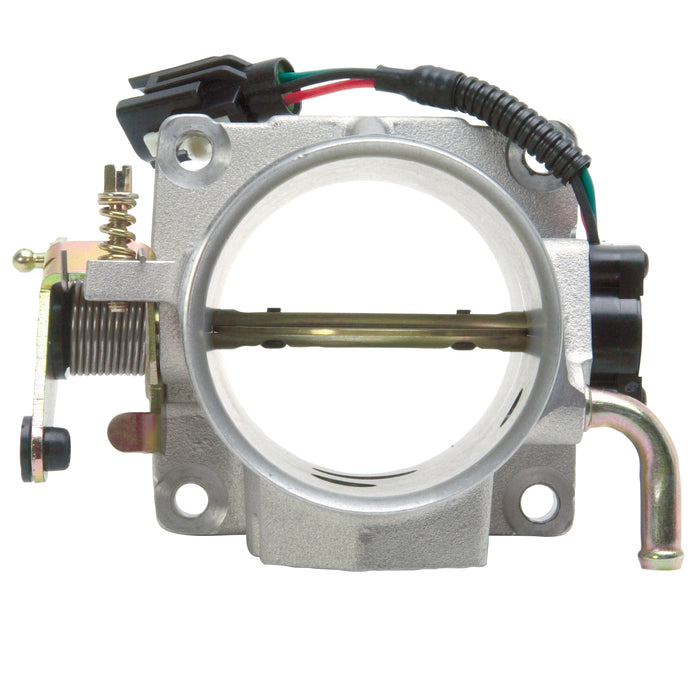

The Edelbrock #3825 70mm throttle body is cast, machined and assembled by Edelbrock. The throttle body is assembled with a throttle position sensor. The customer re-uses their original idle air bypass solenoid. The throttle body requires the use of the 70mm EGR plate (#3828). Both the throttle body and the EGR plate are covered by E.O. D-215-18. The 70mm combination is not recommended for stock applications. It fits our #3821 manifold or Ford's GT-40 with no modifications. Satin Finish
Specifications
| Bore Diameter | 70.0 |
| Description_ABR | ThrottleBody |
| Description_ASM | Ford:Small-Block Windsor:302 (5.0L) |
| Description_DEF | Fuel Injection Throttle Body |
| Description_EXT | The Edelbrock #3825 70mm throttle body is assembled with a throttle position sensor. The 70mm combination is not recommended for stock applications. It fits our 3821 manifold or Ford's GT-40 with no modifications. Does not include IAC Motor |
| Description_INV | Ford 1986-93 5.0L 70mm Throttle Body |
| Description_LAB | Ford 1986-93 5.0L Mustang 70mm Throttle Body, Satin Finish |
| Description_MKT | The Edelbrock #3825 70mm throttle body is cast, machined and assembled by Edelbrock. The throttle body is assembled with a throttle position sensor. The customer re-uses their original idle air bypass solenoid. The throttle body requires the use of the 70mm EGR plate (#3828). Both the throttle body and the EGR plate are covered by E.O. D-215-18. The 70mm combination is not recommended for stock applications. It fits our #3821 manifold or Ford's GT-40 with no modifications. Satin Finish |
| Fuel System Type | Gas |
| Gasket Or Seal Included | Yes |
| height | 4.0 |
| Inlet Diameter | 3.250 |
| Inlet Type | Single |
| length | 10.2 |
| Outlet Diameter | 70.0 |
| Outlet Type | Single Blade |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Throttle Body Type | Single Blade |
| weight | 2.8 |
| width | 6.1 |
