Description

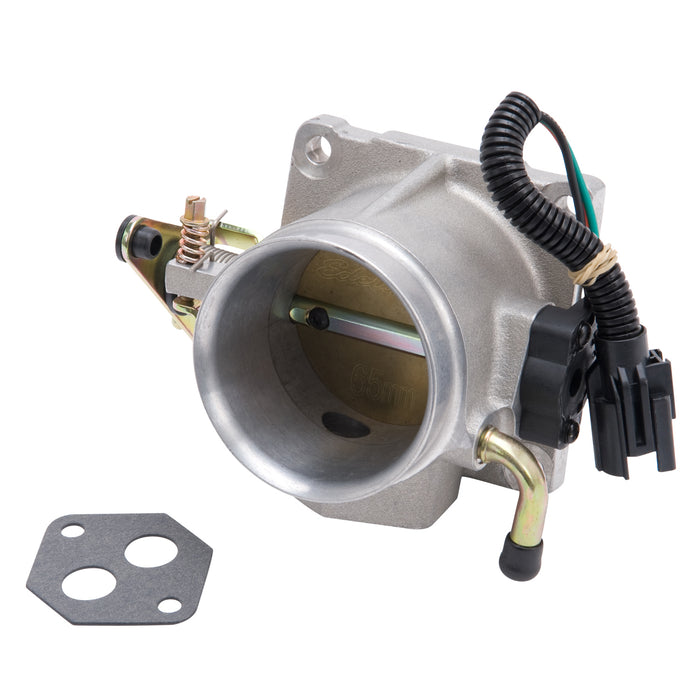

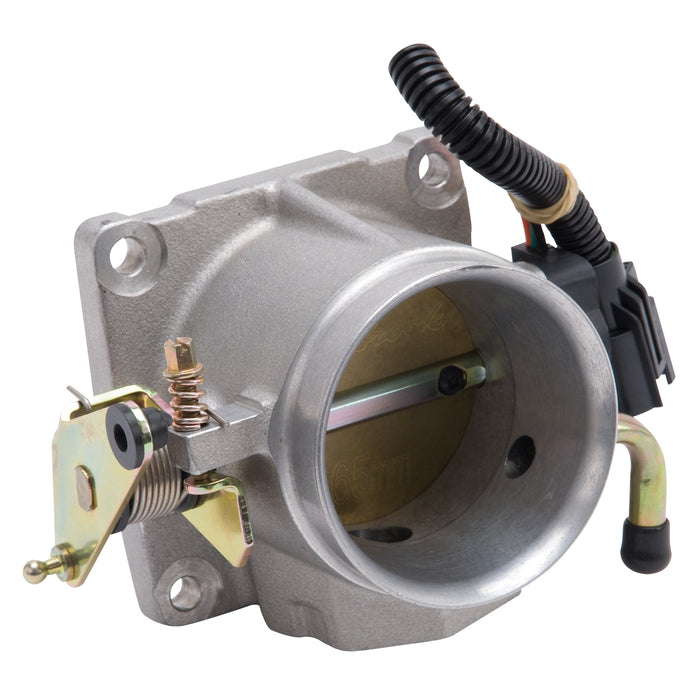

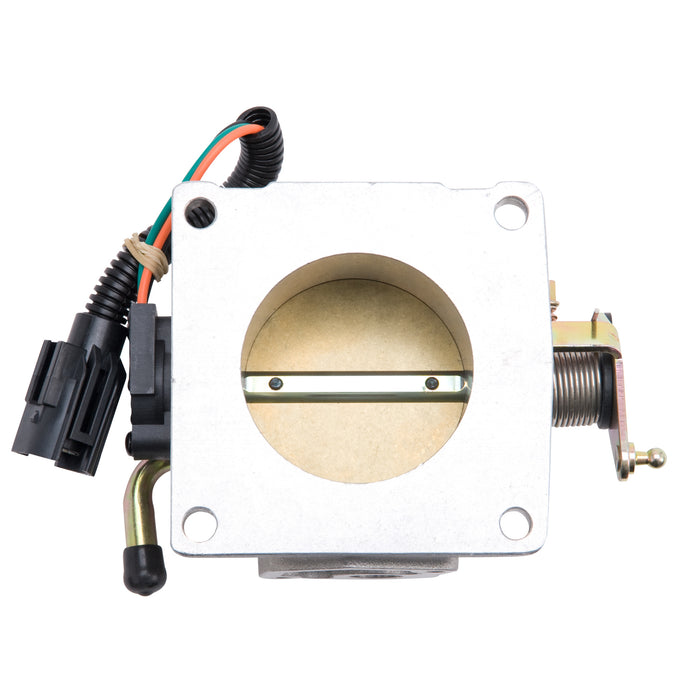

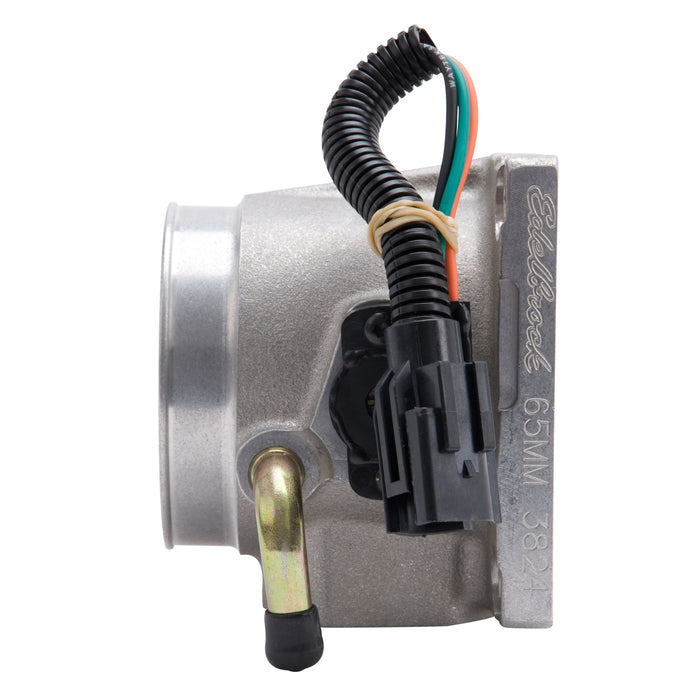

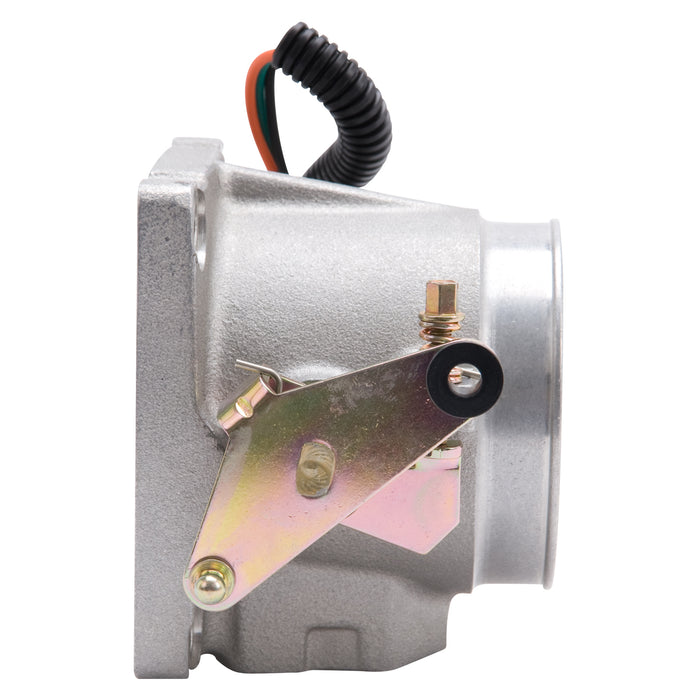

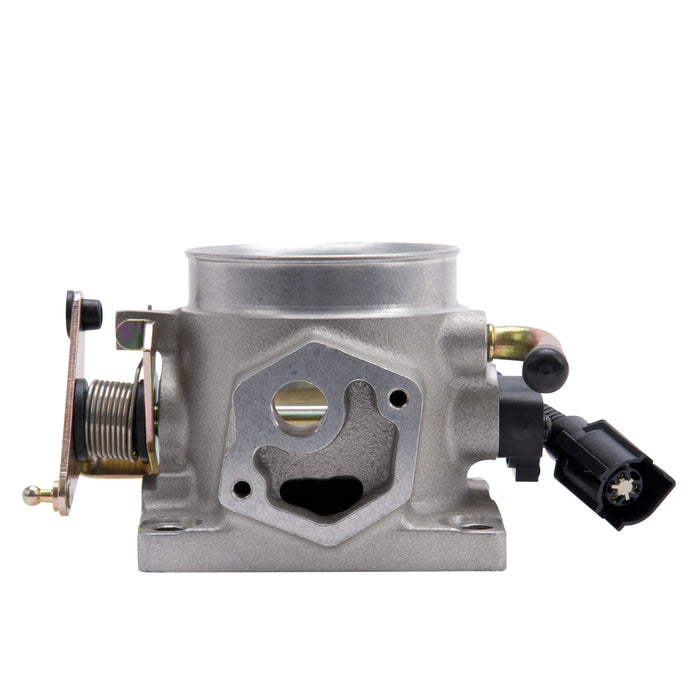

The Edelbrock #3824 65mm throttle body is cast, machined, and assembled by Edelbrock. The throttle body includes a throttle position sensor. The customer re-uses their original idle air bypass solenoid. The throttle body requires the use of the 65mm EGR plate (#3827). Both the throttle body and the EGR plate are covered by E.O. D-215-18. The 65mm combination fits stock applications, but gasket matching to a 65mm bore size is recommended for optimum results. It fits our #3821 manifold or Ford's GT-40 with no modifications. Satin Finish
Specifications
| Bore Diameter | 65.0 |
| Description_ABR | ThrottleBody |
| Description_ASM | Ford:Small-Block Windsor:302 (5.0L) |
| Description_DEF | Fuel Injection Throttle Body |
| Description_EXT | The Edelbrock #3824 65mm throttle body includes a throttle position sensor. The 65mm Throttle Bore fits stock applications. It fits our 3821 manifold or Ford's GT-40 with no modifications. Does not include IAC Motor. Satin Finish |
| Description_INV | Ford 1986-93 5.0L 65mm Throttle Body |
| Description_LAB | Ford 1986-93 5.0L Mustang 65mm Throttle Body, Satin Finish |
| Description_MKT | The Edelbrock #3824 65mm throttle body is cast, machined, and assembled by Edelbrock. The throttle body includes a throttle position sensor. The customer re-uses their original idle air bypass solenoid. The throttle body requires the use of the 65mm EGR plate (#3827). Both the throttle body and the EGR plate are covered by E.O. D-215-18. The 65mm combination fits stock applications, but gasket matching to a 65mm bore size is recommended for optimum results. It fits our #3821 manifold or Ford's GT-40 with no modifications. Satin Finish |
| Fuel System Type | Gas |
| Gasket Or Seal Included | Yes |
| height | 5.75 |
| Inlet Diameter | 3.250 |
| Inlet Type | Single |
| length | 9.0 |
| Outlet Diameter | 65.0 |
| Outlet Type | Single Blade |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Throttle Body Type | Single Blade |
| weight | 2.85 |
| width | 3.75 |
