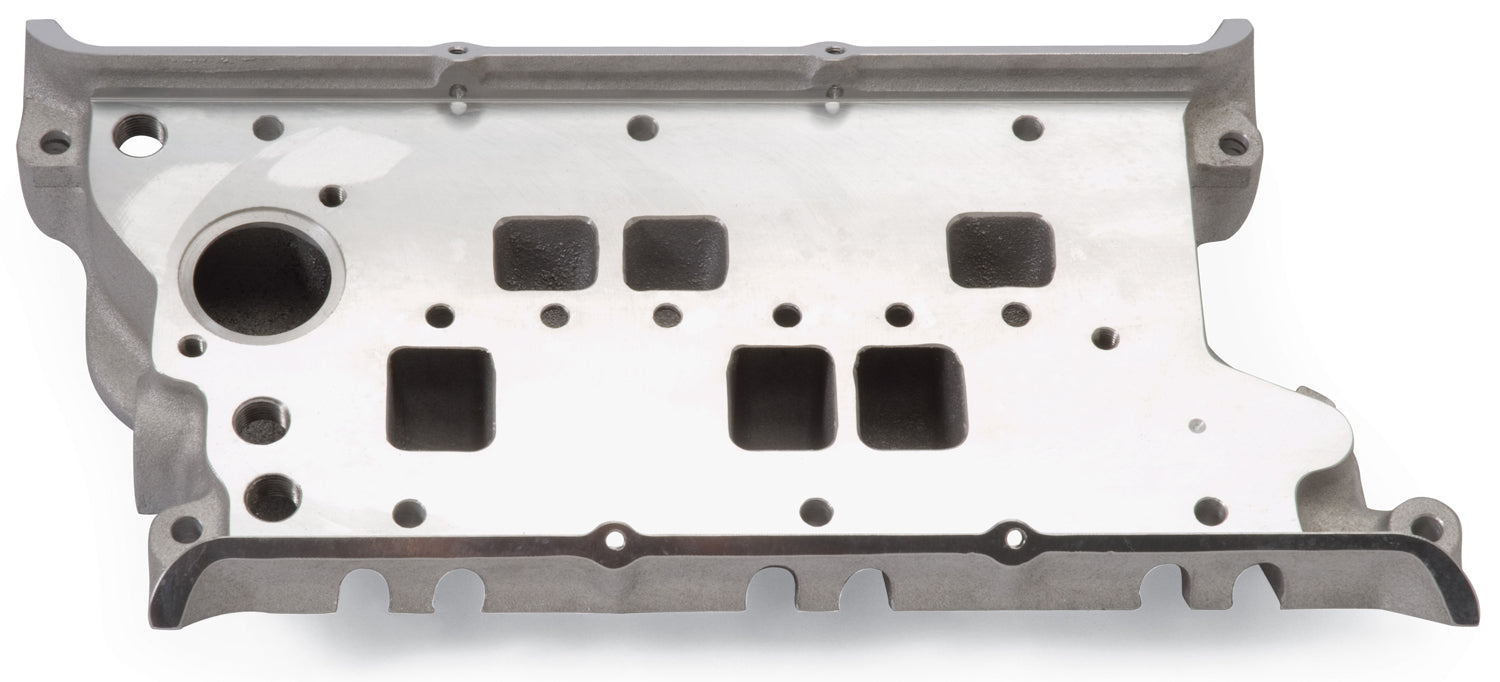

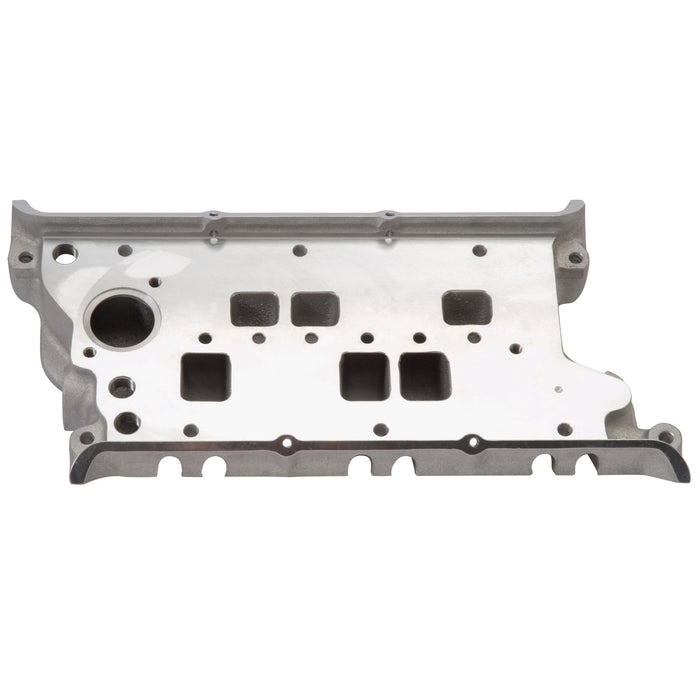

Edelbrock 3785 Edelbrock Performer 2.8L V6 GM Intake Manifold Carburetor
by Edelbrock
SKU ds_BDVJ_3785
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$547.48
-
Original price
$547.48
Original price
$547.48
$547.48
$547.48
-
$547.48
Current price
$547.48
Description
Edelbrock part #3785 Performer 60-degree V6 intake manifold base is designed for 1982-85 2.8L 60 degree V6 Chevy longitudinal-mount engines used in light duty pick-ups and cars. Design features one manifold base and two interchangeable tops. The Edelbrock Performer 4V 60 degree V6 #3789 intake manifold top accepts std. flange 4-bbl. carbs. The Edelbrock Performer 60 degree V6 #3787 intake manifold top accepts stock 2-bbl. carb. Edelbrock chrome valve covers #4488 are available for this engine.
Specifications
| Basic Operating RPM Range | Idle-6000 |
| Center Maximum Height | 0.010 |
| CNC Ported | No |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block 60 Deg V6:173 (2.8L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer 2.8L V6 GM Intake Manifold Carburetor |
| Description_FAB | 50-State Street Legal if Correct Carburetor Used |
| Description_FAB | Cadmium Finish Steel Bolt |
| Description_FAB | For Idle to 5500 RPM Street-Driven Performance |
| Description_FAB | Ideal for Light-Duty Pickups and Passenger Cars |
| Description_FAB | Unique Design Allows Use Of 2 bbl Or 4 bbl Top |
| Description_INV | Performer 2.8L Intake Manifold |
| Description_KEY | 3785; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer; Satin |
| Description_LAB | Performer Small-Block Chevy 2.8L Intake Manifold |
| Description_MKT | Edelbrock part #3785 Performer 60-degree V6 intake manifold base is designed for 1982-85 2.8L 60 degree V6 Chevy longitudinal-mount engines used in light duty pick-ups and cars. Design features one manifold base and two interchangeable tops. The Edelbrock Performer 4V 60 degree V6 #3789 intake manifold top accepts std. flange 4-bbl. carbs. The Edelbrock Performer 60 degree V6 #3787 intake manifold top accepts stock 2-bbl. carb. Edelbrock chrome valve covers #4488 are available for this engine. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| Description_TRA | Carb pad height: 4.91" (when used with #3787 Top) |
| Description_TRA | Carb pad height: 5.42" (when used with #3789 Top) |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Jeep Cherokee, additional hood shimming is required for clearance (when used with #3787 Top) Hood shims available from Jeep dealers (part #J0680435) |
| Description_TRA | Linkage and bracketry come with top. |
| Description_TRA | Manifold height: A-4.37", B-5.45" |
| Description_TRA | Manifold height: A-4.90", B-5.95" |
| Description_TRA | Port exit dimensions: 1.00" x 1.28"/1.00" x 1.71". |
| Description_TRA | Recommended intake gasket: Fel-Pro #1270 or #MS91022. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Fel-Pro # 1270 or # MS91022. • Linkage and bracketry come with top. • Jeep Cherokee; additional hood shimming is required for clearance (when used with # 3787 Top) Hood shims available from Jeep dealers (part #J0680435) • Port exit dimensions: 1.00in. x 1.28in./1.00in. x 1.71in. • Manifold height: A-4.90in.; B-5.95in.; Carb pad height: 5.42in. (when used with # 3789 Top) • Manifold height: A-4.37in.; B-5.45in.; Carb pad height: 4.91in. (when used with # 3787 Top) • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| Emission | With EGR |
| Engine Make/Size | Chevy 2.8L |
| finish | Satin |
| Front Maximum Height | 0.010 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 5.75 |
| length | 22.25 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | Lower |
| Rear Maximum Height | 0.010 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | Idle -5500 |
| Series | Performer |
| Single Or Dual Plane Type | Dual |
| Usage | Street/Hi-Performance |
| Vehicle Model | Chevrolet |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 9.8 |
| width | 10.25 |
