Description

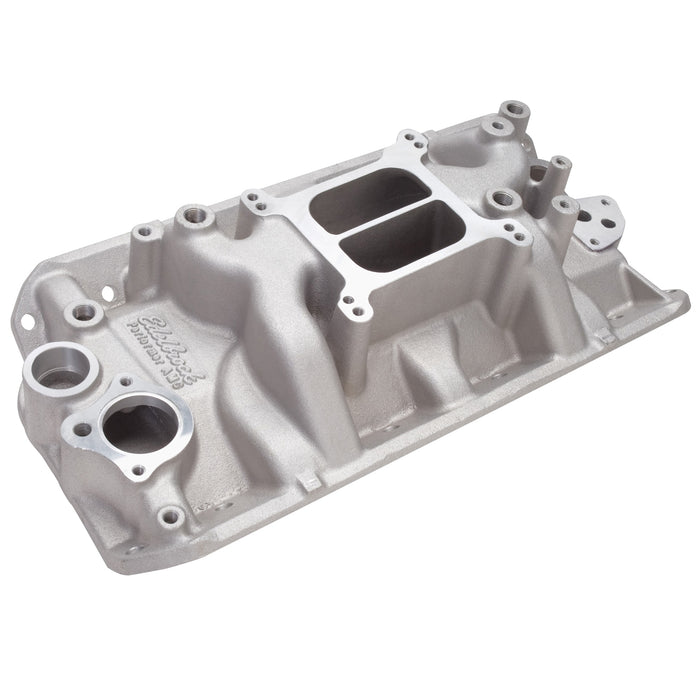

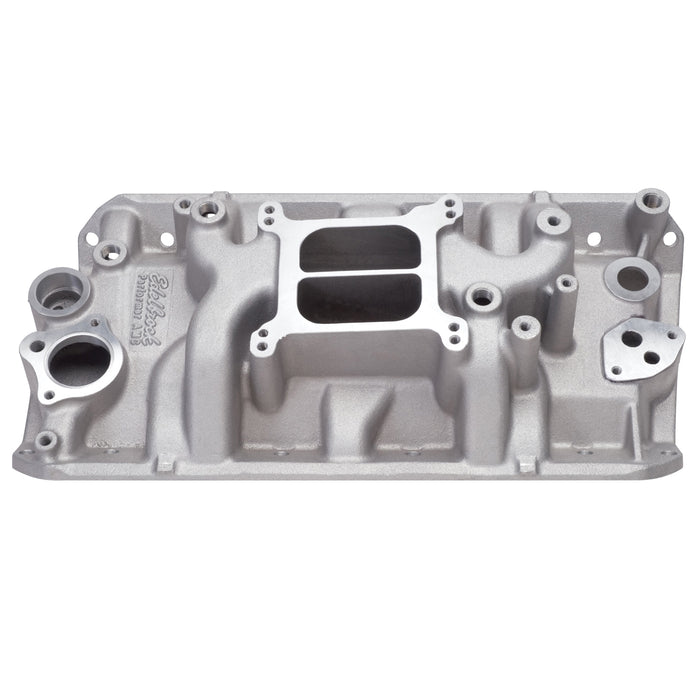

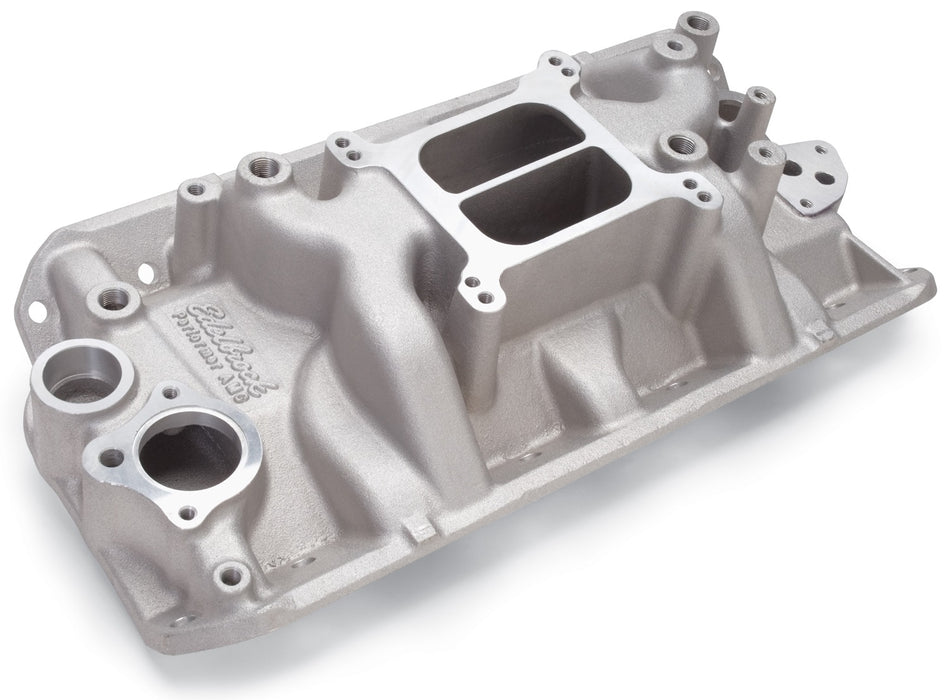

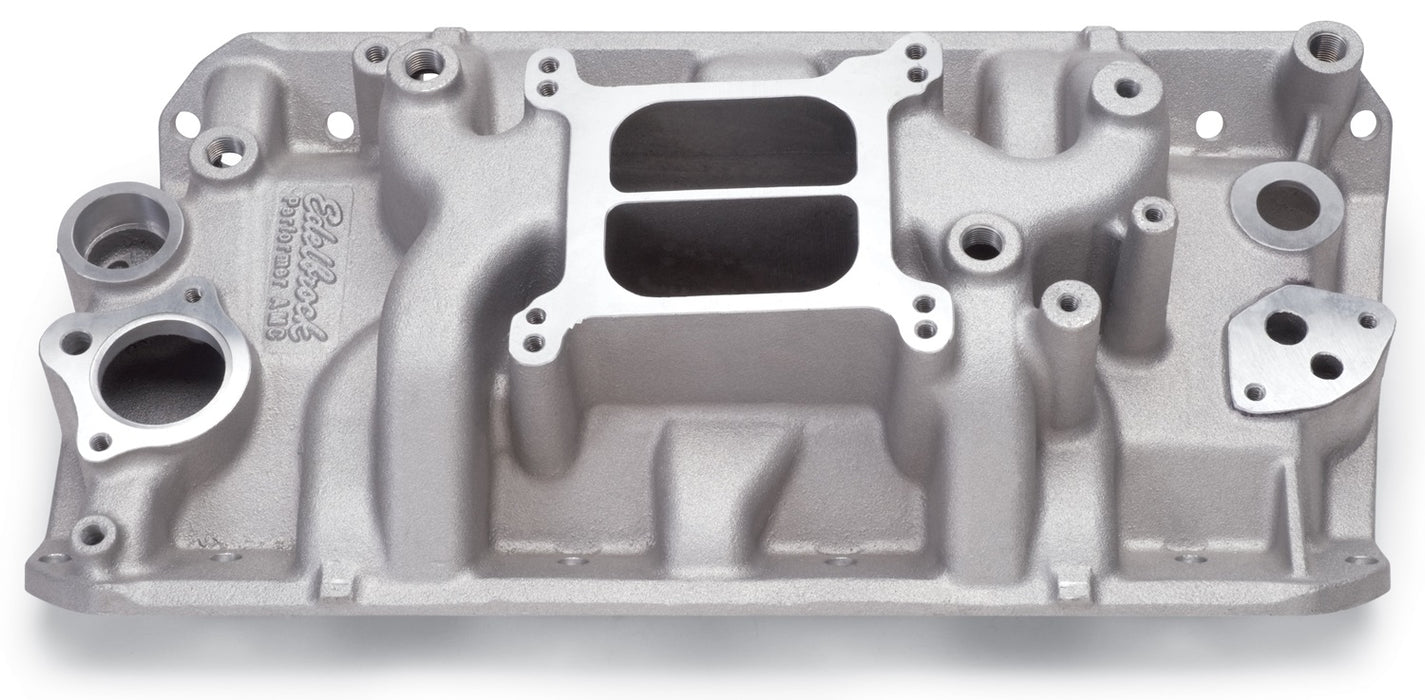

Edelbrock part #3731 Performer AMC EGR intake manifold is designed for 1970-91 street 304-360-401 c.i.d. V8 engines. This intake manifold will not accept stock Motorcraft spread-bore carburetor.
Specifications
| Basic Operating RPM Range | Idle-5500 |
| Center Maximum Height | 4.850 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | AMC:-:304 (5.0L)/360 (5.9L)/401 (6.6L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer EGR AMC Intake Manifold for AMC 304-360-401 Small-Block V8 |
| Description_FAB | 50-State Street Legal if Correct Carburetor Used |
| Description_FAB | Dual-Plane Low-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | Excellent Throttle Response and Mid-Range Power |
| Description_FAB | For Idle to 5500 RPM Street-Driven Performance |
| Description_FAB | Patented Runner Design Ensures Broad Torque Curve |
| Description_INV | Performer AMC EGR Intake Manifold |
| Description_KEY | 3731; AMC; Jeep; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer; Satin |
| Description_LAB | Performer EGR AMC Intake Manifold |
| Description_MKT | Edelbrock part #3731 Performer AMC EGR intake manifold is designed for 1970-91 street 304-360-401 c.i.d. V8 engines. This intake manifold will not accept stock Motorcraft spread-bore carburetor. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Carb pad height: 4.85" |
| Description_TRA | Carb recommendations: Requires Edelbrock #8008 or #8024 stud, nut and washer kit. OEM 4-Bbl non-EGR square-bore. Edelbrock AVS2 or Performer Series 500-650 cfm. |
| Description_TRA | Edelbrock bracket #8034 required for 1979 and later vehicles |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold have two center bolt holes offset |
| Description_TRA | Manifold height: A-4.20", B-5.50" |
| Description_TRA | Must use factory style metal valley tray |
| Description_TRA | Port exit dimensions: 1.03" x 2.07" |
| Description_TRA | Recommended intake gasket: Fel-Pro MS96011 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Fel-Pro MS96011 • Must use factory style metal valley tray • Manifold have two center bolt holes offset • Manifold height: A-4.20in.; B-5.50in. • Carb pad height: 4.85in. • Carb recommendations: Requires Edelbrock # 8008 or # 8024 stud; nut and washer kit. OEM 4-Bbl non-EGR square-bore. Edelbrock AVS2 or Performer Series 500-650 cfm. • Port exit dimensions: 1.03in. x 2.07in. • Edelbrock bracket # 8034 required for 1979 and later vehicles • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 4.200 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 5.500 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Performer |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | AMC |
| weight | 20.95 |
| width | 14.75 |
