Description

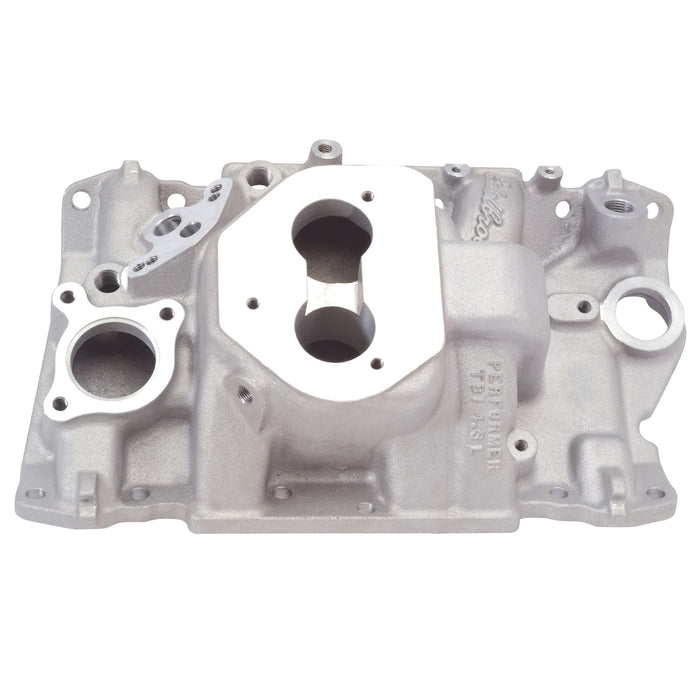

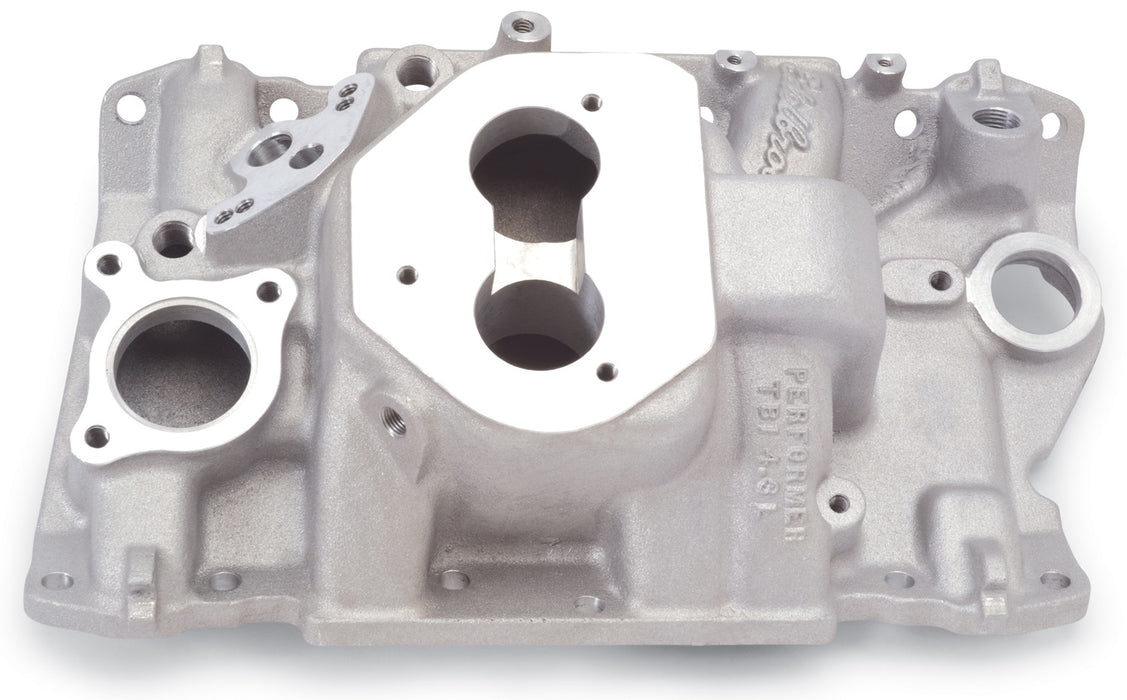

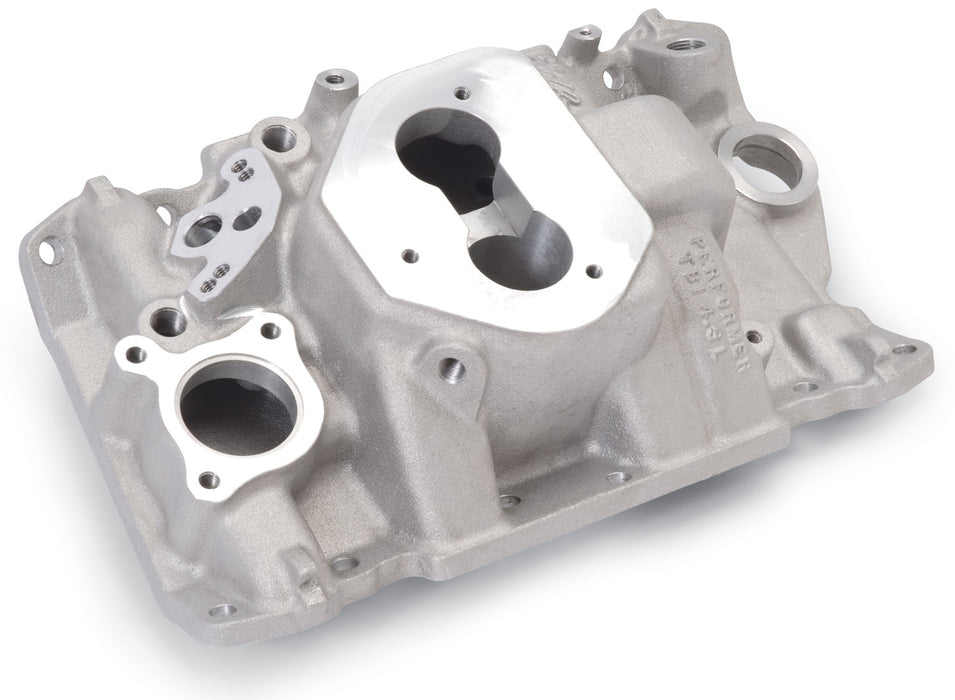

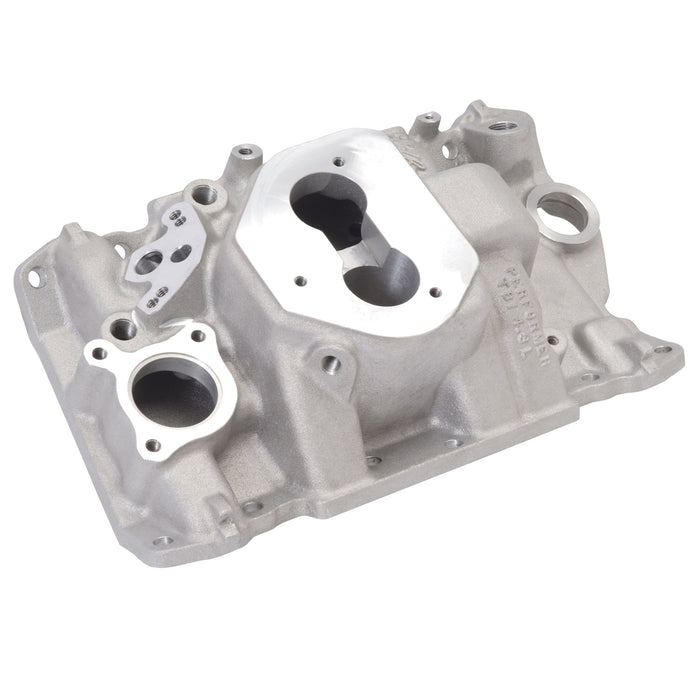

Edelbrock part #3713 Performer 4.3L T.B.I V6 intake manifold is designed for street 1987-94 Chevrolet 4.3L V6 with factory Throttle Body Injection. The Performer 4.3L intake manifold provides outstanding throttle response and torque increases from idle to 5500 rpm. Accepts all factory accessories/hardware. Throttle body unit remains in stock location. Not for 1994 and later engines equipped with flash memory computer. Flash memory ECM is located underhood. A computer chip is available at no charge. Return postage paid card comes with the manifold to receive the chip.
Specifications
| Basic Operating RPM Range | Idle-5500 |
| Center Maximum Height | 4.540 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block 90 Deg V6:262 (4.3L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer 4.3L T.B.I. V6 Intake manifold for 1987-1994 Chevrolet 4.3L V-6 with factory Throttle Body Injection. |
| Description_FAB | Accepts All Factory Accessories |
| Description_FAB | Computer Chip Available - Return Card in Packaging |
| Description_FAB | For Idle to 5500 RPM Street-Driven Performance |
| Description_FAB | Gains 6/10s of a Second in 10 to 70 MPH |
| Description_FAB | Not for Vehicles with Flash Memory Computer |
| Description_FAB | Patented Runner Design Ensures Broad Torque Curve |
| Description_FAB | Stock Throttle Body Remains in Stock Position |
| Description_INV | Performer TBI V6 4.3 Chevy Intake |
| Description_KEY | 3713; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; TBI; Performer; Satin |
| Description_LAB | Performer Small-Block Chevy 4.3L T.B.I. V6 Intake Manifold |
| Description_MKT | Edelbrock part #3713 Performer 4.3L T.B.I V6 intake manifold is designed for street 1987-94 Chevrolet 4.3L V6 with factory Throttle Body Injection. The Performer 4.3L intake manifold provides outstanding throttle response and torque increases from idle to 5500 rpm. Accepts all factory accessories/hardware. Throttle body unit remains in stock location. Not for 1994 and later engines equipped with flash memory computer. Flash memory ECM is located underhood. A computer chip is available at no charge. Return postage paid card comes with the manifold to receive the chip. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Carb pad height: 4.54" |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-3.93", B-5.15" |
| Description_TRA | Port exit dimensions: 1.10" x 1.92" |
| Description_TRA | Recommended intake gasket: GM #12510908 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Use stock Throttle Body Injection unit. |
| Description_TRA | • Use stock Throttle Body Injection unit. • Recommended intake gasket: GM # 12510908 • Manifold height: A-3.93in.; B-5.15in. • Carb pad height: 4.54in. • Port exit dimensions: 1.10in. x 1.92in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | Yes |
| finish | Satin |
| Flange Type | Factory T.B.I. |
| Front Maximum Height | 3.930 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 5.150 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Performer |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Chevrolet |
| weight | 16.65 |
| width | 14.75 |
