Edelbrock 3704 Edelbrock Performer T.B.I. Intake Manifold For Chevrolet 305/350 Small-Block V8
by Edelbrock
SKU ds_BDVJ_3704
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$821.05
-
Original price
$821.05
Original price
$821.05
$821.05
$821.05
-
$821.05
Current price
$821.05
Description

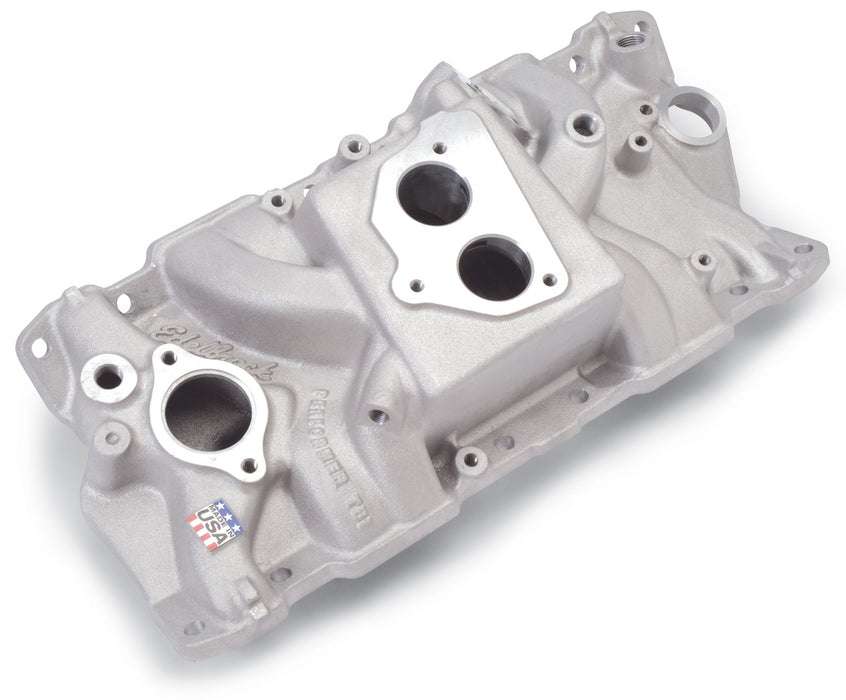

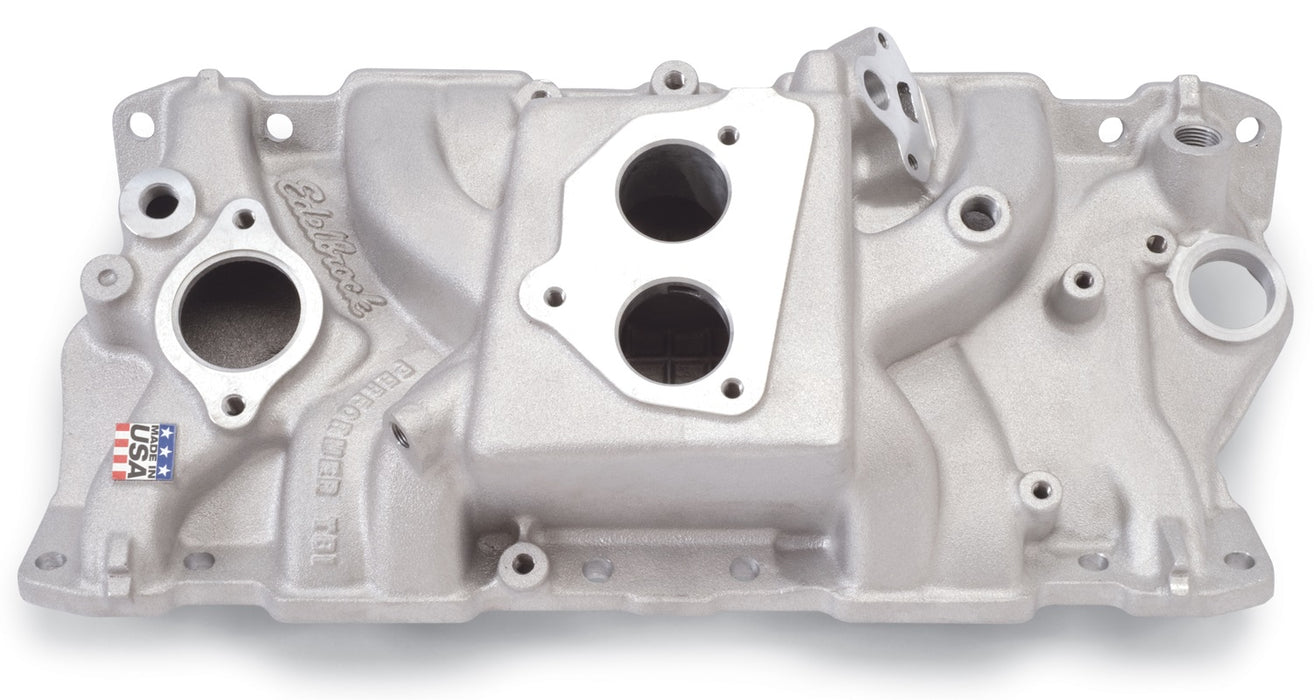

Edelbrock part #3704 Performer T.B.I. intake manifold is designed for 1987-95 305/350 c.i.d. 5.0/5.7L Chevy throttle body injected (T.B.I.) engines. Accepts all OEM equipment and small-bore (1-11/16") throttle body injectors only. Computer chip is supplied free of charge with proof of purchase of intake manifold, cam and heads. Will not fit Caprice or Buick and Cadillac "B" bodies.
Specifications
| Basic Operating RPM Range | Idle-5500 |
| Center Maximum Height | 4.400 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen I:305 (5.0L)/350 (5.7L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer T.B.I. Intake Manifold For Chevrolet 305/350 Small-Block V8 |
| Description_FAB | 5.7L Power Package Provides Free Computer Chip |
| Description_FAB | 50-State Street Legal with OEM Throttle Body |
| Description_FAB | Excellent Throttle Response and Mid-Range Power |
| Description_FAB | For Idle to 5500 RPM Street-Driven Performance |
| Description_FAB | For OE and Small Bore TBI Injectors Only |
| Description_FAB | No Chip Changes/Computer Modifications Required |
| Description_FAB | Patented Runner Design Ensures Broad Torque Curve |
| Description_INV | Performer TBI SBC Intake Manifold |
| Description_KEY | 3704; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer; TBI; Satin |
| Description_LAB | Performer T.B.I. Intake Manifold Small-Block Chevy |
| Description_MKT | Edelbrock Part # 3704 Performer T.B.I. intake manifold is designed for 1987-95 305/350 c.i.d. 5.0/5.7L Chevy throttle body injected (T.B.I.) engines. Accepts all OEM equipment and small-bore (1-11/16") throttle body injectors only. Will not fit Caprice or Buick and Cadillac "B" bodies. |
| Description_MKT | Edelbrock part #3704 Performer T.B.I. intake manifold is designed for 1987-95 305/350 c.i.d. 5.0/5.7L Chevy throttle body injected (T.B.I.) engines. Accepts all OEM equipment and small-bore (1-11/16") throttle body injectors only. Computer chip is supplied free of charge with proof of purchase of intake manifold, cam and heads. Will not fit Caprice or Buick and Cadillac "B" bodies. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA | Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Made in the USA |
| Description_TRA | Manifold height: A-3.70", B-5.10" |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | Port exit dimensions: 1.13" x 1.87". |
| Description_TRA | Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_TRA | Recommended intake gasket: GM #10159409. |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | TBI pad height: 4.40", .250" taller than stock. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Use stock Throttle Body Injection unit. |
| Description_TRA | • Use stock Throttle Body Injection unit. • Recommended intake gasket: GM # 10159409. • Manifold height: A-3.70in.; B-5.10in.; TBI pad height: 4.40in.; .250in. taller than stock. • Port exit dimensions: 1.13in. x 1.87in. • Made in the USA • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. • DO NOT OVERTIGHTEN NPT/Pipe fittings; this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. • Even though manifolds are compatible with EGR systems; this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality. • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| EGR Port | Yes |
| finish | Satin |
| Flange Type | Factory T.B.I. |
| Front Maximum Height | 3.700 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 5.5 |
| length | 22.5 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 5.100 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Performer |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Chevrolet |
| weight | 19.4 |
| width | 10.6 |
