Edelbrock 36130 Pro-Flo 4+ EFI Fuel Management System #36130 for Chevy Gen III/IV LS w/Tablet
by Edelbrock
SKU ds_BDVJ_36130
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,290.81
-
Original price
$2,290.81
Original price
$2,290.81
$2,290.81
$2,290.81
-
$2,290.81
Current price
$2,290.81
Availability:
Out of stock
Description

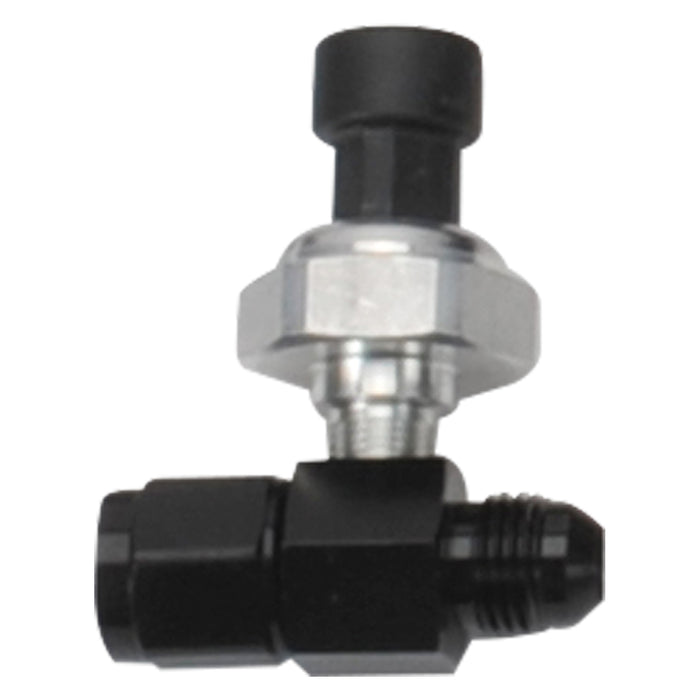

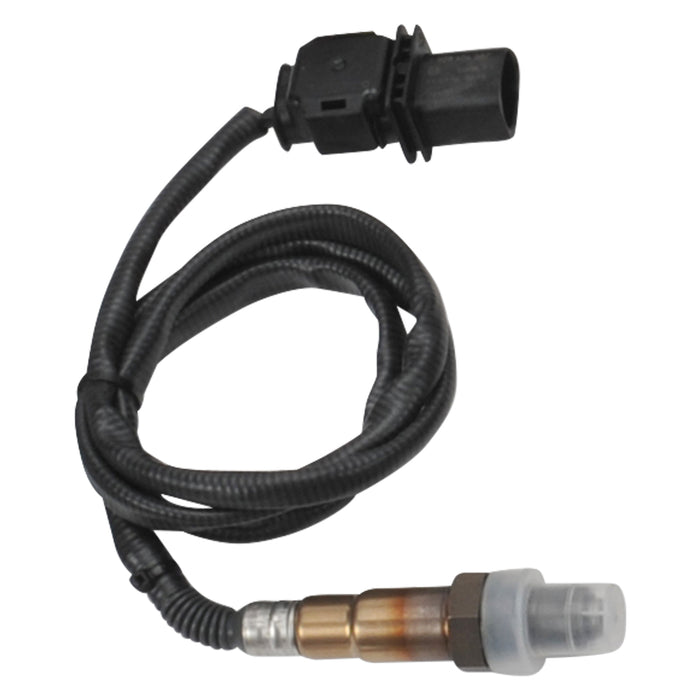

MAP, O2, and fuel pressure sensors. Note that some supporting wiring harnesses for drive-by-wire and alternator configuration are necessary determined by the reluctor wheel (either 24x or 58x). LS applications implement a speed density fueling strategy using an OEM MAP sensor which eliminates the factory MAF sensor, inlet air piping and air box. This allows unlimited options in your air intake design. The Pro-Flo 4+ ECU provides mounting versatility with a compact weather-resistant housing and features a unique self-learning capability that adjusts the fuel map as you drive, providing optimum performance with no need for laptop tuning or costly dyno sessions. Setup is quick and easy thanks to Edelbrock’s E-Tuner 4 software for Android tablets and smartphones. A non-adjustable Alternator Control is set to regulate at 14.5 volts and only OEM alternators are supported. Minimal tuning adjustments are required when the provided base calibration is used, giving you great performance right out of the box. Pro-Flo 4+ is covered by a 2-year warranty and is backed by the industry’s most extensive technical support team.
Specifications
| Description_ABR | ProFlo4+ EFI |
| Description_ASM | Chevrolet:LS Gen III/GenIV:293 (4.8L)/325 (5.3L)/350 (5.7L)/364 (6.0L)/376 (6.2L)/427 (7.0L) |
| Description_DEF | Fuel Injection Calibration Module |
| Description_DES | Pro-Flo 4+ EFI Fuel Management System #36130 for Chevy Gen III/IV LS w/Tablet |
| Description_EXT | Pro-Flo 4+ simplifies installing a modern factory Chevy Gen III/IV LS engine into a non-EFI vehicle |
| Description_EXT | This item requires additional components to complete the installation. See below for a list of items required to be purchased separately. |
| Description_FAB | No laptop tuning required |
| Description_FAB | Simple plug-and-play installation |
| Description_FAB | Supports 24x and 58x crank/cam types |
| Description_FAB | Supports dual throttle bodies |
| Description_FAB | Works with 2- and 4-wire OEM alternator |
| Description_FAB | Works with most intake manifolds with OEM DBW throttle bodies |
| Description_INV | Pro-Flo 4+ EFI Kit Chevy LS Gen III/IV |
| Description_LAB | Pro-Flo 4+ EFI Engine Management System #36130 for Chevy Gen III/IV LS w/Tablet |

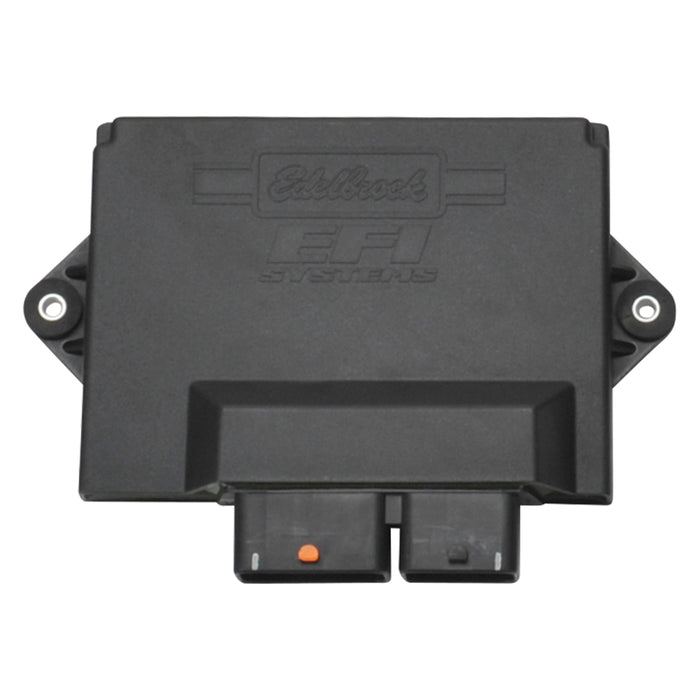

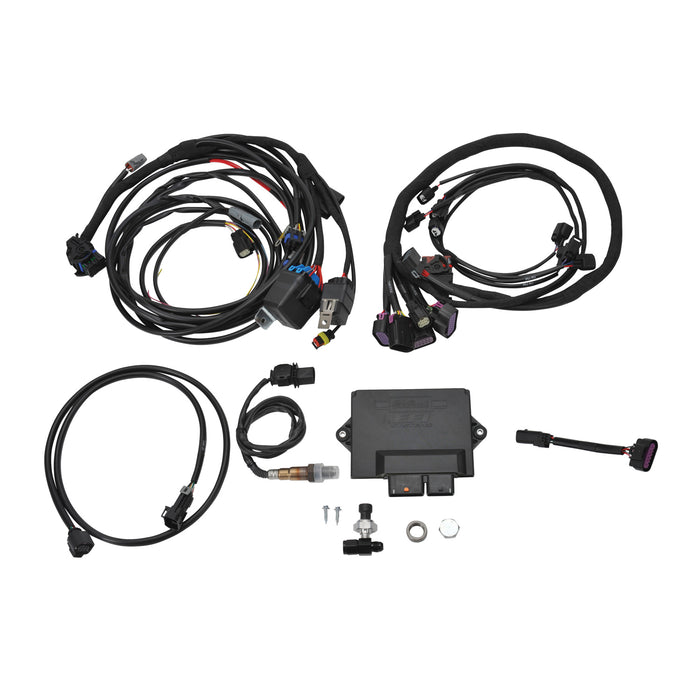

| Description_MKT | Edelbrock Pro-Flo 4+ kit #36130 is an EFI engine management system that simplifies the installation of a modern factory Chevy Gen III/IV LS engine with EFI and drive-by-wire (DBW) into a non-EFI muscle car, truck or hot rod. Pro-Flo 4+ allows you to leave the factory ECU and wiring harnesses at the junkyard by providing a plug-and-play control system that is specially designed for the Gen III/IV LS engine, implementing DBW throttle that is calibrated for best performance in hot rod engine swap applications and is fully compatible with all factory actuators. This system also supports dual DBW throttle bodies for use with the Cross-Ram LS3 intake manifold. Pro-Flo 4+ kit #36130 includes an ECU with base calibration |
| Description_MKT | MAP, O2, and fuel pressure sensors. Note that some supporting wiring harnesses for drive-by-wire and alternator configuration are necessary determined by the reluctor wheel (either 24x or 58x). LS applications implement a speed density fueling strategy using an OEM MAP sensor which eliminates the factory MAF sensor, inlet air piping and air box. This allows unlimited options in your air intake design. The Pro-Flo 4+ ECU provides mounting versatility with a compact weather-resistant housing and features a unique self-learning capability that adjusts the fuel map as you drive, providing optimum performance with no need for laptop tuning or costly dyno sessions. Setup is quick and easy thanks to Edelbrock’s E-Tuner 4 software for Android tablets and smartphones. A non-adjustable Alternator Control is set to regulate at 14.5 volts and only OEM alternators are supported. Minimal tuning adjustments are required when the provided base calibration is used, giving you great performance right out of the box. Pro-Flo 4+ is covered by a 2-year warranty and is backed by the industry’s most extensive technical support team. |

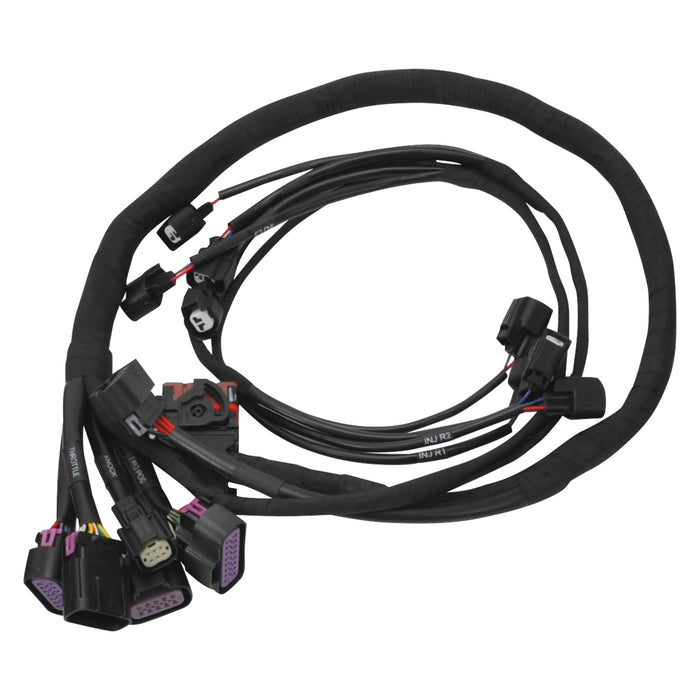

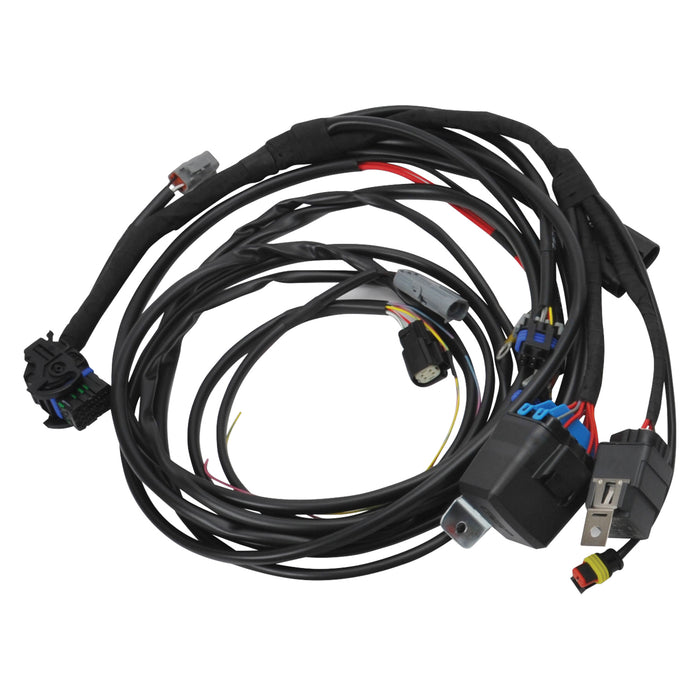

| Description_MKT | OEM-style wiring harnesses |
| Description_SHP | None |
| Description_TRA | This item requires additional components to complete the installation. Please see below for a list of items that are required to be purchased separately. |
| height | 6.5 |
| length | 16.625 |
| length | Various |
| LTL | N |
| Quantity | Kit |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| System Type | Pro-Flo 4+ EFI |
| Terminal Gender | Female/Male |
| Terminal Quantity | Multiple |
| Terminal Type | Various |
| Thickness | Various |
| weight | 5.4 |
| width | 11.75 |
| width | Various |
| Wire Gauge Measurement | Various |
| Wire Quantity | Multiple |
| Wiring Harness Length | Various |
