Edelbrock 36112 Pro-Flo 4+ EFI Ignition & Engine Position Harness 36112 Chevy LS 24x Crank/Cam
by Edelbrock
SKU ds_BDVJ_36112
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$253.39
-
Original price
$253.39
Original price
$253.39
$253.39
$253.39
-
$253.39
Current price
$253.39
Availability:
Out of stock
Description

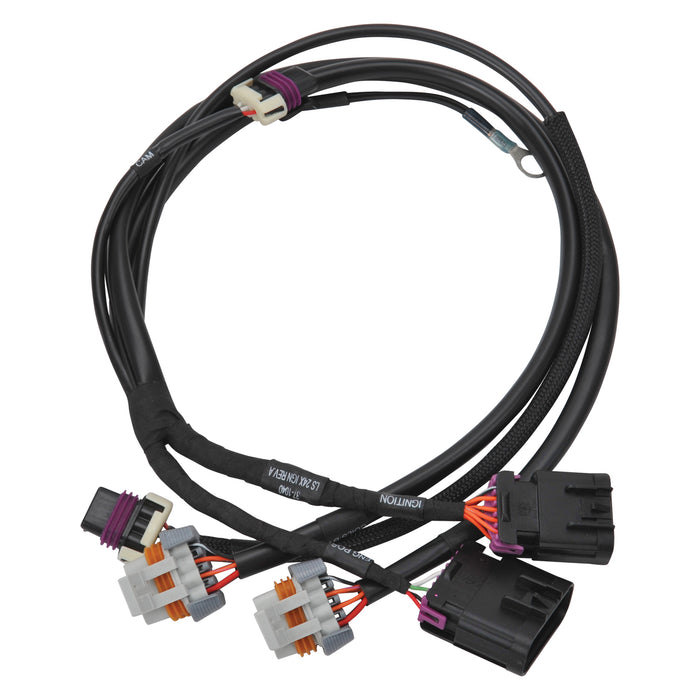

This Ignition and Engine Harness is required and sold separately from Pro-Flo 4+ Chevy LS EFI System #36130. This Harness is specifically for Chevy LS 24x Crank Cam Reluctor applications where Crank Sensor is black in color and located at rear of block behind starter and Camshaft sensor is located at rear of block on top. This harness connects into Pro-Flo 4+ Main Harness Connectors labeled Engine Position and Ignition. Harness has connections for Coil Pack Harnesses, Crank Sensor, Cam Sensor and Engine Ground.
Specifications
| Description_ABR | EFI Harness |
| Description_ASM | Chevrolet:LS Gen III/GenIV:293 (4.8L)/325 (5.3L)/346 (5.7L)/364 (6.0L) |
| Description_DEF | Multi-Purpose Wiring Harness |
| Description_DES | Pro-Flo 4+ EFI Ignition & Engine Position Harness 36112 Chevy LS 24x Crank/Cam |
| Description_EXT | This Ignition and Engine Harness is required and sold separately from PF4+ Chevy LS EFI System #36130. Harness has connections for Coil Pack Harnesses, Crank Sensor, Cam Sensor and Engine Ground. |
| Description_INV | Edelbrock Ignition/Engine Harness #36112 |
| Description_LAB | Pro-Flo 4+ EFI Ignition & Engine Position Harness #36112 Chevy LS 24x Crank/Cam |
| Description_MKT | This Ignition and Engine Harness is required and sold separately from Pro-Flo 4+ Chevy LS EFI System #36130. This Harness is specifically for Chevy LS 24x Crank Cam Reluctor applications where Crank Sensor is black in color and located at rear of block behind starter and Camshaft sensor is located at rear of block on top. This harness connects into Pro-Flo 4+ Main Harness Connectors labeled Engine Position and Ignition. Harness has connections for Coil Pack Harnesses, Crank Sensor, Cam Sensor and Engine Ground. |
| height | 2.5 |
| length | 10.0 |
| LTL | N |
| Quantity | Sold Individually |
| Recommended Use | Ignition and Engine Position |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Terminal Gender | N/A |
| Terminal Type | None |
| weight | 2.0 |
| width | 9.25 |
| Wire Gauge Measurement | (Branch Diameter) 1.15 |
| Wire Quantity | 5 |
| Wiring Harness Length | 27 in/29 in/12 in/15 in/27 |
