Edelbrock 3604 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_3604
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$901.61
-
Original price
$901.61
Original price
$901.61
$901.61
$901.61
-
$901.61
Current price
$901.61
Availability:
Only 1 left!
Description

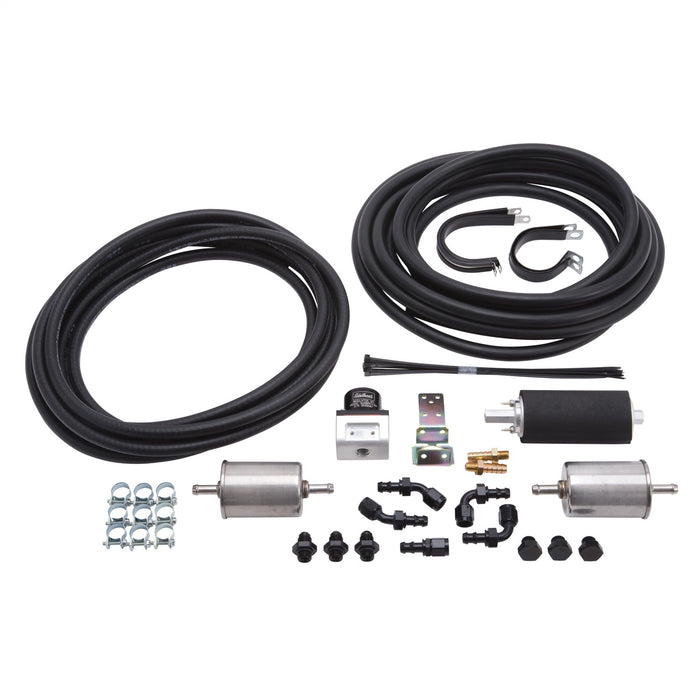

Edelbrock Adjustable Return-Style EFI Fuel Kit #3604 includes everything needed to upgrade a carbureted fuel system to a high pressure EFI system, excluding the fuel tank. This kit is a return-style and will complete the fuel system loop by returning unused fuel to the tank. Kit includes a 67 GPH (215 liter/hr) fuel pump, adjustable regulator (35-90 PSI), filter, Russell Twist-Lok hose, hose ends, mounting brackets and hardware. A baffled fuel tank is recommend to prevent fuel starvation. This system is rated for engines up to 600 HP, when used with an Edelbrock EFI system.
Specifications
| Cylinder Head Type | Standard |
| Description_ABR | EFI Fuel Sys |
| Description_DEF | Fuel Injection Fuel Feed and Return Pipe Assembly |
| Description_DES | FUEL SUPPLY SYSTEM |
| Description_EXT | Adjustable Return-Style EFI Fuel Kit for upgrading a carbureted fuel system to a high pressure EFI system, excluding the fuel tank. This kit is a return-style and will complete the fuel system loop by returning unused fuel to the tank. |
| Description_EXT | Adjustable Return-Style EFI Fuel Kit for upgrading a carbureted fuel system to a high pressure EFI system; excluding the fuel tank. This kit is a return-style and will complete the fuel system loop by returning unused fuel to the tank. |
| Description_FAB | A356 Aluminum |
| Description_FAB | Affordable Price |
| Description_FAB | Edelbrock Quality And Performance |
| Description_FAB | Entry Level Street Performance Upgrade |
| Description_FAB | Made In U.S.A. |
| Description_FAB | Sold As A Pair |
| Description_INV | EFI Return-Style Fuel System Kit |
| Description_KEY | Edelbrock; EFI; Pro-Flo; Pro-Flo XT; EFI; Fuel Injection; Electronic Fuel Injection; Fuel System; Fuel Pump; Fuel Kit; Sump; Fuel Sump; Adjustable Return Fuel Kit; 3604 |
| Description_LAB | Fuel Injection Fuel Feed and Return Pipe Assembly #3604, 67 GPH/255 LPH |
| Description_LAB | Fuel Injection Fuel Feed and Return Pipe Assembly #3604; 67 GPH/255 LPH |
| Description_MKT | Edelbrock Adjustable Return-Style EFI Fuel Kit #3604 includes everything needed to upgrade a carbureted fuel system to a high pressure EFI system, excluding the fuel tank. This kit is a return-style and will complete the fuel system loop by returning unused fuel to the tank. Kit includes a 67 GPH (215 liter/hr) fuel pump, adjustable regulator (35-90 PSI), filter, Russell Twist-Lok hose, hose ends, mounting brackets and hardware. A baffled fuel tank is recommend to prevent fuel starvation. This system is rated for engines up to 600 HP, when used with an Edelbrock EFI system. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 9in.} |
| Engine Make/Size | Universal V8 |
| Filter Included | Yes |
| Fittings Included | Yes |
| Fuel Pump Included | Yes |
| Fuel Rate | OEM |
| height | 5.59 |
| Hose Included | Yes |
| Hose Length | 20 |
| length | 17.12 |
| LTL | N |
| Maximum Flow Rating | 67 GPH/255 LPH |
| Maximum Horsepower | 600 Supported |
| Mounting Bracket Included | Yes |
| Mounting Hardware Included | Yes |
| Pressure Rating | 35-90 |
| Quantity | Kit |
| Regulator Included | Yes |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Type | Return Style |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 9.4 |
| width | 14.62 |
