Description

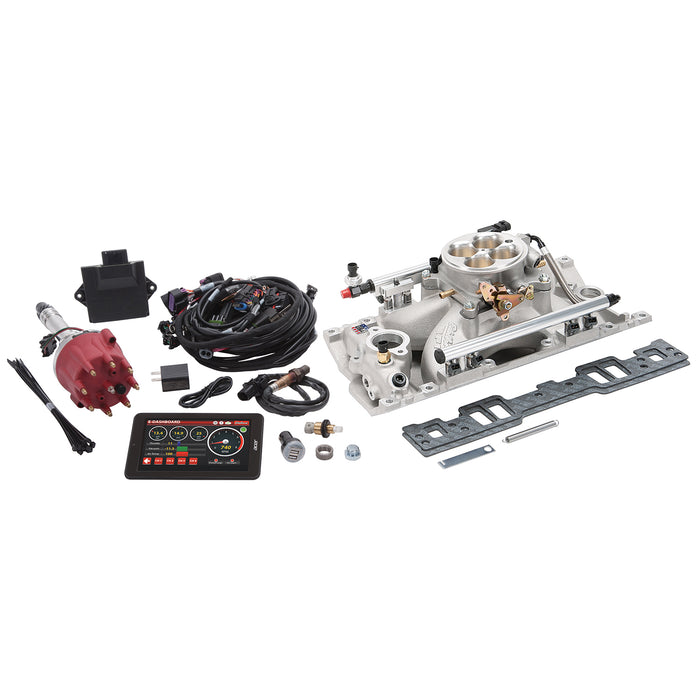

The Edelbrock Pro-Flo 4 EFI Kit #35780 for the Small-Block Chevy engine with Vortec/E-Tec cylinder heads is a fully sequential multi-port injection system designed with a fuel injector strategically positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Victor-style single-plane intake manifold that comes preassembled with high-flow 29 lb/hr injectors, fuel rails and 4150-flange throttle body. The Pro-Flo 4 EFI #35780 is compatible with factory-style cylinder heads or Edelbrock Performer and Performer RPM Cylinder heads. Also included is a distributor designed to work specifically with Pro-Flo 4 providing fully sequential port injection and infinite control over ignition and fuel events. This system is rated for 450 horsepower at 58 PSI with all supporting sensors, ECU, wire harnesses and 7-inch Android tablet for a streamlined installation. Key Pro-Flo 4 features are Self-Learning Fuel Map Technology, Wide-Band O2 Closed Loop Mixture Control and an ECU with advanced processor technology and Bluetooth connectivity. E-Tuner Android Software includes a Setup Wizard to simplify installation and provides fuel and spark adjustability for complete control over the system. Pro-Flo 4 EFI requires no laptop tuning. Minimal setup and tuning adjustments are required with base calibrations provided in the software. The ECU is self-learning and will continually adjust the fuel injection calibration for maximum performance by maintaining a specified target air-fuel ratio as you drive. The E-Tuner Software provides the ability to fine-tune air-fuel ratios, ignition curve, idle speed, acceleration fuel, fans, rev-limiter and more. Multiple displays let you monitor engine performance in real-time from inside or outside of the vehicle while retaining the simplicity that Pro-Flo 4 systems are known for.
Specifications
| Bore Diameter | 1.75 |
| Cylinder Head Type | GM Vortec/Edelbrock E-TEC |
| Description_ABR | EFI System |
| Description_ASM | Chevrolet:Small-Block Gen I Vortec:283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Fuel Injection System |
| Description_DES | FUEL INJECTION |
| Description_EXT | Edelbrock Pro-Flo 4 EFI kit for Small-Block Chevy engines with Vortec/E-Tec Cylinder heads. The EFI system comes with a 4150-Style satin finish single plane intake 29 Lb/Hr injectors capable of 450 HP with 58 p.s.i. fuel pressure. |
| Description_EXT | Edelbrock Pro-Flo 4 EFI System for Small-Block Chevy with Vortec/E-Tec Cylinder heads. The EFI System comes with a satin 4150-Style single plane intake & 29 Lb/Hr injectors capable of 450 HP with 58 p.s.i. fuel pressure. |
| Description_FAB | Complete Engineered System For The Ultimate In Performance |
| Description_FAB | New ECU Preloaded w/80 Dyno-Tuned Calibrations |
| Description_FAB | Self Learning EFI System |
| Description_INV | Edelbrock Pro-Flo 4 EFI System |
| Description_KEY | Edelbrock; EFI; Pro-Flo; Pro-Flo XT; EFI; Fuel Injection; Electronic Fuel Injection; Chevy; Chevrolet; Small-Block Chevy; Vortec; E-Tec; Holley EFI; FiTech EFI; Fast Fuel Air Spark Technology; MSD EFI |
| Description_LAB | Pro-Flo 4 EFI 4150-Style Kit #35780 For Chevy Small-Block W/ Vortec/E-Tec Heads |
| Description_LAB | Pro-Flo 4 EFI Traditional 4150-Style #35780 For Chevy SB w/Vortec/E-Tec Heads |
| Description_MKT | The Edelbrock Pro-Flo 4 EFI Kit #35780 for Small-Block Chevy engines with Vortec/E-Tec cylinder heads is a fully sequential multi-port injection system designed with a fuel injector strategically positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Victor-style single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors are included along with wire harnesses and ECU. The Victor manifold is designed with a larger cross-sectional area in the plenum and larger runners for high-horsepower and/or large cubic-inch applications. The manifold is also 0.75 inch taller than the standard LS3 version to promote smoother airflow into the rectangular-port heads. This kit uses 29 lb/hr injectors and is rated for 450 horsepower at 58 PSI of fuel pressure. Calibration of the Pro-Flo 4 is a simple process with a Setup Wizard providing guidance through the E-Tuner application's initial programming. Once provided with basic information such as type of engine, cubic inches, firing order, and cam profile, the E-Tuner App then selects the most appropriate base calibration. Once the base calibration is set, the self-learning E-Tuner App takes over to continually maximize the fuel map for your specific engine configuration, even compensating for changes in altitude and weather. The E-Tuner App provides more advanced tuning options that allow precise control over cold starts and acceleration while retaining the simplicity that Pro-Flo systems are known for. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet. |
| Description_MKT | The Edelbrock Pro-Flo 4 EFI Kit #35780 for the Small-Block Chevy engine with Vortec/E-Tec cylinder heads is a fully sequential multi-port injection system designed with a fuel injector strategically positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Victor-style single-plane intake manifold that comes preassembled with high-flow 29 lb/hr injectors, fuel rails and 4150-flange throttle body. The Pro-Flo 4 EFI #35780 is compatible with factory-style cylinder heads or Edelbrock Performer and Performer RPM Cylinder heads. Also included is a distributor designed to work specifically with Pro-Flo 4 providing fully sequential port injection and infinite control over ignition and fuel events. This system is rated for 450 horsepower at 58 PSI with all supporting sensors, ECU, wire harnesses and 7-inch Android tablet for a streamlined installation. Key Pro-Flo 4 features are Self-Learning Fuel Map Technology, Wide-Band O2 Closed Loop Mixture Control and an ECU with advanced processor technology and Bluetooth connectivity. E-Tuner Android Software includes a Setup Wizard to simplify installation and provides fuel and spark adjustability for complete control over the system. Pro-Flo 4 EFI requires no laptop tuning. Minimal setup and tuning adjustments are required with base calibrations provided in the software. The ECU is self-learning and will continually adjust the fuel injection calibration for maximum performance by maintaining a specified target air-fuel ratio as you drive. The E-Tuner Software provides the ability to fine-tune air-fuel ratios, ignition curve, idle speed, acceleration fuel, fans, rev-limiter and more. Multiple displays let you monitor engine performance in real-time from inside or outside of the vehicle while retaining the simplicity that Pro-Flo 4 systems are known for. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Pro-Flo 4 EFI system #35780 for the Chevy SB with Vortec/E Tec Cylinder Heads requires a high-pressure, EFI-compatible fuel delivery system. Edelbrock fuel delivery kits are available and sold separately for this application. Visit edelbrock.com to choose the right kit for your installation. Manifolds height for Pro-Flo 4 #35780 is 4.63 inches. |
| Description_TRA | Pro-Flo 4 EFI system #35780 for the Chevy SB with Vortec/E Tec Cylinder Heads requires a high-pressure; EFI-compatible fuel delivery system. Edelbrock fuel delivery kits are available and sold separately for this application. Visit edelbrock.com to choose the right kit for your installation. Manifolds height for Pro-Flo 4 #35780 is 4.63 inches. |
| Distributor Cap Included | Yes |
| Engine Make/Size | Chevy Small Block (262-400) |
| finish | Satin |
| Flange Type | 4150 |
| Fuel Injector Type | 29 lb/hr |
| Fuel Pressure Port | 1/8-27 NPT |
| Fuel Rate | 29 lbs./hr |
| Gasket Or Seal Included | Yes |
| height | 10.5 |
| length | 30.12 |
| LTL | N |
| Manifold Height | 4.58 |
| Maximum Horsepower | 450 |
| Quantity | Kit |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| System Type | Traditional 4150-Style Kit |
| Throttle Body Type | 4 Barrel |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 40.0 |
| width | 25.12 |
| Wire Harness Included | Yes |
| Wiring Harness Included | Yes |
