Edelbrock 35650 Edelbrock Pro-Flo 4 EFI #35650 w/Tablet for AMC V8
by Edelbrock
SKU ds_BDVJ_35650
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$3,894.62
-
Original price
$3,894.62
Original price
$3,894.62
$3,894.62
$3,894.62
-
$3,894.62
Current price
$3,894.62
Description

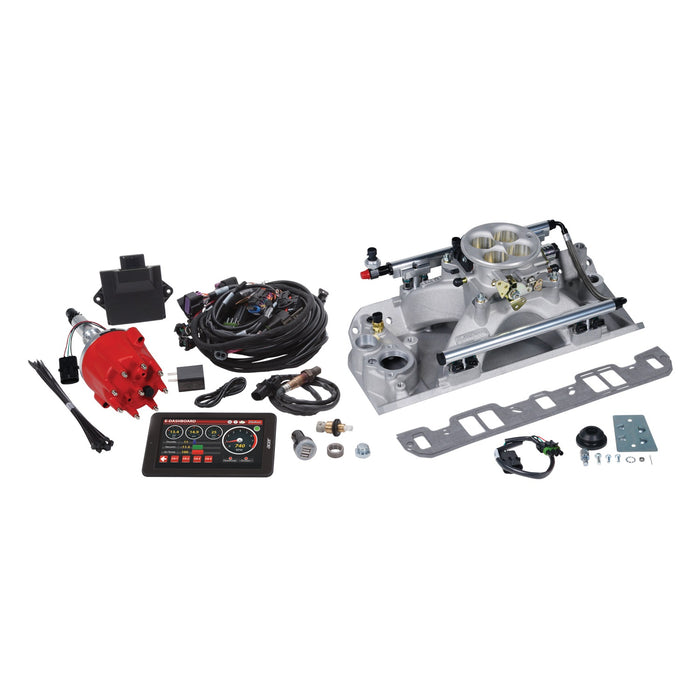

Edelbrock Pro-Flo 4 EFI System #35650 is an advanced sequential-port EFI system for 1970-1991 AMC 304, 360, 390, 401 CID engines. This EFI kit a multi-port design with an injector at the end of each runner on the manifold to deliver the best fuel atomization with even distribution to the combustion chambers. The Pro-Flo 4 EFI for AMC features our high-performance Victor Jr.-style single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. This kit is compatible with factory-style cylinder heads or Edelbrock Performer and Performer RPM Cylinder heads. Includes a distributor designed to work specifically with Pro-Flo 4 providing sequential port injection and infinite control over ignition and fuel events. This system is rated for 550 horsepower at 58 PSI with all supporting sensors, ECU, wire harnesses and 7-inch Android tablet for streamlined installation. Calibration of the Pro-Flo 4 is a simple process with a Setup Wizard providing guidance through the E-Tuner's initial programming. Once provided with basic information such as type of engine, cubic inches, firing order, and cam profile, the E-Tuner then selects the most appropriate base calibration. Once the base calibration is set, the self-learning E-Tuner takes over to continually maximize the fuel map according to the way you drive your vehicle, even compensating for changes in altitude and weather. The E-Tuner provides more advanced tuning options that allow precise control over cold starts and acceleration while retaining the simplicity that Pro-Flo systems are known for.
Specifications
| Cylinder Head Type | AMC 1970-91 304-401 CID |
| Description_ABR | ProFlo4 EFI |
| Description_ASM | 1970-1991 AMC 304, 360, 390, 401 CID engines |
| Description_ASM | 1970-1991 AMC 304; 360; 390; 401 CID engines |
| Description_DEF | Fuel Injection System |
| Description_DES | FUEL INJECTORS |
| Description_EXT | Edelbrock Pro-Flo 4 EFI #35650 w/Tablet for AMC V8 |
| Description_EXT | Edelbrock Pro-Flo 4 EFI kit #35650 for 1970-91 AMC 304, 360, 390, 401 c.i V8 engines. The EFI kit comes with a 4150-Style Single plane satin finish Victor Intake manifold and 35LbHr Injectors capable of 550 Max HP. |
| Description_FAB | Complete Engineered System For The Ultimate In Performance |
| Description_FAB | New ECU Preloaded w/80 Dyno-Tuned Calibrations |
| Description_FAB | Self Learning EFI System |
| Description_INV | Pro-Flo 4 EFI #35650 w/Tablet for AMC V8 |
| Description_KEY | Edelbrock; EFI; Pro-Flo 4; Pro-Flo EFI; EFI; Fuel Injection; Electronic Fuel Injection; Aftermarket EFI; AMC; American Motors; AMC 304; AMC 360; AMC390; AMC 401 |
| Description_LAB | Pro-Flo 4 EFI Traditional 4150-Style Kit #35650 For 70-91 AMC 304,360,390,401 |
| Description_LAB | Pro-Flo 4 EFI Traditional 4150-Style #35650 1970-91 AMC 304;360;390;401 W/Tablet |
| Description_MKT | Edelbrock Pro-Flo 4 EFI System #35650 is an advanced sequential-port EFI system for 1970-1991 AMC 304, 360, 390, 401 CID engines. This EFI kit a multi-port design with an injector at the end of each runner on the manifold to deliver the best fuel atomization with even distribution to the combustion chambers. The Pro-Flo 4 EFI for AMC features our high-performance Victor Jr.-style single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. This kit is compatible with factory-style cylinder heads or Edelbrock Performer and Performer RPM Cylinder heads. Includes a distributor designed to work specifically with Pro-Flo 4 providing sequential port injection and infinite control over ignition and fuel events. This system is rated for 550 horsepower at 58 PSI with all supporting sensors, ECU, wire harnesses and 7-inch Android tablet for streamlined installation. Calibration of the Pro-Flo 4 is a simple process with a Setup Wizard providing guidance through the E-Tuner's initial programming. Once provided with basic information such as type of engine, cubic inches, firing order, and cam profile, the E-Tuner then selects the most appropriate base calibration. Once the base calibration is set, the self-learning E-Tuner takes over to continually maximize the fuel map according to the way you drive your vehicle, even compensating for changes in altitude and weather. The E-Tuner provides more advanced tuning options that allow precise control over cold starts and acceleration while retaining the simplicity that Pro-Flo systems are known for. |
| Description_MKT | The Edelbrock Pro-Flo 4 EFI Kit #35650 for 1970-1991 AMC 304, 360, 390, 401 CID engines is a fully sequential multi-port injection system designed with a fuel injector strategically positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Victor Jr.-style single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors are included along with distributor, wire harnesses and ECU. The Victor manifold is designed with a larger cross-sectional area in the plenum and larger runners for high-horsepower and/or large cubic-inch applications. This kit uses 35 lb/hr injectors and is rated for 550 horsepower at 58 PSI of fuel pressure. Calibration of the Pro-Flo 4 is a simple process with a Setup Wizard providing guidance through the E-Tuner's initial programming. Once provided with basic information such as type of engine, cubic inches, firing order, and cam profile, the E-Tuner then selects the most appropriate base calibration. Once the base calibration is set, the self-learning E-Tuner takes over to continually maximize the fuel map for your specific engine configuration, even compensating for changes in altitude and weather. The E-Tuner provides more advanced tuning options that allow precise control over cold starts and acceleration while retaining the simplicity that Pro-Flo systems are known for. No laptop tuning is required.The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 7in.} |
| Fuel Rate | 35 lbs./hr |
| height | 11.0 |
| length | 30.0 |
| LTL | N |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 47.0 |
| width | 25.0 |
