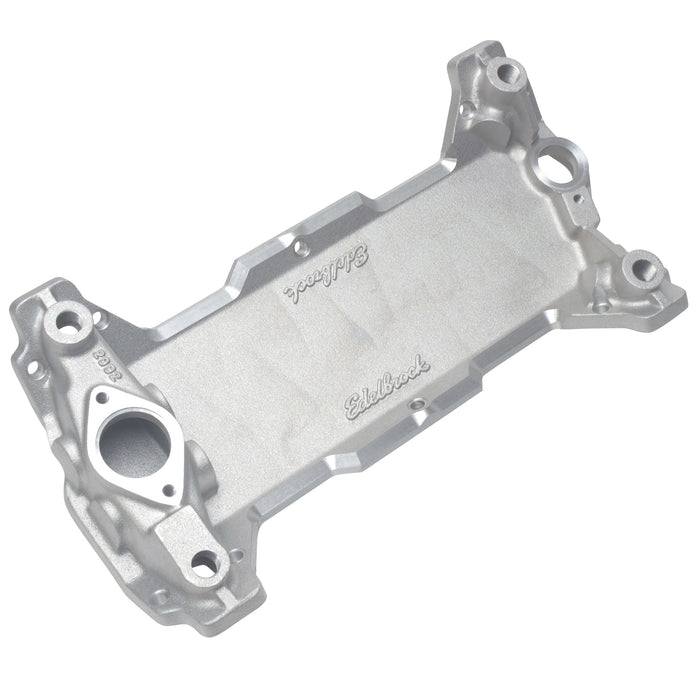

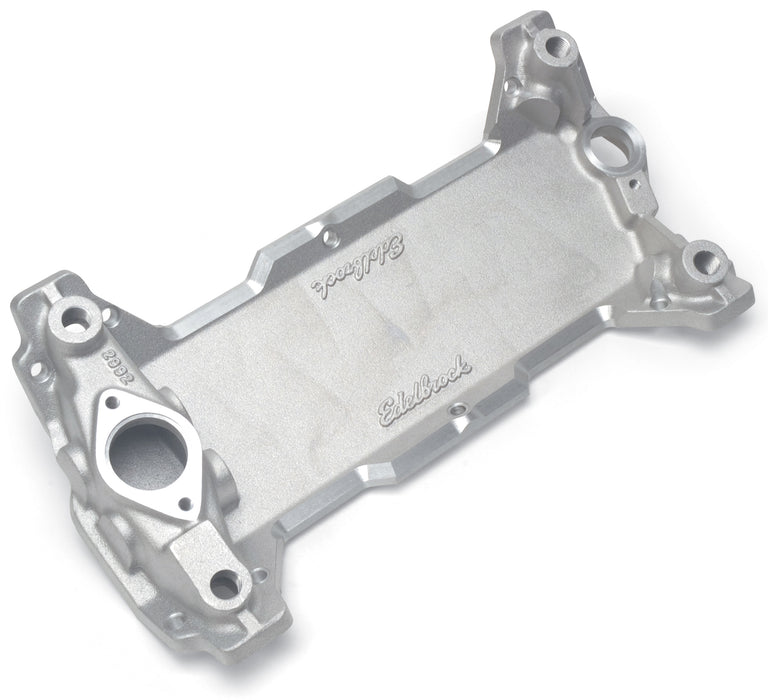

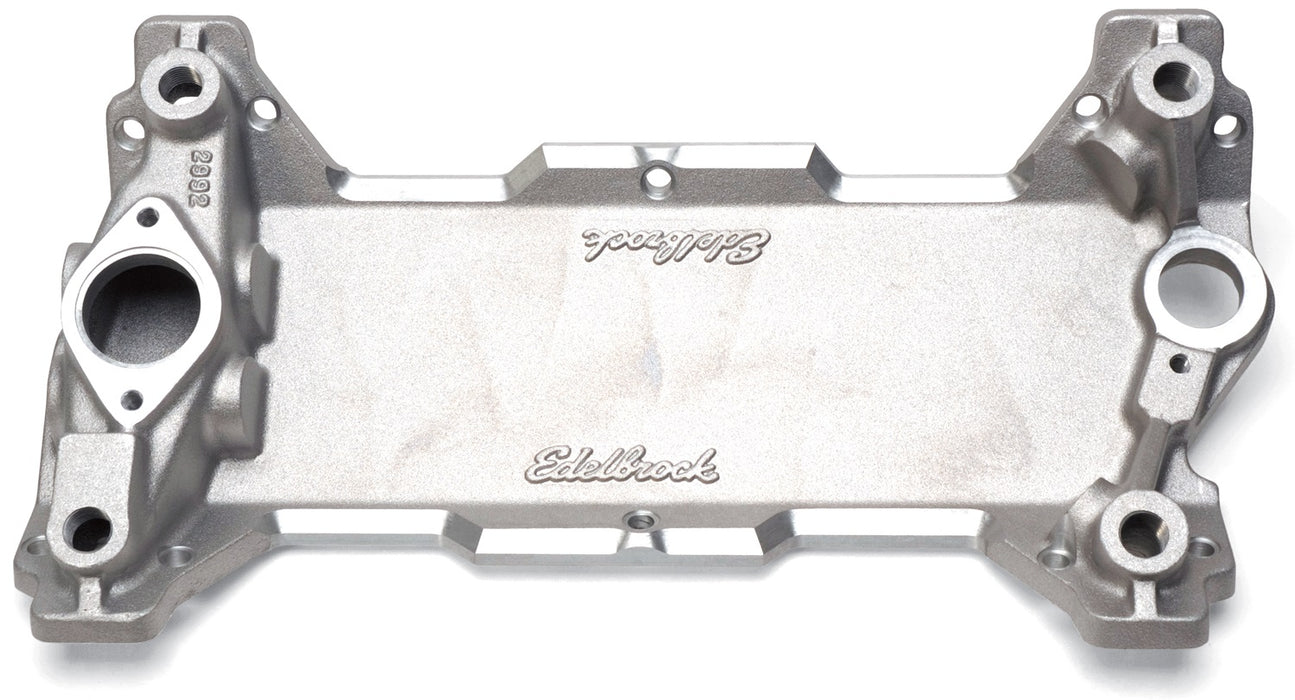

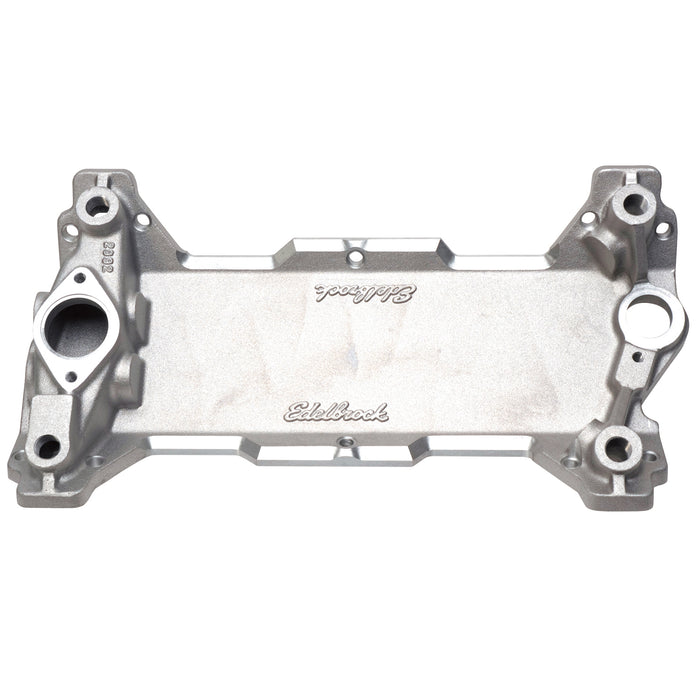

Edelbrock 2992 Edelbrock Victor 18 degree 2 Piece Small Block Chevrolet Base Manifold
by Edelbrock
SKU ds_BDVJ_2992
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$725.43
-
Original price
$725.43
Original price
$725.43
$725.43
$725.43
-
$725.43
Current price
$725.43
Availability:
4+ in stock
Description
Edelbrock part #2992 Victor 18 Degree Spider base is the bedding plate portion of a two-piece (valley plate and spider) manifold system. This Spider base is intended for use with "Conventional" 18-degree SBC heads on a standard deck engine block. This plate is more compatible when using our older 18-degree intakes such as 2955 and 2958 and will require less work for proper fit.
Specifications
| Basic Operating RPM Range | 5000-8500 |
| Center Maximum Height | 0.010 |
| CNC Ported | No |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen I Race |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Victor 18 degree 2 Piece Small Block Chevrolet Base Manifold |
| Description_FAB | Also Designed for 390 cfm Carburetors |
| Description_FAB | Aluminum |
| Description_FAB | Base Only - Must Match with Spider NASCAR |
| Description_FAB | Can Opt for Spider/Base Combination 2955/2992 |
| Description_FAB | Designed for 9.5:1 Compression Engines |
| Description_FAB | Runners Have 2.9 Square in. Cross-Section |
| Description_FAB | Use Fel-Pro NASCAR Gasket for Base |
| Description_FAB | Use with Chevy or Edelbrock 18-Degree Heads |
| Description_INV | Victor 18d 2 Piece SBC Base Manifold |
| Description_KEY | 2992; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Victor; Satin |
| Description_LAB | Victor 18-degree 2 Piece SBC Base Manifold |
| Description_MKT | Edelbrock part #2992 Victor 18 Degree Spider base is the bedding plate portion of a two-piece (valley plate and spider) manifold system. This Spider base is intended for use with "Conventional" 18-degree SBC heads on a standard deck engine block. This plate is more compatible when using our older 18-degree intakes such as 2955 and 2958 and will require less work for proper fit. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Intended for use with "Conventional" 18 Degree SBC heads on a standard deck engine block |
| Description_TRA | Recommended intake gasket: Fel-Pro: #1254 (base only) |
| Description_TRA | This plate is more compatible when using our older 18 degree intakes such as #2955 and #2958 and will require less work for proper fit |
| Description_TRA | • Intended for use with Conventional 18 Degree SBC heads on a standard deck engine block • This plate is more compatible when using our older 18 degree intakes such as # 2955 and # 2958 and will require less work for proper fit • Recommended intake gasket: Fel-Pro: # 1254 (base only) |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Chevy Small Block (375-Up) |
| finish | Satin |
| Flange Type | 4500 |
| Front Maximum Height | 0.010 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 5.88 |
| length | 22.44 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | Lower |
| Rear Maximum Height | 0.010 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 5000-8500 |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Usage | Racing |
| Vehicle Model | Chevrolet |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 12.8 |
| width | 10.82 |
