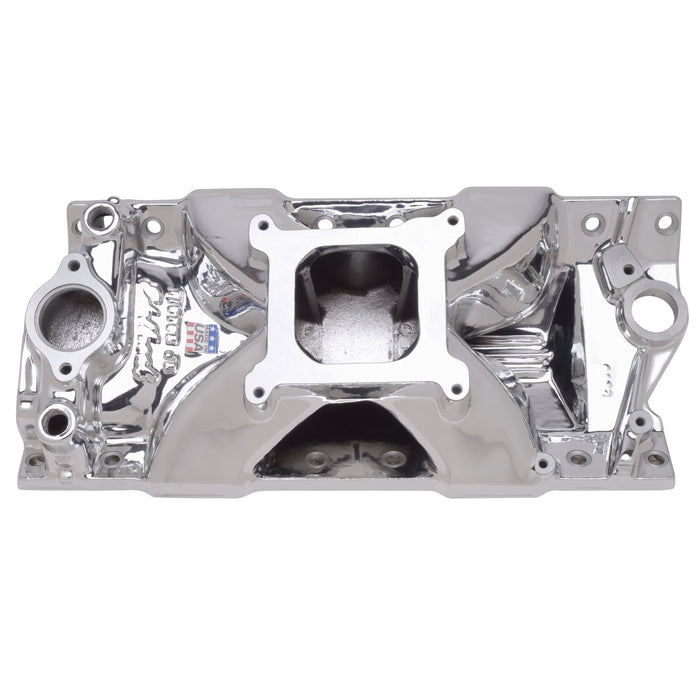

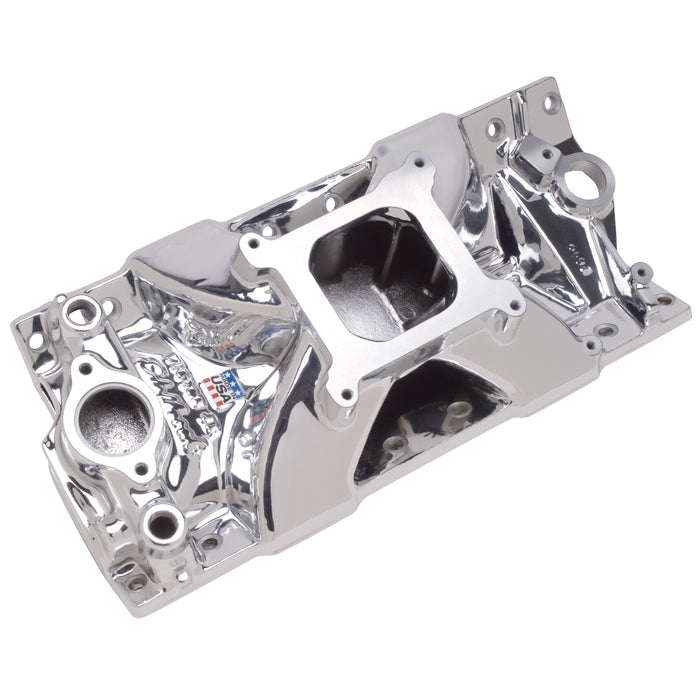

Edelbrock 29754 Engine Intake Manifold
by Edelbrock
SKU ds_BDVJ_29754
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$508.95
-
Original price
$508.95
Original price
$508.95
$508.95
-
$508.95
Current price
$508.95
Availability:
Out of stock
Description
Edelbrock part #29754 Victor Jr. intake manifold is excellent for many applications from drag to circle track racing. The Edelbrock Victor Jr. intake manifold provides maximum performance for engines with standard port location, iron and aluminum cylinder heads. The low-profile design works well in applications with minimal hood clearance, where 1" or 2" spacers can be used for performance tuning. The Edelbrock Victor Jr. #29754 is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds. This manifold offers our long lasting bright chrome like EnduraShine finish that matches chrome and polished accessories.
Specifications
| Center Maximum Height | 4.580 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen I:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Engine Intake Manifold |
| Description_EXT | Edelbrock Victor Jr. 23 Degree Intake Manifold For Chevrolet 262-400 Small-Block V8 |
| Description_INV | E-Shine Victor Jr SBC Intake Manifold |
| Description_LAB | Victor Jr. 23 Degree Small Block Chevy Endurashine Intake Manifold |
| Description_MKT | Edelbrock part #29754 Victor Jr. intake manifold is excellent for many applications from drag to circle track racing. The Edelbrock Victor Jr. intake manifold provides maximum performance for engines with standard port location, iron and aluminum cylinder heads. The low-profile design works well in applications with minimal hood clearance, where 1" or 2" spacers can be used for performance tuning. The Edelbrock Victor Jr. #29754 is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds. This manifold offers our long lasting bright chrome like EnduraShine finish that matches chrome and polished accessories. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | No provisions for exhaust heated chokes or EGR. |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | Optimum cylinder head port opening size should be as close as possible to the size of the gasket being used. |
| Description_TRA | Recommended intake gasket: Edelbrock #7201 or Fel-Pro #1206. |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| finish | EnduraShine |
| Front Maximum Height | 0.010 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.625 |
| Material | Aluminum |
| Rear Maximum Height | 0.010 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Single Or Dual Plane Type | Single Plane |
| weight | 20.75 |
| width | 14.75 |
