Edelbrock 2972 Engine Intake Manifold
by Edelbrock
SKU ds_BDVJ_2972
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$336.76
-
Original price
$336.76
Original price
$336.76
$336.76
-
$336.76
Current price
$336.76
Availability:
Out of stock
Description

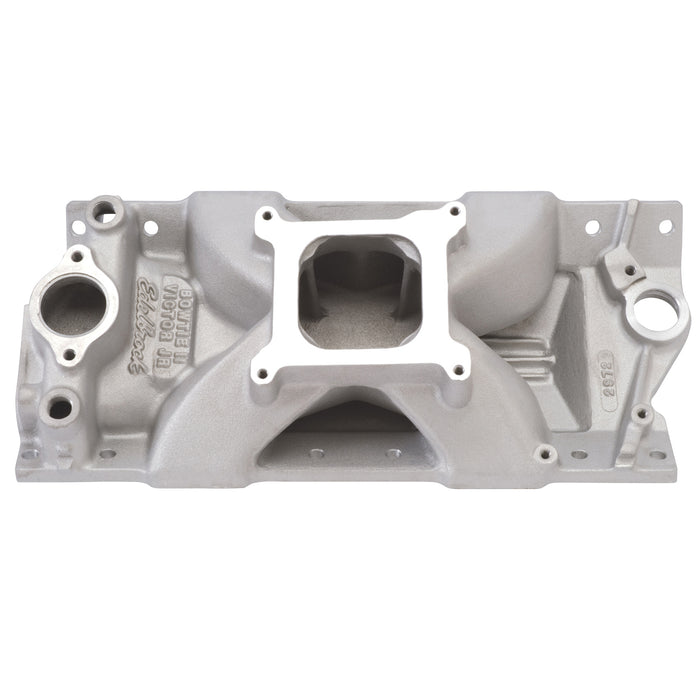

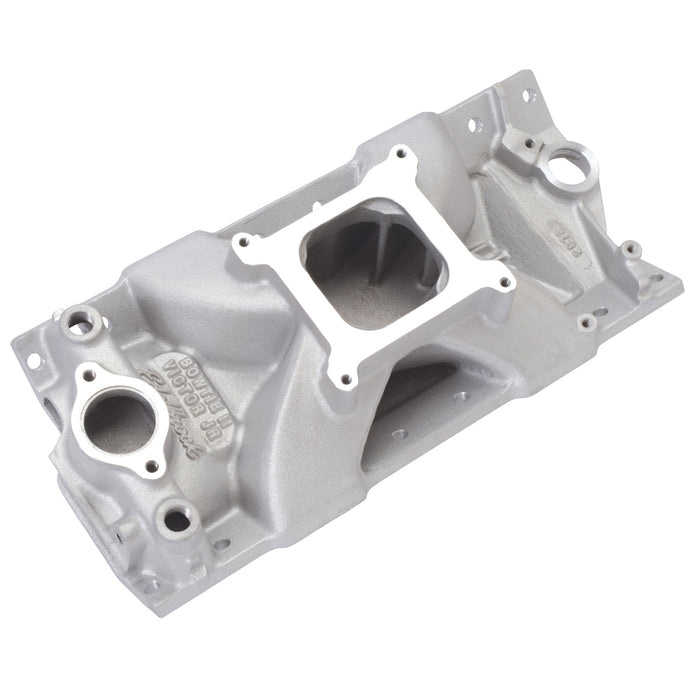

The Edelbrock Bowtie II Victor Jr. 23 degree #2972 intake manifold provides maximum performance for engines using unported Chevrolet Bowtie cast iron heads #14011058, #14011034 and #10134392. The intake manifold port exits match up to these heads with little or no matching required. This is ideal for classes where rules restrict the porting of intake manifolds to match cylinder heads. The #2972 can be tuned for greater performance gains when used with 1" or 2" carb spacers.
Specifications
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen I Race |
| Description_DEF | Engine Intake Manifold |
| Description_EXT | Edelbrock Bowtie II Victor Jr. 23 Degree Intake Manifold For Chevrolet 262-400 Small-Block V8 |
| Description_INV | Victor Jr Bowtie 2 SBC Intake Manifold |
| Description_LAB | XX Bowtie II Victor Jr. 23 Degree Intake Manifold |
| Description_MKT | The Edelbrock Bowtie II Victor Jr. 23 degree #2972 intake manifold provides maximum performance for engines using unported Chevrolet Bowtie cast iron heads #14011058, #14011034 and #10134392. The intake manifold port exits match up to these heads with little or no matching required. This is ideal for classes where rules restrict the porting of intake manifolds to match cylinder heads. The #2972 can be tuned for greater performance gains when used with 1" or 2" carb spacers. |
| Description_TRA | Carburetor pad height = 4.58" |
| Description_TRA | For the heights of all Edelbrock manifolds, please visit the Manifold Reference Dimensions page. http://www.edelbrock.com/automotive/mc/manifolds/reference-dimensions.shtml |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | No provisions for exhaust heated chokes or EGR. |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | Optimum cylinder head port opening size should be as close as possible to the size of the gasket being used. |
| Description_TRA | Recommended intake gasket: Edelbrock #7217. |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| height | 7.5 |
| length | 23.625 |
| weight | 20.35 |
| width | 14.75 |
