Description

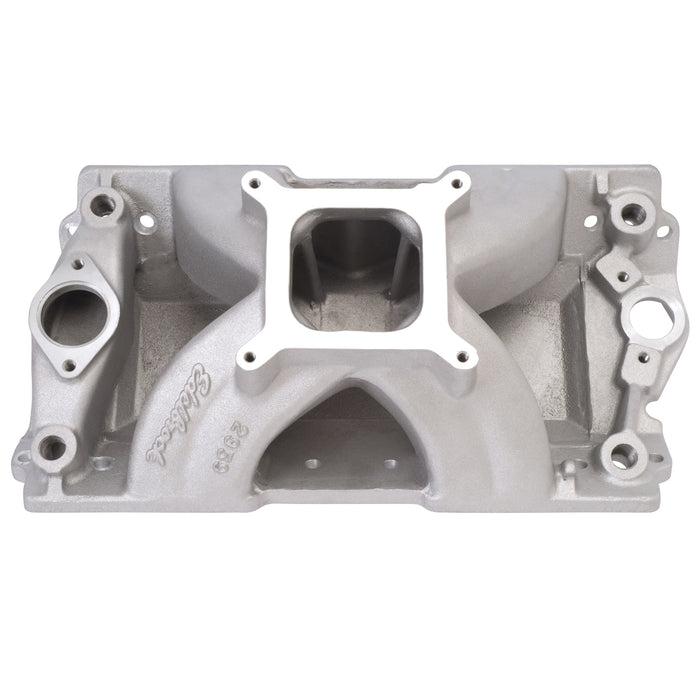

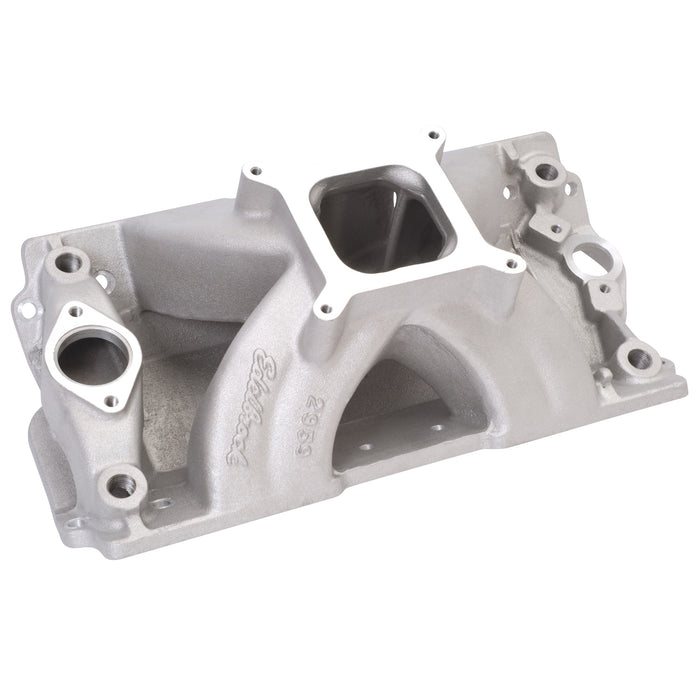

The Edelbrock Victor 18 degree #2959 intake manifold features intake runners with a large cross-section area of 3.2 square-inches for max high-end horsepower in engines operating from 5000 to 8500 rpm with GM or Edelbrock 18 degree heads. Features 1/2" female pipe bosses over rear water outlets to allow for customization of cooling system and dual distributor clamp locations for ease of timing adjustment. Relief for center water outlets included. The Edelbrock Victor 18 degree #2959 is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.
Specifications
| Description_ASM | Chevrolet:Small-Block Gen I Race |
| Description_DEF | Engine Intake Manifold |
| Description_LAB | Victor 18 Deg Intake Manifold for S.B. Chevrolet |
| Description_MKT | The Edelbrock Victor 18 degree #2959 intake manifold features intake runners with a large cross-section area of 3.2 square-inches for max high-end horsepower in engines operating from 5000 to 8500 rpm with GM or Edelbrock 18 degree heads. Features 1/2" female pipe bosses over rear water outlets to allow for customization of cooling system and dual distributor clamp locations for ease of timing adjustment. Relief for center water outlets included. The Edelbrock Victor 18 degree #2959 is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds. |
| Description_TRA | Carb Pad Height: 7.03" |
| Description_TRA | For the heights of all Edelbrock manifolds, please visit the Manifold Reference Dimensions page. http://www.edelbrock.com/automotive/mc/manifolds/reference-dimensions.shtml |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | Optimum cylinder head port opening size should be as close as possible to the size of the gasket being used. |
| Description_TRA | Recommended intake gasket: Fel-Pro #1282 |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| height | 9.44 |
| length | 21.0 |
| weight | 24.7 |
| width | 10.38 |
