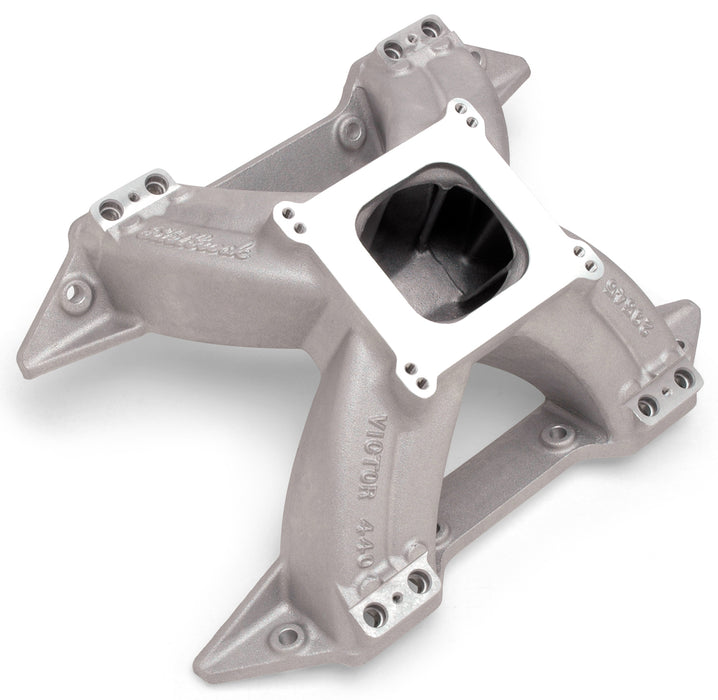

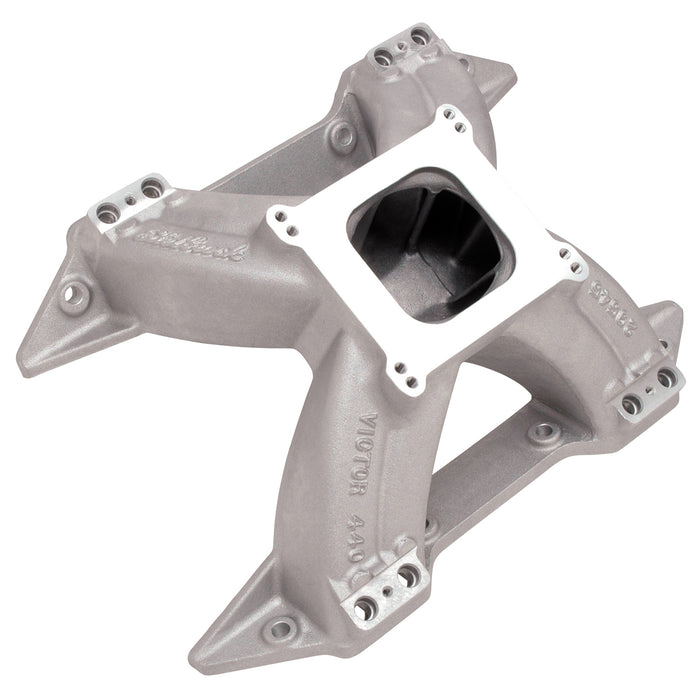

Edelbrock 29545 Edelbrock Victor 440 EFI Intake Manifold for Chrysler 413-426-440 Big-Block V8
by Edelbrock
SKU ds_BDVJ_29545
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$786.92
-
Original price
$786.92
Original price
$786.92
$786.92
$786.92
-
$786.92
Current price
$786.92
Availability:
Out of stock
Description
Edelbrock part #29545 Victor 440 EFI intake manifold is ideal for use with competition and high-rpm 413-426-440 c.i.d. Chrysler V8's. The Victor 440 has a runner design that delivers maximum power from 3500 to 7500 rpm. This single-plane intake manifold is designed with a flange that accepts square-bore carburetors. Dual carburetor bolt hole patterns are provided for both standard and Thermo-Quad carbs, with sufficient carburetor pad material for conversion to a Thermo-Quad carburetor for Super Stock applications. Match this race-winning manifold with Edelbrock Performer RPM Chrysler 440 aluminum cylinder heads #60189 or #60929 or Victor heads #77919 or #77929 for maximum performance. Will not fit 1962-64 Max Wedge heads. The #7798 valley cover is required when used with Edelbrock Victor Series heads.
Specifications
| Basic Operating RPM Range | 3500-7500 |
| Center Maximum Height | 6.100 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Victor 440 EFI Intake Manifold for Chrysler 413-426-440 Big-Block V8 |
| Description_FAB | Accepts both Square or Thermoquad Carburetor |
| Description_FAB | Delivers Maximum Power |
| Description_FAB | For 3500 to 7500 RPM High-Performance Engines |
| Description_FAB | Single-Plane High-Rise Intake |
| Description_FAB | Will Not Flex Or Bend Under High Engine Temps |
| Description_INV | EFI Victor 413-440 Chrysler Intake |
| Description_KEY | 29545; Chrysler; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Victor; Satin |
| Description_LAB | Victor Big Block Chrysler 440 EFI Intake Manifold |
| Description_MKT | Edelbrock part #29545 Victor 440 EFI intake manifold is ideal for use with competition and high-rpm 413-426-440 c.i.d. Chrysler V8's. The Victor 440 has a runner design that delivers maximum power from 3500 to 7500 rpm. This single-plane intake manifold is designed with a flange that accepts square-bore carburetors. Dual carburetor bolt hole patterns are provided for both standard and Thermo-Quad carbs, with sufficient carburetor pad material for conversion to a Thermo-Quad carburetor for Super Stock applications. Match this race-winning manifold with Edelbrock Performer RPM Chrysler 440 aluminum cylinder heads #60189 or #60929 or Victor heads #77919 or #77929 for maximum performance. Will not fit 1962-64 Max Wedge heads. The #7798 valley cover is required when used with Edelbrock Victor Series heads. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-6.10", B-6.10" |
| Description_TRA | Port exit dimensions: 1.15" x 2.17" |
| Description_TRA | Recommended intake gasket: Edelbrock #7225 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7225 • Manifold height: A-6.10in.; B-6.10in. • Port exit dimensions: 1.15in. x 2.17in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 6.100 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 9.5 |
| length | 24.25 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 6.100 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Vehicle Model | Chrysler |
| weight | 17.1 |
| width | 16.5 |
