Description

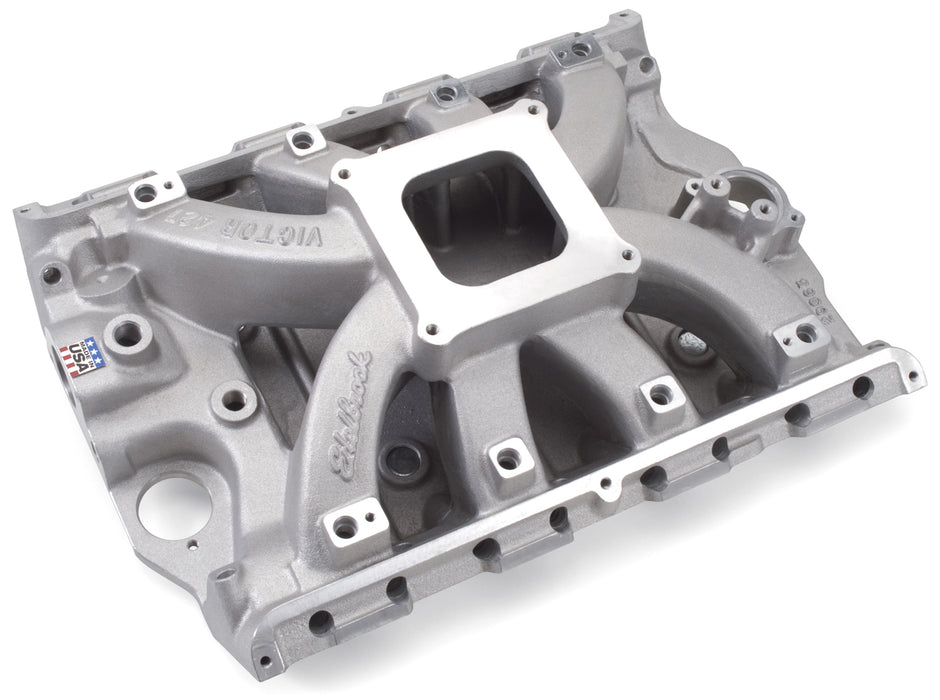

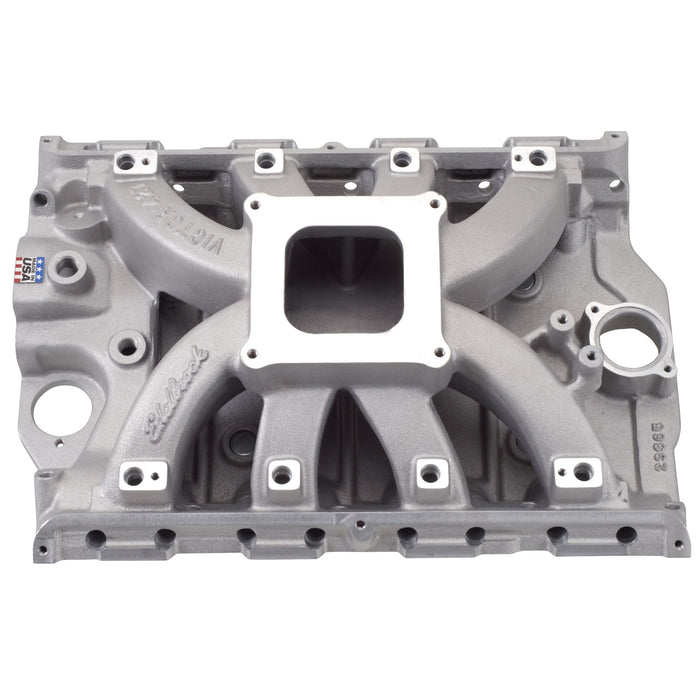

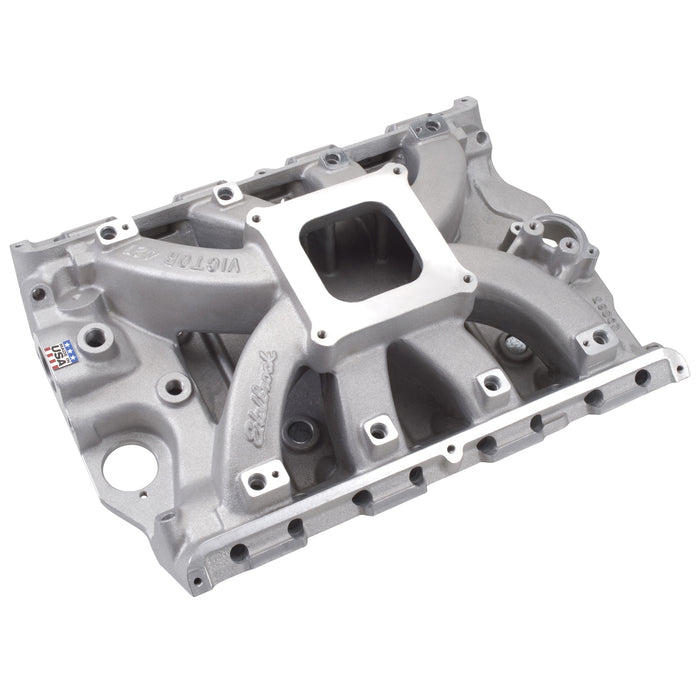

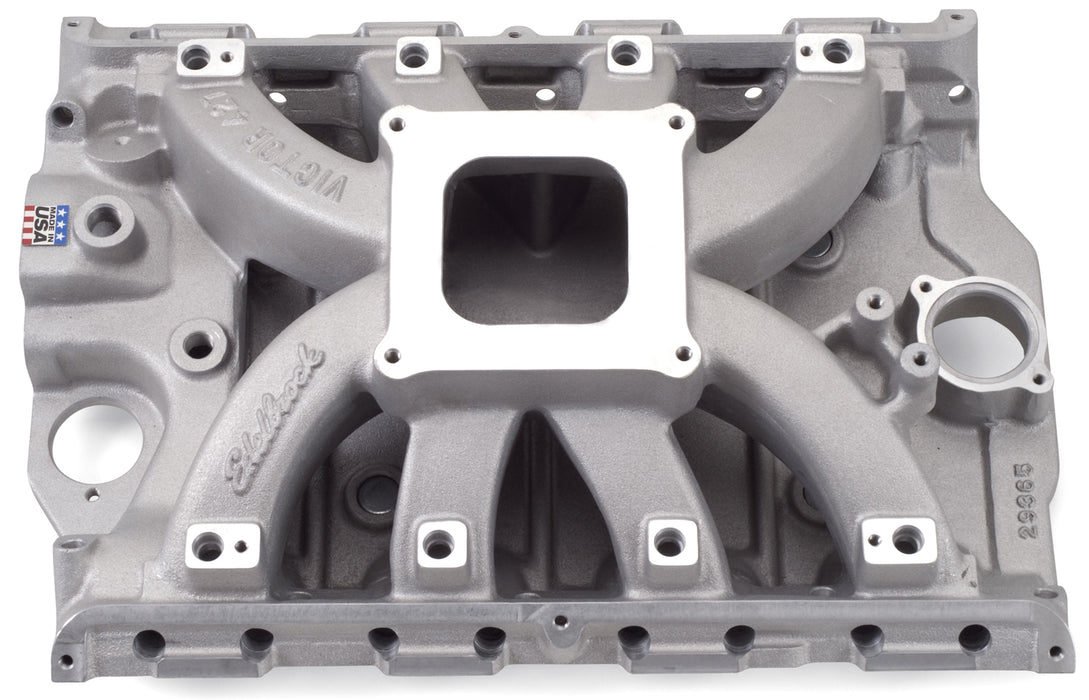

Edelbrock part #29365 Victor FE EFI intake manifold is designed for high performance 390-406-410-427-428 c.i.d. Ford FE engines. The single-plane design provides race-winning power for many types of competition. Carb flange height is equal to the Ford high-riser manifold #C4AE-9424-G to fit under 427 Cobra hoods. Runners have plenty of material for port matching to low- or medium-riser style heads. Machined rear breather flange is included with unmachined nitrous bosses and front oil fill tube boss. Will not fit 427 high-riser and tunnel-port heads. Match with our FE heads.
Specifications
| Basic Operating RPM Range | 4000-8000 |
| Center Maximum Height | 6.490 |
| CNC Ported | No |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Ford:FE:332 (5.4L)/352 (5.8L)/360 (5.9L)/390 (6.4L)/406 (6.6L)/410 (6.7L)/427 (7.0L)/428 (7.0L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Victor FE EFI Intake Manifold for 1958-1976 Ford 332-428 FE Big-Block V-8 |
| Description_FAB | Designed For Up To 8500 RPM |
| Description_FAB | For Standard Flange Throttle Bodies |
| Description_FAB | Machined Rear Breather Boss Is Included |
| Description_FAB | Runners Have Plenty Of Material For Port Matching |
| Description_FAB | Single-Plane Design |
| Description_INV | EFI Victor FE Standard Flange Intake |
| Description_KEY | 29365; Ford; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Victor; Satin |
| Description_LAB | Victor Ford FE EFI Intake Manifold |
| Description_MKT | Edelbrock part #29365 Victor FE EFI intake manifold is designed for high performance 390-406-410-427-428 c.i.d. Ford FE engines. The single-plane design provides race-winning power for many types of competition. Carb flange height is equal to the Ford high-riser manifold #C4AE-9424-G to fit under 427 Cobra hoods. Runners have plenty of material for port matching to low- or medium-riser style heads. Machined rear breather flange is included with unmachined nitrous bosses and front oil fill tube boss. Will not fit 427 high-riser and tunnel-port heads. Match with our FE heads. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-6.49", B-6.49" |
| Description_TRA | Recommended intake gasket: Fel-Pro #1247 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Fel-Pro # 1247 • Manifold height: A-6.49in.; B-6.49in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Ford 429-460 |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 6.490 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 9.4 |
| length | 24.0 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | N/A |
| Rear Maximum Height | 6.490 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 4000-8000 |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Usage | Racing |
| Vehicle Model | Ford |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 36.8 |
| width | 16.0 |
