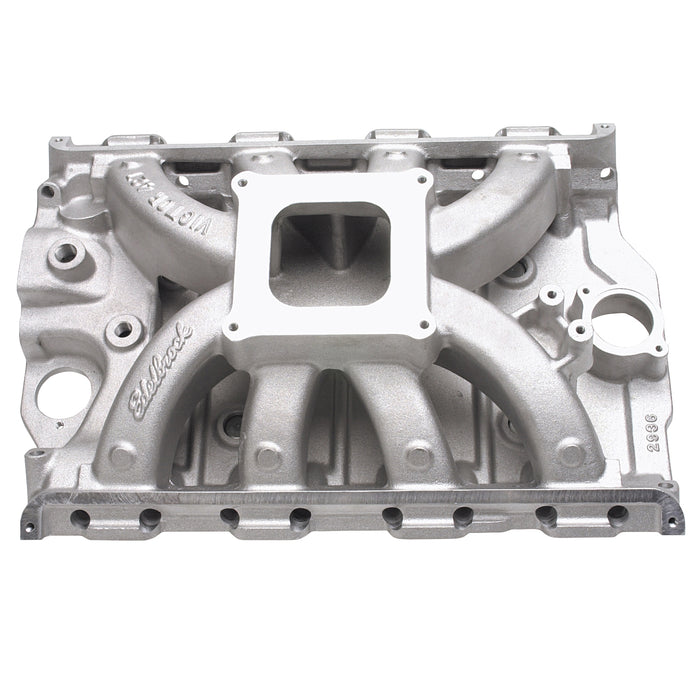

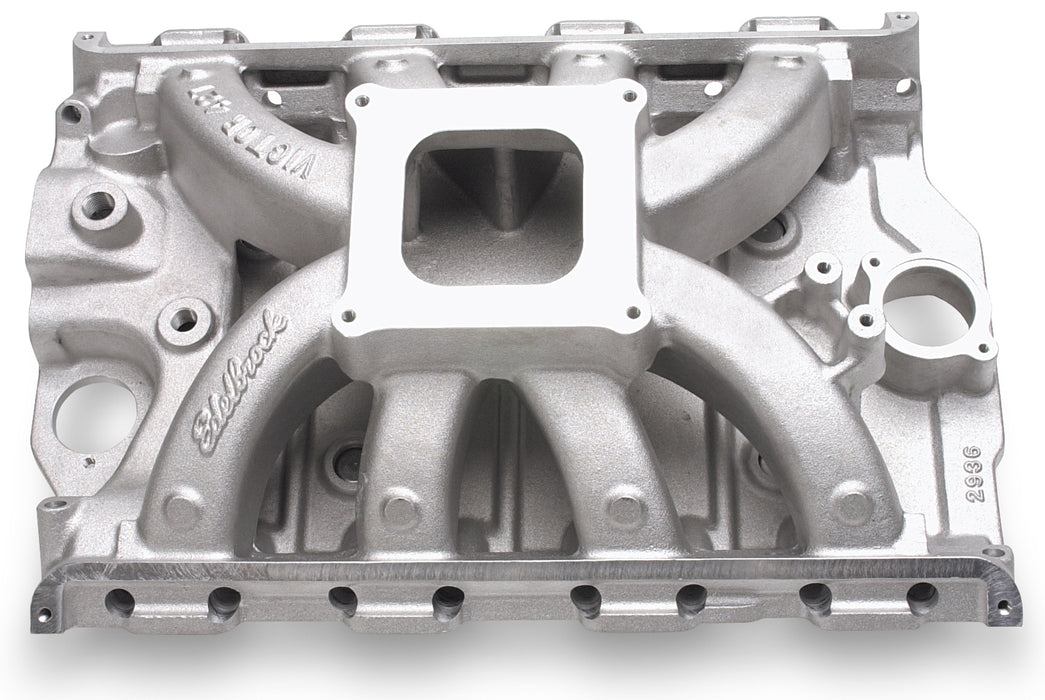

Edelbrock 2936 Edelbrock Victor FE Intake Manifold for 1958-1976 Ford 332-428 FE Big-Block V-8
by Edelbrock
SKU ds_BDVJ_2936
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,618.35
-
Original price
$1,618.35
Original price
$1,618.35
$1,618.35
$1,618.35
-
$1,618.35
Current price
$1,618.35
Availability:
Out of stock
Description
Edelbrock part #2936 Victor FE intake manifold is designed for high performance 390-406-410-427-428 c.i.d. Ford FE engines. This single-plane design provides race-winning power for many types of competition. Carb flange height is equal to the Ford high-riser manifold #C4AE-9424-G to fit under 427 Cobra hoods. Runners have plenty of material for port matching to low- or medium-riser style heads. Machined rear breather flange is included with unmachined nitrous bosses and front oil fill tube boss. Will not fit 427 high-riser and tunnel-port heads. Match with our FE heads.
Specifications
| Basic Operating RPM Range | 4000-8000 |
| Center Maximum Height | 6.490 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Ford:FE:332 (5.4L)/352 (5.8L)/360 (5.9L)/390 (6.4L)/406 (6.6L)/410 (6.7L)/427 (7.0L)/428 (7.0L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Victor FE Intake Manifold for 1958-1976 Ford 332-428 FE Big-Block V-8 |
| Description_FAB | Accepts Square Bore Carburetor |
| Description_FAB | All-New Runner Design for Maximum Power |
| Description_FAB | Can Use 1 Or 2 in. Spacers To Tune Performance |
| Description_FAB | For 4000 to 8000 RPM High-Performance Engines |
| Description_FAB | For High-Performance Street to Drag/Circle Racing |
| Description_FAB | Includes Nitrous Bosses on Runners |
| Description_FAB | Low Profile Works Well w/Limited Hood Clearance |
| Description_FAB | Single-Plane High-Rise Intake |
| Description_INV | Victor FE Standard Flange Intake Manfld |
| Description_KEY | 2936; Ford; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Victor; Satin |
| Description_LAB | Victor Ford FE Intake Manifold |
| Description_MKT | Edelbrock part #2936 Victor FE intake manifold is designed for high performance 390-406-410-427-428 c.i.d. Ford FE engines. This single-plane design provides race-winning power for many types of competition. Carb flange height is equal to the Ford high-riser manifold #C4AE-9424-G to fit under 427 Cobra hoods. Runners have plenty of material for port matching to low- or medium-riser style heads. Machined rear breather flange is included with unmachined nitrous bosses and front oil fill tube boss. Will not fit 427 high-riser and tunnel-port heads. Match with our FE heads. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Carb recommendations: Square bore carbs. Use any size carb class allows. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-6.49", B-6.49" |
| Description_TRA | Recommended intake gasket: Fel-Pro #1247 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Fel-Pro # 1247 • Manifold height: A-6.49in.; B-6.49in. • Carb recommendations: Square bore carbs. Use any size carb class allows. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 6.490 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.38 |
| length | 22.25 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 6.490 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Vehicle Model | Ford |
| weight | 31.35 |
| width | 17.75 |
