Edelbrock 29270 Engine Intake Manifold
by Edelbrock
SKU ds_BDVJ_29270
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$548.70
-
Original price
$548.70
Original price
$548.70
$548.70
$548.70
-
$548.70
Current price
$548.70
Availability:
Out of stock
Description

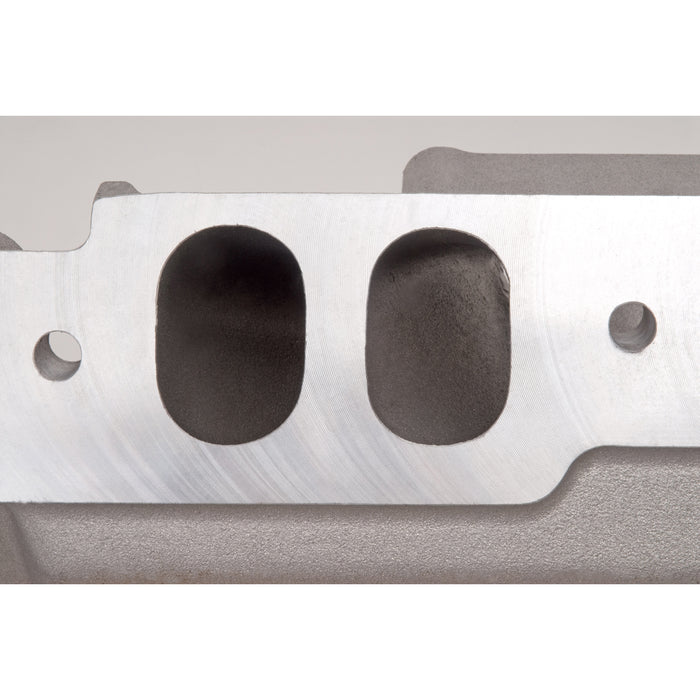

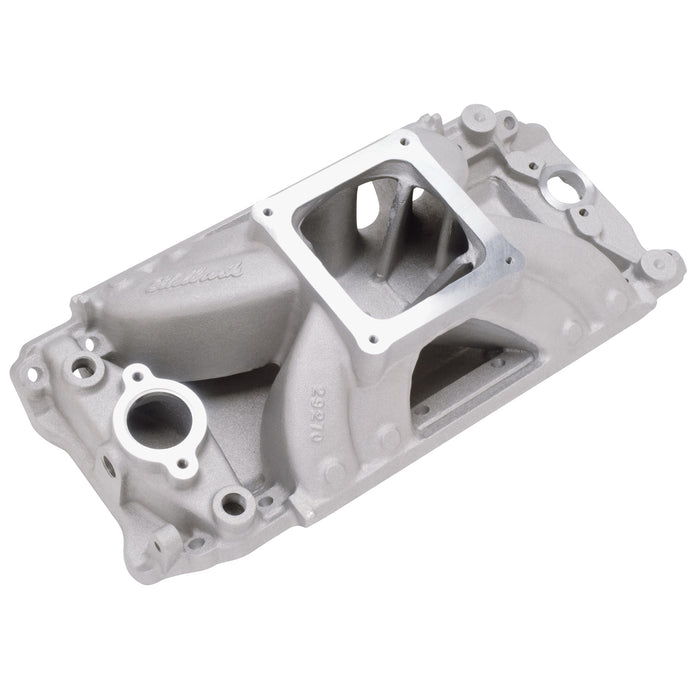

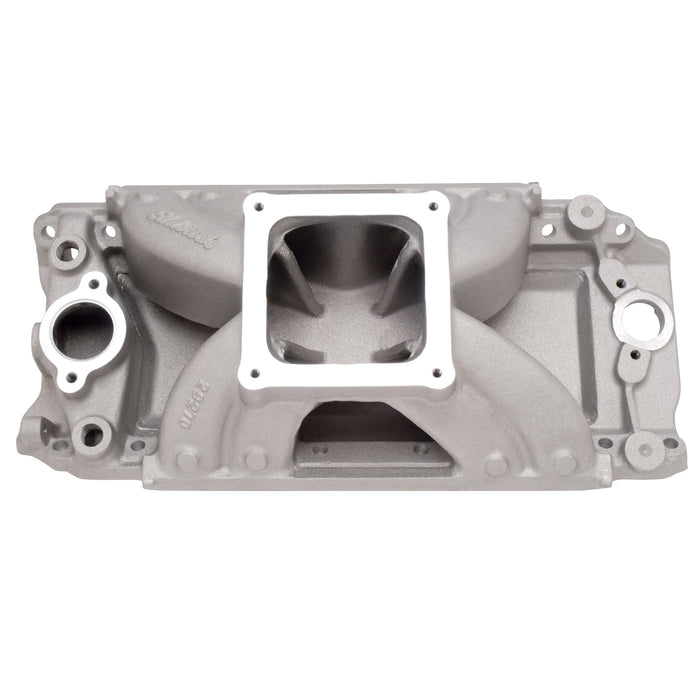

Edelbrock part #29270 Super Victor BBC Large Oval Port intake manifold is a variation of our Super Victor BBC intake manifold #2927, but features 3/4" radius in the ports. Producing a port exit compatible with current large oval port heads such as the Edelbrock Victor 24 degree CNC head #61409. It shares the performance attributes of the original #2927, but can be ported to fit a wider variety of cylinder head shapes and locations, making it especially suitable for use with custom CNC ported heads on engines with high air flow requirements.
Specifications
| Center Maximum Height | 6.200 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Race |
| Description_DEF | Engine Intake Manifold |
| Description_EXT | Edelbrock Super Victor 454 BBC Large Oval Port Intake Manifold For Chevrolet 500+ Ci. Big-Block V8 |
| Description_INV | Super Victor BBC Large Oval Port Intake |
| Description_LAB | Super Victor Big Block Chevy Large Oval Port Intake Manifold |
| Description_MKT | Edelbrock part #29270 Super Victor BBC Large Oval Port intake manifold is a variation of our Super Victor BBC intake manifold #2927, but features 3/4" radius in the ports. Producing a port exit compatible with current large oval port heads such as the Edelbrock Victor 24 degree CNC head #61409. It shares the performance attributes of the original #2927, but can be ported to fit a wider variety of cylinder head shapes and locations, making it especially suitable for use with custom CNC ported heads on engines with high air flow requirements. |
| Description_TRA | Carb recommendations: Use appropriate 4500 Series racing carburetor |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-6.20", B-6.20" |
| Description_TRA | Recommended intake gasket: Edelbrock #7208, Fel-Pro #1275 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| finish | Satin |
| Front Maximum Height | 6.200 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.625 |
| Material | Aluminum |
| Rear Maximum Height | 6.200 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Single Or Dual Plane Type | Single Plane |
| weight | 27.05 |
| width | 14.75 |
