Edelbrock 2915 Edelbrock Victor Intake Manifold for 318-360 Chrysler Small Block LA engines
by Edelbrock
SKU ds_BDVJ_2915
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$809.24
-
Original price
$809.24
Original price
$809.24
$809.24
$809.24
-
$809.24
Current price
$809.24
Availability:
Only 4 left!
Description

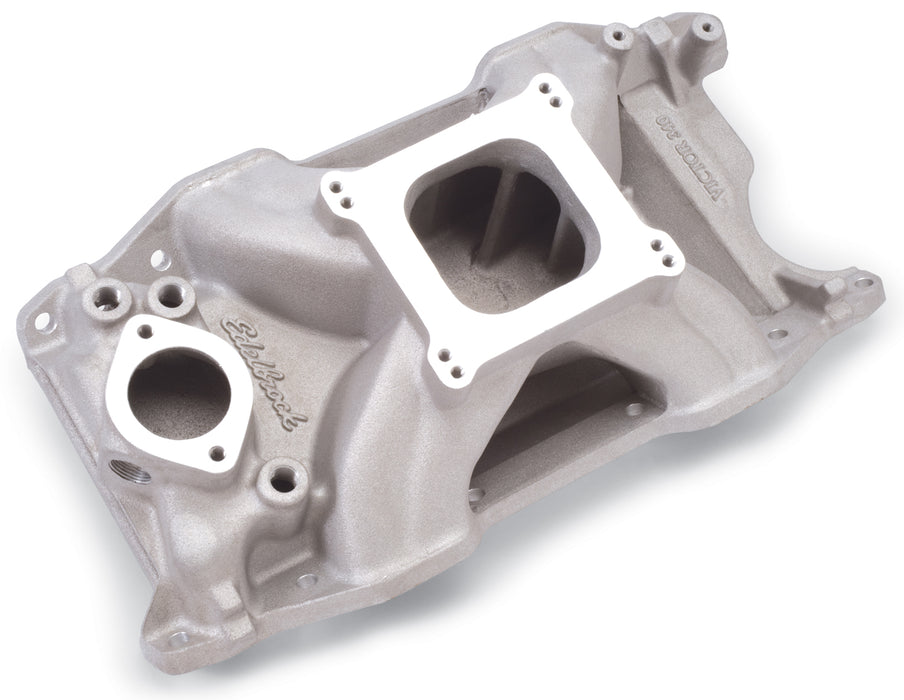

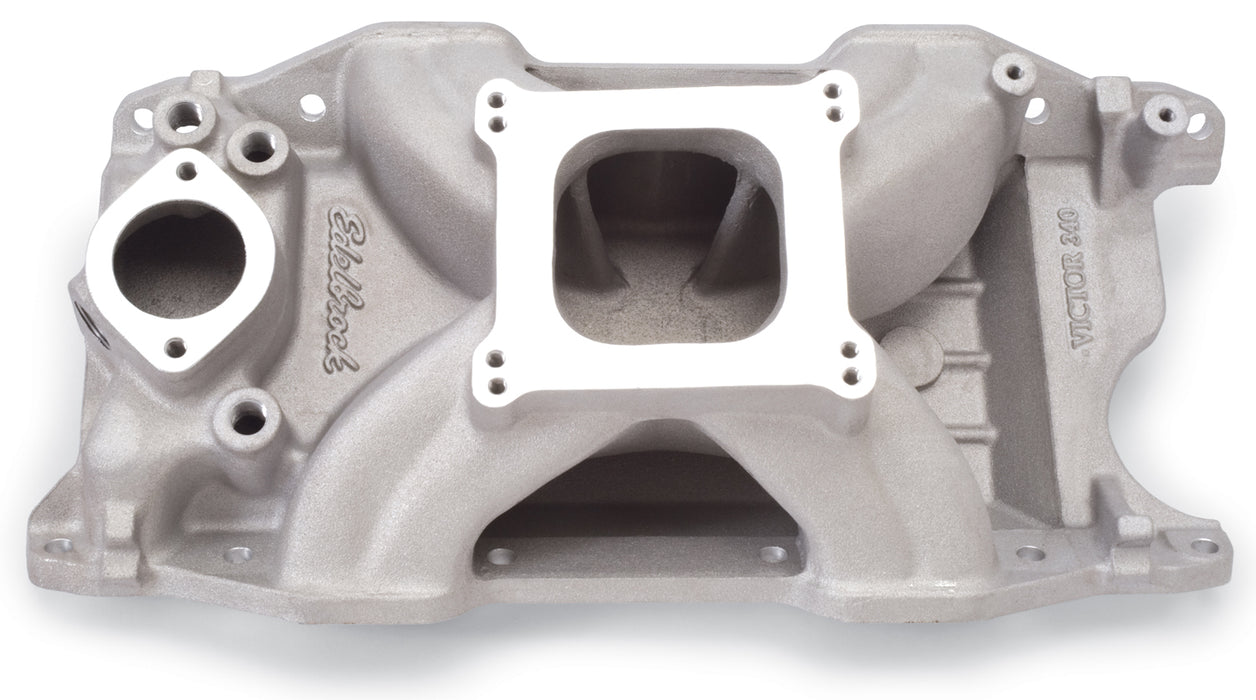

Edelbrock part #2915 Victor 340 intake manifold is designed for 340-360 c.i.d. Chryslers using standard rectangular-port heads. For oval track and drag race engines operating from 3500-8000 rpm. This intake manifold can be used on 318 c.i.d. engines with 340-360 heads. Will not fit 1992 and later Magnum engines. Accepts 1975 and earlier waterneck only.
Specifications
| Basic Operating RPM Range | 3500-8000 |
| Center Maximum Height | 4.920 |
| CNC Ported | No |
| Cylinder Head Type | Mopar 340/360 |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chrysler:Small-Block LA-Series:340 (5.6L)/360 (5.9L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Victor Intake Manifold for 318-360 Chrysler Small Block LA engines |
| Description_FAB | Designed In Conjunction w/Billy Glidden |
| Description_FAB | For 3500 to 8000 RPM High-Performance Engines |
| Description_FAB | For Oval Track/Drag Race Engines |
| Description_FAB | Superior Horse Power And Torque Potential |
| Description_INV | Victor 340/360 Intake Manifold |
| Description_KEY | 2915; Chrysler; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Victor |
| Description_LAB | Victor Intake Manifold Small-Block Chrysler |
| Description_MKT | Edelbrock part #2915 Victor 340 intake manifold is designed for 340-360 c.i.d. Chryslers using standard rectangular-port heads. For oval track and drag race engines operating from 3500-8000 rpm. This intake manifold can be used on 318 c.i.d. engines with 340-360 heads. Will not fit 1992 and later Magnum engines. Accepts 1975 and earlier waterneck only. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Carb recommendations: Use appropriate racing carburetor |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height.: A-4.15", B-5.70" |
| Description_TRA | Recommended intake gasket: Edelbrock #7276, Fel-Pro #1213 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7276; Fel-Pro # 1213 • Manifold height.: A-4.15in.; B-5.70in. • Carb recommendations: Use appropriate racing carburetor • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Mopar 318-360 |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 4.920 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | N/A |
| Rear Maximum Height | 4.920 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 3500-8000 |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Usage | Racing |
| Vehicle Model | Chrysler |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 21.2 |
| width | 14.75 |
