Description

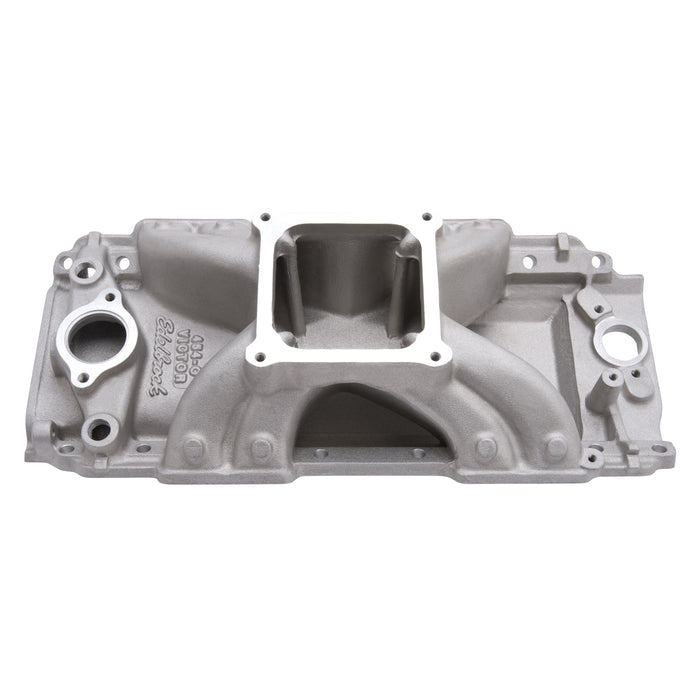

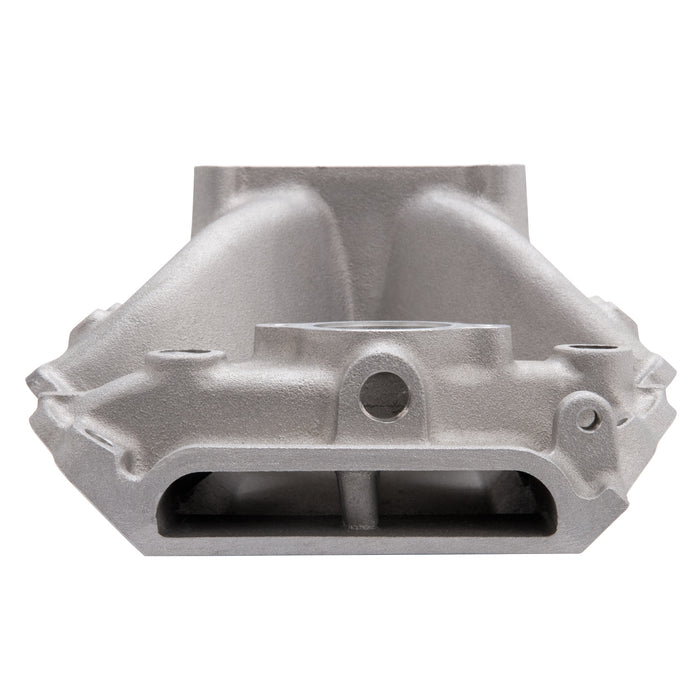

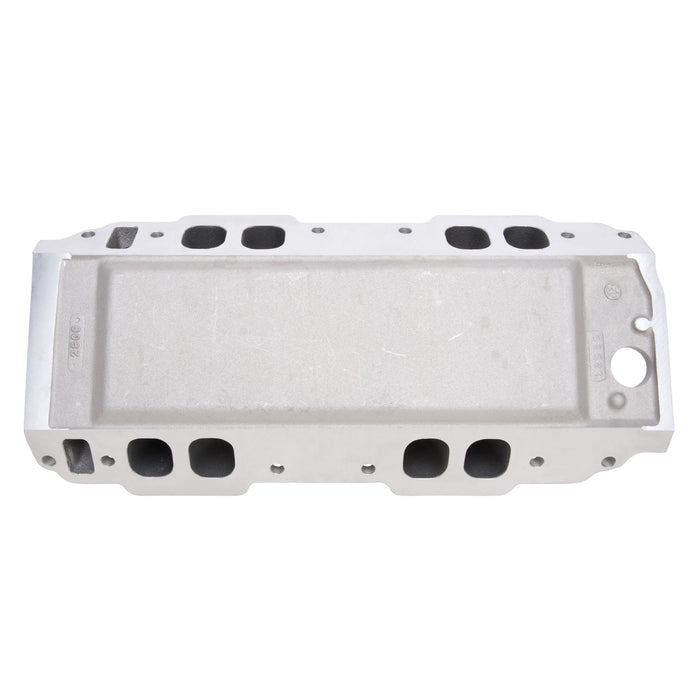

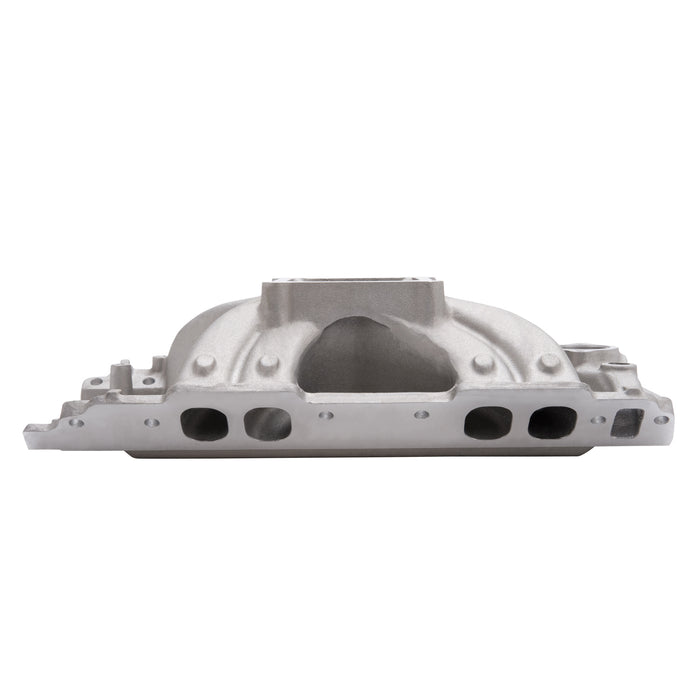

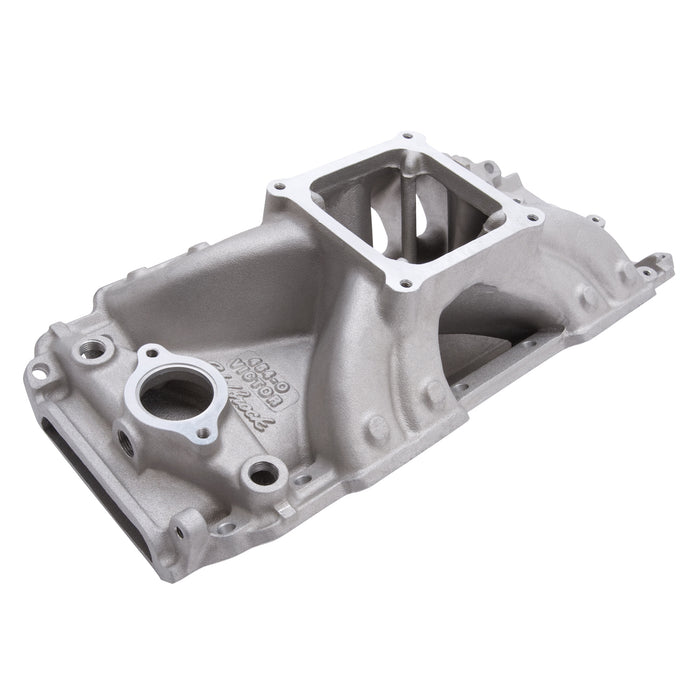

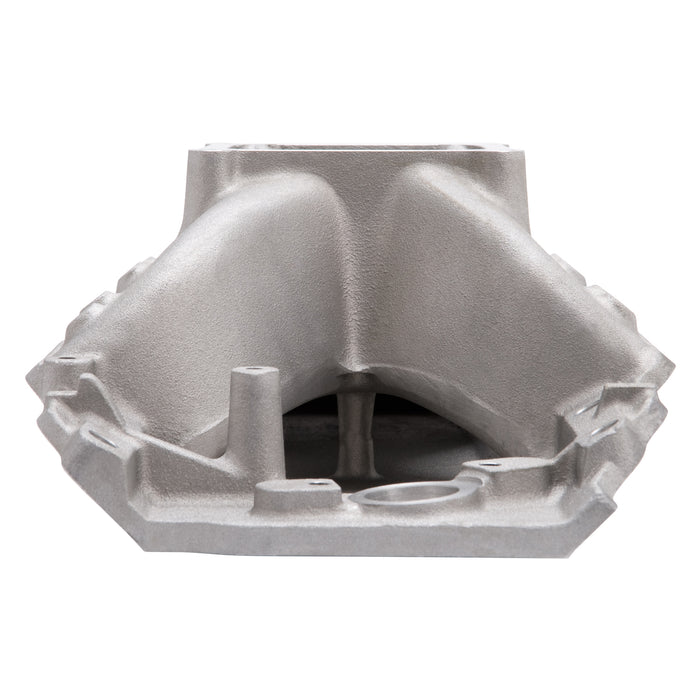

Edelbrock part #2909 Victor 454-O intake manifold for big-blocks offers superior performance for drag racing and marine with large oval pot heads (1975 & earlier). The manifold accepts 4500 Series carbs or standard-flange double-pumpers with our adapter #8716. For maximum hp with 4500 Series carbs, use 1" spacer #8717.
Specifications
| Center Maximum Height | 5.900 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_EXT | Edelbrock Victor 454-R Intake Manifold For Chevrolet 396-502 Big-Block V8 |
| Description_INV | Victor BBC Oval Port Dominator Intake |
| Description_LAB | Victor 454-R Intake Manifold Big-Block Chevy |
| Description_MKT | Edelbrock part #2909 Victor 454-O intake manifold for big-blocks offers superior performance for drag racing and marine with large oval pot heads (1975 & earlier). The manifold accepts 4500 Series carbs or standard-flange double-pumpers with our adapter #8716. For maximum hp with 4500 Series carbs, use 1" spacer #8717. |
| Description_TRA | Carb recommendations: Use 4500 Series or std-flange racing carbs with Edelbrock adapter #8716 |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-5.90", B-5.90" |
| Description_TRA | Recommended intake gasket: Edelbrock #7203 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| finish | Satin |
| Front Maximum Height | 5.900 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.625 |
| Material | Aluminum |
| Rear Maximum Height | 5.900 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Single Or Dual Plane Type | Single Plane |
| weight | 22.5 |
| width | 14.75 |
