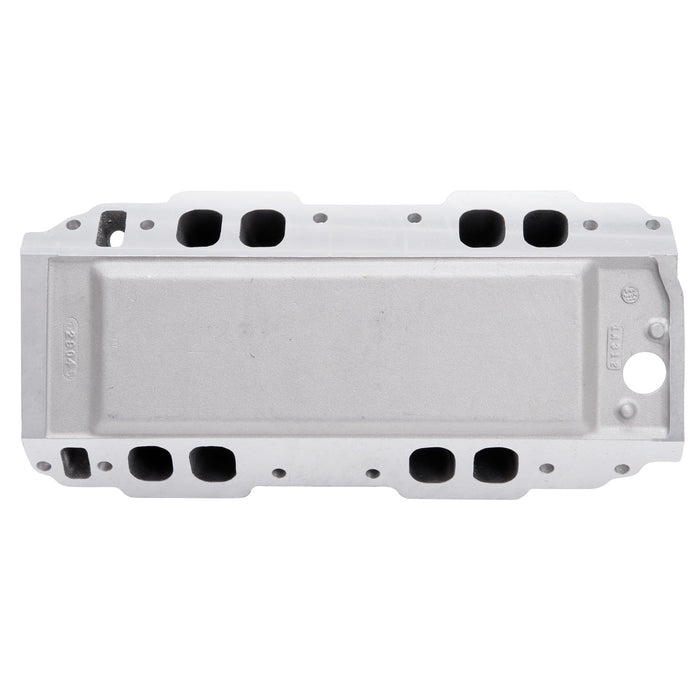

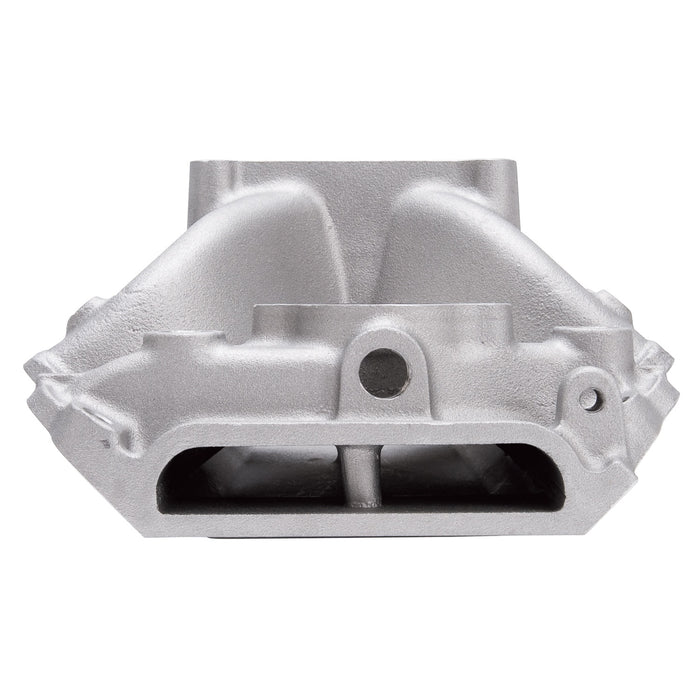

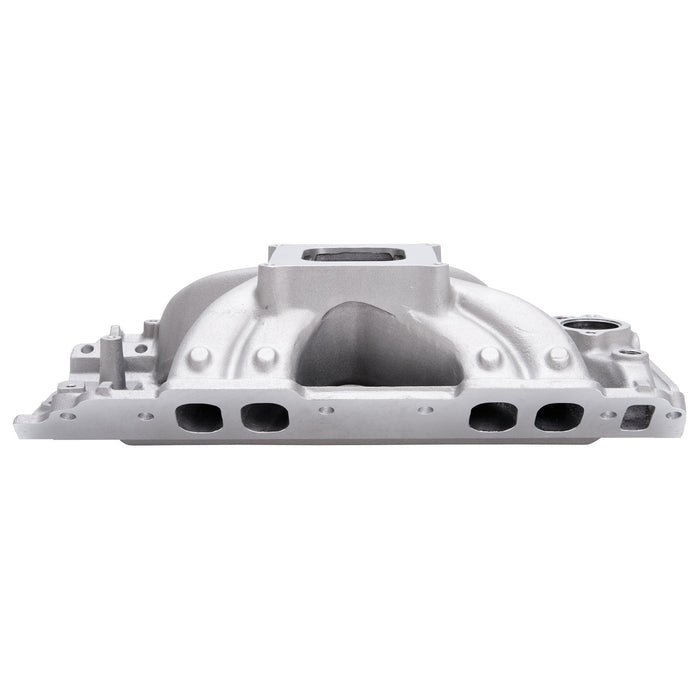

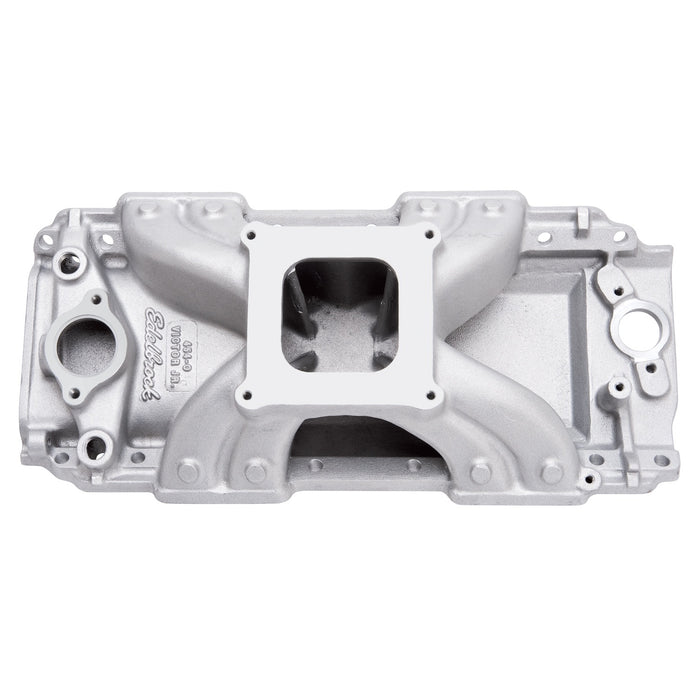

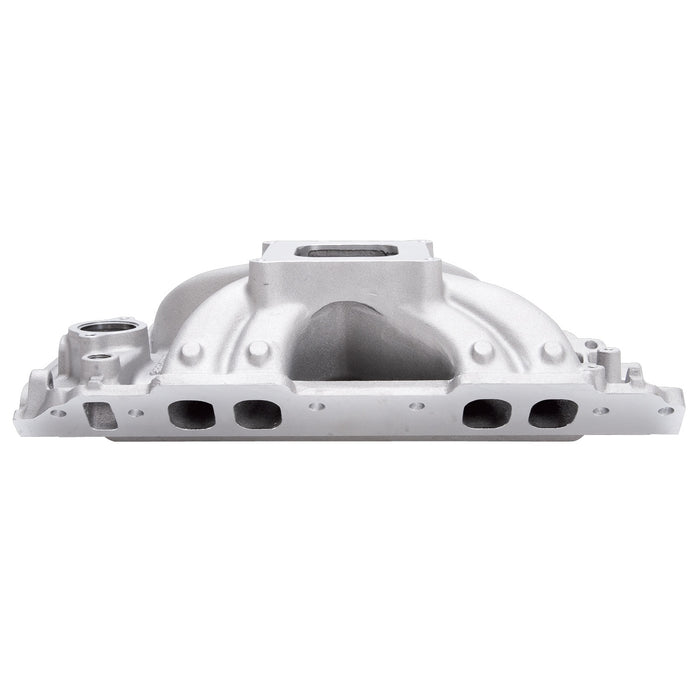

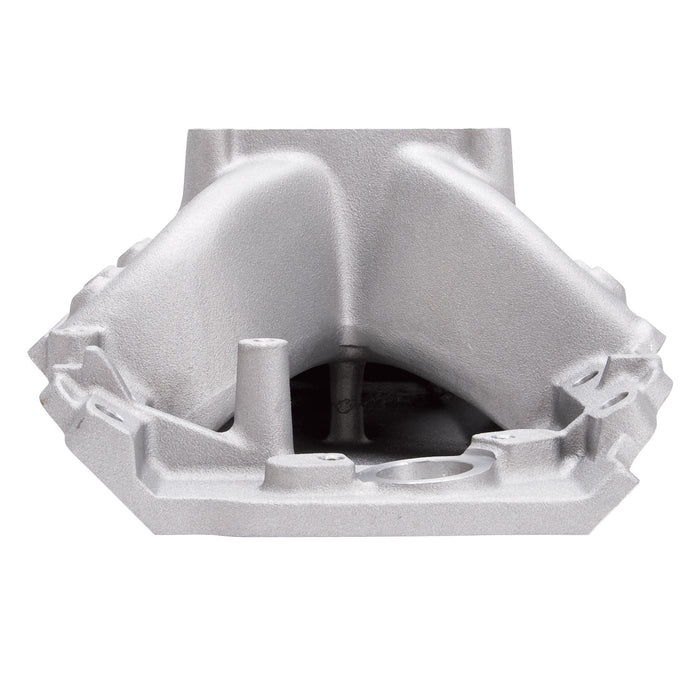

Edelbrock 2904 Edelbrock Victor Jr. 454-O Intake Manifold For Chevrolet 396-502 Big-Block V8
by Edelbrock
SKU ds_BDVJ_2904
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$796.74
-
Original price
$796.74
Original price
$796.74
$796.74
$796.74
-
$796.74
Current price
$796.74
Availability:
Only 2 left!
Description
Edelbrock part #2904 Victor Jr. 454-O intake manifold is designed for competition 396-502 big-block Chevys with large oval-port heads (1975 & earlier). Features include extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. This manifold is especially suited to 502 c.i.d. and smaller competition engines. This intake manifold is a single plane 4150 flange competition manifold designed to fit standard deck blocks from 1965 to present. It is designed to be matched with our Edelbrock/Musi Victor 24-degree Pro-Port CNC heads #61419 or #61409 for 950+ hp out-of-the-box potential!
Specifications
| Basic Operating RPM Range | 3500-7500 |
| Center Maximum Height | 5.960 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Victor Jr. 454-O Intake Manifold For Chevrolet 396-502 Big-Block V8 |
| Description_FAB | For Oval Port Heads (pre 1976) and 850 cfm Carb |
| Description_FAB | For Performance in 3500 to 7500 RPM Range |
| Description_FAB | Ideal for 502 cid and Smaller Competition Engines |
| Description_FAB | Match with Edelbrock Heads for Max Performance |
| Description_FAB | Race-Winning Design For All Types Of Competition |
| Description_FAB | Runners Feature Extra Material for Custom Porting |
| Description_FAB | Single-Plane Maximizes Torque And Horsepower |
| Description_FAB | Use PN[29025] When EFI Bosses Are Needed |
| Description_INV | Victor Jr BBC Oval Port Intake Manifold |
| Description_KEY | 2904; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Victor JR.; Satin |
| Description_LAB | Victor Jr. 454-O Intake Manifold Big-Block Chevy |
| Description_MKT | Edelbrock part #2904 Victor Jr. 454-O intake manifold is designed for competition 396-502 big-block Chevys with large oval-port heads (1975 & earlier). Features include extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. This manifold is especially suited to 502 c.i.d. and smaller competition engines. This intake manifold is a single plane 4150 flange competition manifold designed to fit standard deck blocks from 1965 to present. It is designed to be matched with our Edelbrock/Musi Victor 24-degree Pro-Port CNC heads #61419 or #61409 for 950+ hp out-of-the-box potential! |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-5.90" & B-5.90" |
| Description_TRA | Recommended intake gasket: Edelbrock #7203 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7203 • Manifold height: A-5.90in. B-5.90in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 5.960 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 5.960 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Vehicle Model | Chevrolet |
| weight | 23.25 |
| width | 14.75 |
