Description

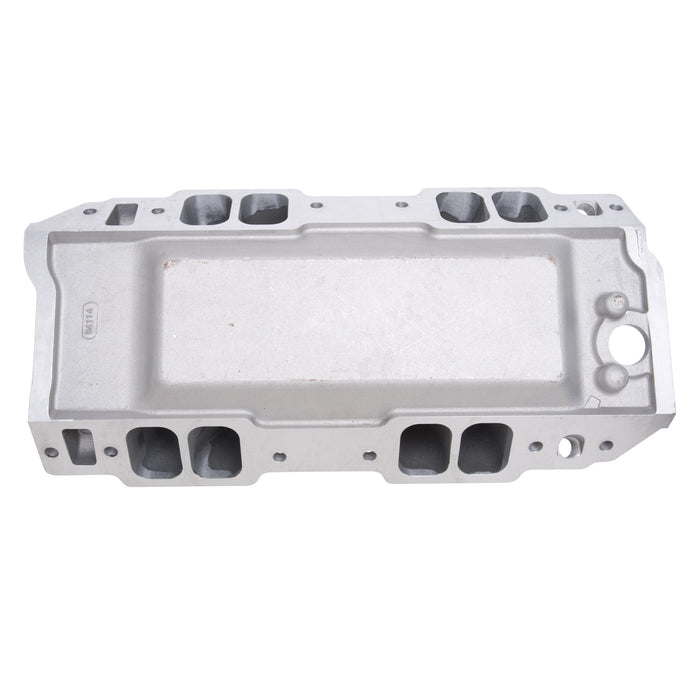

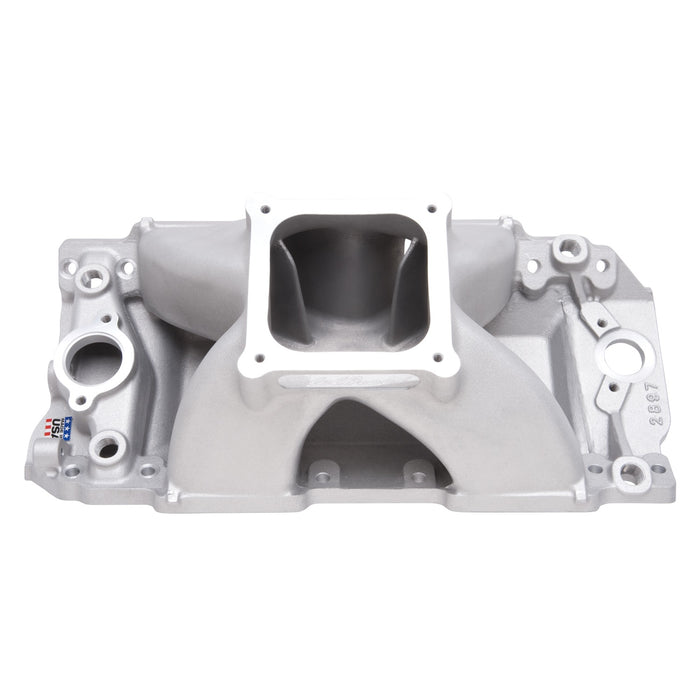

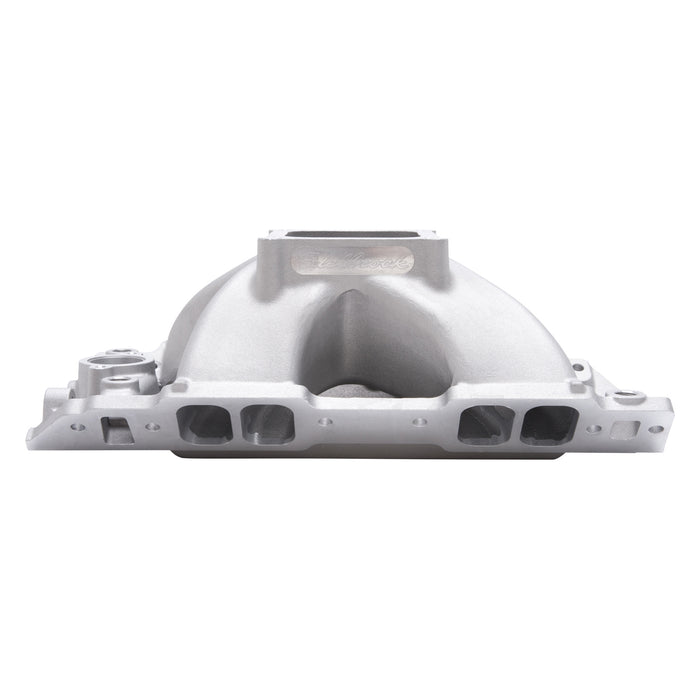

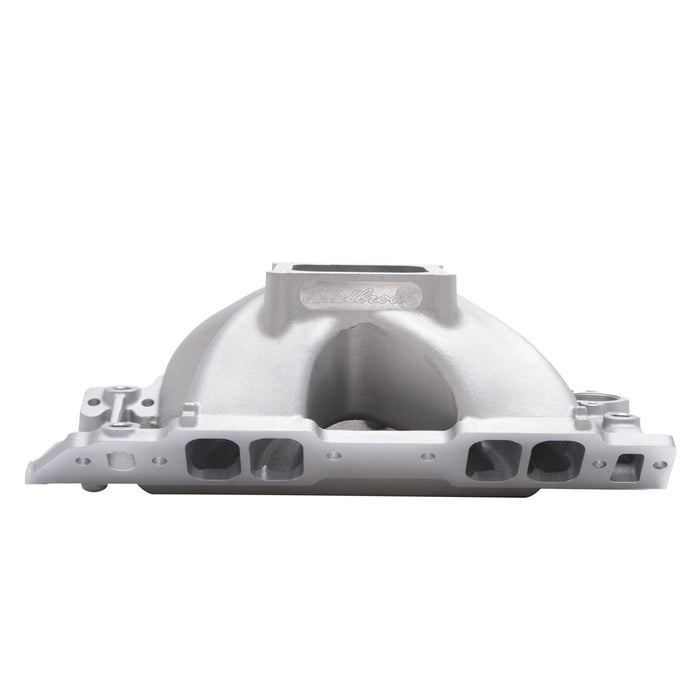

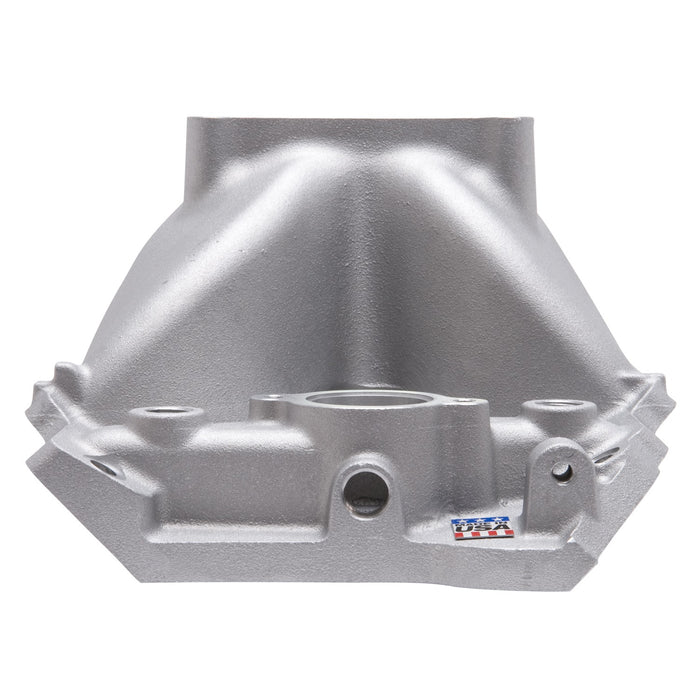

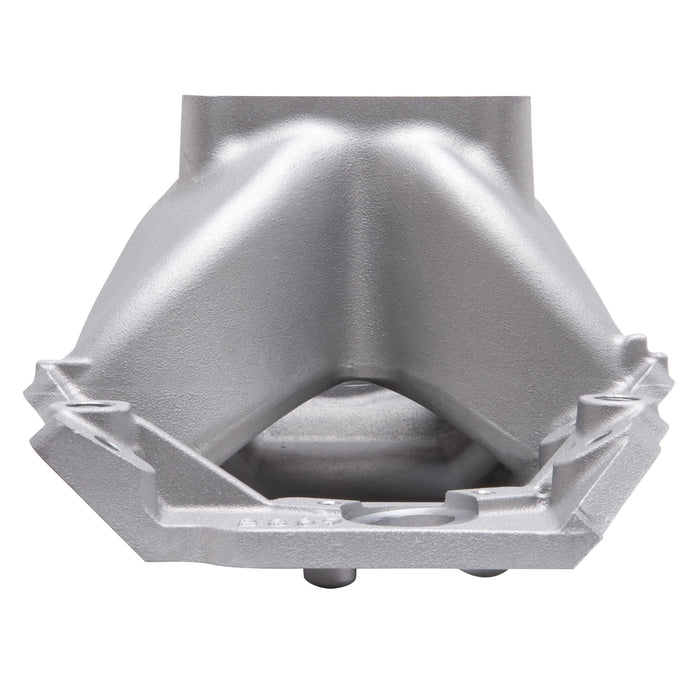

Edelbrock part #28972 Super Victor II intake manifold is designed for use with large cubic inch big-block Chevy Tall-Deck (10.2") engines using the latest design conventional port heads. These single-plane intake manifolds are ideal for any 1,000+ horsepower drag race engine with high air flow requirements. This manifold is CNC port matched for use with cylinder head #61409 and features 5.38 square inches of runner area at the plenum. This manifold has an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops.
Specifications
| Basic Operating RPM Range | 3500-8500 |
| Center Maximum Height | 7.500 |
| CNC Ported | Yes |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Race |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Super Victor II Tall Deck CNC Intake Manifold for Chevrolet Big-Block V8 |
| Description_FAB | Excellent For Large Displacement Drag Racing Eng. |
| Description_FAB | Extended Constant Cross-Section of Runners |
| Description_FAB | For 3500 to 8500 RPM High-Performance Engines |
| Description_INV | Super Victor 2 BBC 10.2 Deck CNC Intake |
| Description_KEY | 28972; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Super Victor 2; Satin |
| Description_LAB | Super Victor II Intake Manifold for BBC 10.2" Tall Deck CNC Port Matched |
| Description_LAB | Super Victor II Intake Manifold for BBC 10.2in. Tall Deck CNC Port Matched |
| Description_MKT | Edelbrock part #28972 Super Victor II intake manifold is designed for use with large cubic inch big-block Chevy Tall-Deck (10.2") engines using the latest design conventional port heads. These single-plane intake manifolds are ideal for any 1,000+ horsepower drag race engine with high air flow requirements. This manifold is CNC port matched for use with cylinder head #61409 and features 5.38 square inches of runner area at the plenum. This manifold has an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Bolt centerline to floor: 1.15" |
| Description_TRA | Bolt centerline to roof: 1.40" |
| Description_TRA | Designed for tall deck block |
| Description_TRA | Port matched for #60409 Edelbrock heads |
| Description_TRA | Recommended intake gasket: Fel-Pro 1275 |
| Description_TRA | • Recommended intake gasket: Fel-Pro 1275 • Designed for tall deck block • Bolt centerline to floor: 1.15in. • Bolt centerline to roof: 1.40in. • Port matched for # 60409 Edelbrock heads |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4500 |
| Front Maximum Height | 7.500 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 9.5 |
| length | 24.25 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 7.500 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Vehicle Model | Chevrolet |
| weight | 27.95 |
| width | 16.25 |
