Description

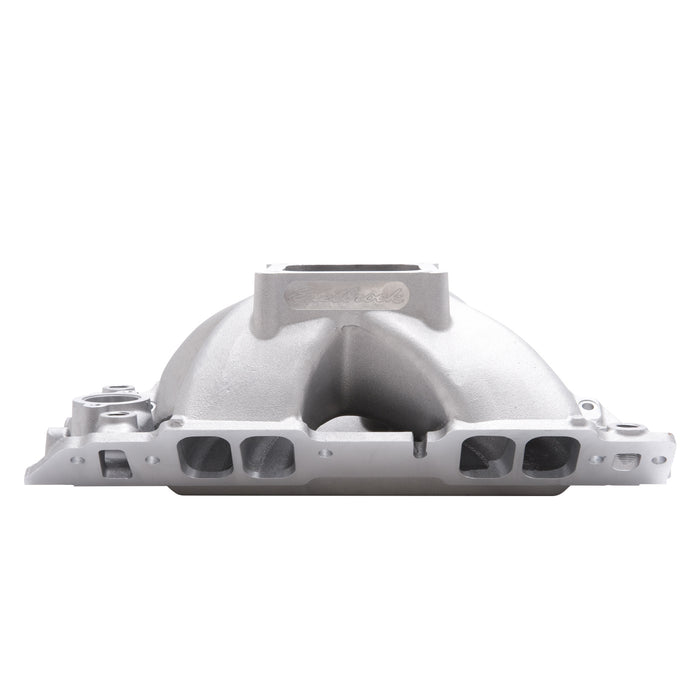

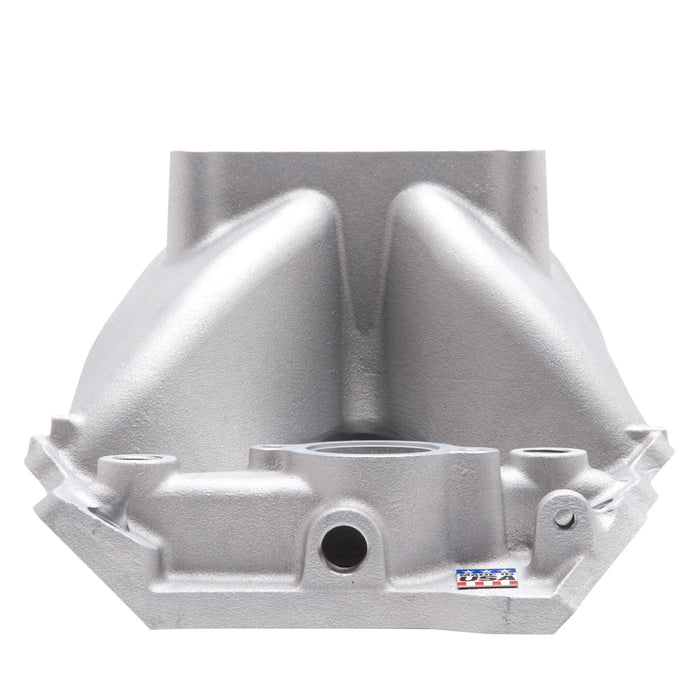

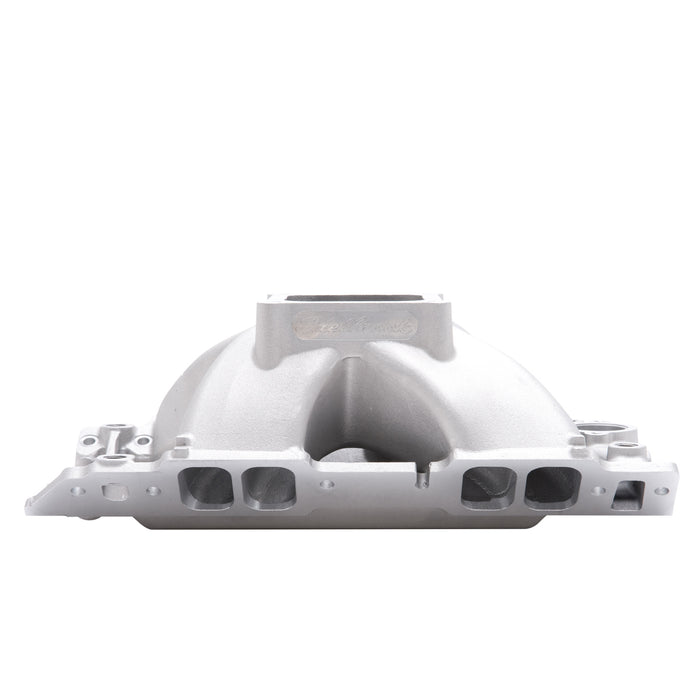

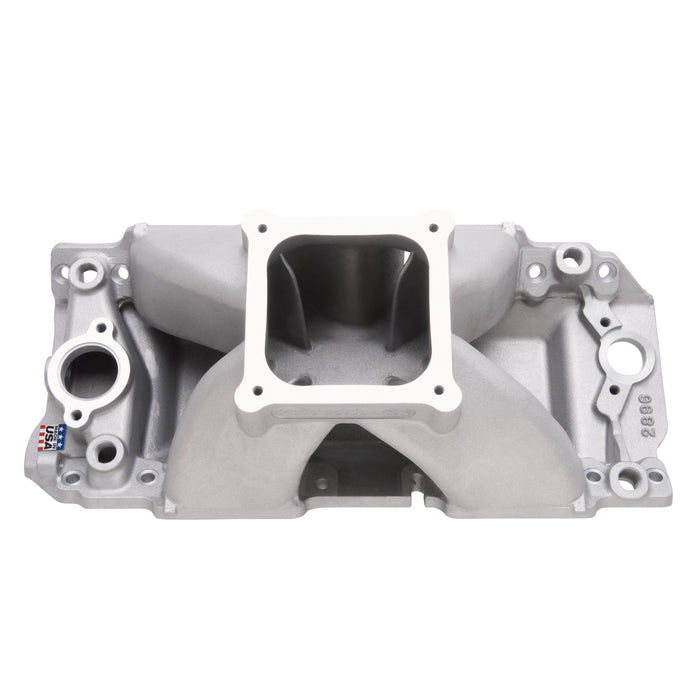

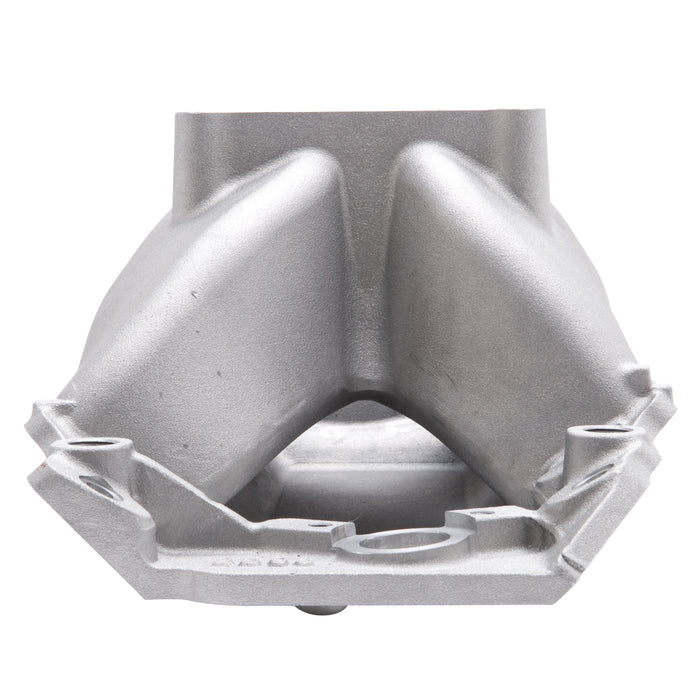

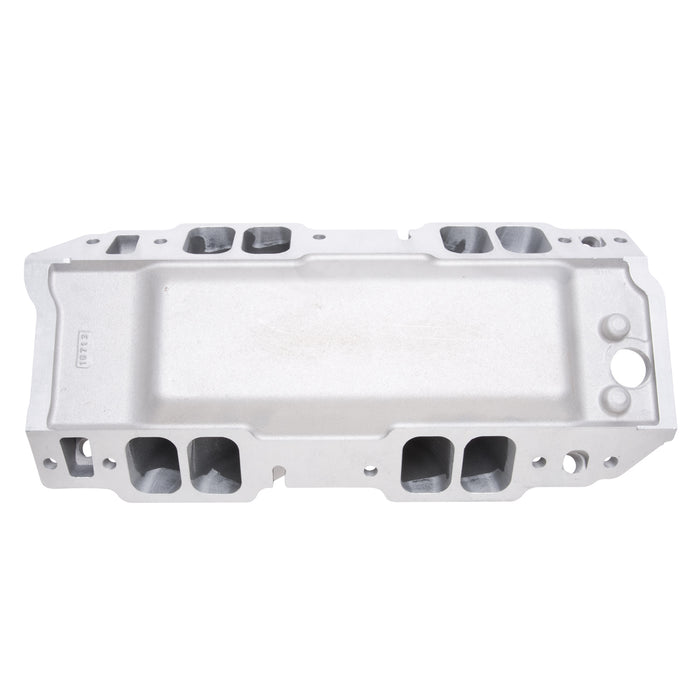

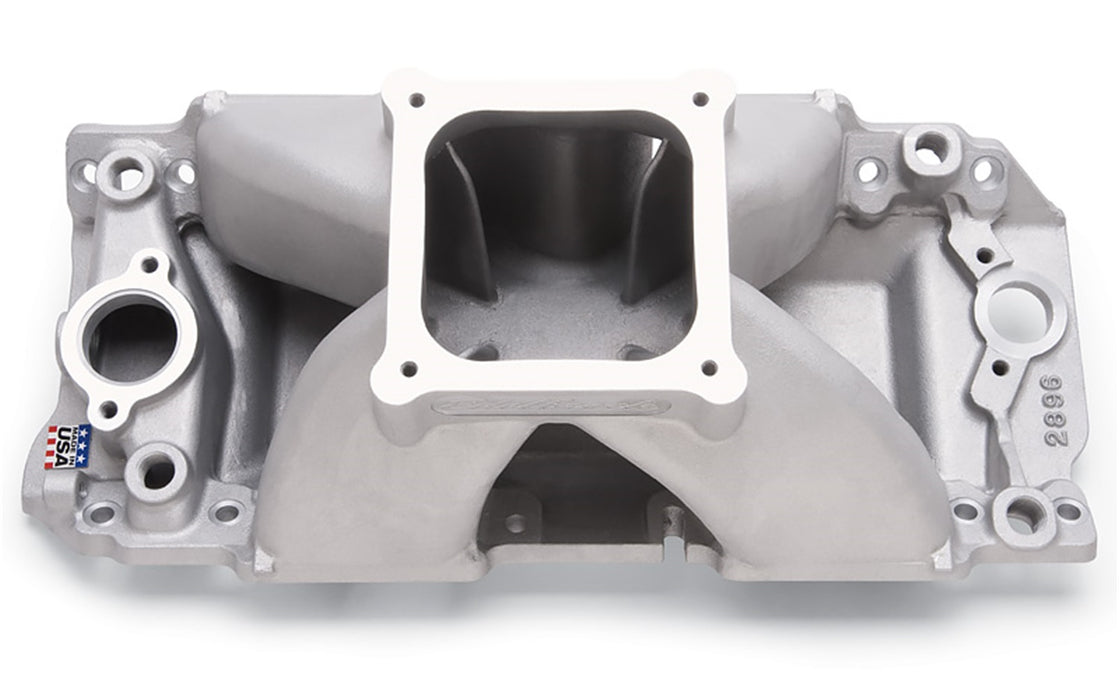

Edelbrock part #28962 Super Victor II intake manifold is designed for use with large cubic inch big-block Chevy engines using the latest design conventional rectangular port heads. This single-plane intake manifolds is ideal for any 1,000+ horsepower drag race engine with high air flow requirements. The Super Victor II intake manifold is CNC port matched for Edelbrock/Musi Victor 24 degree CNC 377cc cylinder heads #61409. Accepts standard height distributors. The manifold has an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops.
Specifications
| Basic Operating RPM Range | 3500-8500 |
| Center Maximum Height | 7.560 |
| CNC Ported | Yes |
| Cylinder Head Type | Rectangular Port |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Race |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Super Victor II CNC Intake Manifold for Standard Deck Chevrolet Big-Block V8 |
| Description_FAB | Accepts Standard Length Distributors |
| Description_FAB | CNC Machined by Reher-Morrison Racing Engines |
| Description_FAB | Critical Areas Machined for Out of Box Convenience |
| Description_FAB | Developed for Competition High RPM and Large CID |
| Description_FAB | For 3500 to 8500 RPM High-Performance Engines |
| Description_INV | Super Victor 2 BBC 9.8 Deck STD Deck CNC |
| Description_KEY | 28962; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Super Victor 2; Satin |
| Description_LAB | Super Victor II Intake Manifold for BBC 9.8" Deck CNC Port Matched |
| Description_LAB | Super Victor II Intake Manifold for BBC 9.8in. Deck CNC Port Matched |
| Description_MKT | Edelbrock part #28962 Super Victor II intake manifold is designed for use with large cubic inch big-block Chevy engines using the latest design conventional rectangular port heads. This single-plane intake manifolds is ideal for any 1,000+ horsepower drag race engine with high air flow requirements. The Super Victor II intake manifold is CNC port matched for Edelbrock/Musi Victor 24 degree CNC 377cc cylinder heads #61409. Accepts standard height distributors. The manifold has an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Bolt centerline to floor: 1.15" |
| Description_TRA | Bolt centerline to roof: 1.40" |
| Description_TRA | Designed for short deck block |
| Description_TRA | Port matched for #60409 Edelbrock heads |
| Description_TRA | Recommended intake gasket: Fel-Pro 1275 |
| Description_TRA | • Recommended intake gasket: Fel-Pro 1275 • Designed for short deck block • Bolt centerline to floor: 1.15in. • Bolt centerline to roof: 1.40in. • Port matched for # 60409 Edelbrock heads |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Chevy Big Block (396-502) |
| finish | Satin |
| Flange Type | 4500 |
| Front Maximum Height | 7.560 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 9.5 |
| length | 24.0 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | N/A |
| Rear Maximum Height | 7.560 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 3500-8500 |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Usage | Racing |
| Vehicle Model | Chevrolet |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 26.55 |
| width | 16.5 |
