Edelbrock 28905 Edelbrock Super Victor LS7 EFI Dominator Flange Intake Manifold Gen IV 750HP+
by Edelbrock
SKU ds_BDVJ_28905
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$1,299.14
-
Original price
$1,299.14
Original price
$1,299.14
$1,299.14
$1,299.14
-
$1,299.14
Current price
$1,299.14
Availability:
Only 1 left!
Description

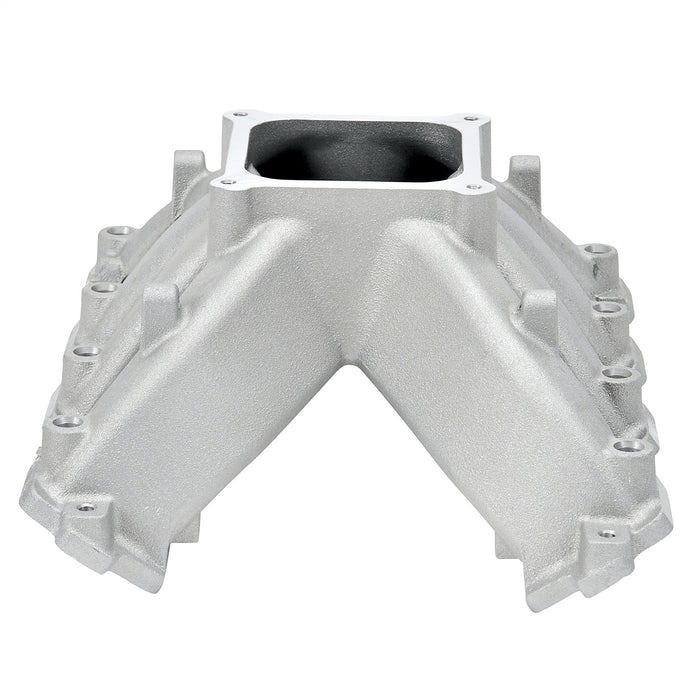

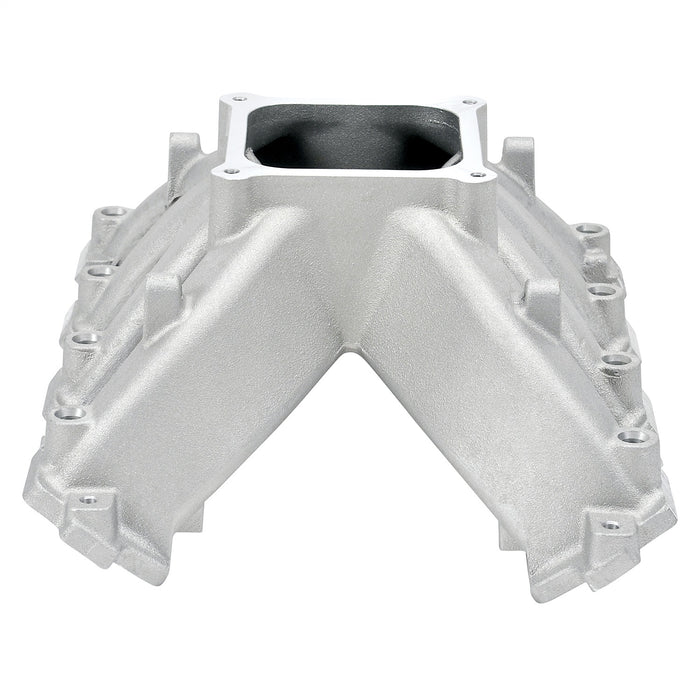

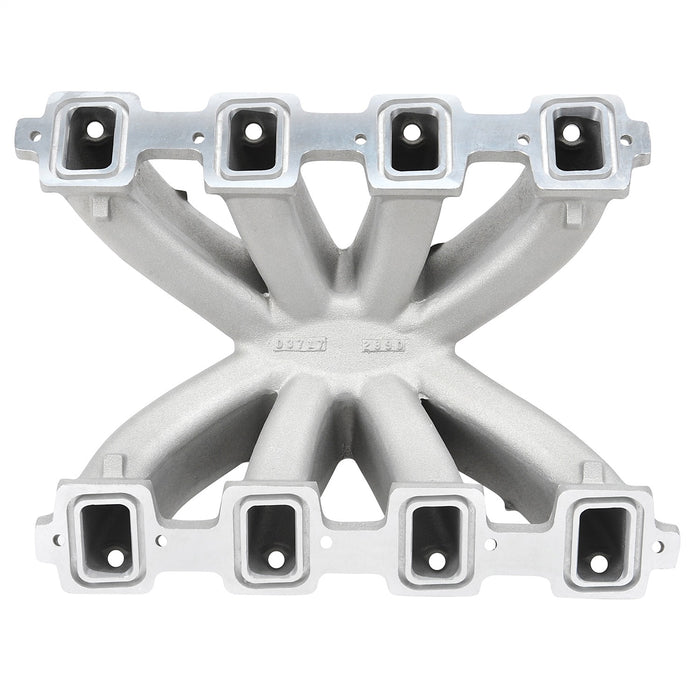

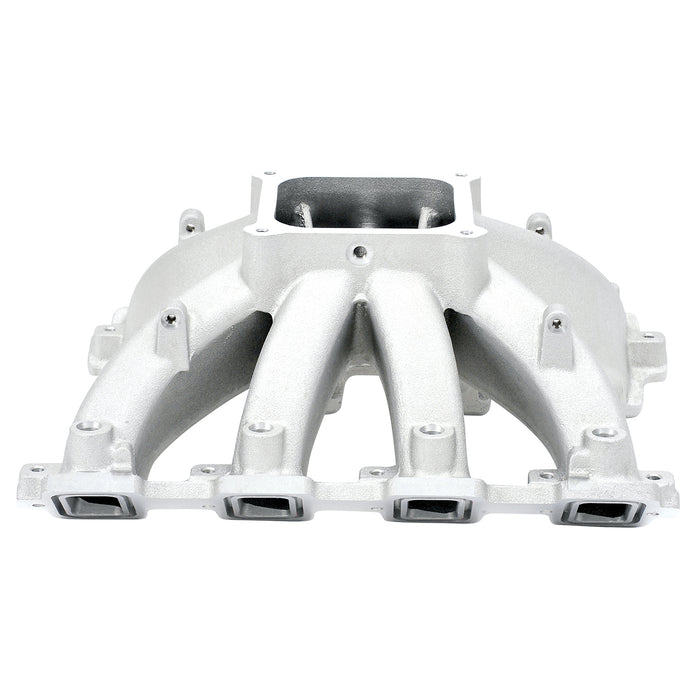

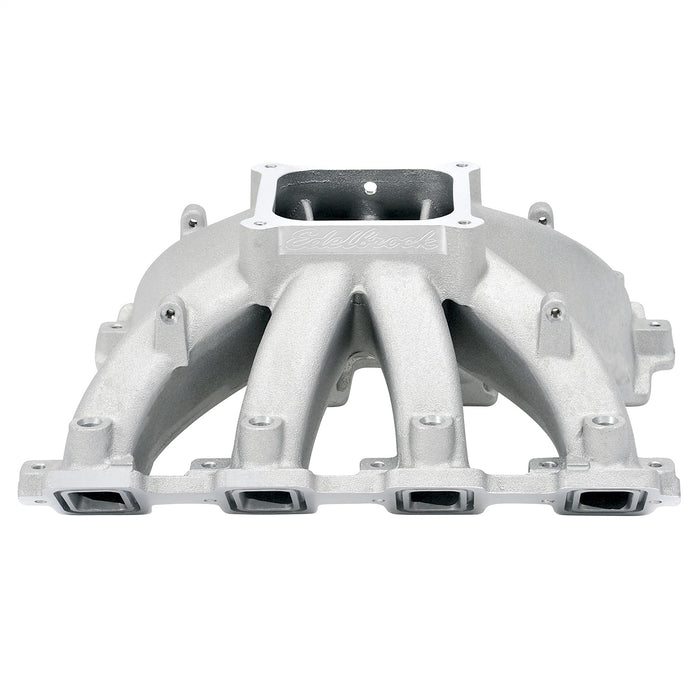

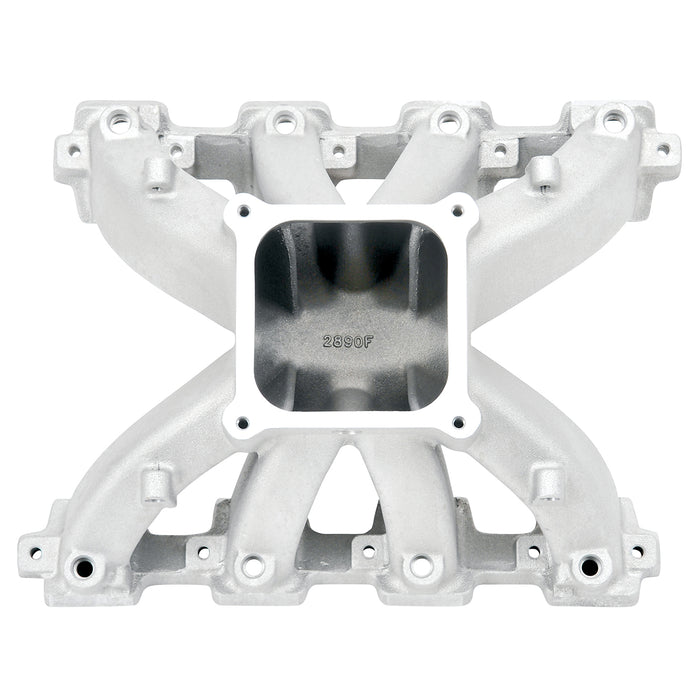

Edelbrock part #28095 Super Victor LS7 EFI intake manifold is designed for Gen IV LS engines equipped with LS7 cylinder heads or Edelbrock Pro-Port Victor Jr. cylinder heads. This manifold is .75" taller than our LS3 Super Victor intakes. This new Super Victor intake manifold is capable of airflow demands of 800+ hp on naturally aspirated engines. This manifold includes machined fuel injector bosses. A carburetor mounted style throttle bracket is recommended.
Specifications
| Basic Operating RPM Range | 3500-8000 |
| Center Maximum Height | 8.420 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen IV LS7:427 (7.0L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Super Victor LS7 EFI Dominator Flange Intake Manifold Gen IV 750HP+ |
| Description_FAB | For 3500 to 7500 RPM High-Performance Engines |
| Description_FAB | Ideal For Drag Racing Or Marine Applications |
| Description_FAB | Use For Any Application Requiring Maximum Power |
| Description_INV | Super Victor LS7 EFI Dominator Flange |
| Description_KEY | 28905; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Super Victor; Satin |
| Description_LAB | Super Victor Small Block Chevy LS7 EFI Dominator Flange Intake Manifold |
| Description_MKT | Edelbrock part #28095 Super Victor LS7 EFI intake manifold is designed for Gen IV LS engines equipped with LS7 cylinder heads or Edelbrock Pro-Port Victor Jr. cylinder heads. This manifold is .75" taller than our LS3 Super Victor intakes. This new Super Victor intake manifold is capable of airflow demands of 800+ hp on naturally aspirated engines. This manifold includes machined fuel injector bosses. A carburetor mounted style throttle bracket is recommended. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | .85" taller than the Edelbrock LS3 Super Victor #28265 |
| Description_TRA | Carb pad height: 8.42" (measured from the valley cover flange to the carb pad) |
| Description_TRA | Designed for 4500 style throttle body |
| Description_TRA | Edelbrock fuel rail kit #3879 |
| Description_TRA | Manifold height: A-8.42, B-8.42" |
| Description_TRA | Port exit dimensions machine matched: 1.34" x 2.38". |
| Description_TRA | Port exits machine profiled to 1.34" w x 2.38" tall |
| Description_TRA | Recommended intake gasket: Edelbrock #9746, LS7 style individual port o-ring seals GM PN89017852. |
| Description_TRA | Throttle body recommendations: Edelbrock #38783 or #38883 |
| Description_TRA | Uses standard intake Edelbrock bolt kit #8515 |
| Description_TRA | • Recommended intake gasket: Edelbrock # 9746; LS7 style individual port o-ring seals GM PN89017852. • Uses standard intake Edelbrock bolt kit # 8515 • Edelbrock fuel rail kit # 3879 • Designed for 4500 style throttle body • Throttle body recommendations: Edelbrock # 38783 or # 38883 • Manifold height: A-8.42; B-8.42in. • Carb pad height: 8.42in. (measured from the valley cover flange to the carb pad) • Port exit dimensions machine matched: 1.34in. x 2.38in. • .85in. taller than the Edelbrock LS3 Super Victor # 28265 • Port exits machine profiled to 1.34in. w x 2.38in. tall |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4500 |
| Front Maximum Height | 8.420 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 12.0 |
| length | 23.5 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 8.420 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Vehicle Model | Chevrolet |
| weight | 20.1 |
| width | 14.75 |
