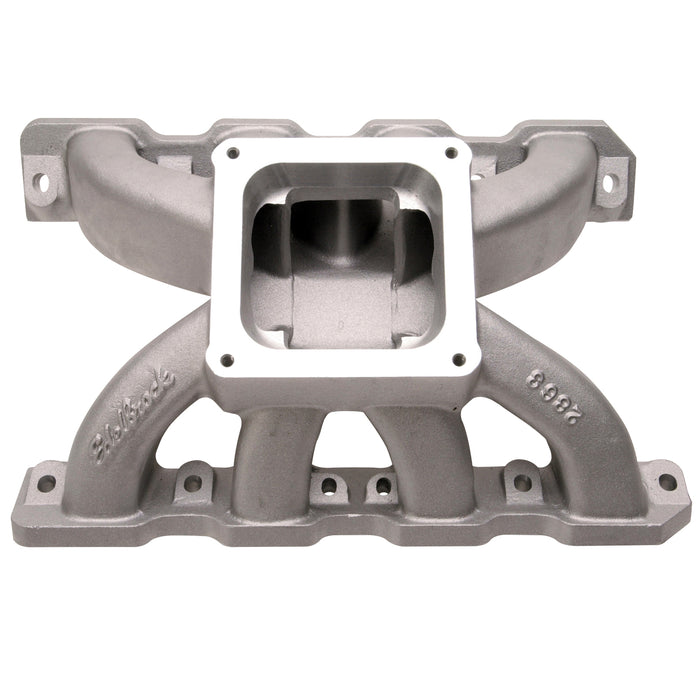

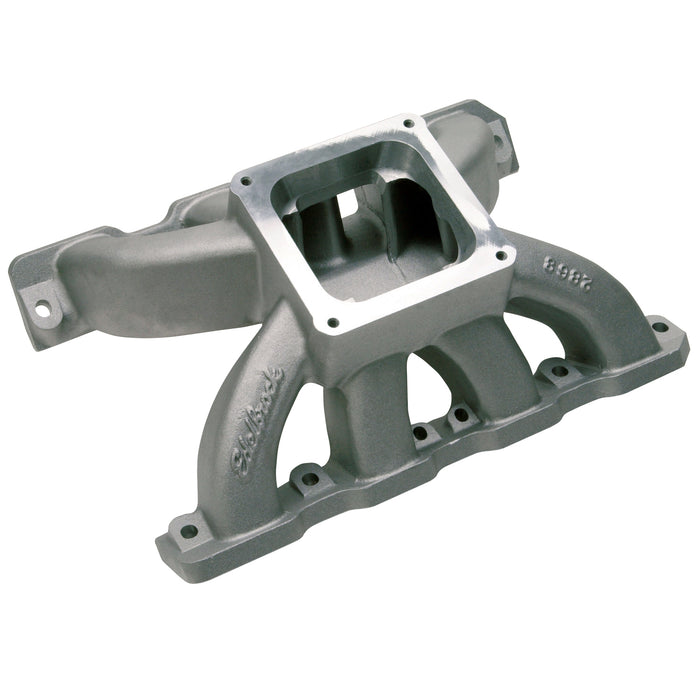

Edelbrock 2863 Engine Intake Manifold
by Edelbrock
SKU ds_BDVJ_2863
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$533.14
-
Original price
$533.14
Original price
$533.14
$533.14
-
$533.14
Current price
$533.14
Availability:
Out of stock
Description
The Edelbrock Glidden Victor 351Y 4500 series #2863 intake manifold is designed in conjunction with noted Ford drag racer Billy Glidden for raised port aluminum C3 SVO (Yates) cylinder heads, #2863 fits 9.2" deck heights. The Edelbrock Glidden Victor Glidden 351Y #2863 has 3.2 square-inch runners. Both are perfect for all-out nitrous-assisted drag race applications. Carb mount flange and plenum are machined for 4500 Series carbs and require port matching and blending prior to use.
Specifications
| Center Maximum Height | 7.160 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Ford:Small-Block Race |
| Description_DEF | Engine Intake Manifold |
| Description_EXT | Edelbrock Glidden Victor 351Y for 9.2" with C3 Heads and 4500 Series Carb for Ford 351-427 Small-Block Windsor V8 |
| Description_INV | Victor Yates C3 HDS Dominator Flange |
| Description_LAB | XX Glidden Victor 351Y for 9.2" with C3 Heads and 4500 Series Carb |
| Description_MKT | The Edelbrock Glidden Victor 351Y 4500 series #2863 intake manifold is designed in conjunction with noted Ford drag racer Billy Glidden for raised port aluminum C3 SVO (Yates) cylinder heads, #2863 fits 9.2" deck heights. The Edelbrock Glidden Victor Glidden 351Y #2863 has 3.2 square-inch runners. Both are perfect for all-out nitrous-assisted drag race applications. Carb mount flange and plenum are machined for 4500 Series carbs and require port matching and blending prior to use. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: #2863 A-7.16", B-7.16" |
| Description_TRA | Recommended intake gasket: Fel-Pro #1253-3 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| finish | Satin |
| Front Maximum Height | 7.160 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 9.5 |
| length | 24.0 |
| Material | Aluminum |
| Rear Maximum Height | 7.160 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Single Or Dual Plane Type | Single Plane |
| weight | 23.1 |
| width | 16.3 |
