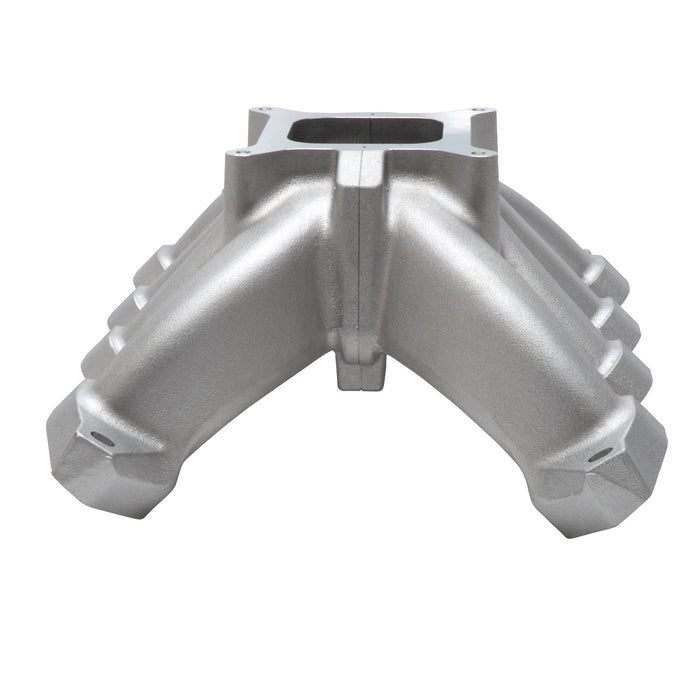

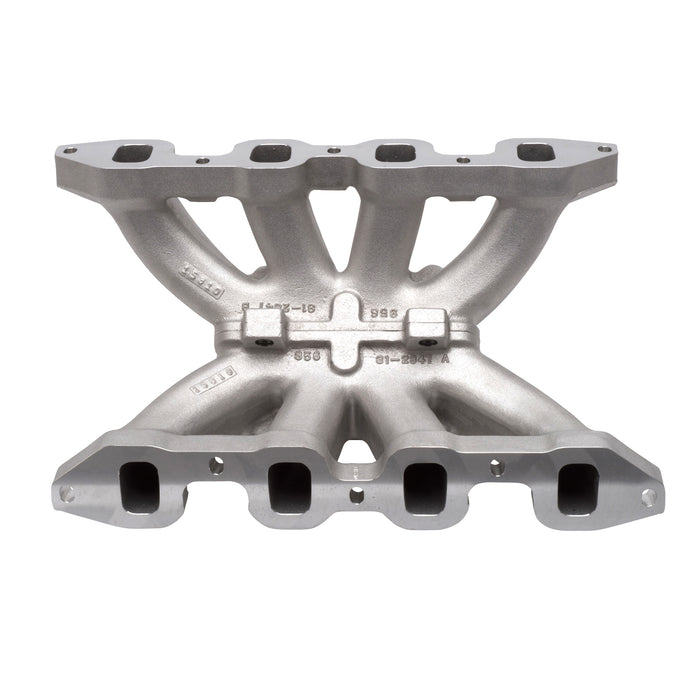

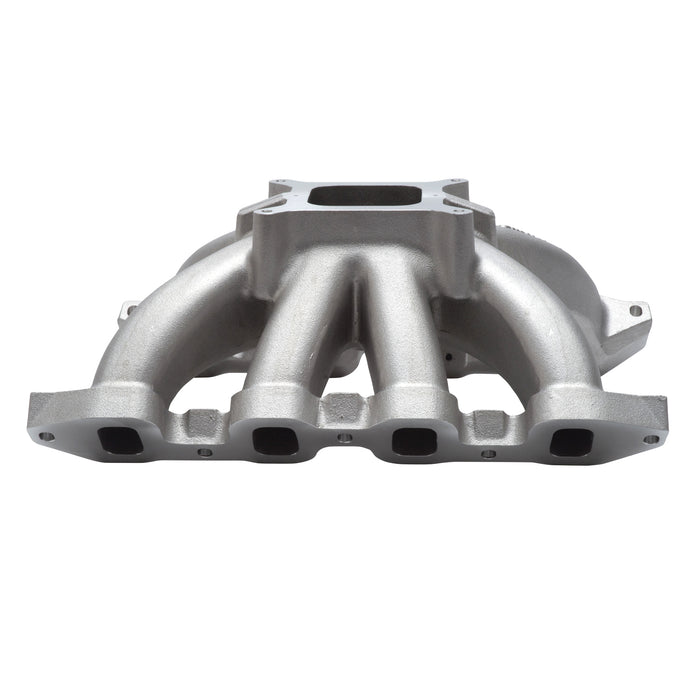

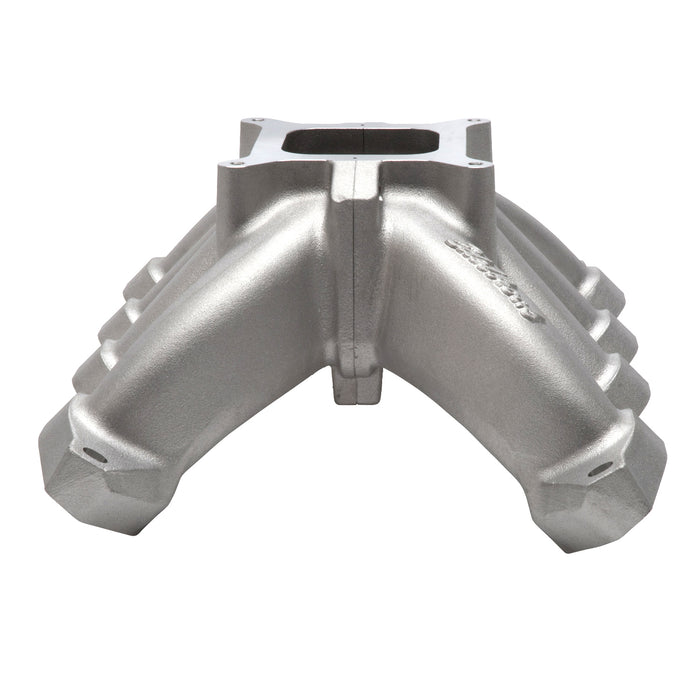

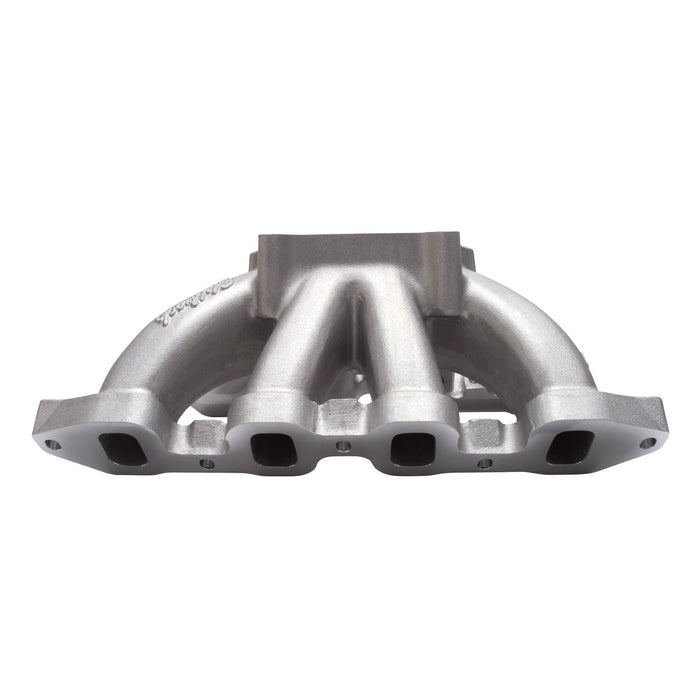

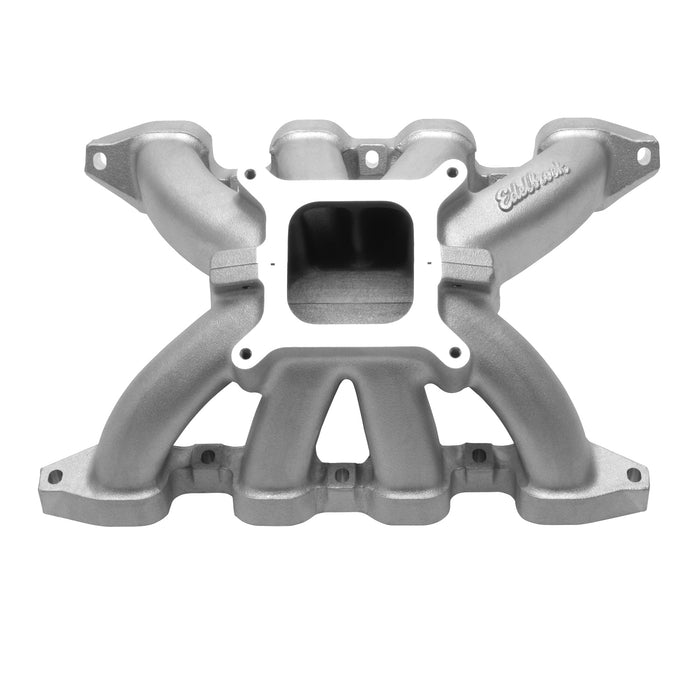

Edelbrock 28488 Engine Intake Manifold
by Edelbrock
SKU ds_BDVJ_28488
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$574.94
-
Original price
$574.94
Original price
$574.94
$574.94
-
$574.94
Current price
$574.94
Availability:
Out of stock
Description
The Victor Two-Piece manifolds were developed to simplify CNC manifold porting. They are supplied in right and left halves that can be machined and then assembled with the supplied bolts and o-ring. Victor Two-Piece manifolds are available for various applications from standard 9" deck 18 degree cylinder heads to 9.3" deck Clements/Dart 13 degree cylinder heads as well as SB2 and ROX engines. They are also offered in varying flange thicknesses to accommodate multiple applications.
Specifications
| Description_ASM | Chevrolet:Small-Block Gen I Race |
| Description_DEF | Engine Intake Manifold |
| Description_LAB | Two-Piece Manifold for SB Chevy ROX 4.5 Bore Center Dirt Late-Model +.500 Flange |
| Description_MKT | The Victor Two-Piece manifolds were developed to simplify CNC manifold porting. They are supplied in right and left halves that can be machined and then assembled with the supplied bolts and o-ring. Victor Two-Piece manifolds are available for various applications from standard 9" deck 18 degree cylinder heads to 9.3" deck Clements/Dart 13 degree cylinder heads as well as SB2 and ROX engines. They are also offered in varying flange thicknesses to accommodate multiple applications. |
| Description_TRA | Bore Center: 4.5" |
| Description_TRA | Designed for ROX Heads |
| Description_TRA | Flange Thickness: 1.070" |
| Description_TRA | Maximum Deck Height: 9.500" |
| Description_TRA | Valley Plate: Edelbrock #28518 |
| height | 9.0 |
| length | 25.0 |
| weight | 25.85 |
| width | 12.0 |
