Edelbrock 2847 Engine Intake Manifold
by Edelbrock
SKU ds_BDVJ_2847
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$537.40
-
Original price
$537.40
Original price
$537.40
$537.40
-
$537.40
Current price
$537.40
Availability:
Out of stock
Description

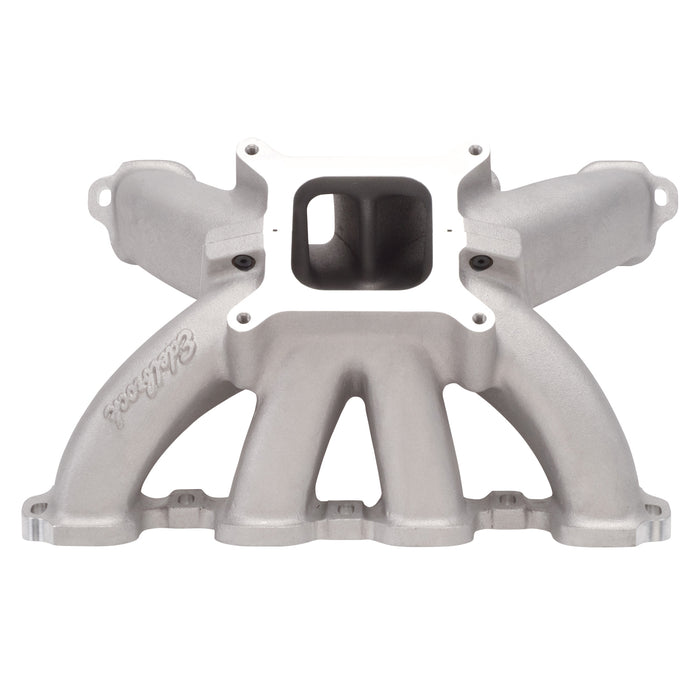

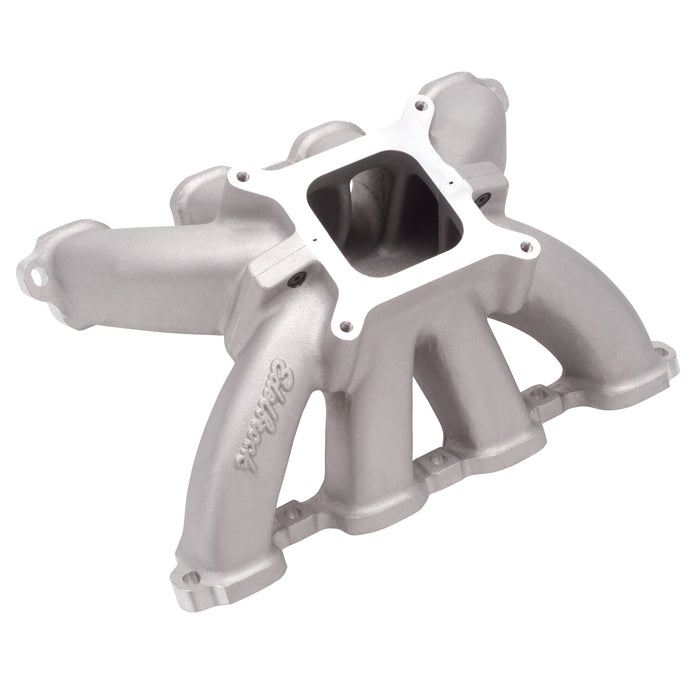

The Edelbrock Victor Two-Piece #2847 intake manifold for SB2 cylinder heads is a two-piece, single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds. Edelbrock engineers work in conjunction with leading engine builders from all forms of competition to design manifolds compatible with the latest technology. With that, the Edelbrock Victor Two-Piece #2847 intake manifold for SB2 cylinder heads was developed to simplify CNC manifold porting. The Edelbrock Victor Two-Piece #2847 intake manifold is supplied in right and left halves that can be machined and then assembled with the supplied bolts and O-ring.
Specifications
| Center Maximum Height | 0.010 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen I Race |
| Description_DEF | Engine Intake Manifold |
| Description_EXT | Edelbrock Victor Two-Piece Intake Manifold is a Spider-Type Manifold for S/B Chevrolet Engines w/SB2 Cylinder Heads. Standard Flange Thickness. Use with #2853 Valley Plate for Standard 9" Deck. Accepts 4150-Style Square-Bore Carb. Non-EGR |
| Description_INV | Victor 2 Piece SB-2 SBC Late Model STD |
| Description_LAB | XX Victor Two-Piece Design Intake Manifold |
| Description_MKT | The Edelbrock Victor Two-Piece #2847 intake manifold for SB2 cylinder heads is a two-piece, single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds. Edelbrock engineers work in conjunction with leading engine builders from all forms of competition to design manifolds compatible with the latest technology. With that, the Edelbrock Victor Two-Piece #2847 intake manifold for SB2 cylinder heads was developed to simplify CNC manifold porting. The Edelbrock Victor Two-Piece #2847 intake manifold is supplied in right and left halves that can be machined and then assembled with the supplied bolts and O-ring. |
| Description_TRA | Bore Center 4.4" |
| Description_TRA | Conventional 18 Deg applications will require additional machining of manifold and valley plate for desired clearance when using Edelbrock valley plate #2855. |
| Description_TRA | Edelbrock valley plate #2992 can also be used when less machining is desired. When using thick flange manifolds, machining of backside of flange is recommended for weight reduction. |
| Description_TRA | Flange Thickness Standard |
| Description_TRA | Maximum Deck Height 9.080" |
| finish | Satin |
| Front Maximum Height | 0.010 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 9.25 |
| length | 24.0 |
| Material | Aluminum |
| Rear Maximum Height | 0.010 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Single Or Dual Plane Type | Single Plane |
| weight | 22.65 |
| width | 16.5 |
