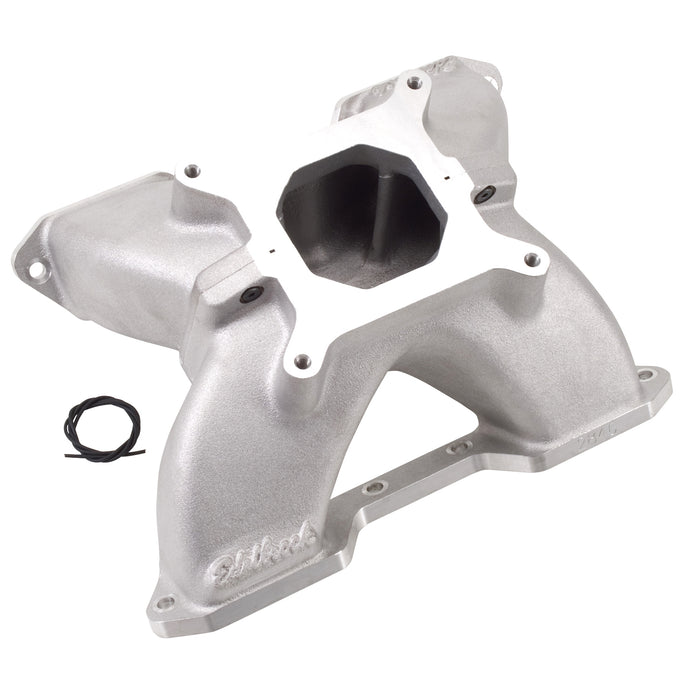

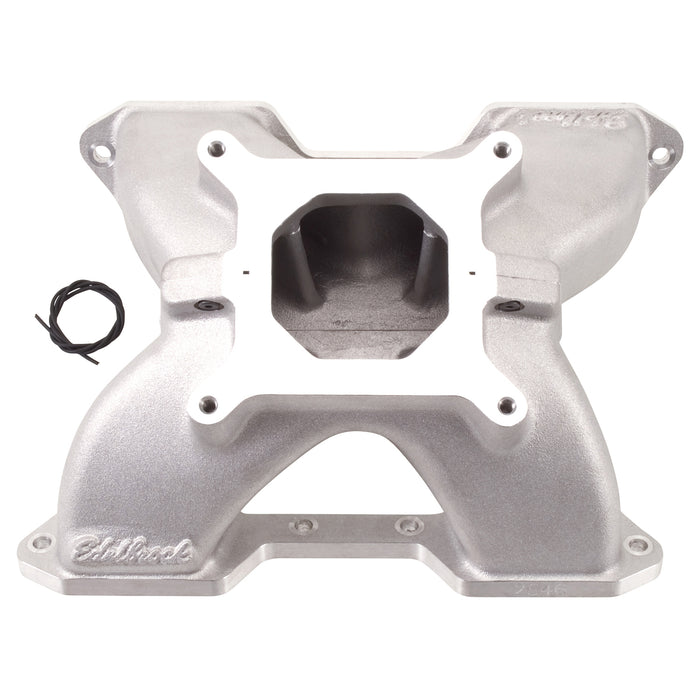

Edelbrock 2846 Engine Intake Manifold
by Edelbrock
SKU ds_BDVJ_2846
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$574.94
-
Original price
$574.94
Original price
$574.94
$574.94
-
$574.94
Current price
$574.94
Availability:
Out of stock
Description
Small Block Chevrolet intake for Dirt Late model. This is a 2-piece Spider-type with internal material for hand porting. The 2 halves will be assembled using o-rings and shoulder bolt hardware supplied. 18 degree Standard Flange version machined with .438” thick flanges will fit conventional 18 degree cylinder heads when used on 9.00” deck blocks. Part number 2846 will not fit on Hi Port aftermarket 13 degree cylinder heads.
Specifications
| Description_ASM | Chevrolet:Small-Block Gen I Race |
| Description_DEF | Engine Intake Manifold |
| Description_LAB | Two-Piece Manifold for SB Chevy 18-Deg Dirt Late-Model Hand Port Std Flange Vers |
| Description_MKT | Small Block Chevrolet intake for Dirt Late model. This is a 2-piece Spider-type with internal material for hand porting. The 2 halves will be assembled using o-rings and shoulder bolt hardware supplied. 18 degree Standard Flange version machined with .438” thick flanges will fit conventional 18 degree cylinder heads when used on 9.00” deck blocks. Part number 2846 will not fit on Hi Port aftermarket 13 degree cylinder heads. |
| Description_TRA | Bore Center 4.4" |
| Description_TRA | Conventional 18 Deg applications will require additional machining of manifold and valley plate for desired clearance when using valley plate #2855. |
| Description_TRA | Edelbrock valley plate #2992 can also be used when less machining is desired. |
| Description_TRA | Flange Thickness Standard |
| Description_TRA | Maximum Deck Height 9.000" |
| Description_TRA | When using thick flange manifolds, machining of backside of flange is recommended for weight reduction. |
| height | 9.0 |
| length | 20.1 |
| weight | 20.0 |
| width | 15.75 |
