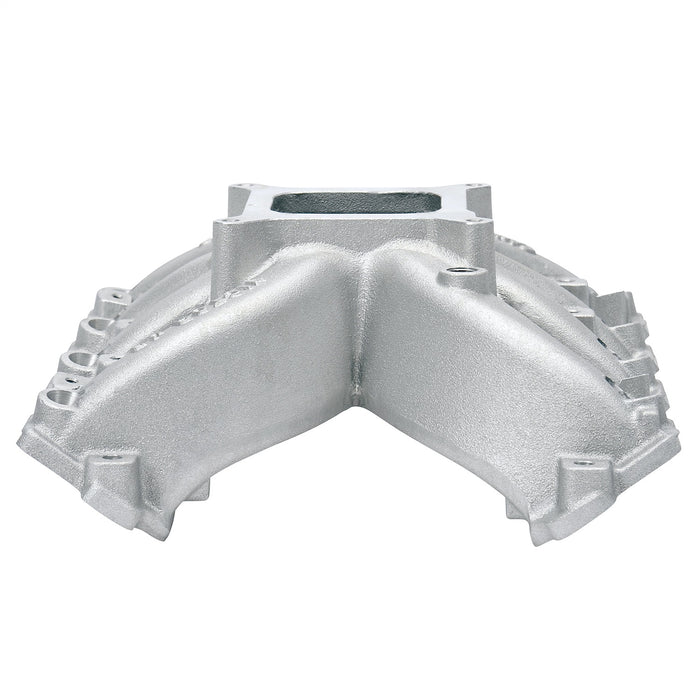

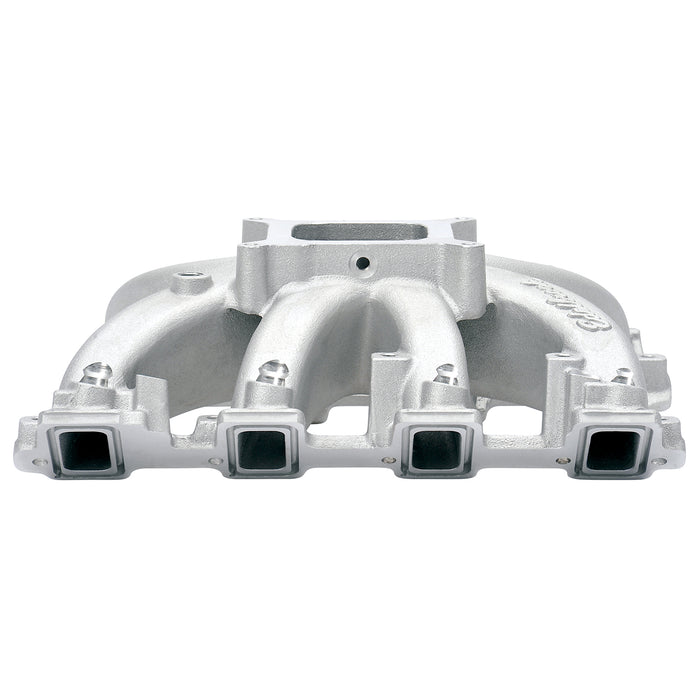

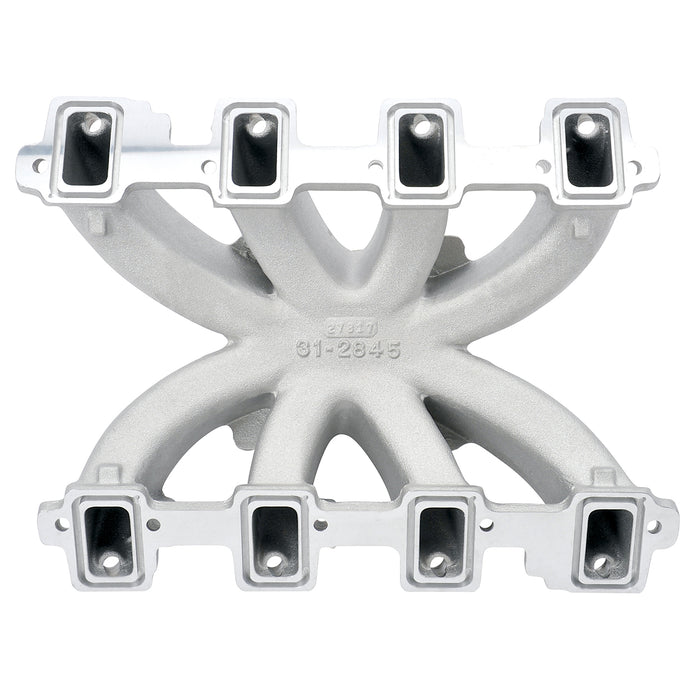

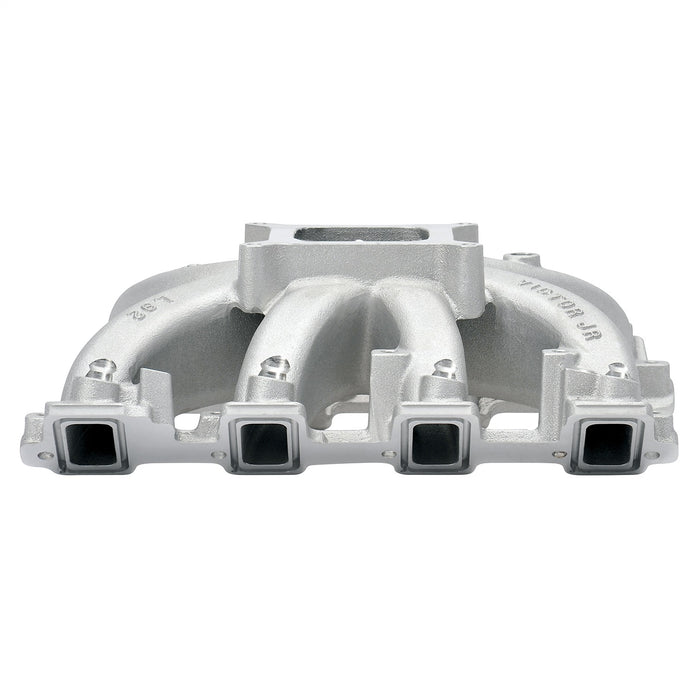

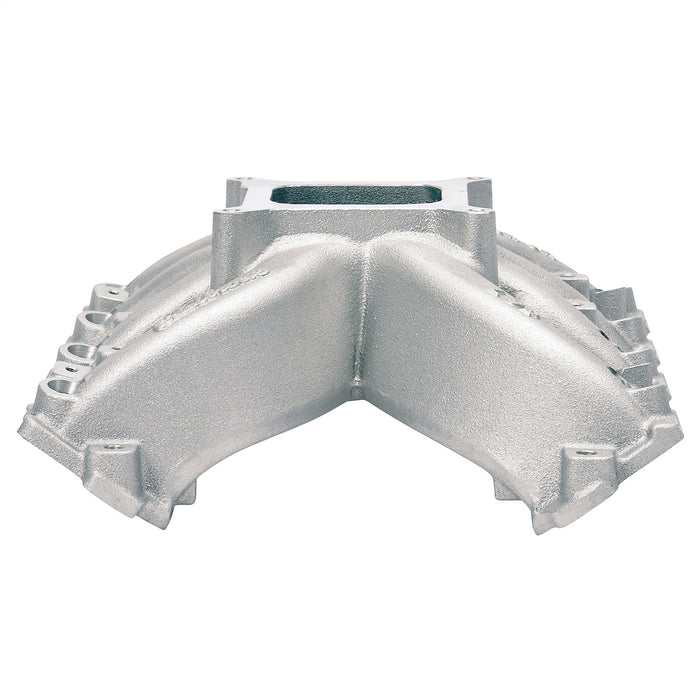

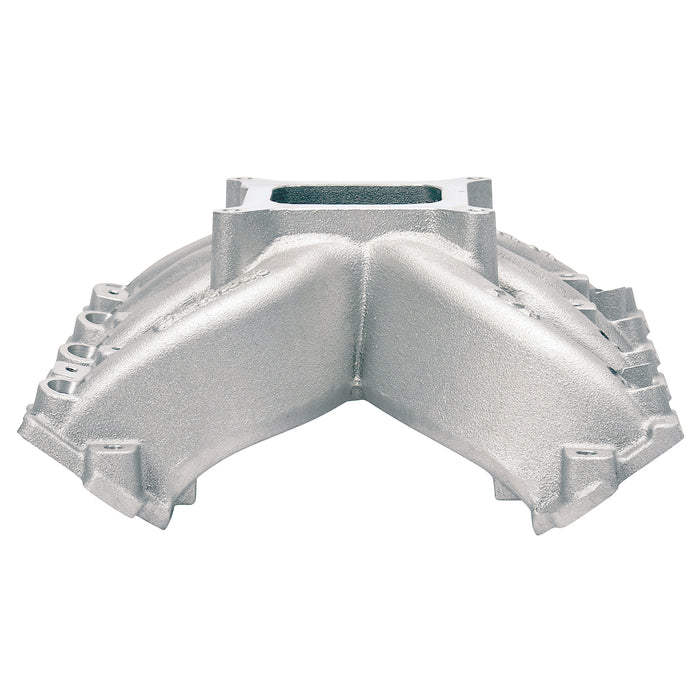

Edelbrock 28456 Edelbrock Victor Jr W/Electronic Carb LS3/L76/L92 Intake Manifold GM LS Engines
by Edelbrock
SKU ds_BDVJ_28456
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,536.49
-
Original price
$1,536.49
Original price
$1,536.49
$1,536.49
$1,536.49
-
$1,536.49
Current price
$1,536.49
Availability:
Out of stock
Description

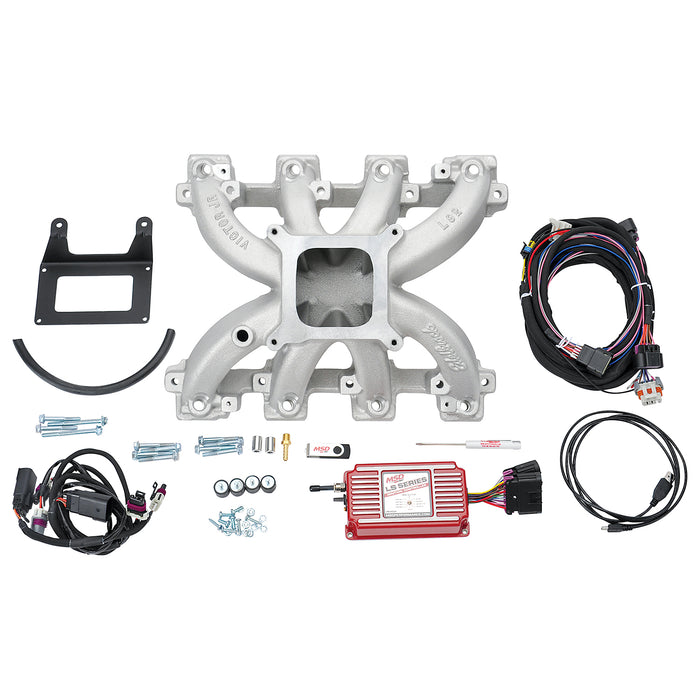

Edelbrock part #28456 Victor JR. LS3 intake manifold is designed for Gen IV LS engines equipped with LS3, L92 and L76 cylinder heads. This manifold is for EFI racing applications operating between 3500-7500 rpm. The Edelbrock Victor JR. LS3 intake manifold comes with an MSD #6014 Timing Control Module. This manifold uses a standard square bore throttle body flange that is compatible with both Edelbrock EFI intake elbows with single bore 90mm throttle body or four-barrel #4150 throttle bodies. This intake has additional bosses and machining that allow for the use of fuel injectors when combined with the #3638 fuel rail kit (sold separately). The LS3, L92 and L76 all use the same cylinder head.
Specifications
| Basic Operating RPM Range | 3500-7500 |
| Center Maximum Height | 6.000 |
| CNC Ported | No |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen IV L76:364 (6.0L)/376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L76:364 (6.0L)/376 (6.2L);Chevrolet:Small-Block Gen IV L92:364 (6.0L)/376 (6.2L);Chevrolet:Small-Block Gen IV L99:364 (6.0L)/376 (6.2L);Chevrolet:Small-Block Gen IV LS3:364 (6.0L)/376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L92:364 (6.0L)/376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L99:364 (6.0L)/376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV LS3:364 (6.0L)/376 (6.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Victor Jr W/ Electronic Carb LS3/L76/L92 Intake Manifold GM LS Engines |
| Description_EXT | Edelbrock Victor Jr W/Electronic Carb LS3/L76/L92 Intake Manifold GM LS Engines |
| Description_FAB | Capable Of Supporting Up To 600 HP |
| Description_FAB | Incl. Throttle Bracket |
| Description_FAB | Most Applications Will Require Hood Modifications |
| Description_INV | Victor Jr W/ Electronic Carb LS3/L76/L92 |
| Description_INV | Victor Jr W/Electronic Carb LS3/L76/L92 |
| Description_KEY | 28456; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Victor JR.; Satin |
| Description_LAB | Victor Jr Small Block Chevy W/ Electronic Carb LS3/L76/L92 Intake Manifold |
| Description_LAB | Victor Jr Small Block Chevy W/Electronic Carb LS3/L76/L92 Intake Manifold |
| Description_MKT | Edelbrock part #28456 Victor JR. LS3 intake manifold is designed for Gen IV LS engines equipped with LS3, L92 and L76 cylinder heads. This manifold is for EFI racing applications operating between 3500-7500 rpm. The Edelbrock Victor JR. LS3 intake manifold comes with an MSD #6014 Timing Control Module. This manifold uses a standard square bore throttle body flange that is compatible with both Edelbrock EFI intake elbows with single bore 90mm throttle body or four-barrel #4150 throttle bodies. This intake has additional bosses and machining that allow for the use of fuel injectors when combined with the #3638 fuel rail kit (sold separately). The LS3, L92 and L76 all use the same cylinder head. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 6in.} |
| Description_TRA | 4150 Carb flange |
| Description_TRA | Comes with MSD control Module #6014 |
| Description_TRA | L92 heads are intended for 4.00" bores and will not work with 5.7L blocks without valve reliefs |
| Description_TRA | Manifold Dimensions: Roof to bolt centerline-1.85", Floor to bolt centerline -0.57", Hieght-2.42", Carb pad height 7.40" |
| Description_TRA | Throttle body recommendations: Edelbrock #38783 |
| Description_TRA | Uses LS3/L76/L92 style individual port O-ring seals GM PN19256623 |
| Description_TRA | • Uses LS3/L76/L92 style individual port O-ring seals GM PN19256623 • 4150 Carb flange • Throttle body recommendations: Edelbrock # 38783 • L92 heads are intended for 4.00in. bores and will not work with 5.7L blocks without valve reliefs • Comes with MSD control Module # 6014 • Manifold Dimensions: Roof to bolt centerline-1.85in.; Floor to bolt centerline-0.57in.; Hieght-2.42in.; Carb pad height 7.40in. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Chevy Small Block LS1 |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 6.000 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 9.0 |
| length | 22.75 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | N/A |
| Rear Maximum Height | 6.000 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 3500-7500 |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Usage | Racing |
| Usage | Street/Hi-Performance |
| Vehicle Model | Chevrolet |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 33.75 |
| width | 15.75 |
