Edelbrock 28455 Edelbrock Victor Jr LS3/L76/L92 GM EFI Intake Manifold GM LS Engines
by Edelbrock
SKU ds_BDVJ_28455
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$796.74
-
Original price
$796.74
Original price
$796.74
$796.74
$796.74
-
$796.74
Current price
$796.74
Availability:
Only 1 left!
Description

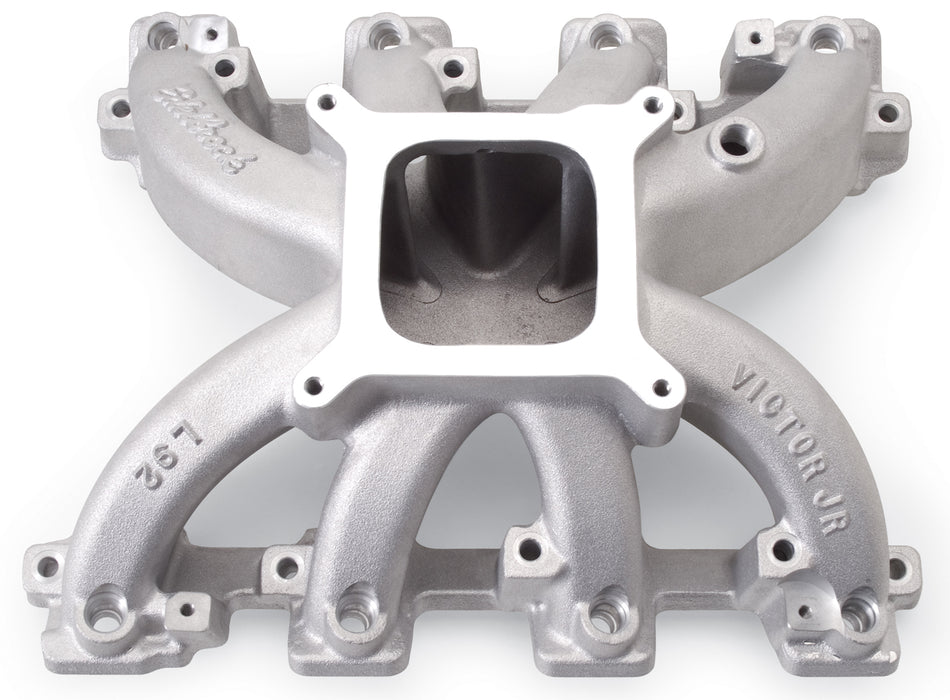

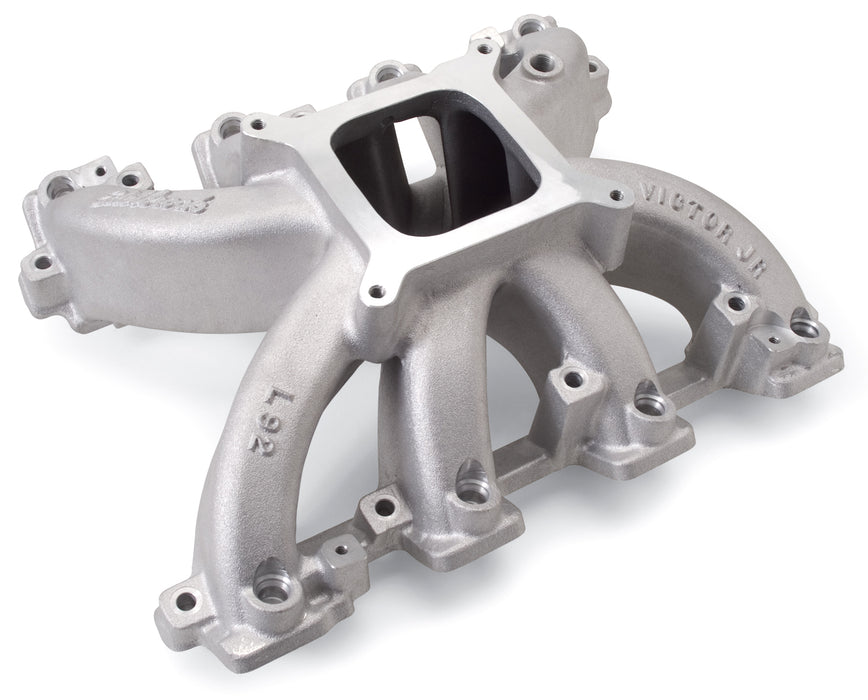

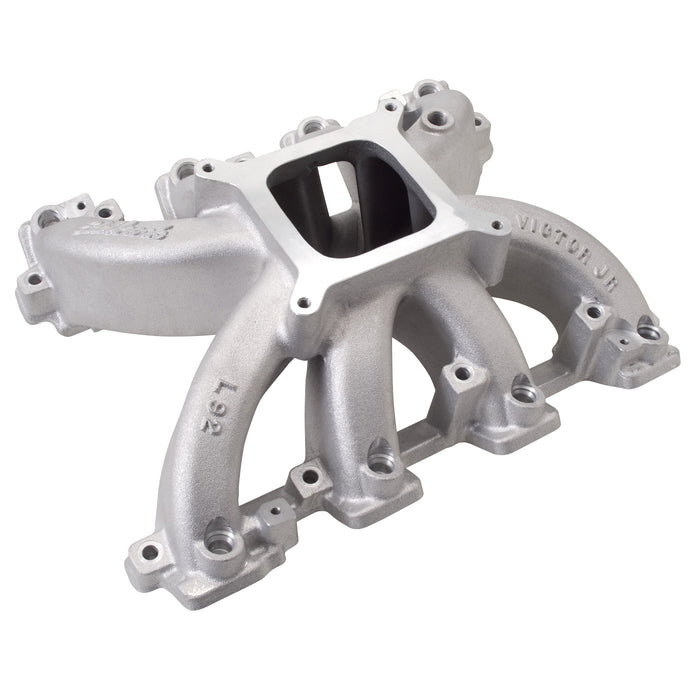

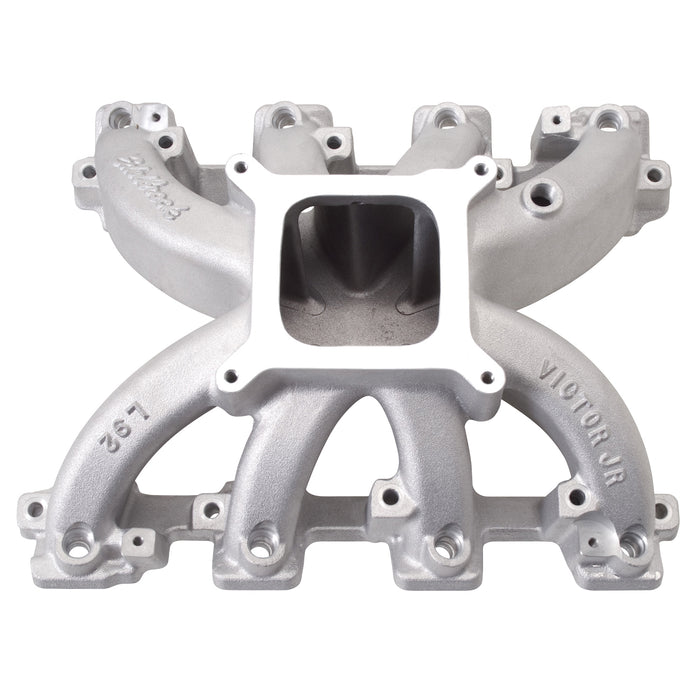

Edelbrock part #28455 Victor JR. LS3 intake manifold is designed for Gen IV LS engines equipped with LS3, L92 and L76 cylinder heads. This manifold is for EFI racing applications operating between 3500-7500 rpm. This manifold uses a standard square bore throttle body flange that is compatible with both Edelbrock EFI intake elbows with single bore 90mm throttle body or four-barrel #4150 throttle bodies. This intake has additional bosses and machining that allow for the use of fuel injectors when combined with the #3638 fuel rail kit (sold separately).
Specifications
| Basic Operating RPM Range | 3500-7500 |
| Center Maximum Height | 6.000 |
| CNC Ported | No |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen IV L76:364 (6.0L)/376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L76:364 (6.0L)/376 (6.2L);Chevrolet:Small-Block Gen IV L92:364 (6.0L)/376 (6.2L);Chevrolet:Small-Block Gen IV L99:364 (6.0L)/376 (6.2L);Chevrolet:Small-Block Gen IV LS3:364 (6.0L)/376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L92:364 (6.0L)/376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L99:364 (6.0L)/376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV LS3:364 (6.0L)/376 (6.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Victor Jr LS3/L76/L92 GM EFI Intake Manifold GM LS Engines |
| Description_FAB | Designed For 3500 To 1500 RPM Performance |
| Description_FAB | Gen IV LS Engines With L92 Heads |
| Description_FAB | Includes Electronic Control Module PN[91237] |
| Description_INV | Victor Jr LS3/L76/L92 GM EFI Intake |
| Description_KEY | 28455; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Victor JR.; Satin |
| Description_LAB | Victor Jr Small Block Chevy LS3/L76/L92 GM EFI Intake Manifold |
| Description_MKT | Edelbrock part #28455 Victor JR. LS3 intake manifold is designed for Gen IV LS engines equipped with LS3, L92 and L76 cylinder heads. This manifold is for EFI racing applications operating between 3500-7500 rpm. This manifold uses a standard square bore throttle body flange that is compatible with both Edelbrock EFI intake elbows with single bore 90mm throttle body or four-barrel #4150 throttle bodies. This intake has additional bosses and machining that allow for the use of fuel injectors when combined with the #3638 fuel rail kit (sold separately). |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 6in.} |
| Description_TRA | Fuel rail kit: Edelbrock #3638 |
| Description_TRA | L92 heads are intended for 4.00" bores and will not work with 5.7L blocks without valve reliefs |
| Description_TRA | Manifold Dimensions: Roof to bolt centerline-1.85", Floor to bolt centerline -0.57", Hieght-2.42", Throttle body pad height 7.40" |
| Description_TRA | Throttle body recommendations: Edelbrock #38783 |
| Description_TRA | Uses LS3/L76/L92 style individual port O-ring seals GM PN19256623 |
| Description_TRA | • Fuel rail kit: Edelbrock # 3638 • Throttle body recommendations: Edelbrock # 38783 • Uses LS3/L76/L92 style individual port O-ring seals GM PN19256623 • L92 heads are intended for 4.00in. bores and will not work with 5.7L blocks without valve reliefs • Manifold Dimensions: Roof to bolt centerline-1.85in.; Floor to bolt centerline-0.57in.; Hieght-2.42in.; Throttle body pad height 7.40in. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Chevy Small Block LS1 |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 6.000 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 6.87 |
| length | 22.68 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | None; For Fuel Injection |
| Position | N/A |
| Rear Maximum Height | 6.000 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 3500-7500 |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Usage | Racing |
| Vehicle Model | Chevrolet |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 16.7 |
| width | 14.18 |
