Availability:
4+ in stock

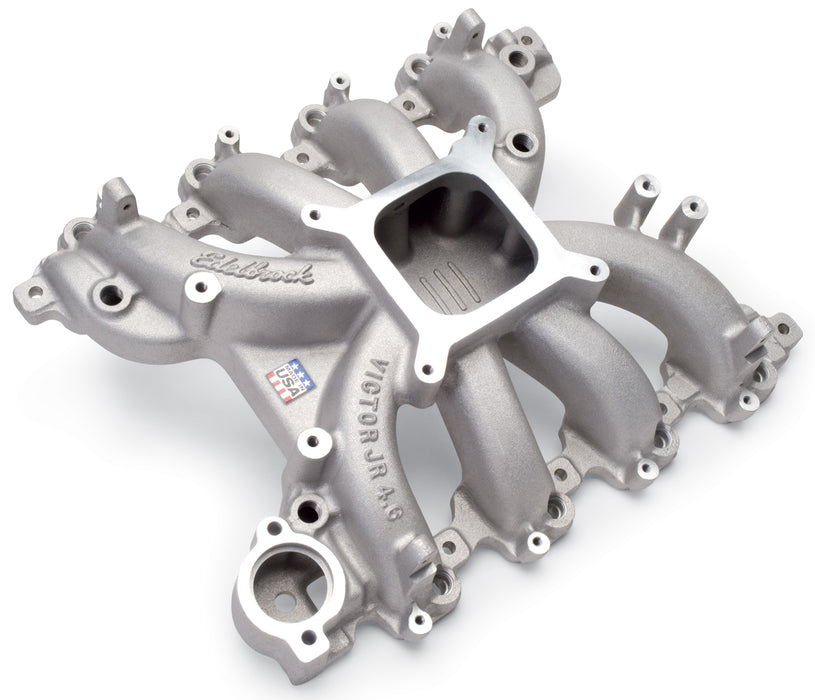

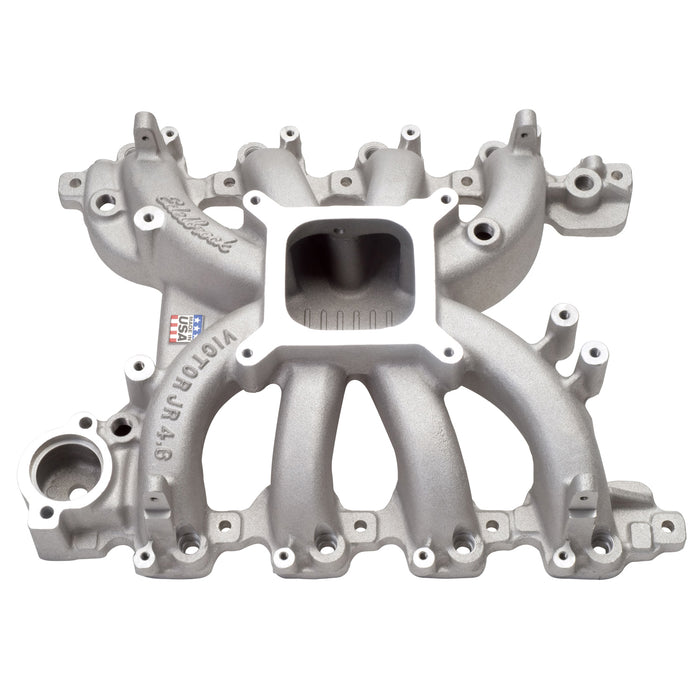

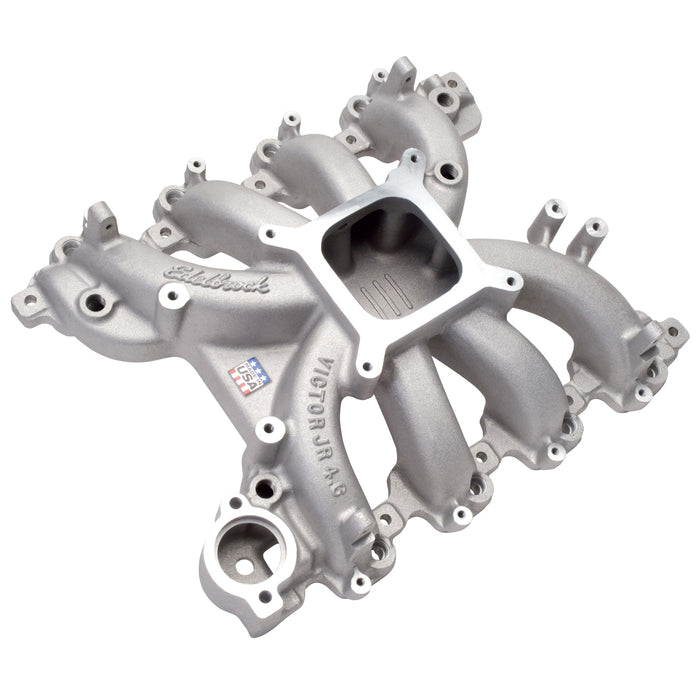

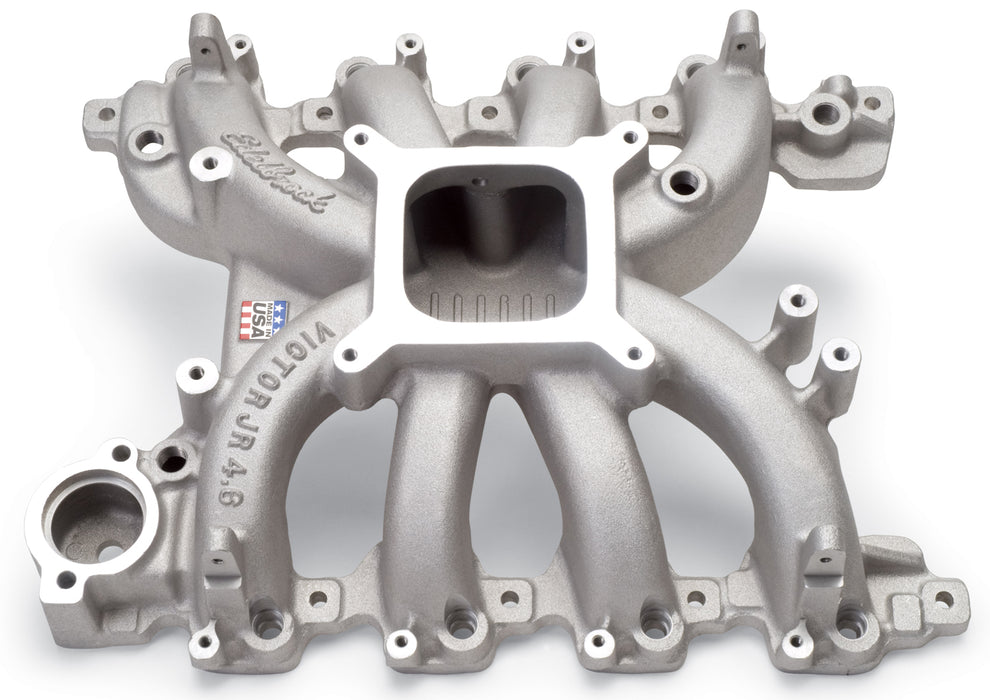

Edelbrock 28385 Edelbrock EFI Victor Jr Ford 4.6L Modular Intake Manifold
by Edelbrock
SKU ds_BDVJ_28385
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$812.07
-
Original price
$812.07
Original price
$812.07
$812.07
$812.07
-
$812.07
Current price
$812.07
Description
Edelbrock part #28385 Victor Jr. Ford 4.6L SOHC EFI intake manifold is designed for Ford 4.6L SOHC Modular engines, 1999-2004 SOHC Modular 4.6L engine is designed for 4.6l Ford's using EFI in racing. Timing control module available separately. Not intended for or as a stock replacement intake manifold. Whether you're building a daily driver, ultra high-performance's street machine or race car, an Edelbrock intake manifold will provide the power right where you want it. The Edelbrock Victor Jr. Ford 4.6L SOHC also features a natural aluminum finish for a classic look. For the ultimate "Made in USA" quality, every Edelbrock intake manifold is cast and machined in the USA.
Specifications
| Basic Operating RPM Range | 3500-7500 |
| Center Maximum Height | 4.750 |
| CNC Ported | No |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Ford:Modular 2V:281 (4.6L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock EFI Victor Jr Ford 4.6L Modular Intake Manifold |
| Description_FAB | EFI Manifold Only |
| Description_FAB | Engine Swaps |
| Description_FAB | Single-Plane Maximizes Torque And Horsepower |
| Description_INV | EFI Victor Jr Ford 4.6L Modular Intake |
| Description_KEY | 28385; Ford; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Super Victor Jr.; Satin; EFI |
| Description_LAB | Victor Jr Ford 4.6L Modular Intake Manifold EFI |
| Description_MKT | Edelbrock part #28385 Victor Jr. Ford 4.6L SOHC EFI intake manifold is designed for Ford 4.6L SOHC Modular engines, 1999-2004 SOHC Modular 4.6L engine is designed for 4.6l Ford's using EFI in racing. Timing control module available separately. Not intended for or as a stock replacement intake manifold. Whether you're building a daily driver, ultra high-performance's street machine or race car, an Edelbrock intake manifold will provide the power right where you want it. The Edelbrock Victor Jr. Ford 4.6L SOHC also features a natural aluminum finish for a classic look. For the ultimate "Made in USA" quality, every Edelbrock intake manifold is cast and machined in the USA. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Built in water crossover with clearance for the stock 1999-2004 alternator location. |
| Description_TRA | Manifold height: A-4.75", B-4.75", 0 Deg carb angle |
| Description_TRA | or #3848 competition EFI elbow and #3818 90mm throttle body. |
| Description_TRA | Port exit dimensions: 1.42" x 1.72" |
| Description_TRA | Recommended fuel rail: Edelbrock #3639 |
| Description_TRA | Recommended intake gasket: OEM factory gaskets |
| Description_TRA | Throttle body recommendations: Edelbrock #38783 4150 style 4V |
| Description_TRA | Throttle pad and plenum optimized for square-bore (4150 style) 4V throttle bodies. |
| Description_TRA | • Recommended fuel rail: Edelbrock # 3639 • Recommended intake gasket: OEM factory gaskets • Throttle body recommendations: Edelbrock # 38783 4150 style 4V; or #3848 competition EFI elbow and # 3818 90mm throttle body. • Manifold height: A-4.75in.; B-4.75in.; 0deg. carb angle • Port exit dimensions: 1.42in. x 1.72in. • Throttle pad and plenum optimized for square-bore (4150 style) 4V throttle bodies. • Built in water crossover with clearance for the stock 1999-2004 alternator location. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Ford 4.6L SOHC |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 4.750 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 9.5 |
| length | 24.0 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | None; For Fuel Injection |
| Position | N/A |
| Rear Maximum Height | 4.750 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 3500-7500 |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Usage | Street/Hi-Performance |
| Vehicle Model | Ford |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 21.7 |
| width | 16.2 |
