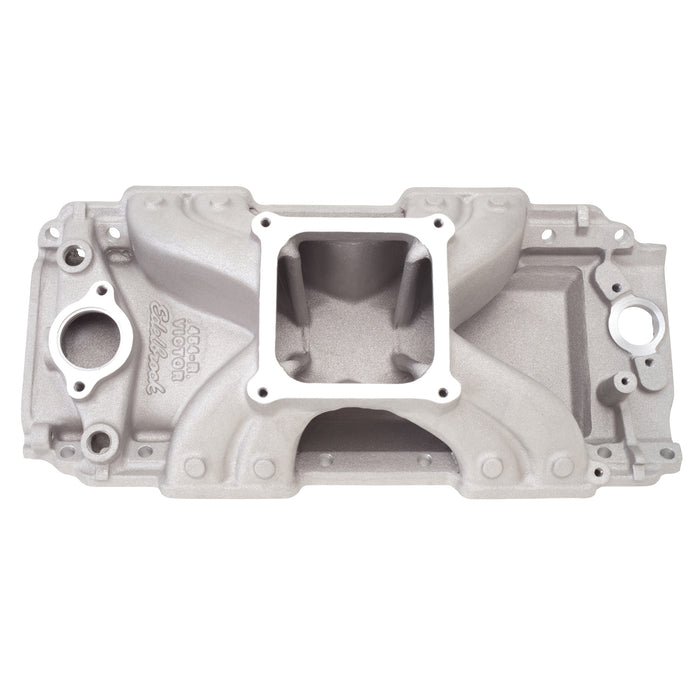

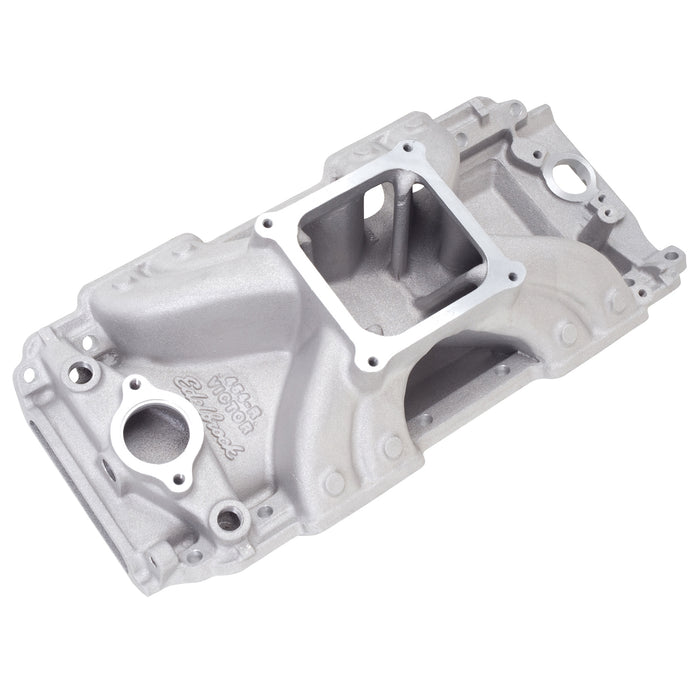

Edelbrock 28070 Engine Intake Manifold
by Edelbrock
SKU ds_BDVJ_28070
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$398.77
-
Original price
$398.77
Original price
$398.77
$398.77
-
$398.77
Current price
$398.77
Availability:
Out of stock
Description
The Edelbrock Victor 454 Large Oval Port #28070 intake manifold for big-block Chevy is a variation of our Victor 454-R manifold #2907 with a 3/4" radius in the ports, producing a port exit compatible with current large oval port heads such as the Edelbrock Victor 24 degree CNC head #61409. It delivers the performance of the original #2907, giving excellent on-track performance on 502 c.i.d. and smaller engines. It can be ported to fit a wider variety of cylinder head shapes and locations, making it especially suitable for use with custom CNC ported heads.
Specifications
| Center Maximum Height | 5.900 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Race |
| Description_DEF | Engine Intake Manifold |
| Description_EXT | Edelbrock Victor 454 Large Oval Port Intake Manifold For Chevrolet 396-502 Big-Block V8 |
| Description_INV | Victor Large Oval Port BBC |
| Description_LAB | XX Victor 454 Large Oval Port Intake Manifold |
| Description_MKT | The Edelbrock Victor 454 Large Oval Port #28070 intake manifold for big-block Chevy is a variation of our Victor 454-R manifold #2907 with a 3/4" radius in the ports, producing a port exit compatible with current large oval port heads such as the Edelbrock Victor 24 degree CNC head #61409. It delivers the performance of the original #2907, giving excellent on-track performance on 502 c.i.d. and smaller engines. It can be ported to fit a wider variety of cylinder head shapes and locations, making it especially suitable for use with custom CNC ported heads. |
| Description_TRA | Manifold height: A-5.90", B-5.90" |
| finish | Satin |
| Front Maximum Height | 5.900 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.625 |
| Material | Aluminum |
| Rear Maximum Height | 5.900 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Single Or Dual Plane Type | Single Plane |
| weight | 22.55 |
| width | 14.75 |
