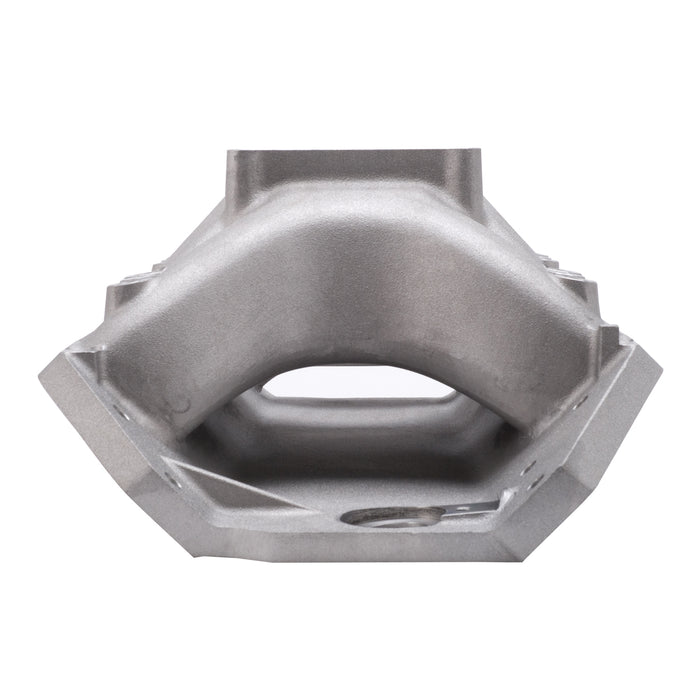

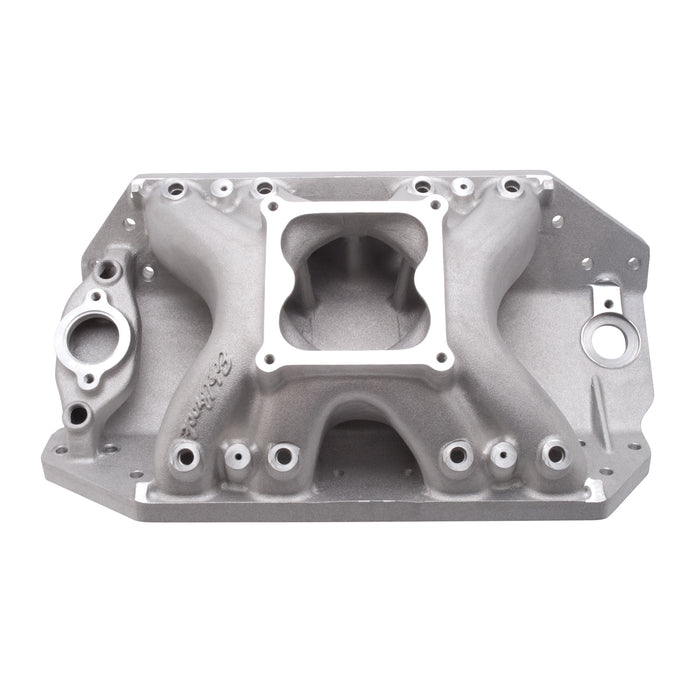

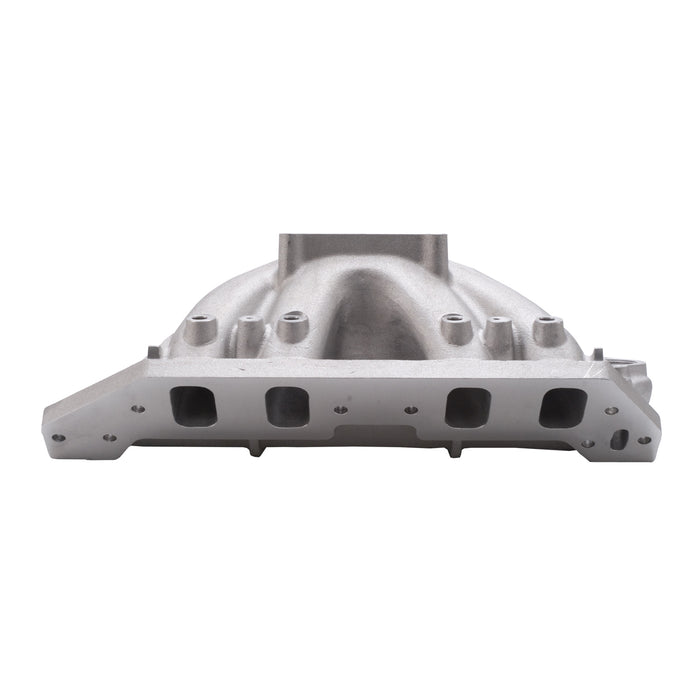

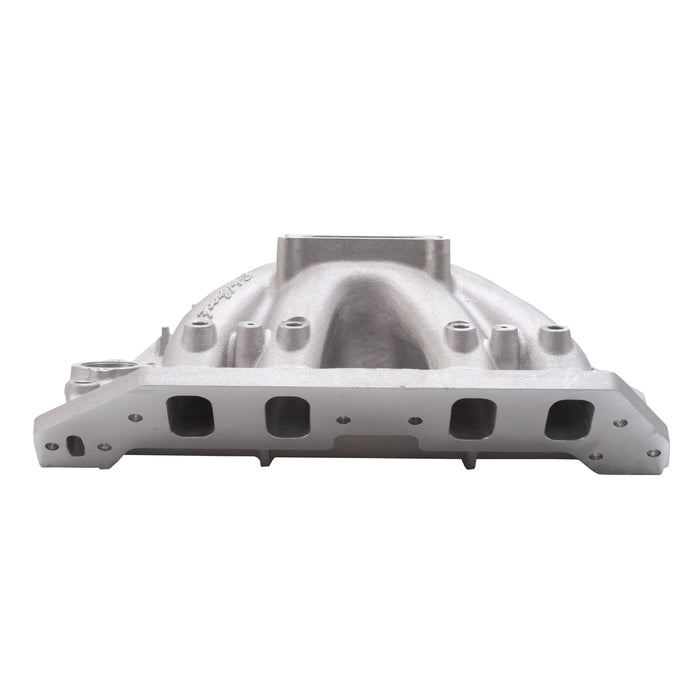

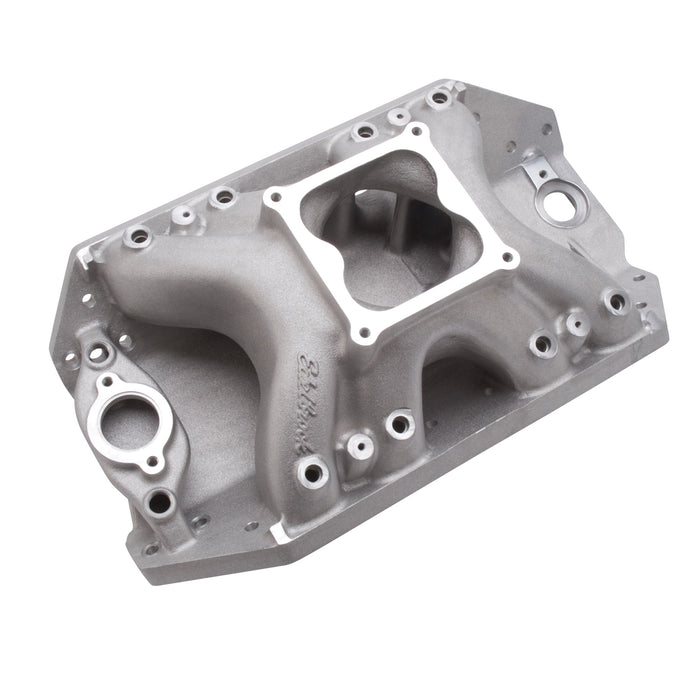

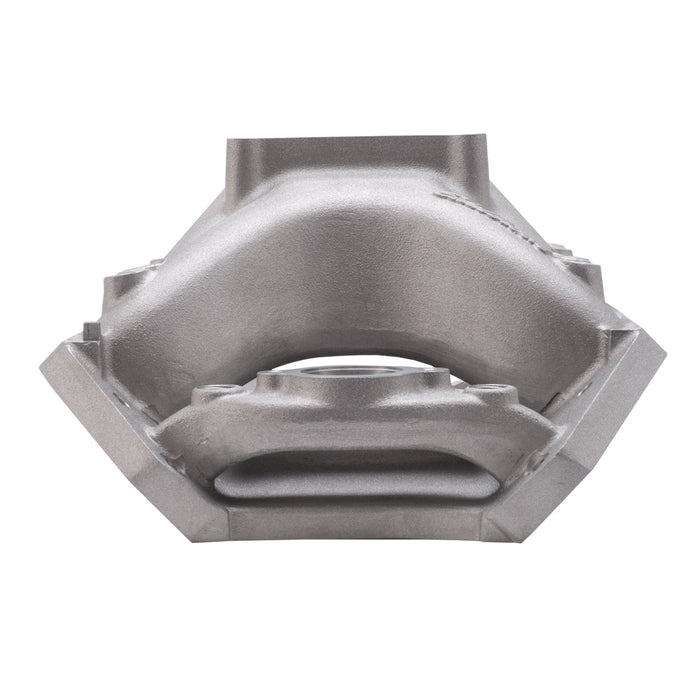

Edelbrock 28045 Engine Intake Manifold
by Edelbrock
SKU ds_BDVJ_28045
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$573.43
-
Original price
$573.43
Original price
$573.43
$573.43
-
$573.43
Current price
$573.43
Availability:
Out of stock
Description
The Edelbrock Big Victor Spread-Port #28045 Intake Manifold is designed for large cubic inch or high rpm drag racing big blocks with Edelbrock Big Victor, Dart Big Chief or Brodix Big Duke cylinder heads. The Edelbrock Big Victor Spread-Port #28045 Intake has an average runner area of approximately 4.75 sq.in. The port exits have .090 per side reduction to accommodate the wide variety of intake port sizes and require port matching. The runners have a minimum corner radius of .500" from the plenum to the exit allowing the popular oval port shape to be used. The outside runners are shorter and straighter than competitors manifolds and the plenum is longer front to back. These features, combined with approximately 5% taper in runner cross-sectional area, give better top end horsepower while maintaining consistency and throttle response off the stop.
Specifications
| Description_ASM | Chevrolet:Big-Block Race |
| Description_DEF | Engine Intake Manifold |
| Description_LAB | Big Victor EFI Manifold BBC Big Chief/Big Duke Head 10.2 Deck 4500 Flange Sm Prt |
| Description_MKT | The Edelbrock Big Victor Spread-Port #28045 Intake Manifold is designed for large cubic inch or high rpm drag racing big blocks with Edelbrock Big Victor, Dart Big Chief or Brodix Big Duke cylinder heads. The Edelbrock Big Victor Spread-Port #28045 Intake has an average runner area of approximately 4.75 sq.in. The port exits have .090 per side reduction to accommodate the wide variety of intake port sizes and require port matching. The runners have a minimum corner radius of .500" from the plenum to the exit allowing the popular oval port shape to be used. The outside runners are shorter and straighter than competitors manifolds and the plenum is longer front to back. These features, combined with approximately 5% taper in runner cross-sectional area, give better top end horsepower while maintaining consistency and throttle response off the stop. |
| Description_TRA | 4500 Throttle Body Flange |
| Description_TRA | Deck Height: 10.2" |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Recommended Intake Gasket: Fel-Pro #1298 |
| Description_TRA | Throttle Body Flange Height: 8.47" |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| height | 15.5 |
| length | 24.25 |
| weight | 42.4 |
| width | 15.5 |
