Description

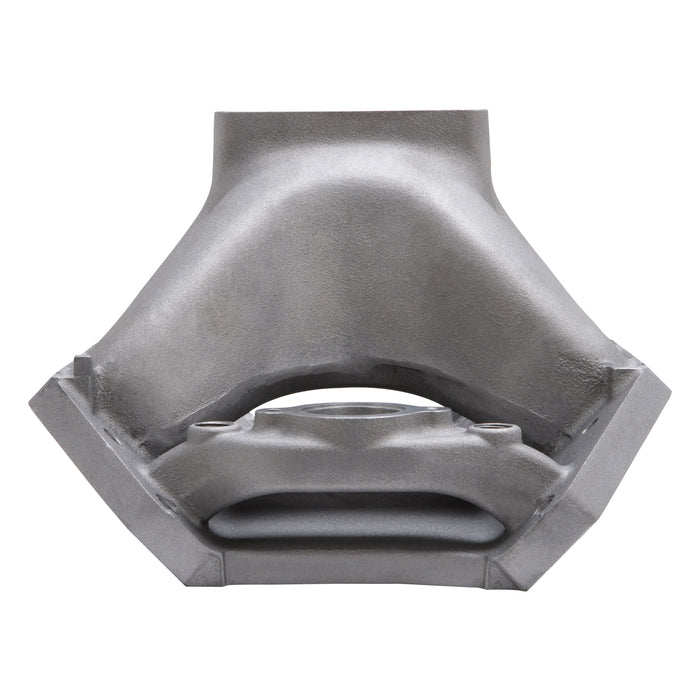

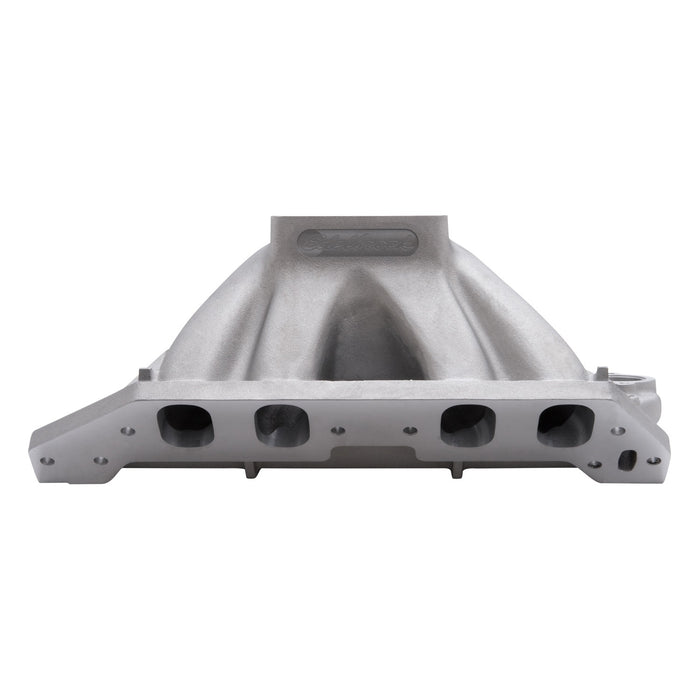

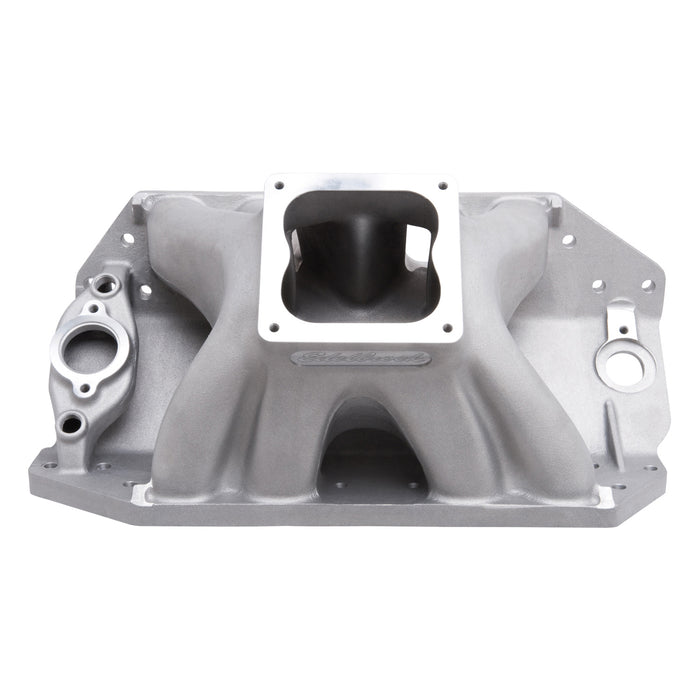

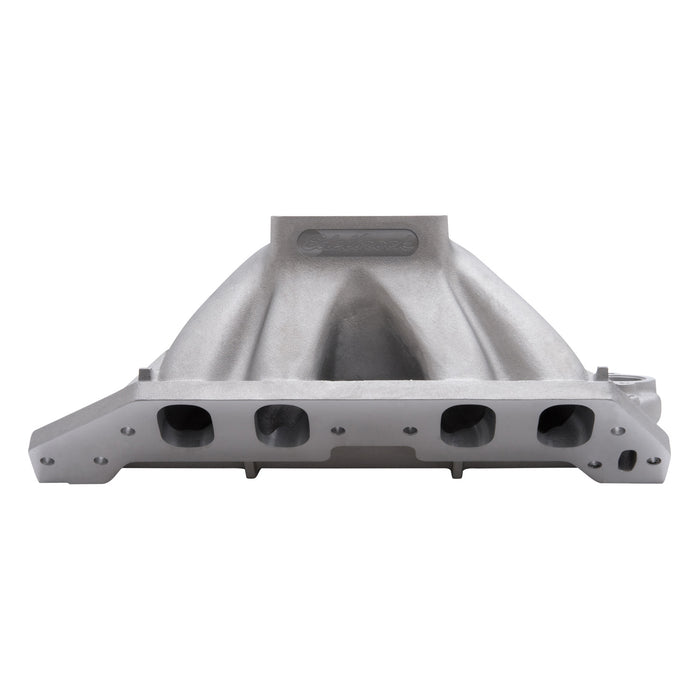

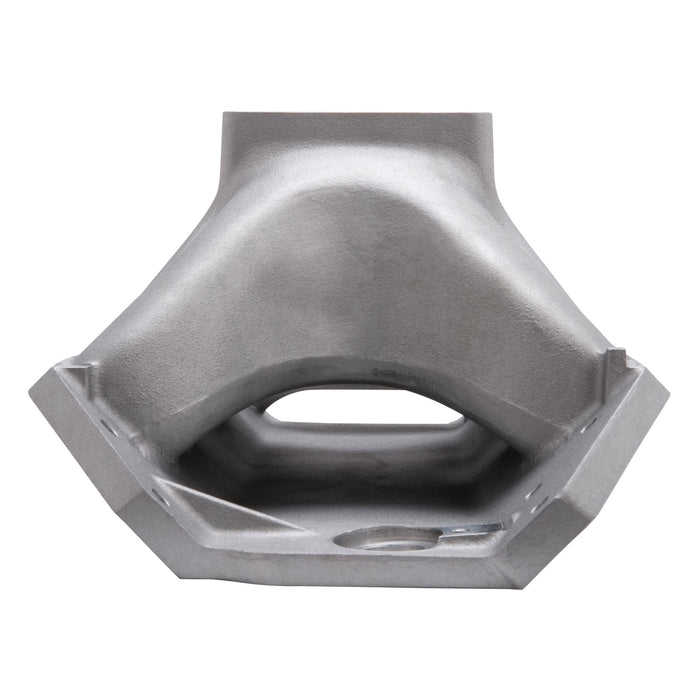

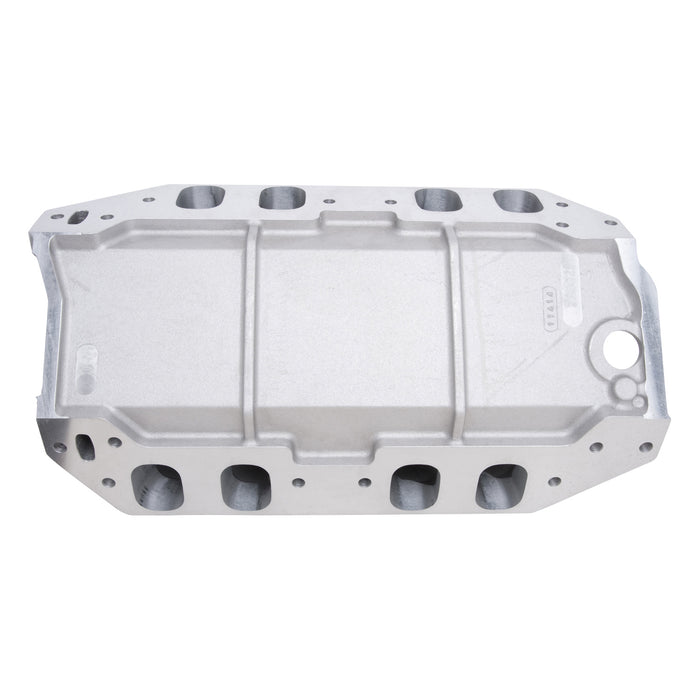

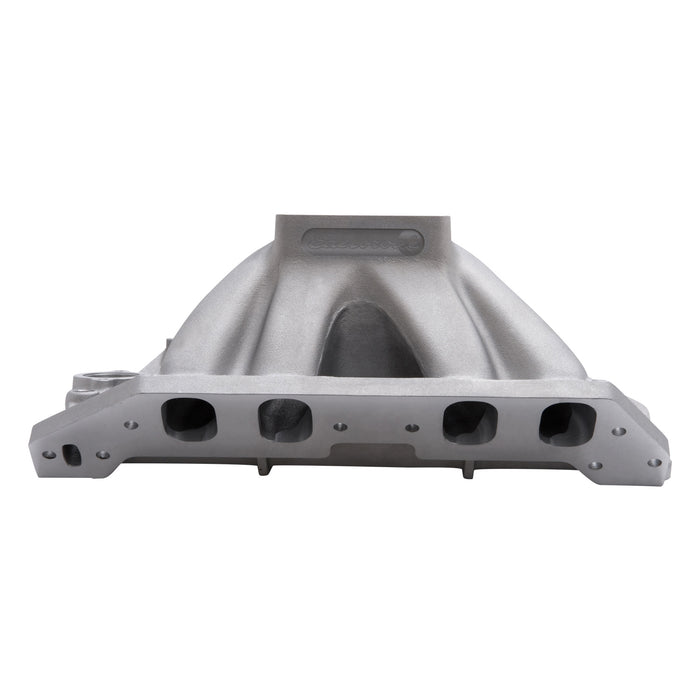

Edelbrock part #28009 Big Victor 2 CNC intake manifold is designed for large cubic-inch or high rpm drag racing big-blocks. The Big Victor 2 is a spread-port design and has been CNC port matched for a proper fit right-out of-the-box, when used with the Edelbrock Big Victor, Brodix, Dart or Pro-Filer Raptor cylinder heads. This manifold has the same features as the standard as-cast Edelbrock Big Victor 2 Spread- Port intakes. This intake manifold is equipped with a 4500 Series flange and will accept 2.25" throttle body butterflies without a spacer or modification.
Specifications
| Basic Operating RPM Range | 3500-8500 |
| Center Maximum Height | 9.530 |
| CNC Ported | Yes |
| Cylinder Head Type | Rectangular Port |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Race |
| Description_DEF | Engine Intake Manifold |
| Description_DES | MANIFOLD RACE |
| Description_EXT | Edelbrock Big Victor 2 Spread-Port Tall Deck CNC Intake Manifold for Edelbrock Big Victor Heads for Big-Block Chevrolet |
| Description_FAB | Better Top End Horsepower and Consistency |
| Description_FAB | Crisp Throttle Response off the Stop |
| Description_FAB | For 3500 to 8500 RPM High-Performance Engines |
| Description_FAB | For Large CID or High RPM Drag Racing Big Blocks |
| Description_FAB | Require Port Matching and Can Use Oval Ports |
| Description_FAB | Use Appropriate 4500-Series Carburetor |
| Description_FAB | Use for 10.2 in. Deck Height Engines |
| Description_FAB | Use with Dart Big Chief Cylinder Heads |
| Description_INV | Big Victor 2 CNC 10.2 Deck |
| Description_KEY | 28009; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Big Victor 2 Spread-Port; Satin |
| Description_LAB | Big Victor 2 Spread-Port, Tall Deck Intake Manifold for Big-Block Chevy |
| Description_LAB | Big Victor 2 Spread-Port; Tall Deck Intake Manifold for Big-Block Chevy |
| Description_MKT | Edelbrock part #28009 Big Victor 2 CNC intake manifold is designed for large cubic-inch or high rpm drag racing big-blocks. The Big Victor 2 is a spread-port design and has been CNC port matched for a proper fit right-out of-the-box, when used with the Edelbrock Big Victor, Brodix, Dart or Pro-Filer Raptor cylinder heads. This manifold has the same features as the standard as-cast Edelbrock Big Victor 2 Spread- Port intakes. This intake manifold is equipped with a 4500 Series flange and will accept 2.25" throttle body butterflies without a spacer or modification. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | 4500 Series flange and will accept 2.25" throttle body butterflies without a spacer or modification |
| Description_TRA | Carb recommendations: Use appropriate 4500 Series racing carburetor. |
| Description_TRA | Manifold height: A-9.53", B-9.53" |
| Description_TRA | Recommended intake gasket: Fel-Pro #1298 |
| Description_TRA | • Recommended intake gasket: Fel-Pro # 1298 • Manifold height: A-9.53in.; B-9.53in. • Carb recommendations: Use appropriate 4500 Series racing carburetor. • 4500 Series flange and will accept 2.25in. throttle body butterflies without a spacer or modification |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Chevy Big Block (396-502) |
| finish | Satin |
| Flange Type | 4500 |
| Front Maximum Height | 9.530 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 14.5 |
| length | 24.0 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | N/A |
| Rear Maximum Height | 9.530 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 3500-8500 |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Usage | Racing |
| Vehicle Model | Chevrolet |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 37.4 |
| width | 14.75 |
