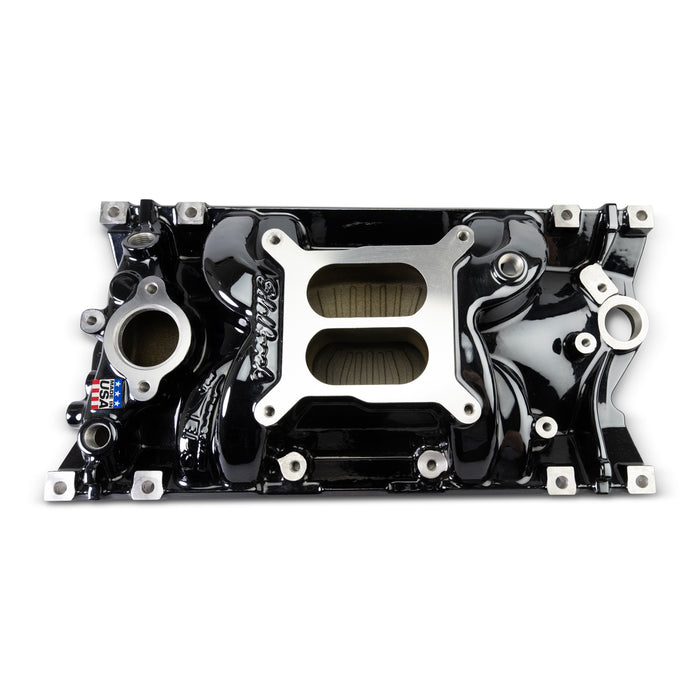

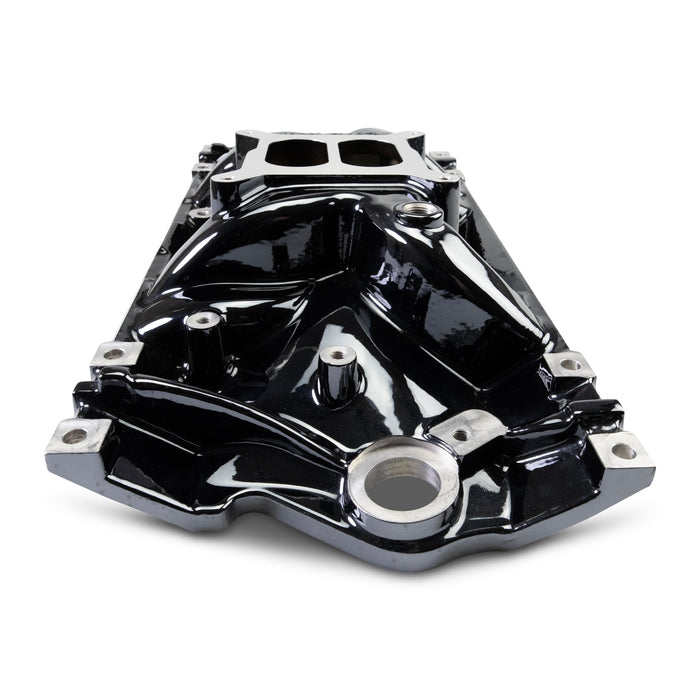

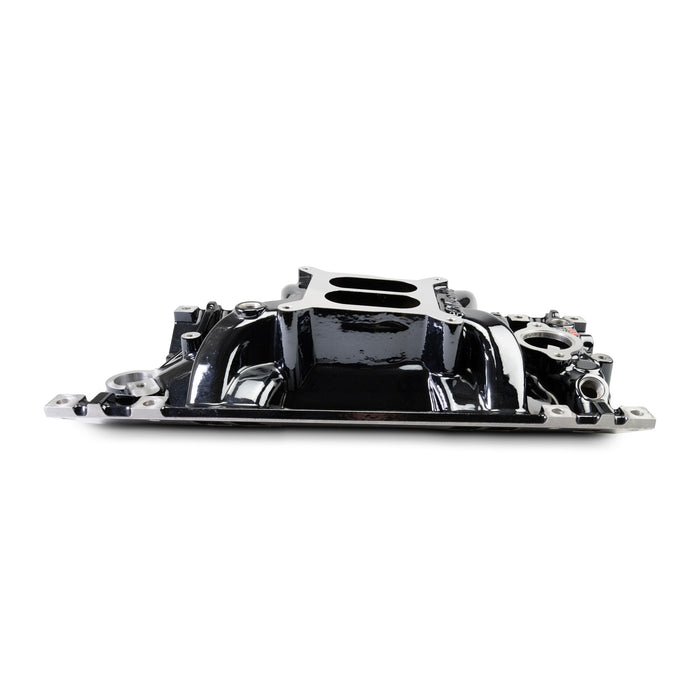

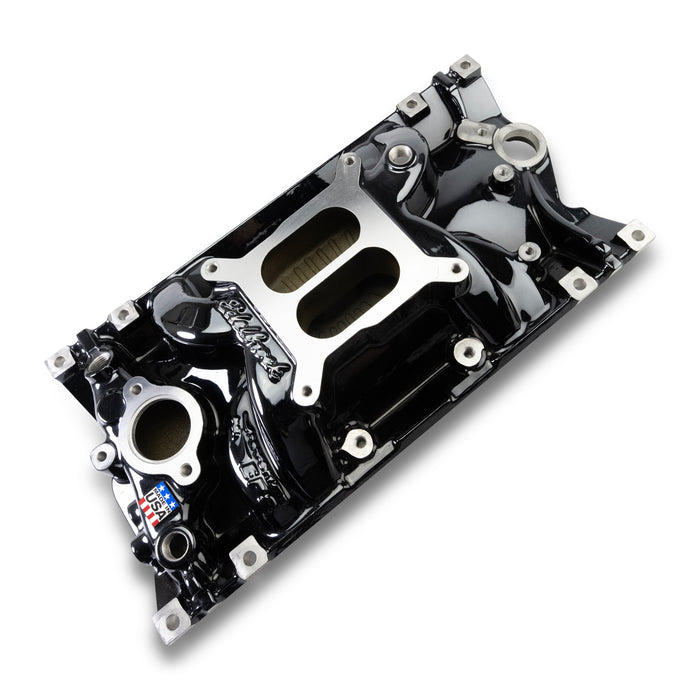

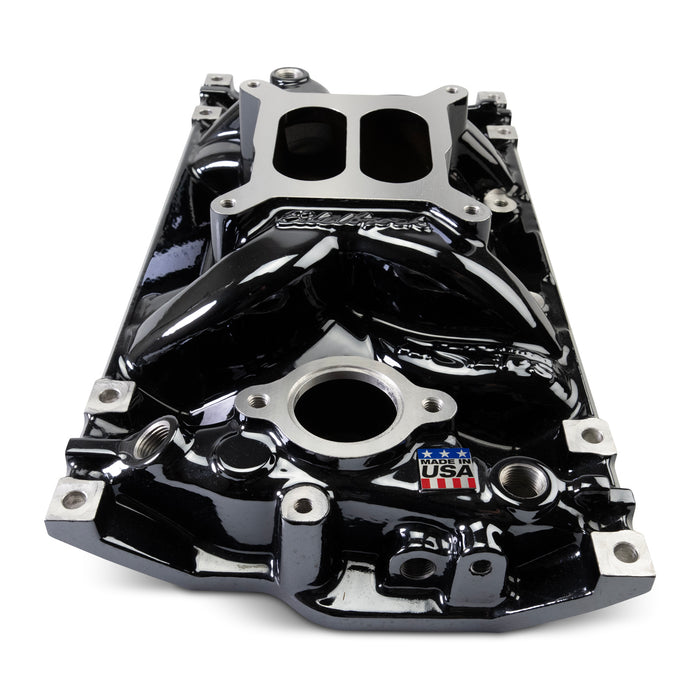

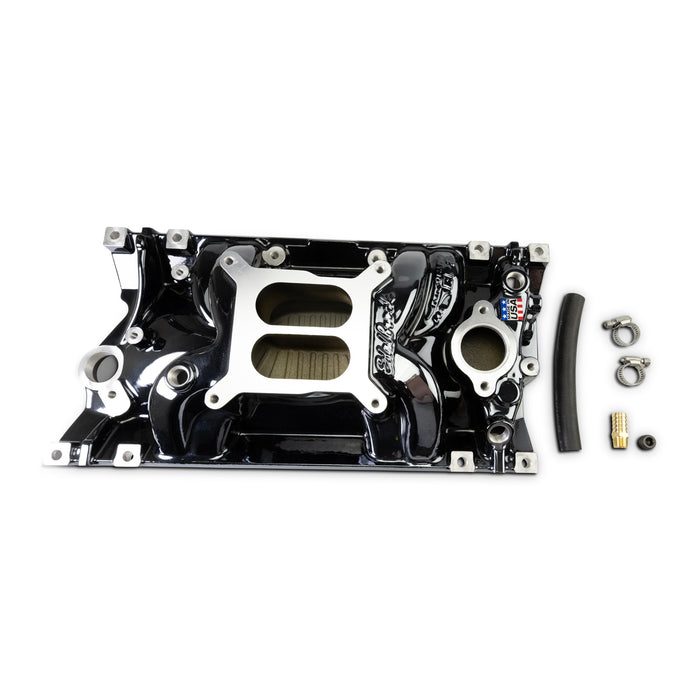

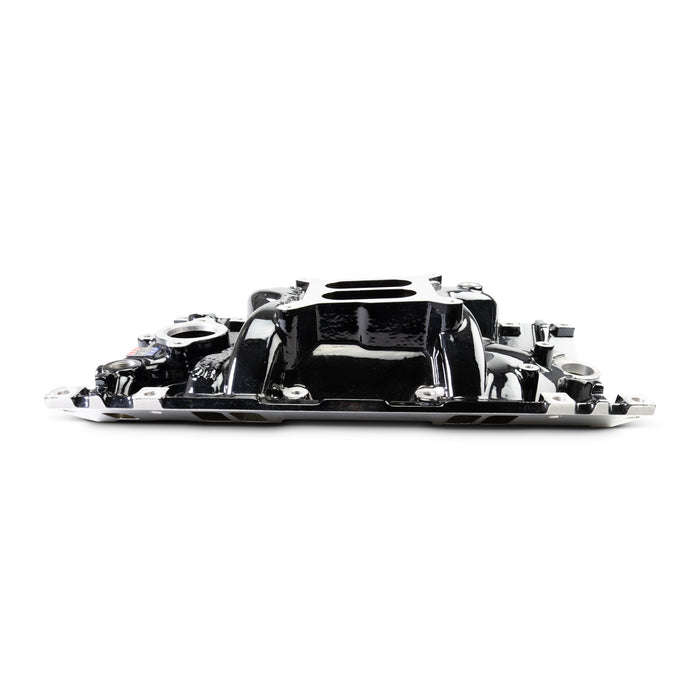

Edelbrock 2716-BP Edelbrock Perf EPS Manifold for Small-Block Chevy Vortec, Black Plasma Finish
by Edelbrock
SKU ds_BDVJ_2716-BP
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$890.87
-
Original price
$890.87
Original price
$890.87
$890.87
$890.87
-
$890.87
Current price
$890.87
Availability:
Out of stock
Description
Edelbrock part #2716-BP Performer EPS intake manifold is designed for 262-400 c.i.d. Chevy V8's with 1996 and later Vortec (L31) cast iron or Edelbrock E-Tec aluminum heads. The Performer EPS dual-plane manifold is optimized to deliver superior performance with Edelbrock square-bore Performer Series or AVS2 series carburetors. The runner design is "tuned" for peak torque at 3500 rpm on a 350-inch engine and is ideal for power from off-idle to 5500 rpm. Dyno tests showed gains averaging 5+ ft-lbs. of torque from 3000 to 4500 rpm for more performance where you need it most. Match with a dependable Edelbrock square-bore carburetor for maximum performance gains. The PN 2716-BP version comes with a beautiful reflective Black Plasma finish that is durable and easy to maintain. The Plasma finishes are applied by a fully automated 7 stage prewash and 4 stage finish. A durable clear powder coat finishes the process.
Specifications
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevy Small-Block Vortec |
| Description_DEF | Engine Intake Manifold |
| Description_DES | Edelbrock Perf EPS Manifold for Small-Block Chevy Vortec, Black Plasma Finish |
| Description_EXT | Edelbrock Part #2716-BP Performer EPS intake manifold is designed for Small-Block Chevy with Vortec or E-tec style cylinder heads. Perfect for any builder looking for optimum idle-5500 rpm performance with a beautiful Black Plasma finish. |
| Description_INV | Manifold |
| Description_INV | SB Chevy Perfmr Black Plasma |
| Description_LAB | Edelbrock Perf EPS Manifold for Small-Block Chevy Vortec, Black Plasma Finish |
| Description_MKT | Edelbrock part #2716-BP Performer EPS intake manifold is designed for 262-400 c.i.d. Chevy V8's with 1996 and later Vortec (L31) cast iron or Edelbrock E-Tec aluminum heads. The Performer EPS dual-plane manifold is optimized to deliver superior performance with Edelbrock square-bore Performer Series or AVS2 series carburetors. The runner design is "tuned" for peak torque at 3500 rpm on a 350-inch engine and is ideal for power from off-idle to 5500 rpm. Dyno tests showed gains averaging 5+ ft-lbs. of torque from 3000 to 4500 rpm for more performance where you need it most. Match with a dependable Edelbrock square-bore carburetor for maximum performance gains. The PN 2716-BP version comes with a beautiful reflective Black Plasma finish that is durable and easy to maintain. The Plasma finishes are applied by a fully automated 7 stage prewash and 4 stage finish. A durable clear powder coat finishes the process. |
| Description_SHP | None |
| Description_TRA | Carb pad height: 4.52" |
| Description_TRA | Carb recommendations: Edelbrock AVS2, Performer Series. Port exit dimensions: 2.05" tall with slanted side walls |
| Description_TRA | Manifold ht: A-3.95", B-5.02" |
| Description_TRA | Recommended intake gasket: Edelbrock #7235 or GM #89017465 |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. Will not fit under stock Corvette hood. |
| Description_TRA | Stock brackets will require modification to fit the upright manifold bolt holes. Use Edelbrock Vortec throttle bracket #8032. |
| Description_TRA | Use #8516 Edelbrock bolt kit which includes hardened washers to prevent galling of the alumnum manifold |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| height | 7.5 |
| length | 23.625 |
| LTL | N |
| weight | 20.1 |
| width | 14.75 |
