Description

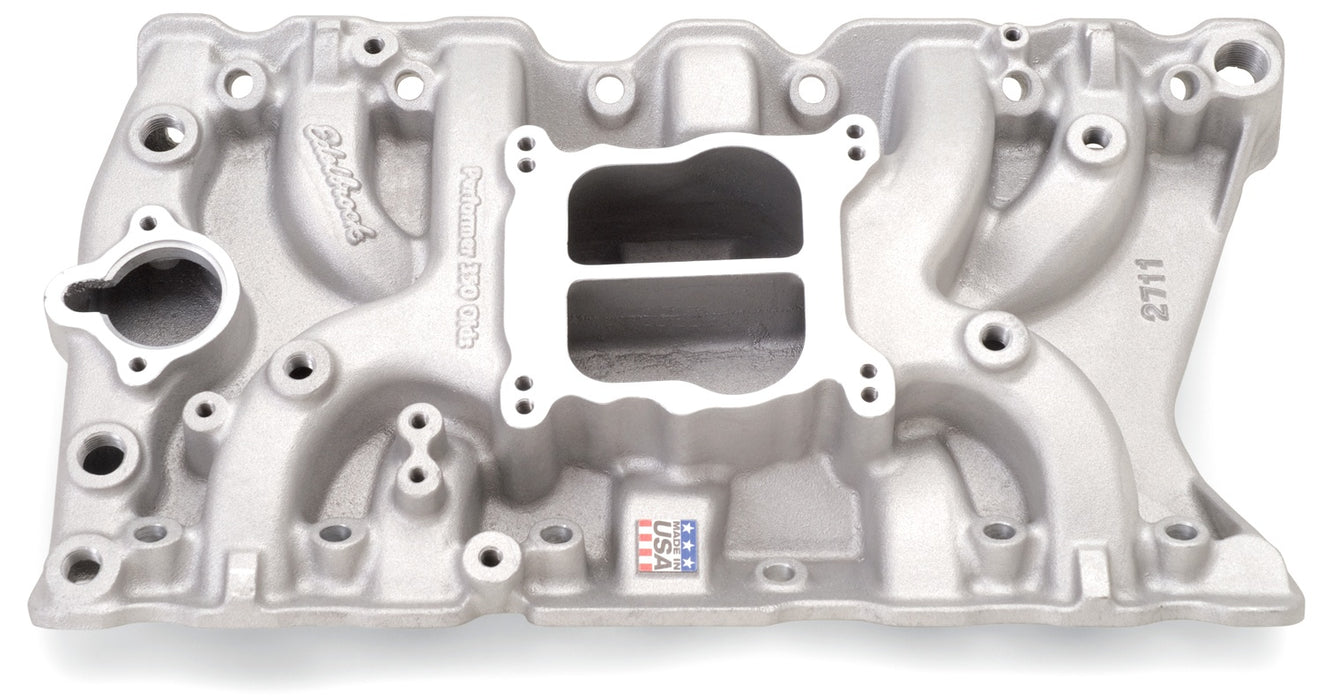

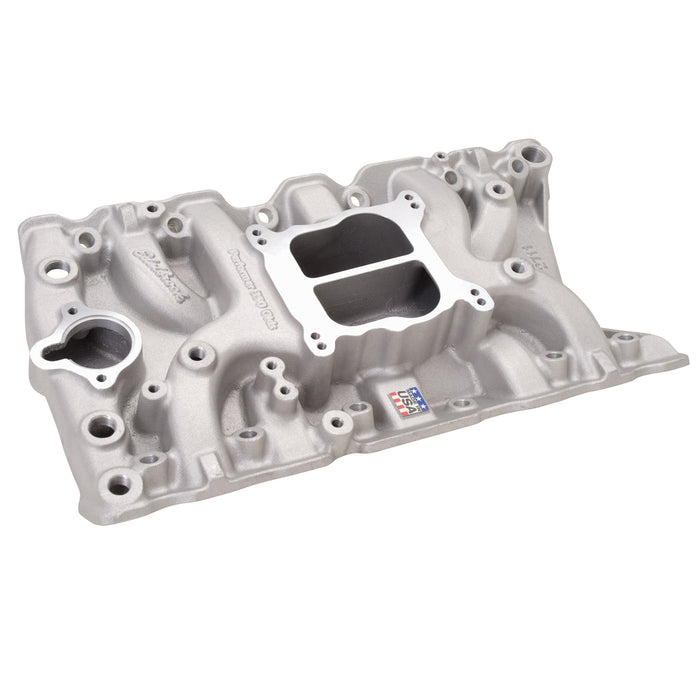

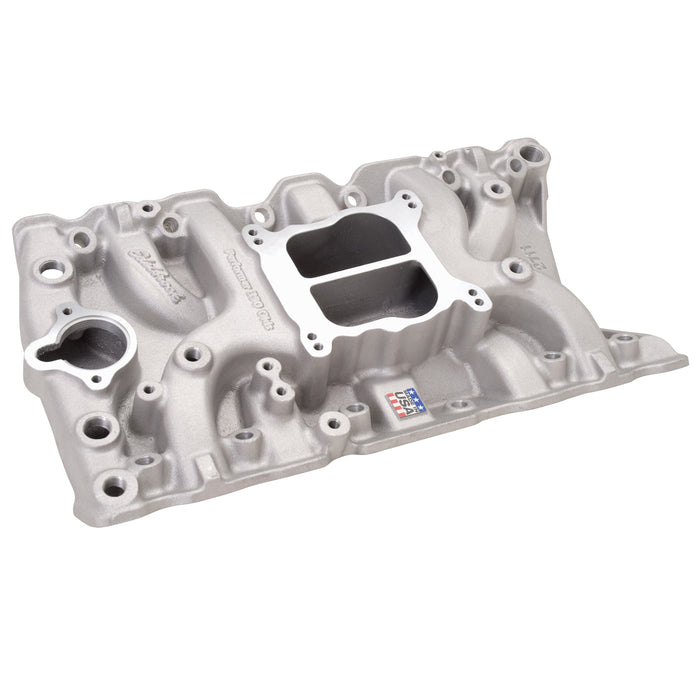

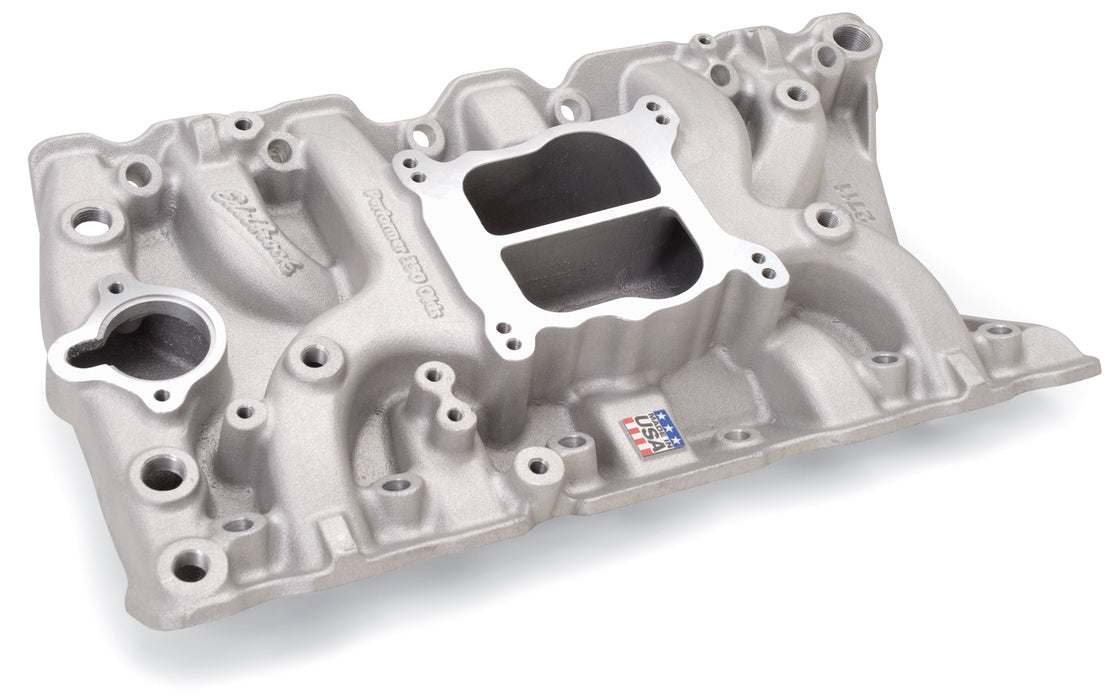

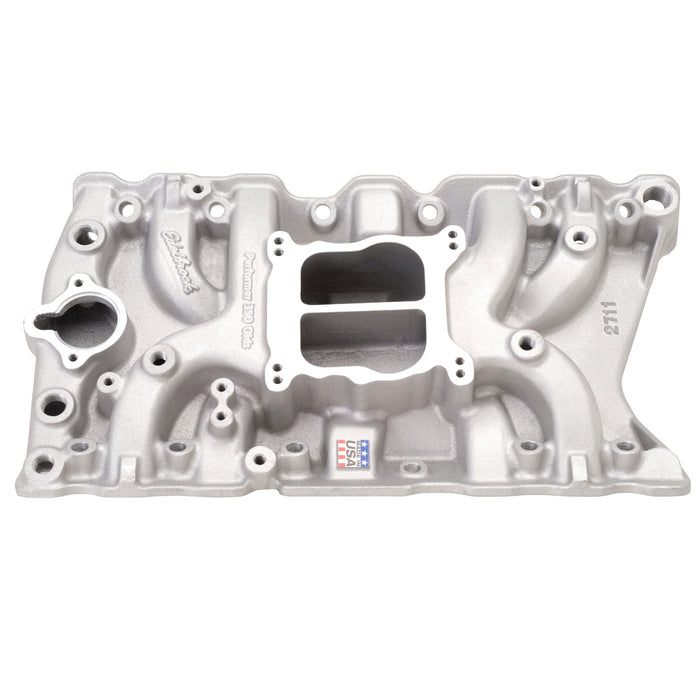

Edelbrock part #2711 Performer Oldsmobile 350 intake manifold is designed for 1964-85, 307-330-350-403 c.i.d. Oldsmobile V8 applications. For non-EGR, the #2711 manifold comes with a universal pad to fit most carburetors with electric chokes. Will fit 1980-1/2 to 1985 307 c.i.d. V8's with 5A heads (casting #3317). Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs.
Specifications
| Basic Operating RPM Range | Idle-5500 |
| Center Maximum Height | 4.270 |
| CNC Ported | No |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Oldsmobile:Small-Block:307 (5.0L)/330 (5.4L)/350 (5.7L)/403 (6.6L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer Olds 350 Intake Manifold for 307-403 Small-Block Oldsmobile is Designed for 307-330-350-403 c.i.d. w/4-bbl Carb. Will Fit 1980.5-85 307 w/ 5A Cylinder Heads. Works with Q-Jet or 4150-Style Square-Bore Carburetor. Non-EGR |
| Description_EXT | Edelbrock Performer Olds 350 Intake Manifold for 307-403 Small-Block Oldsmobile is Designed for 307-330-350-403 c.i.d. w/4-bbl Carb. Will Fit 1980.5-85 307 w/5A Cylinder Heads. Works with Q-Jet or 4150-Style Square-Bore Carburetor. Non-EGR |
| Description_FAB | Dual-Plane Low-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | Excellent Throttle Response and Mid-Range Power |
| Description_FAB | For Idle to 5500 RPM Street-Driven Performance |
| Description_FAB | Patented Runner Design Ensures Broad Torque Curve |
| Description_INV | Performer Olds 330-403 Intake Manifold |
| Description_KEY | 2711; Oldsmobile; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer; Satin |
| Description_LAB | Performer Olds 350 Intake Manifold for 307-330-350-403 Small-Block Oldsmobile |
| Description_MKT | Edelbrock part #2711 Performer Oldsmobile 350 intake manifold is designed for 1964-85, 307-330-350-403 c.i.d. Oldsmobile V8 applications. For non-EGR, the #2711 manifold comes with a universal pad to fit most carburetors with electric chokes. Will fit 1980-1/2 to 1985 307 c.i.d. V8's with 5A heads (casting #3317). Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Carb pad height: 3.20" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 500-650 cfm |
| Description_TRA | For 403 Pontiac Trans Am, use OEM 4-bbl. only (for shaker hood clearance) |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | HEI will clear this manifold |
| Description_TRA | Manifold height: A-2.50", B-3.90" |
| Description_TRA | Port exit dimensions: 1.18" x 1.86" |
| Description_TRA | Recommended intake gasket: Fel-Pro #MS96027 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Fel-Pro # MS96027 • For 403 Pontiac Trans Am; use OEM 4-bbl. only (for shaker hood clearance) • HEI will clear this manifold • Manifold height: A-2.50in.; B-3.90in. • Carb pad height: 3.20in. • Carb recommendations: Edelbrock AVS2 or Performer Series 500-650 cfm • Port exit dimensions: 1.18in. x 1.86in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Olds 307-403 |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 3.740 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | N/A |
| Rear Maximum Height | 4.800 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | Idle -5500 |
| Series | Performer |
| Single Or Dual Plane Type | Dual |
| Usage | Street/Hi-Performance |
| Vehicle Model | Oldsmobile |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 21.3 |
| width | 14.75 |
