Edelbrock 2601 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_2601
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$654.50
-
Original price
$654.50
Original price
$654.50
$654.50
$654.50
-
$654.50
Current price
$654.50
Availability:
4+ in stock
Description

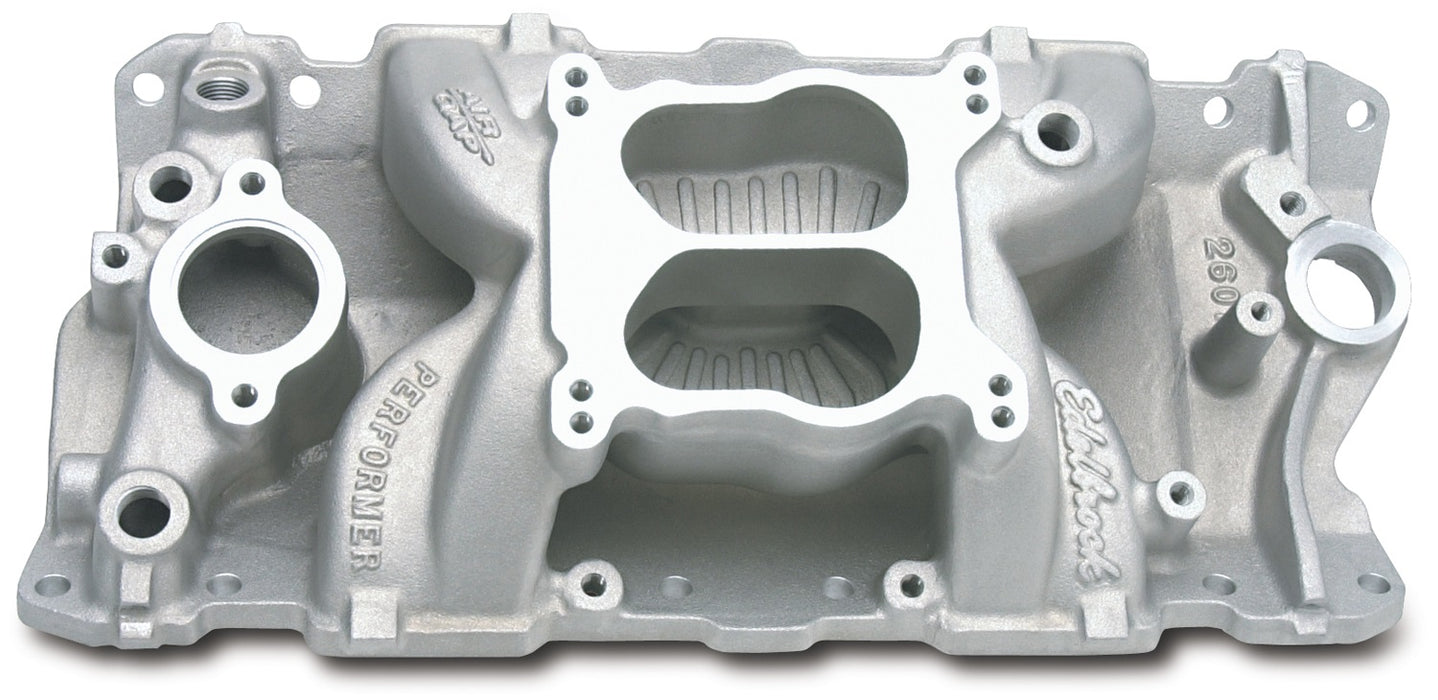

Edelbrock part #2601 Performer Air-Gap intake manifold is designed for 1955-86 262-400 c.i.d. small-block Chevys. This Performer Air-Gap intake manifold features an air-gap design for the ultimate street performance in the idle to 5500 rpm range. This design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. High-velocity runners deliver excellent throttle response throughout the power band. The great looks of the Performer Air-Gap along with the solid idle to 5500 rpm performance makes this an ideal choice for street rods and street machines. No provision for exhaust heated chokes or exhaust crossover. Fits spread-bore or square-bore carburetors. Will not fit under stock Corvette hood.
Specifications
| Basic Operating RPM Range | Idle-5500 |
| Center Maximum Height | 4.320 |
| CNC Ported | No |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen I:265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer Air-Gap Intake Manifold for 1955-86 262-400 Small-Block Chevrolet V8's. Work with Either a Q-Jet or a 4150-Style Square-Bore Carburetor. Non-EGR. |
| Description_EXT | Edelbrock Performer Air-Gap Intake Manifold for 1955-86 262-400 Small-Block Chevrolet V8ft.s. Work with Either a Q-Jet or a 4150-Style Square-Bore Carburetor. Non-EGR. |
| Description_FAB | Air Gap Causes Cool and Dense Mixture More Power |
| Description_FAB | Also In Polished/PermaStar/EnduraShine Finish |
| Description_FAB | Based On Performer-Series With Unique Air Gap |
| Description_FAB | Dual-Plane Low-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | Excellent Throttle Response and Mid-Range Power |
| Description_FAB | Fits Both Spread and Square Bore Carburetors |
| Description_FAB | For Idle to 5500 RPM Street-Driven Performance |
| Description_FAB | Patented Runner Design Ensures Broad Torque Curve |
| Description_INV | Performer Air-Gap SBC Intake Manifold |
| Description_KEY | 2601; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer; Satin |
| Description_LAB | Performer Air-Gap Intake Manifold for 1955-86 Small-Block Chevy |
| Description_MKT | Edelbrock part #2601 Performer Air-Gap intake manifold is designed for 1955-86 262-400 c.i.d. small-block Chevys. This Performer Air-Gap intake manifold features an air-gap design for the ultimate street performance in the idle to 5500 rpm range. This design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. High-velocity runners deliver excellent throttle response throughout the power band. The great looks of the Performer Air-Gap along with the solid idle to 5500 rpm performance makes this an ideal choice for street rods and street machines. No provision for exhaust heated chokes or exhaust crossover. Fits spread-bore or square-bore carburetors. Will not fit under stock Corvette hood. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 7in.} |
| Description_TRA | Carb pad height: 4.32" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 500-650 cfm. Use Bracket #8031 or #8036 for 1972-78. |
| Description_TRA | DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA | Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold ht: A-3.72", B-4.92" (.27" taller than #2101) |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | Port exit dimensions: 1.14" x 1.88" |
| Description_TRA | Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_TRA | Recommended intake gasket: Edelbrock #7201. |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Manifold ht: A-3.72in.; B-4.92in. (.27in. taller than # 2101); • Carb pad height: 4.32in. • Carb recommendations: Edelbrock AVS2 or Performer Series 500-650 cfm. Use Bracket # 8031 or # 8036 for 1972-78. • Port exit dimensions: 1.14in. x 1.88in. • Recommended intake gasket: Edelbrock # 7201. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. • DO NOT OVERTIGHTEN NPT/Pipe fittings; this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. • Even though manifolds are compatible with EGR systems; this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality. • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Chevy Small Block (262-400) |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 3.720 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 5.75 |
| length | 22.25 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | N/A |
| Rear Maximum Height | 4.920 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | Idle -5500 |
| Series | Performer Air-Gap |
| Single Or Dual Plane Type | Dual |
| Usage | Street/Hi-Performance |
| Vehicle Model | Chevrolet |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 16.5 |
| width | 10.25 |
